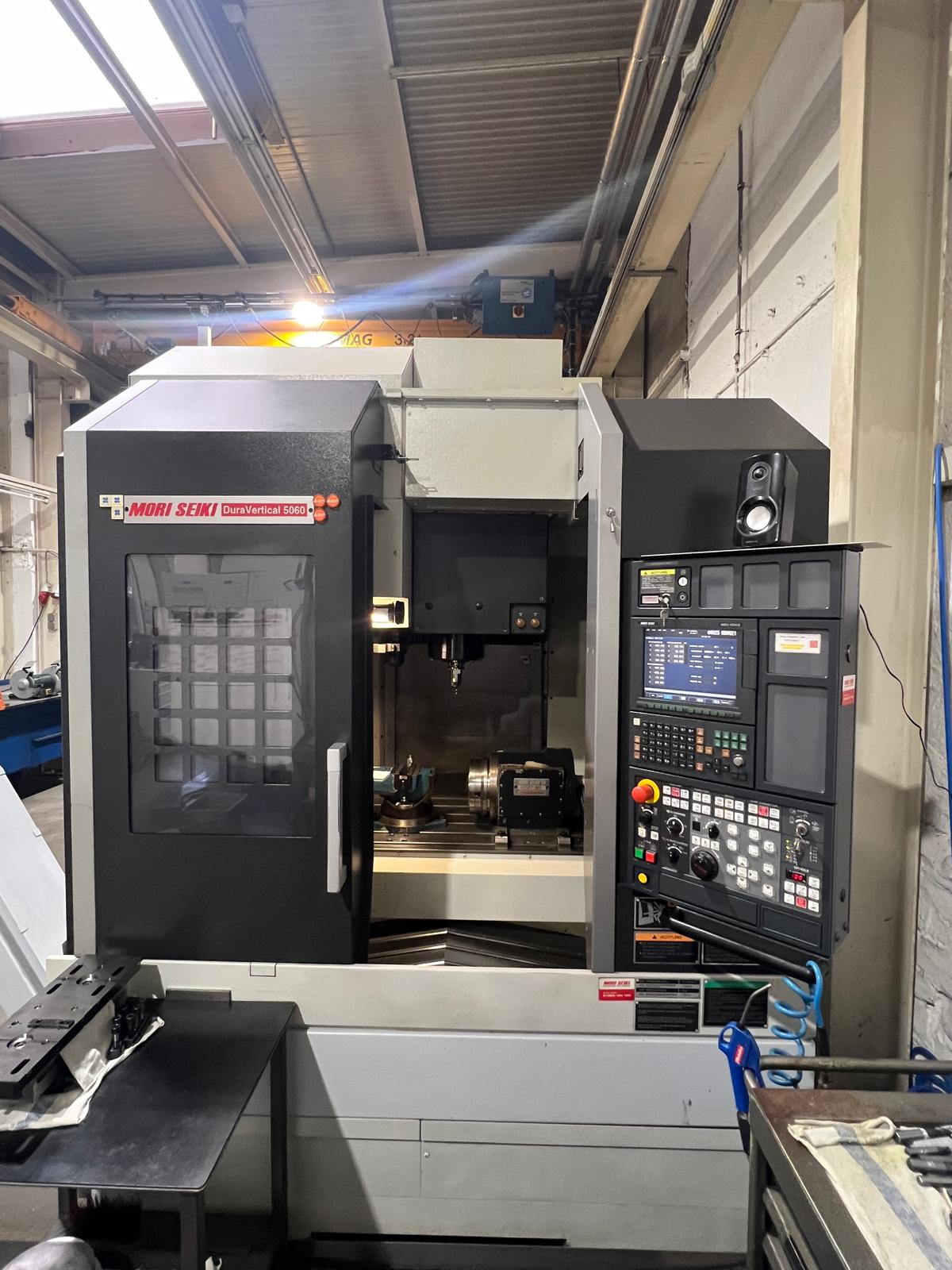

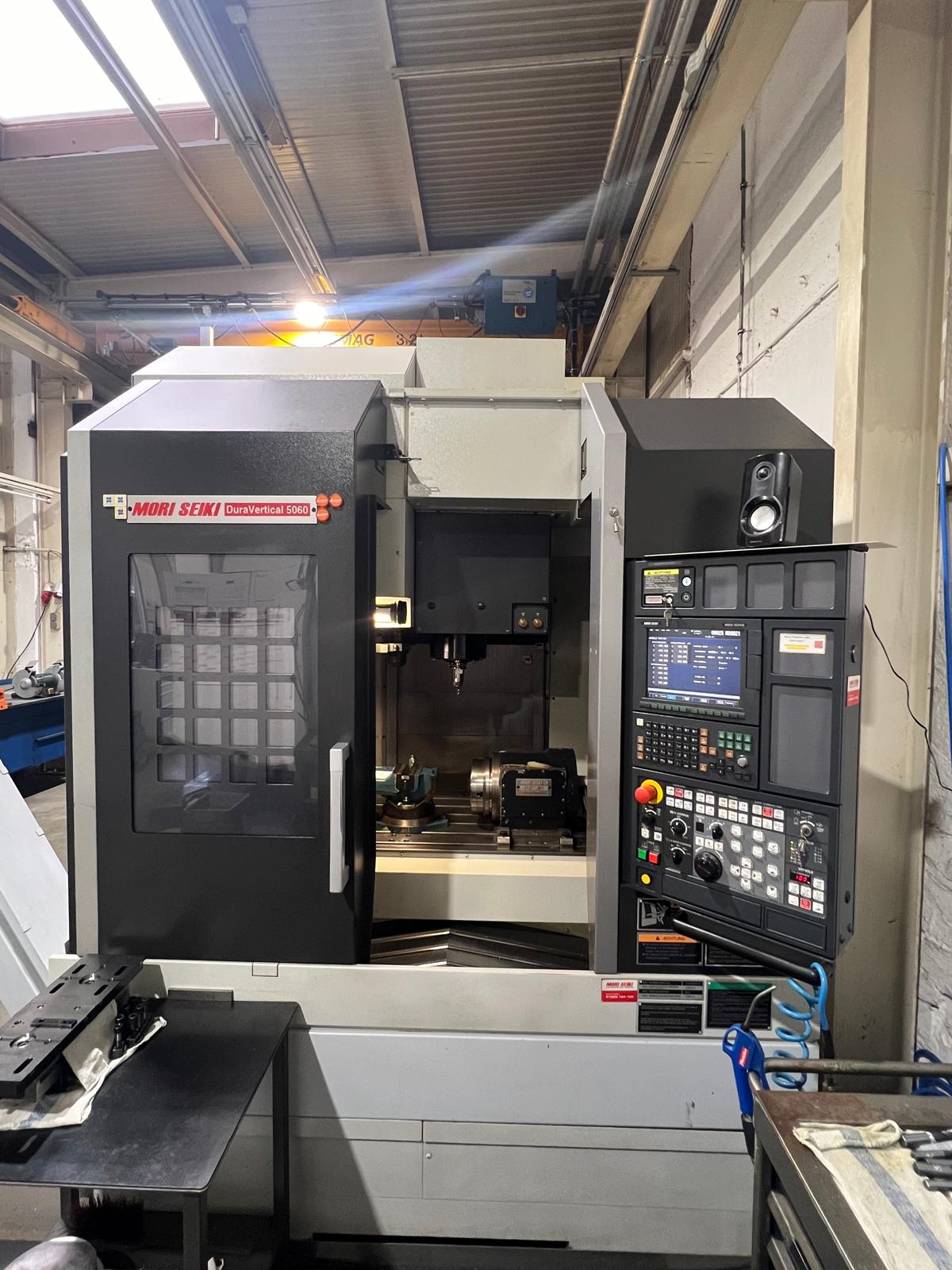

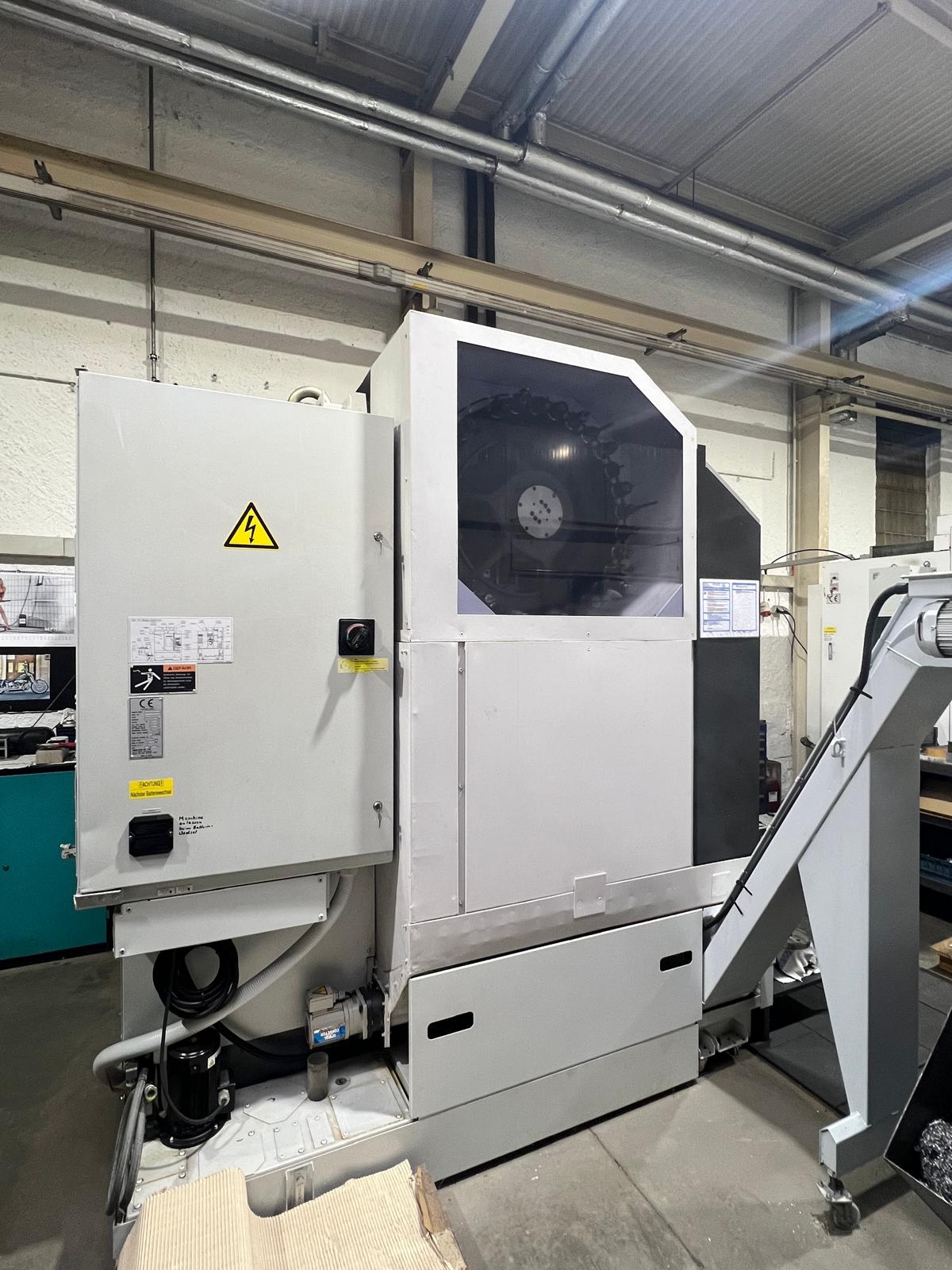

MORI SEIKI DuraVertical 5060
Year: 2010
Control MSX-504 III

x-travel 600mm
y-travel 530mm
z-travel 510mm

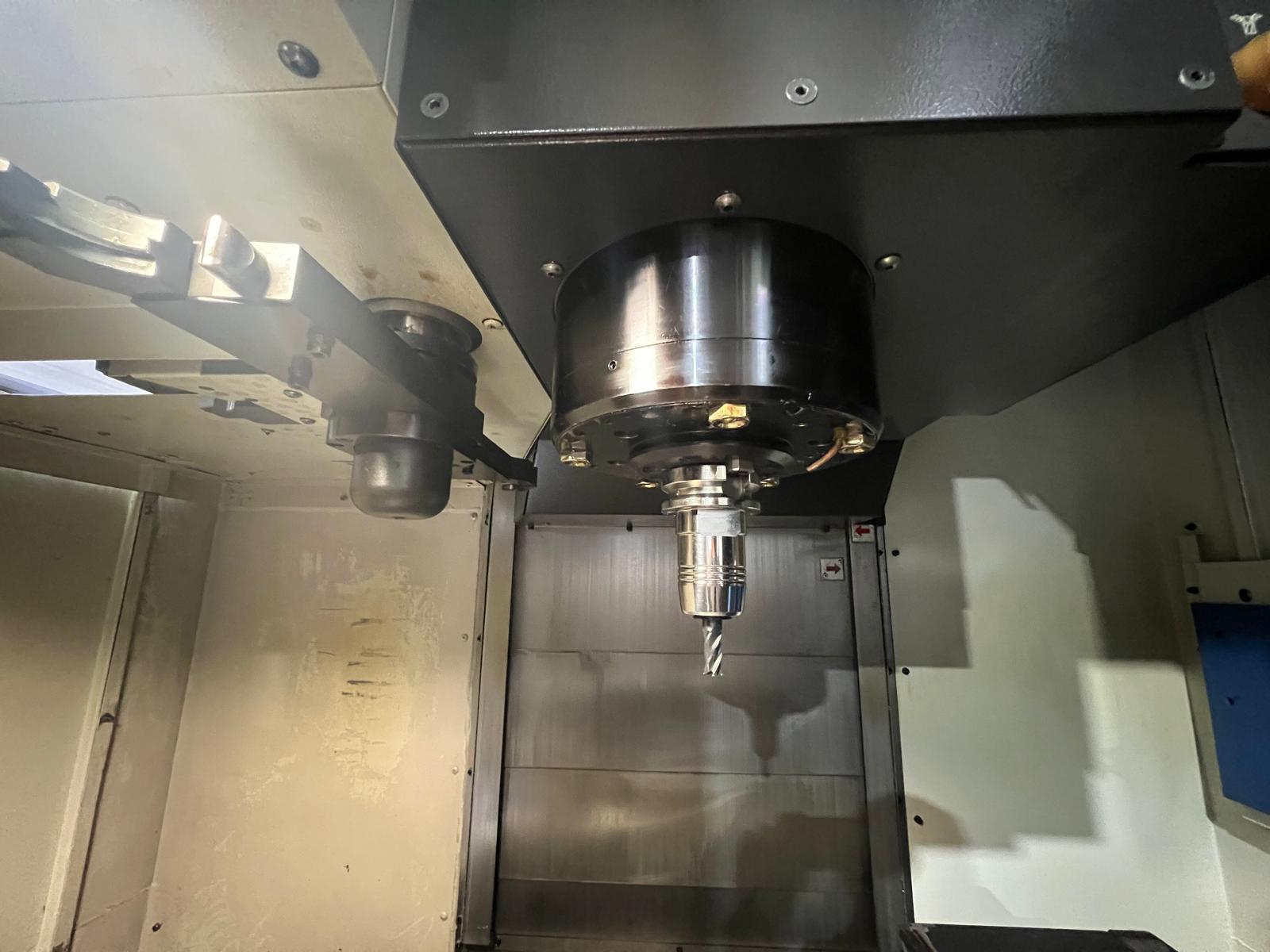

Main spindle:
turning speeds max. 10.000min/-1
power capacity - main spindel 15 / 11kW
tool taper BT 40
spindle bearing diameter 70mm
distance spindle /table 150 - 660mm

work table:
table surface area 900 x 600mm
max. table load 500kg
T-slots 6x 18mm

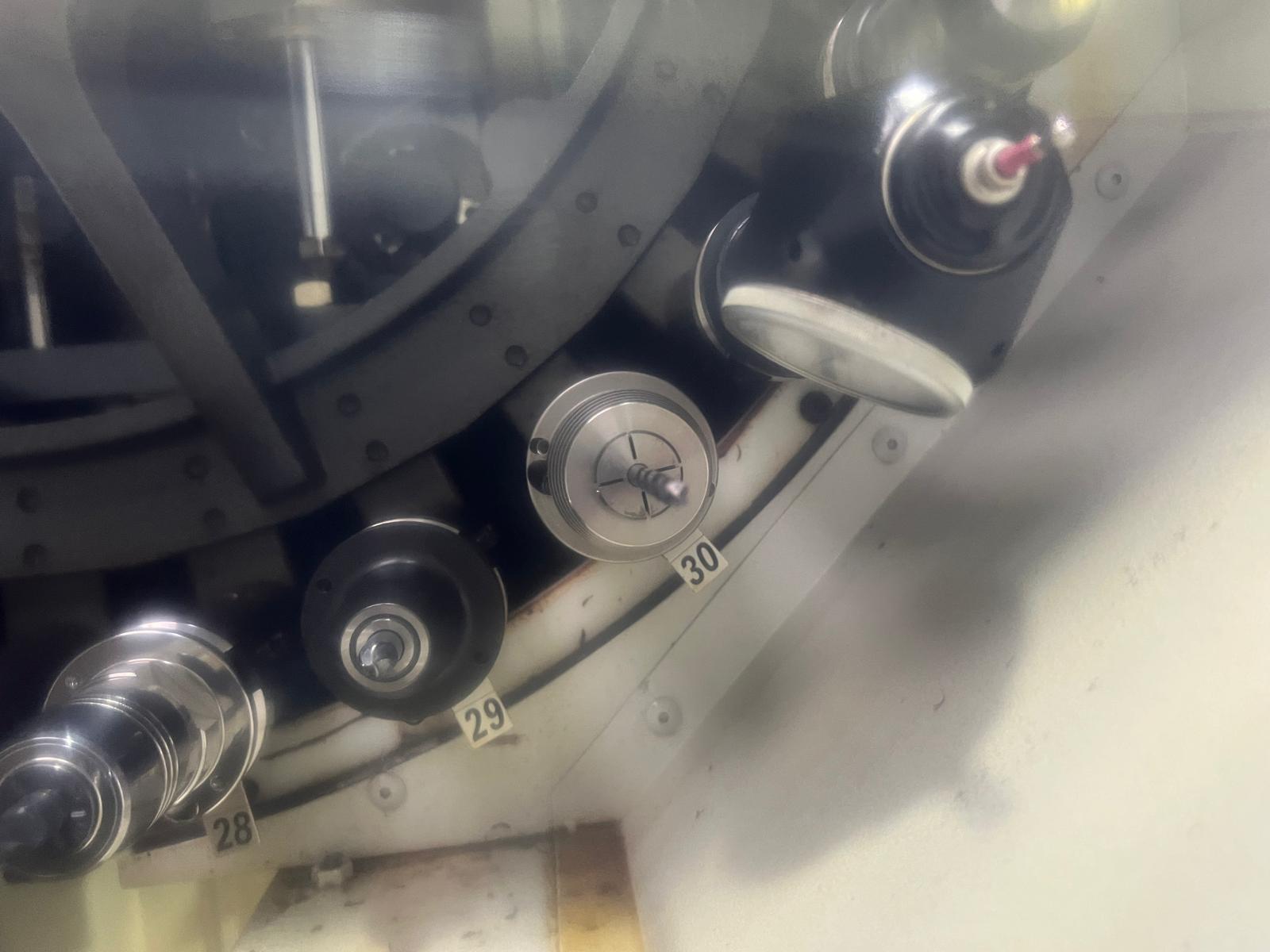

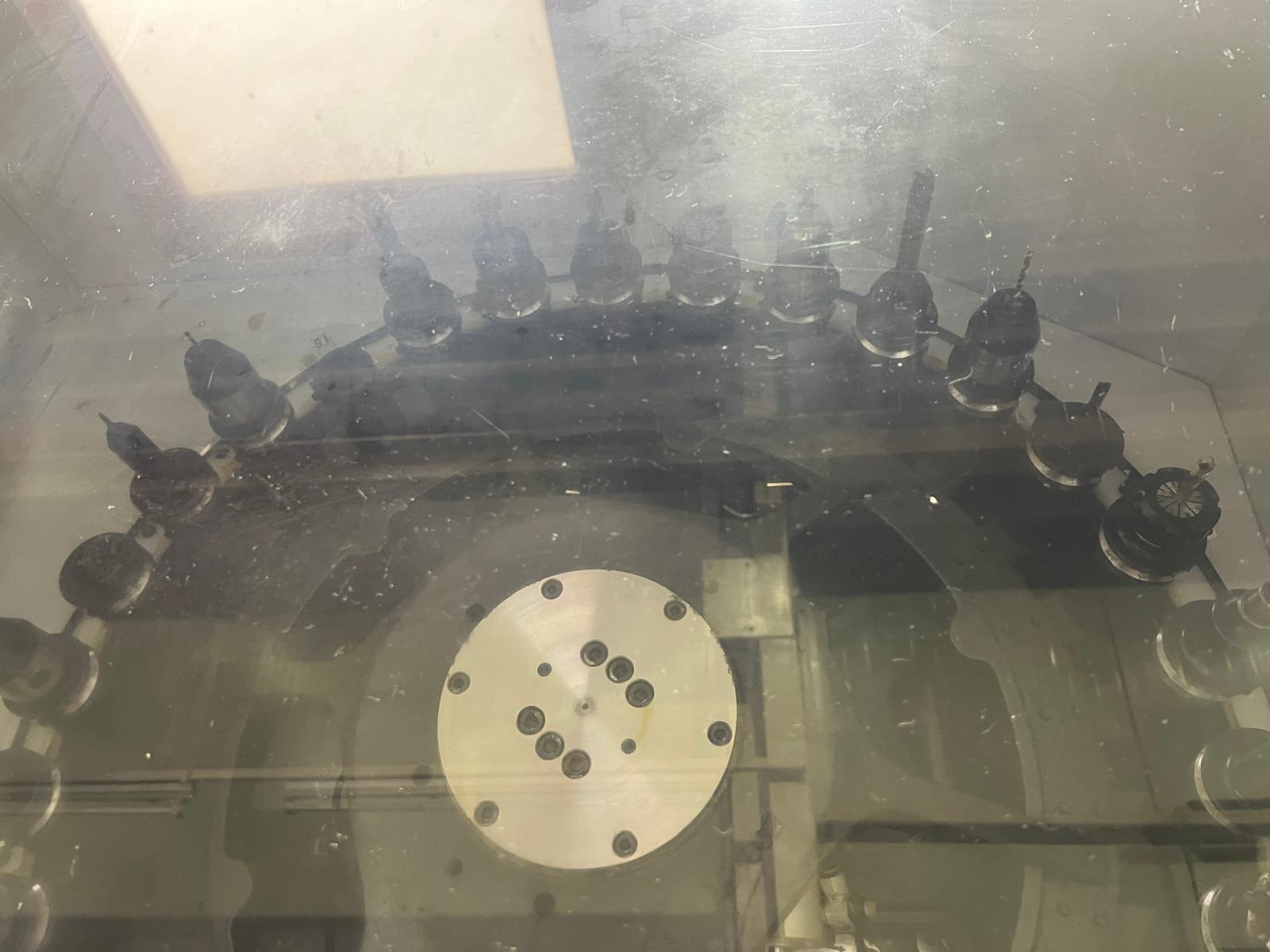

turret:
number of toolpositions 30pos.
tool taper BT 40
max. tool diameter 80mm
max. tool-dia with free toolbox 125mm
max. tool length 300mm
max. tool weight 8,0kg

feeds:
rapid traverse ( X / Y / Z ) 36 / 36 / 20m/min
feed speeds max. 6.000mm/min
Tipp feed 0 - 5.000mm/min

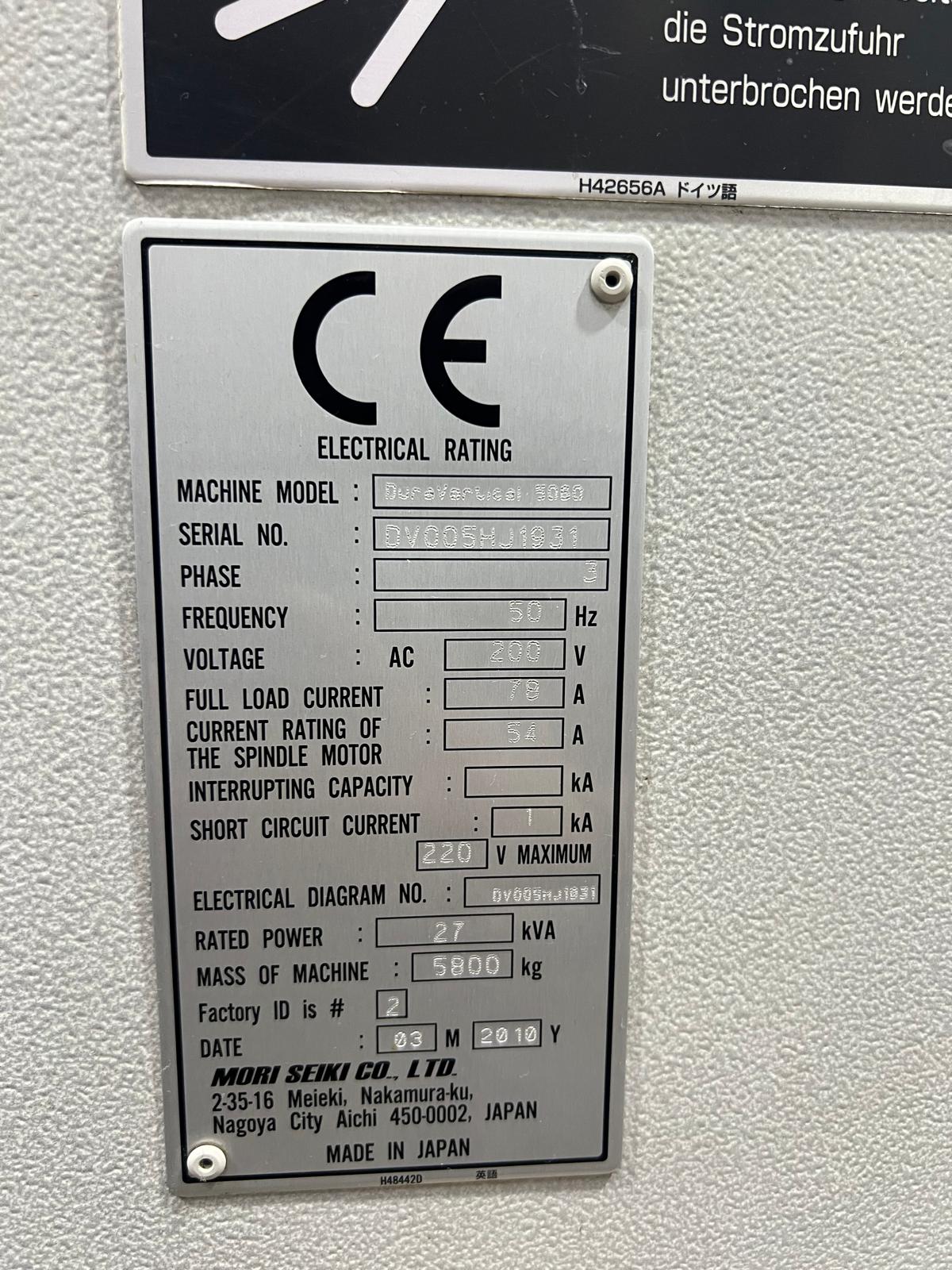

total power requirement 27kVA
weight of the machine ca. 5,8t
dimensions of the machine ca. 3,5 x 3,0 x 2,8m

Accessories/options:

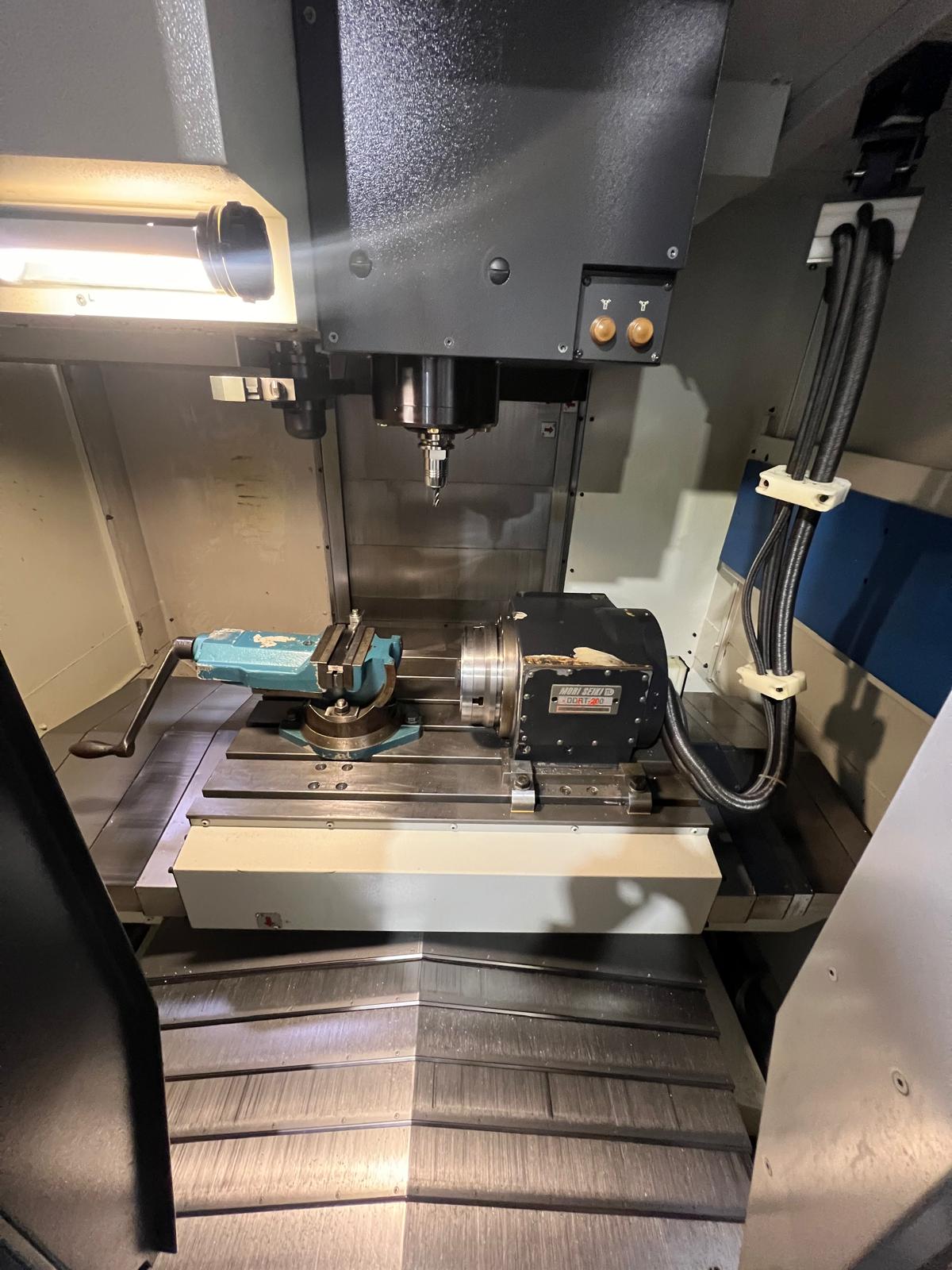

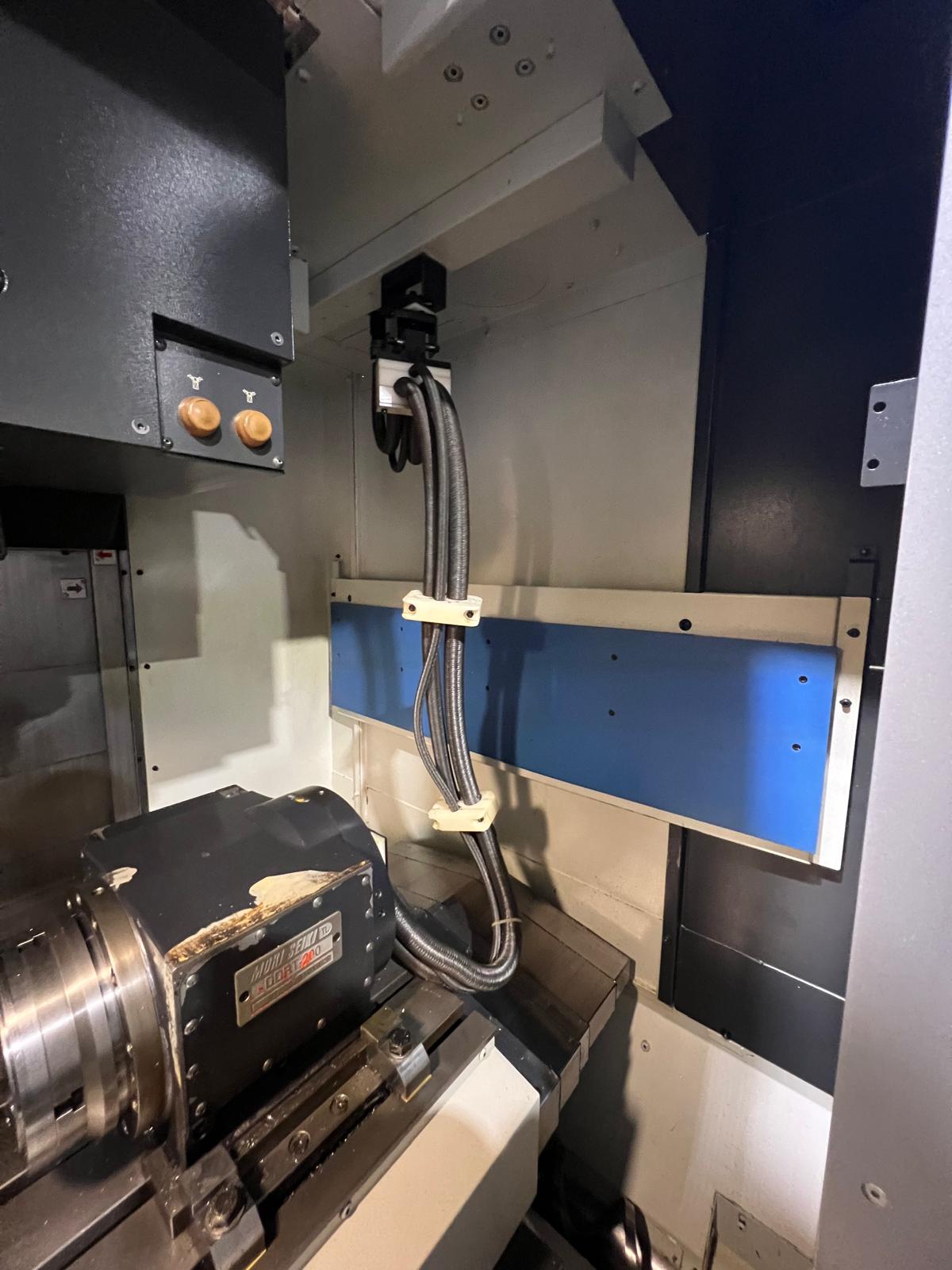

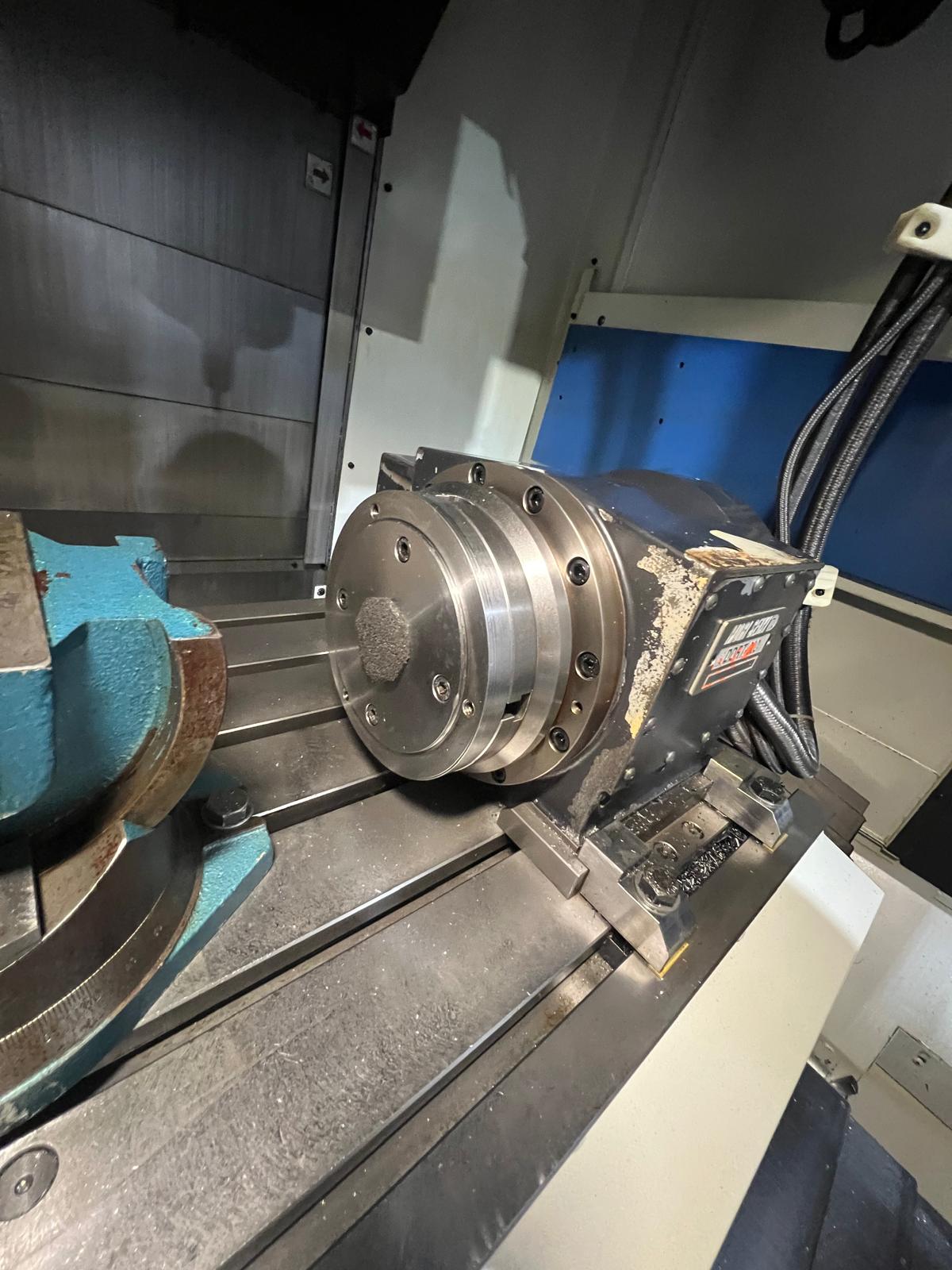

4.axis rotary table
tool holders BT40 type, 30 pieces

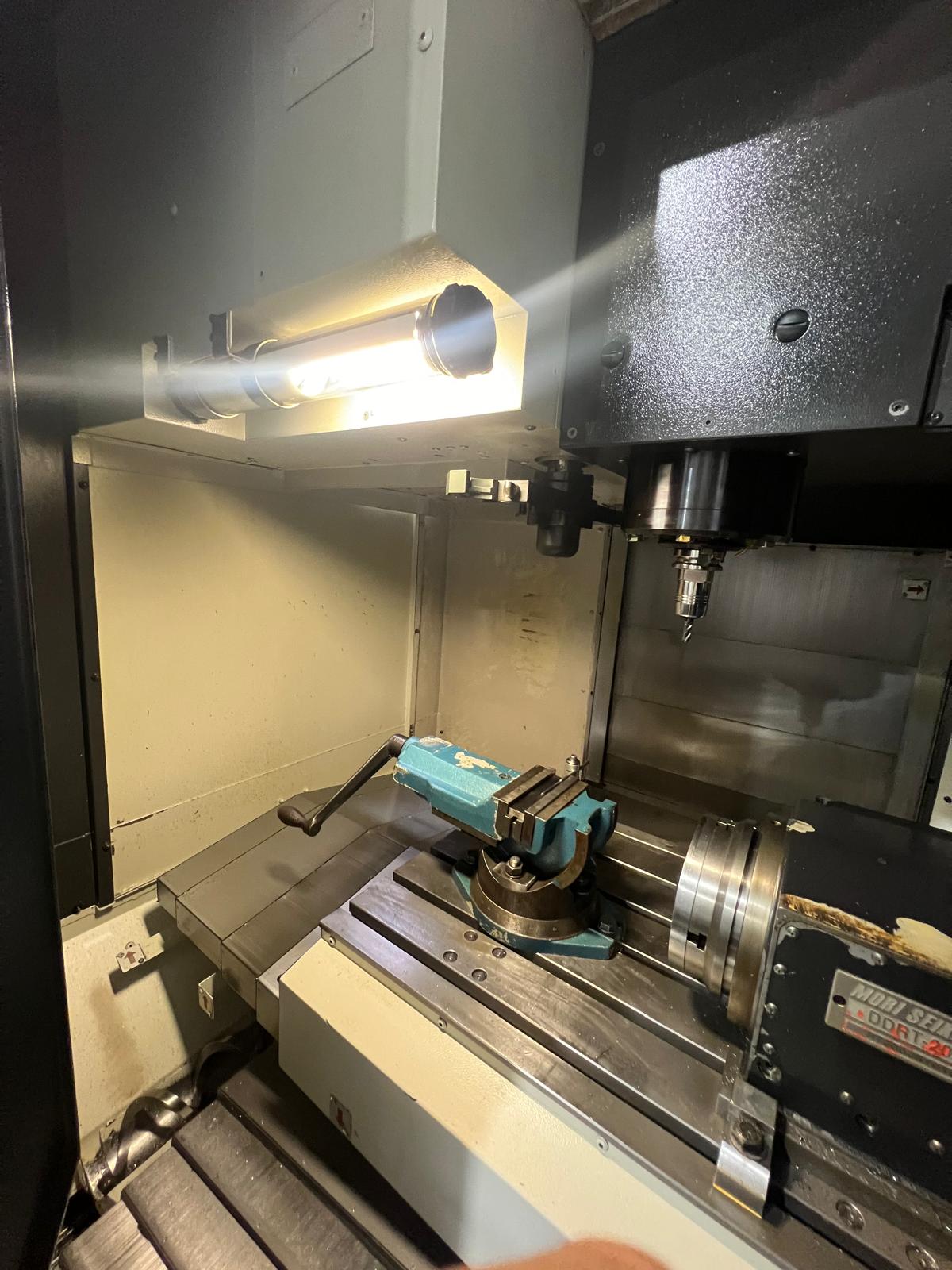

precision vice
swarf conveyor
coolant tank
documentations
