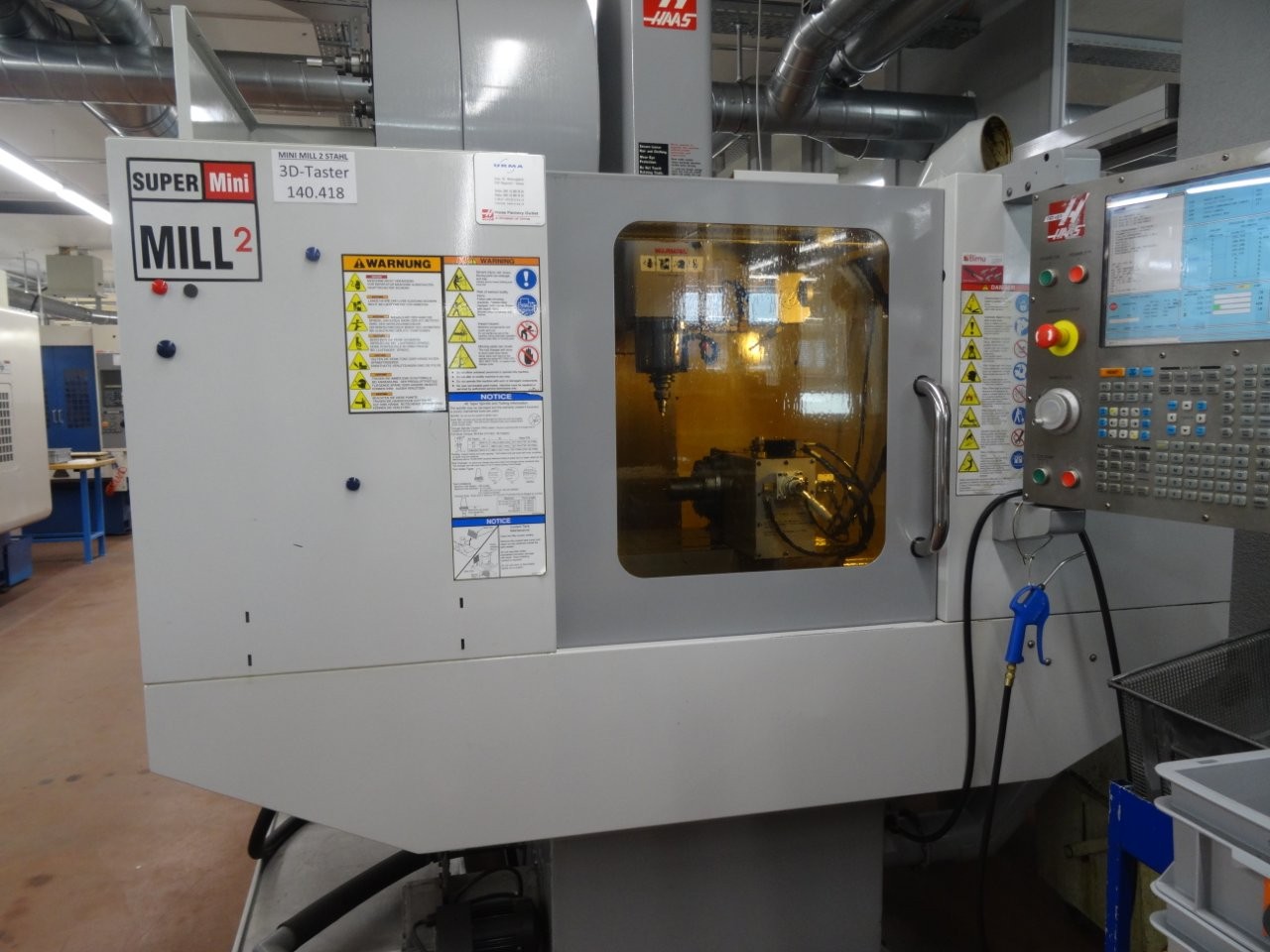

Haas Super Mini Mill 2 vertical machining center
Year: 2009

Technical data:

X-Axis 406 mm
Y-Axis 305 mm
Z-Axis 254 mm
Table size 914 x 305 mm
Max. Load on table 227 kgs.
Spindle taper SK40
Spindle speed 10000 RPM
Spindle motor 11.2 kW
Tool changer 24 station automatic Tool changer
Feed rate all axes 21.2 m/min
Rapid traverse feed rate all axes 30.5 m/min

Accessories/options:

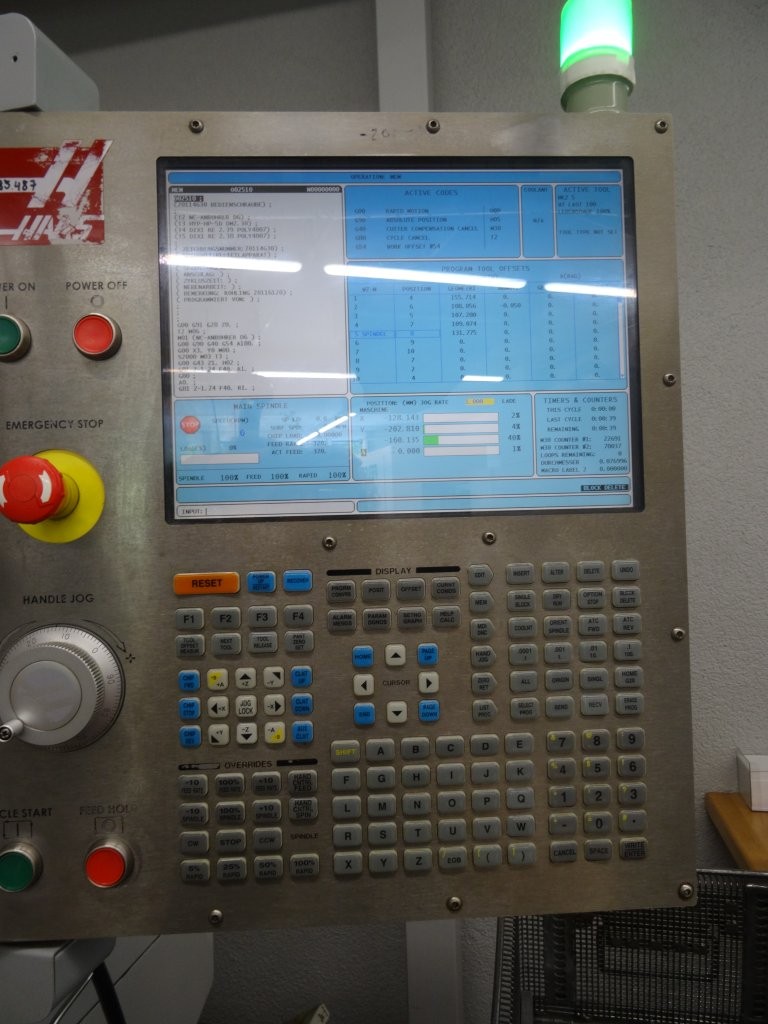

- Control CNC Control Haas, electronic Handwheel

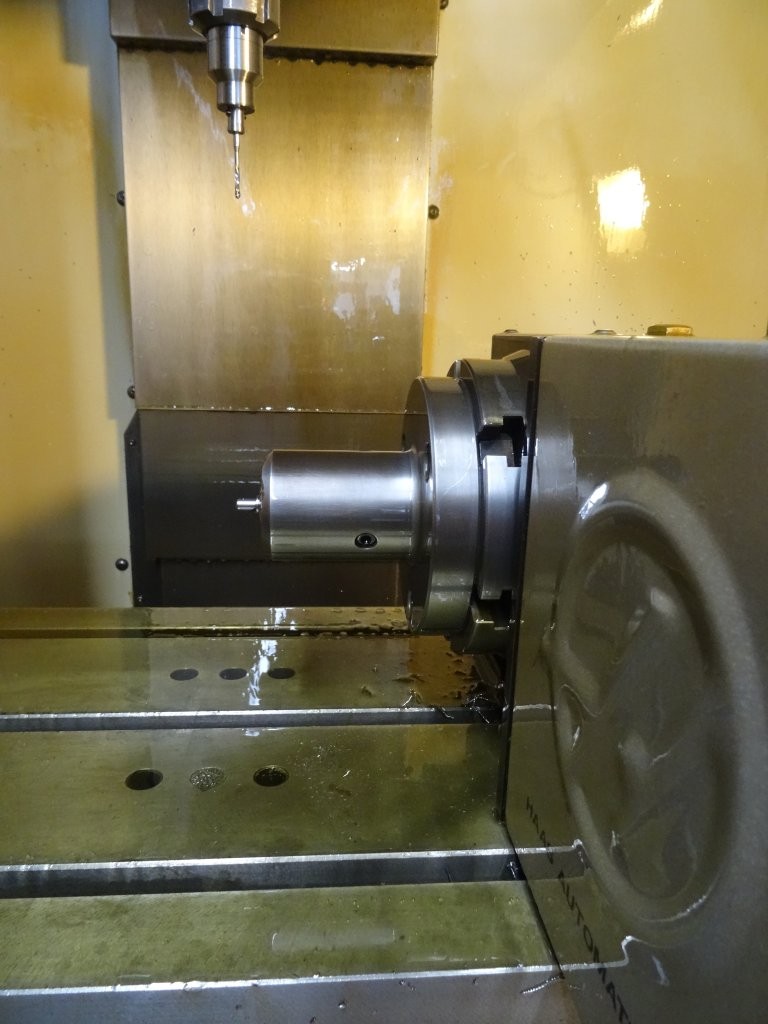

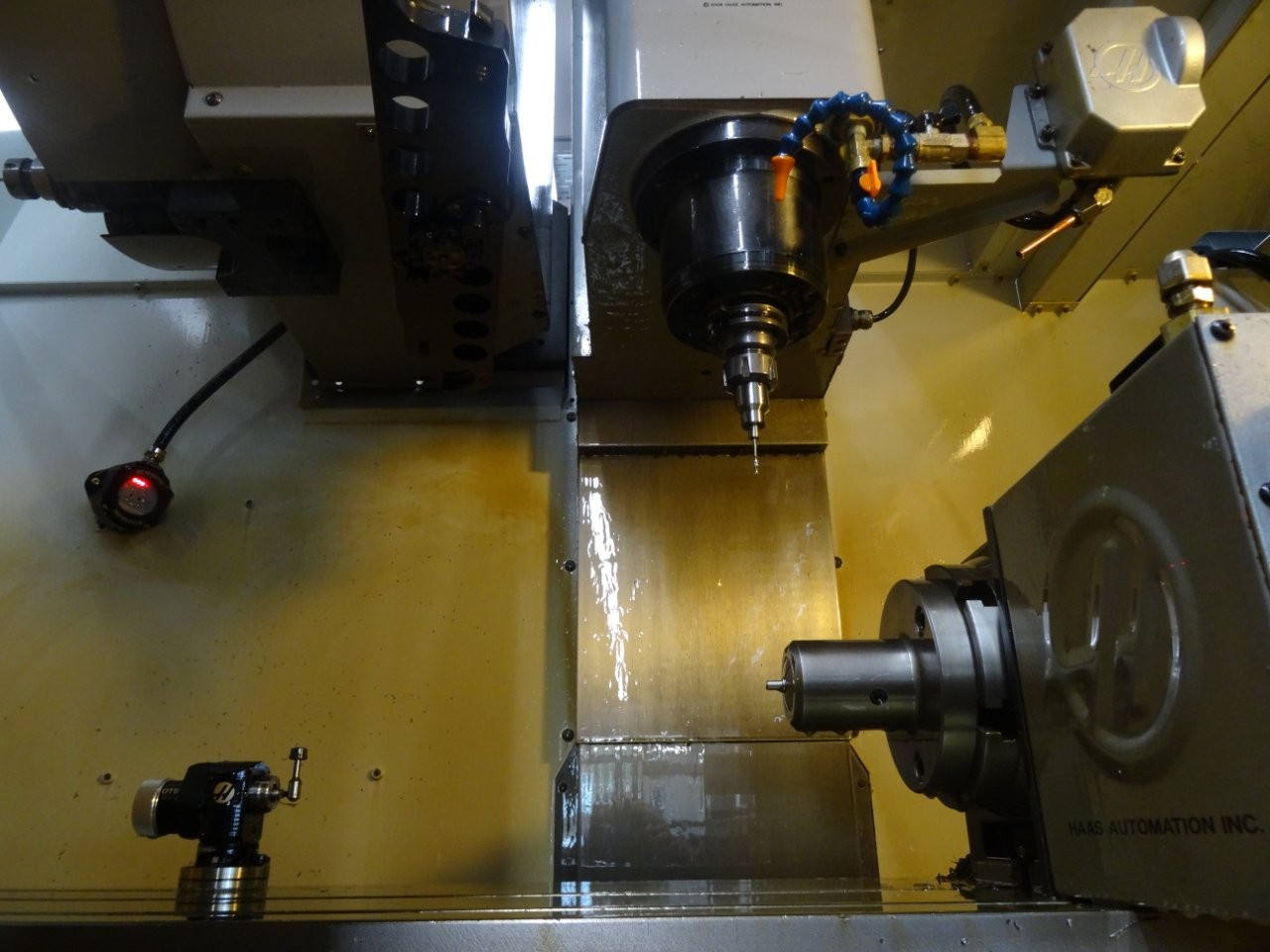

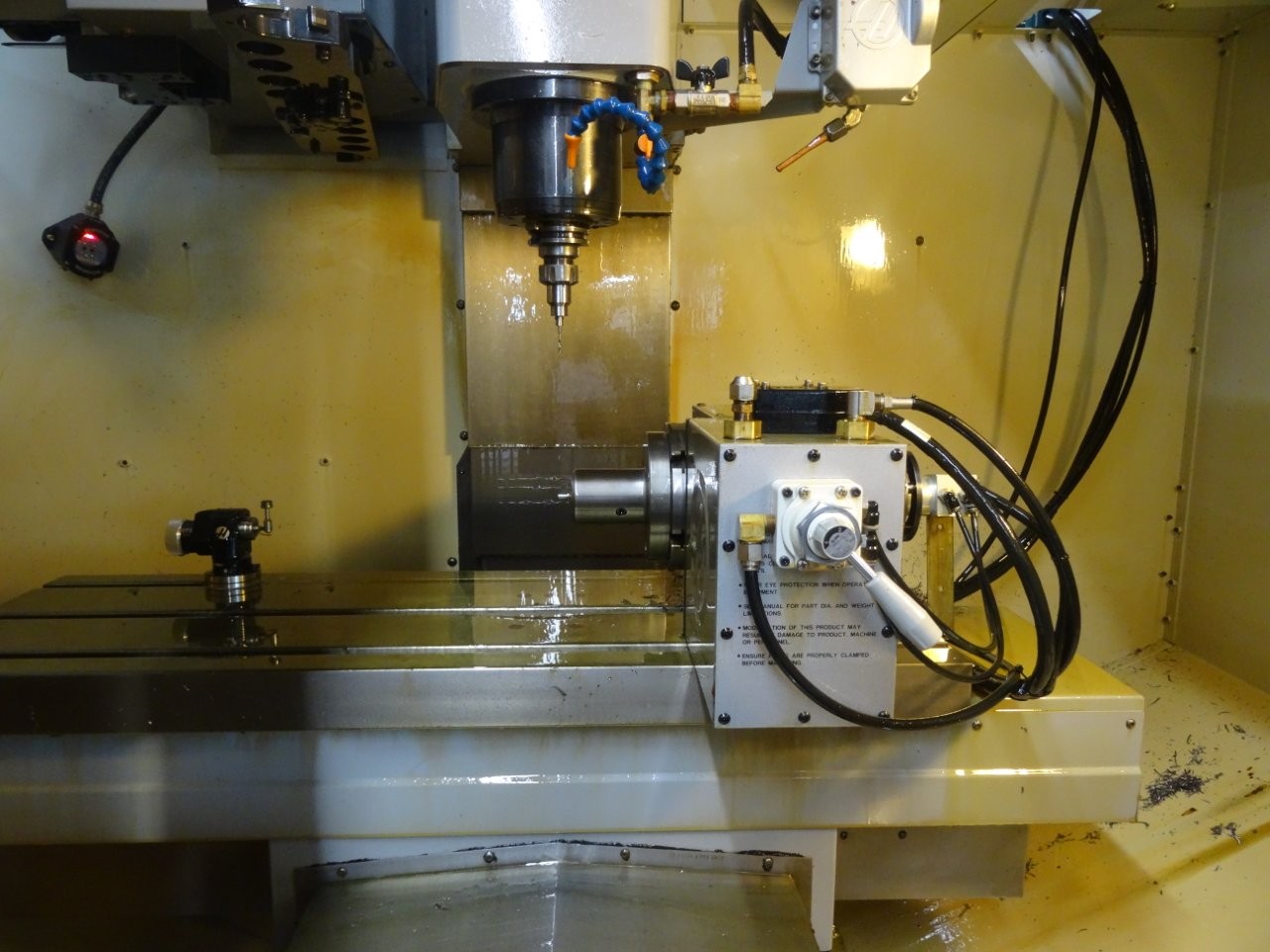

- Accessories HRT 160 rotary table
- WIPS

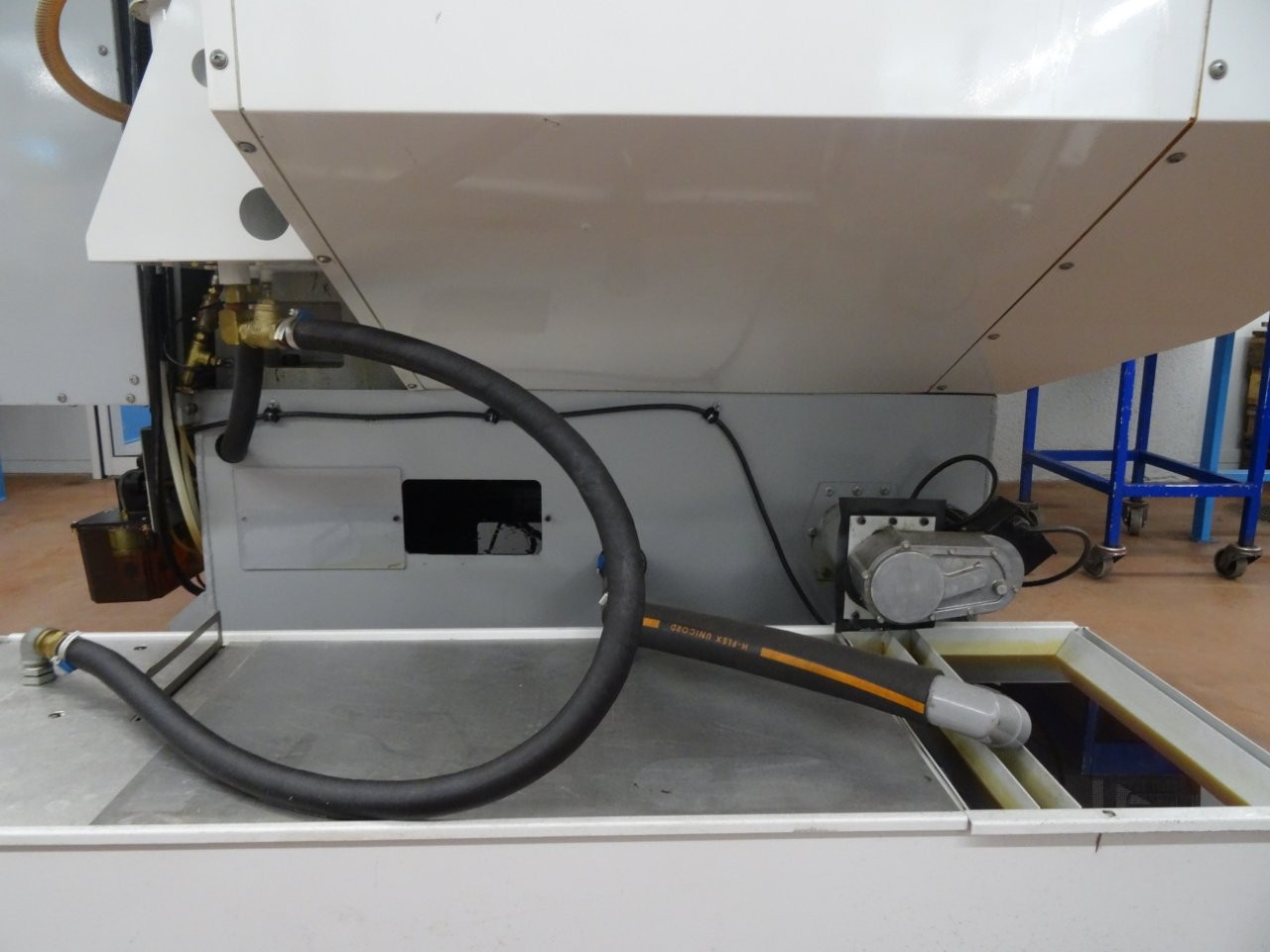

- Coolant Standard Coolant equipment Haas, capacity 151 ltrs.
