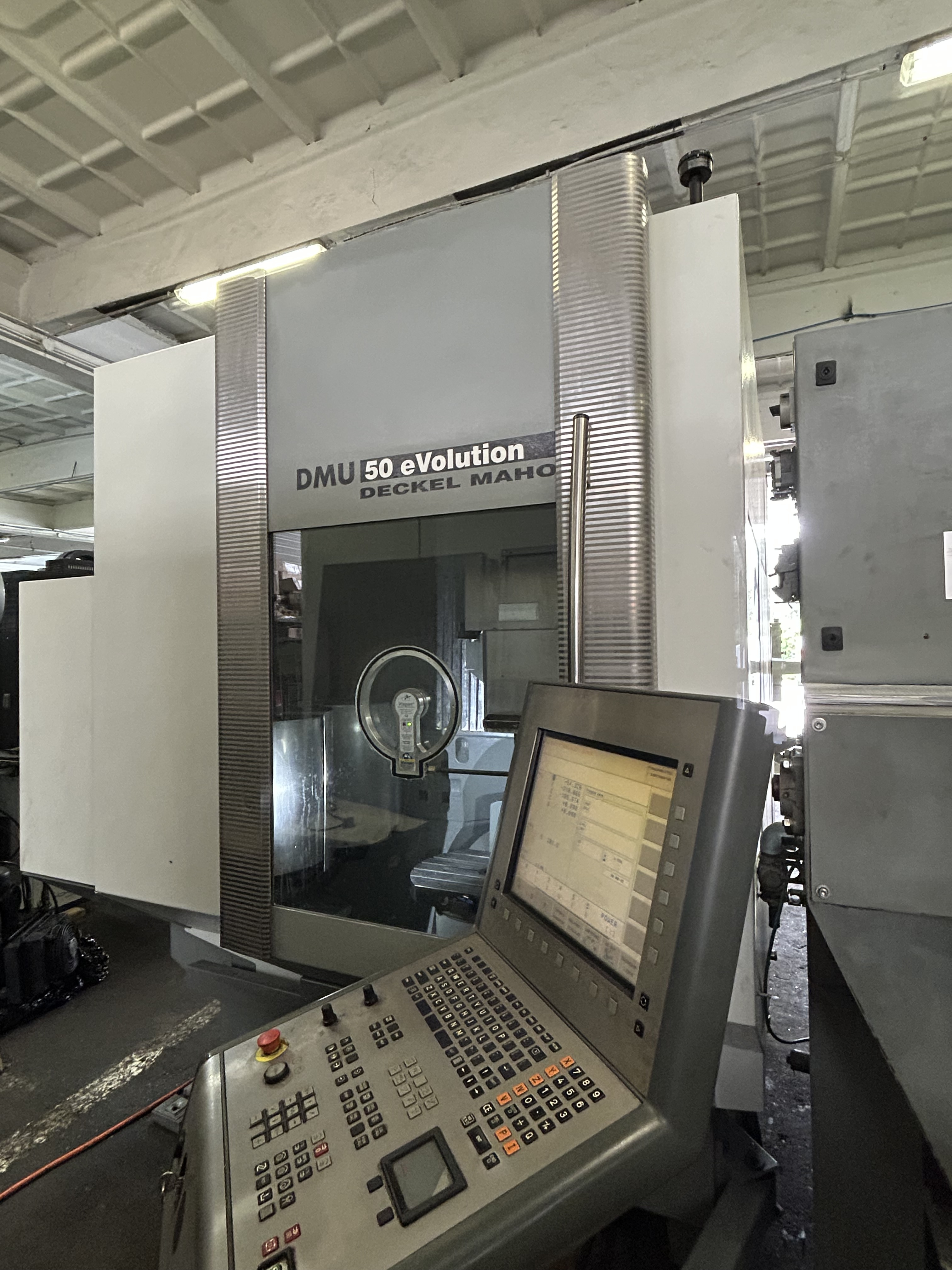

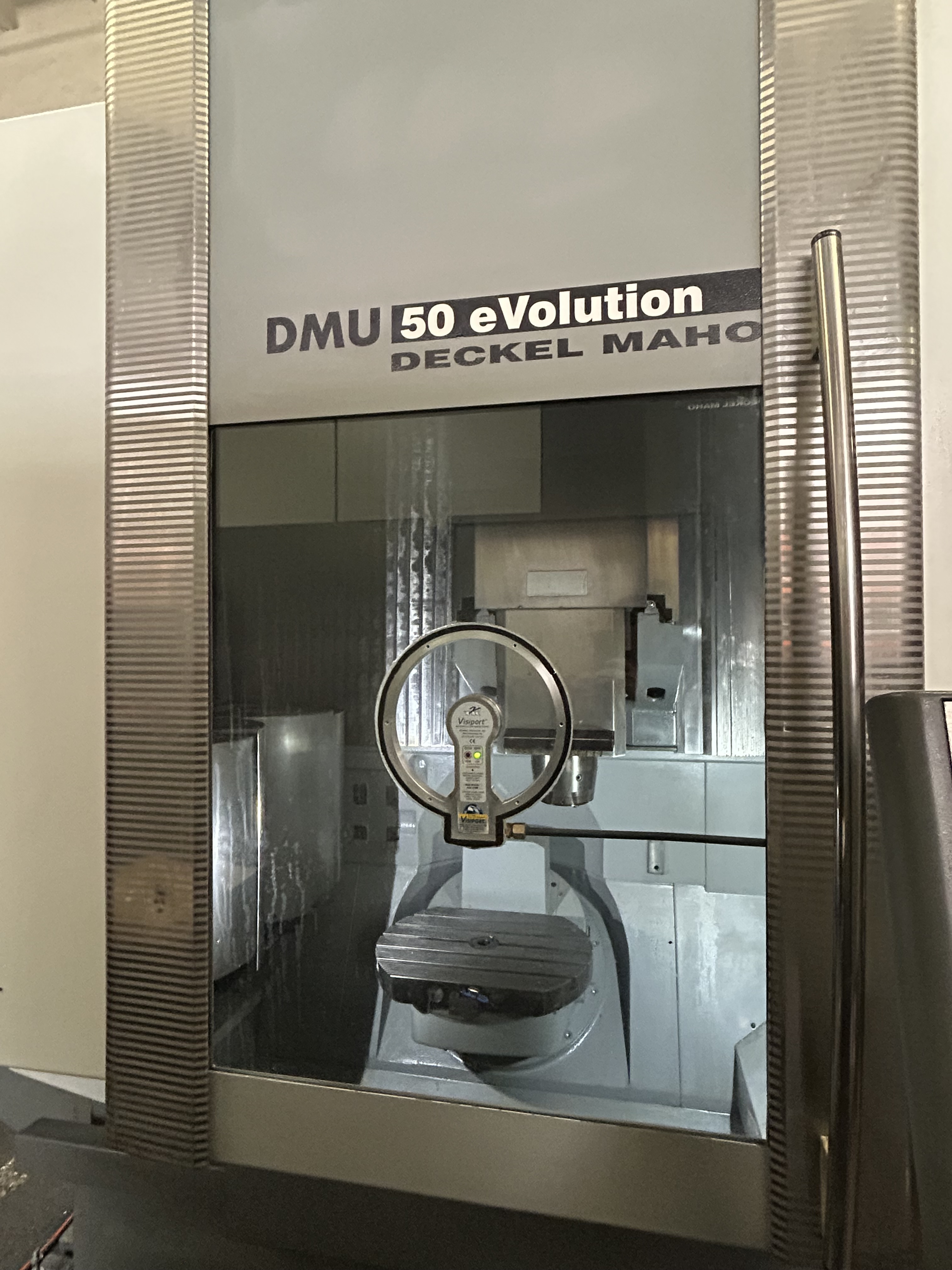

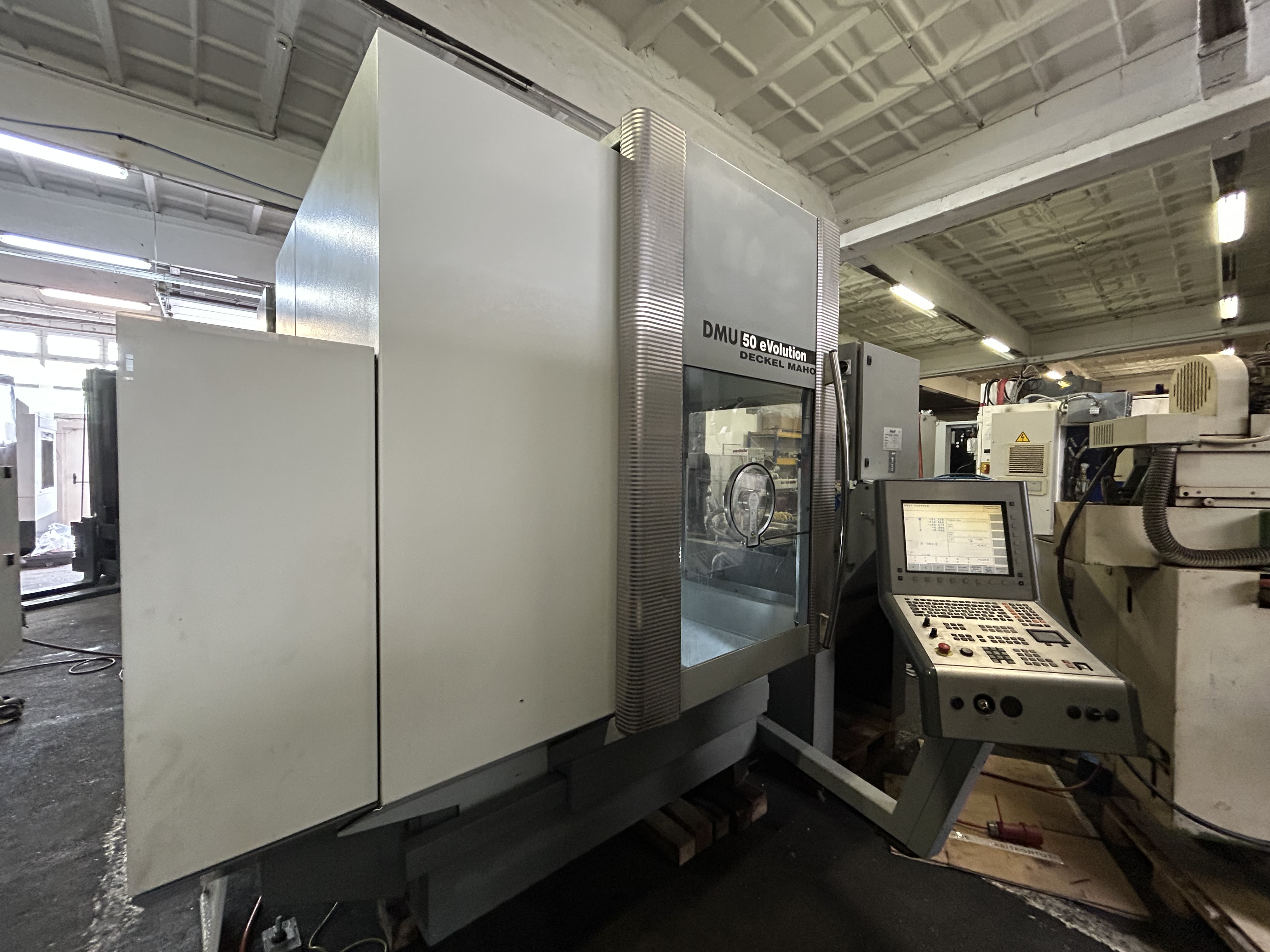

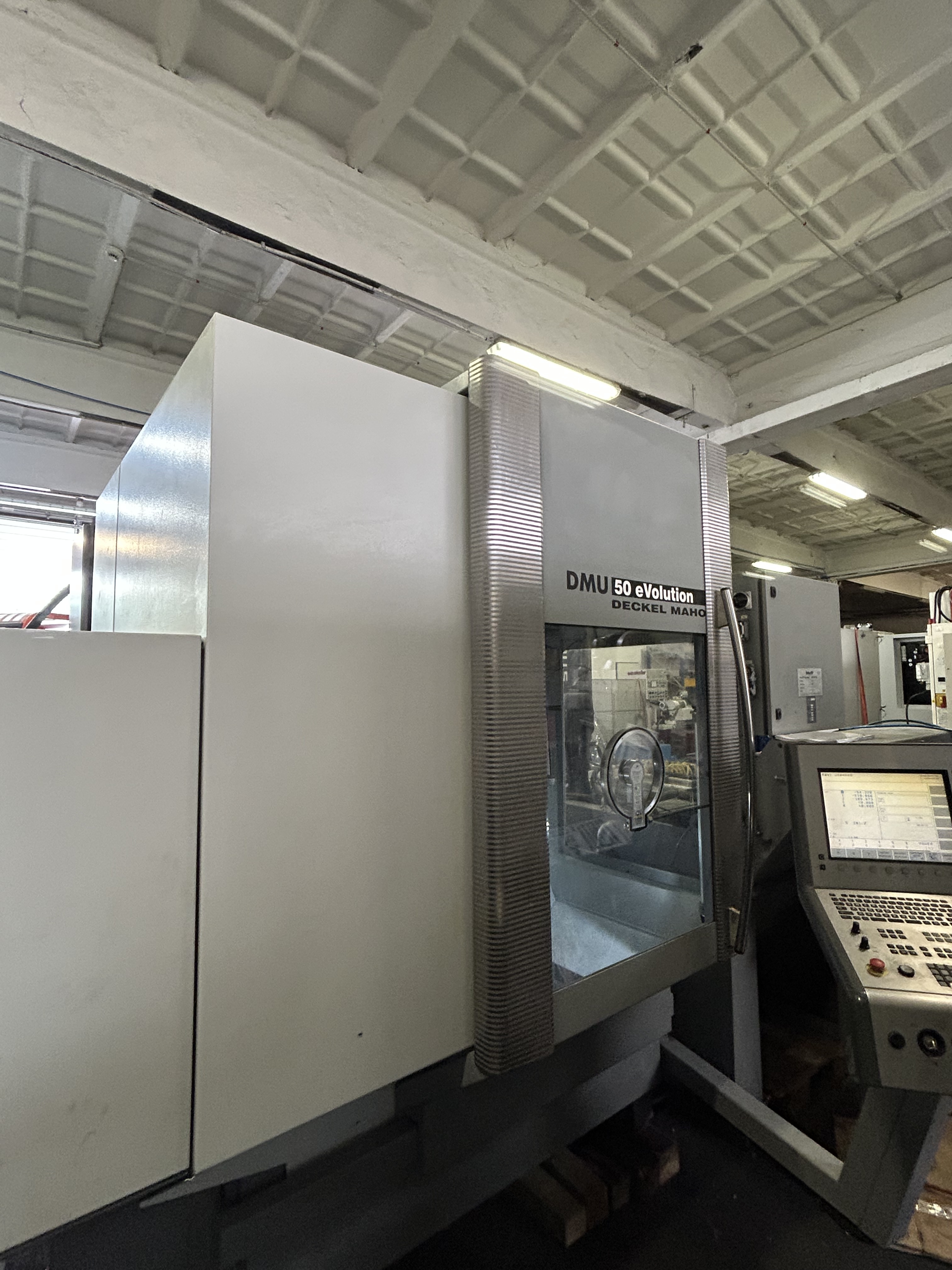

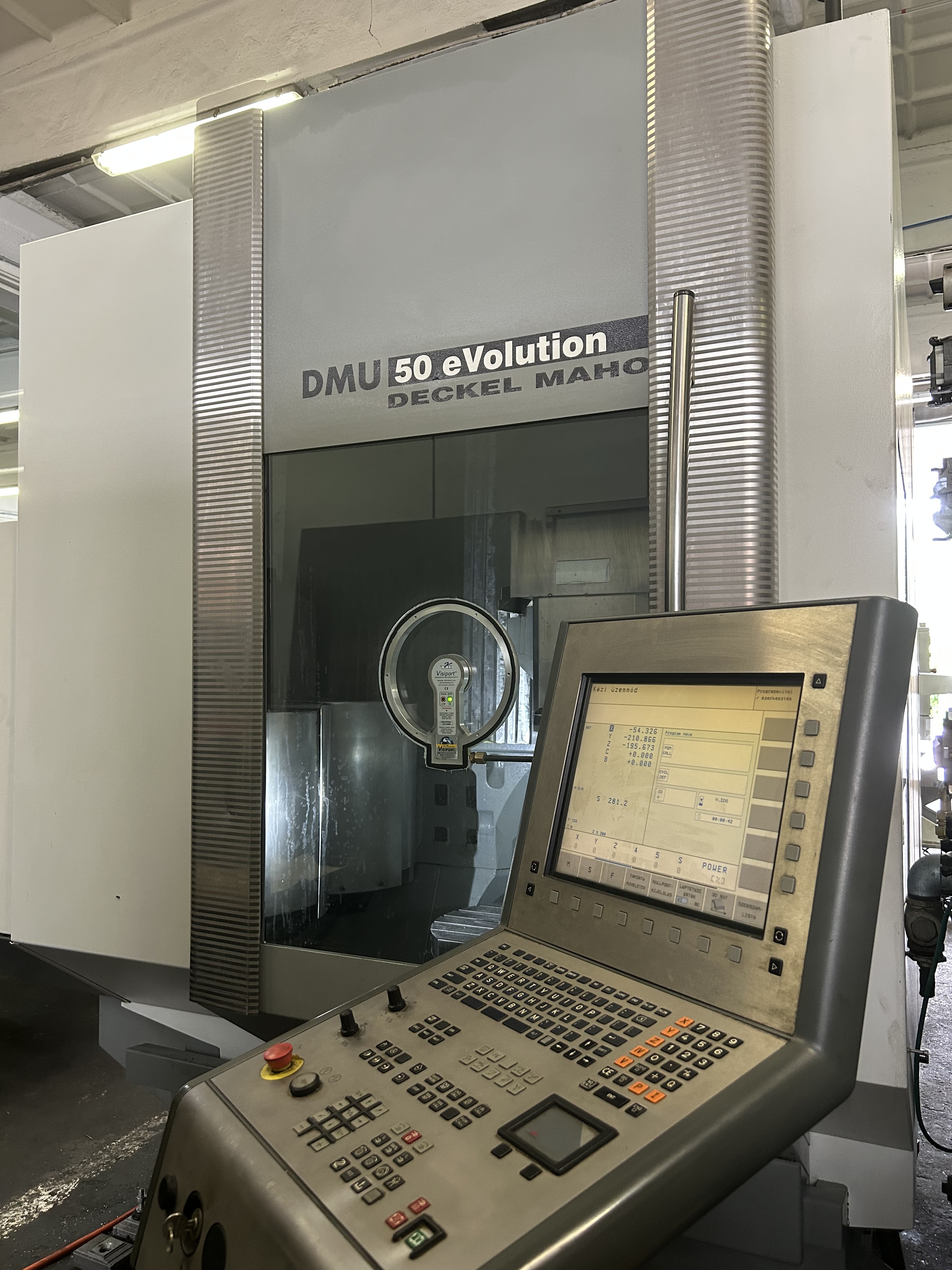

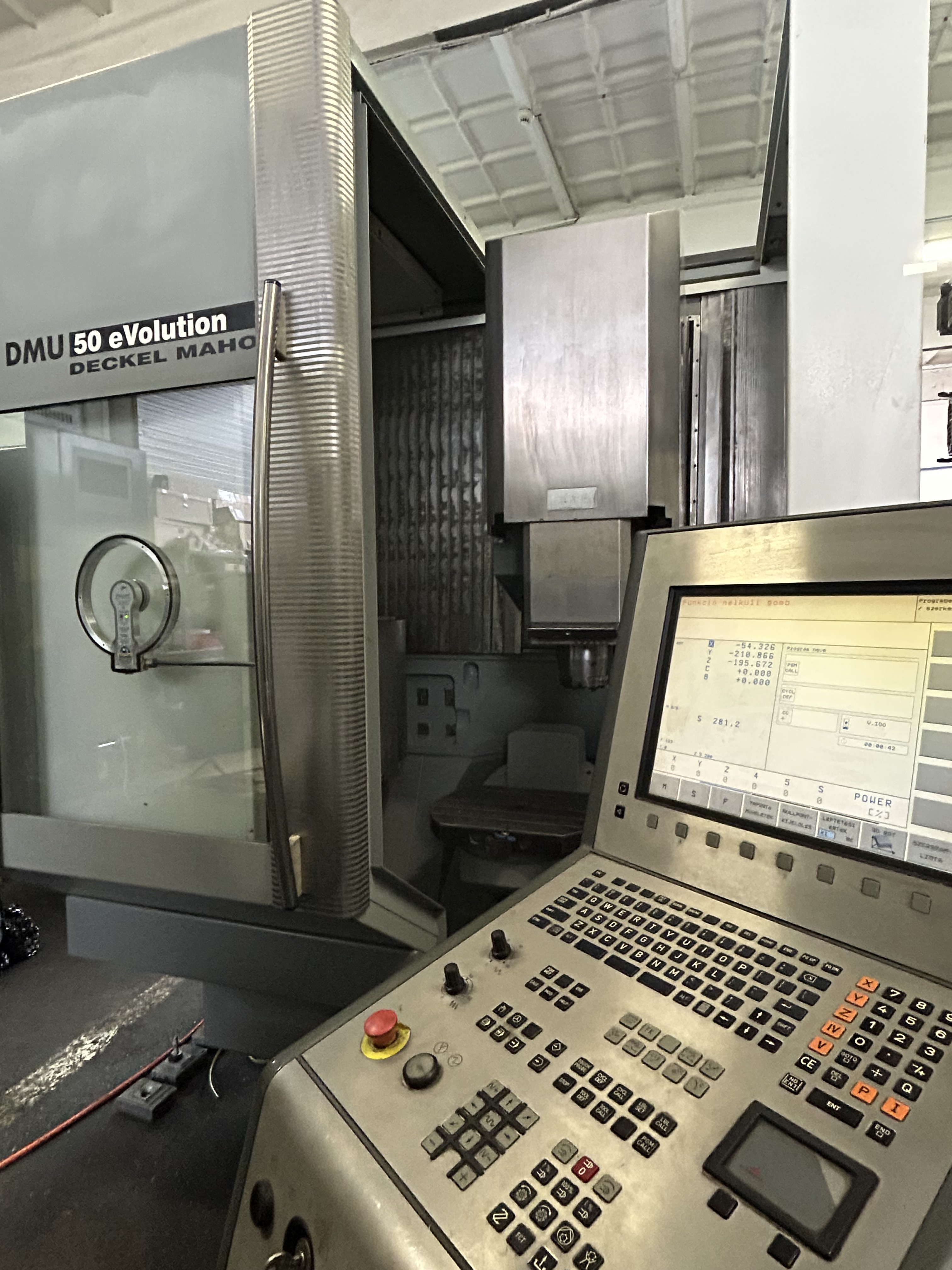

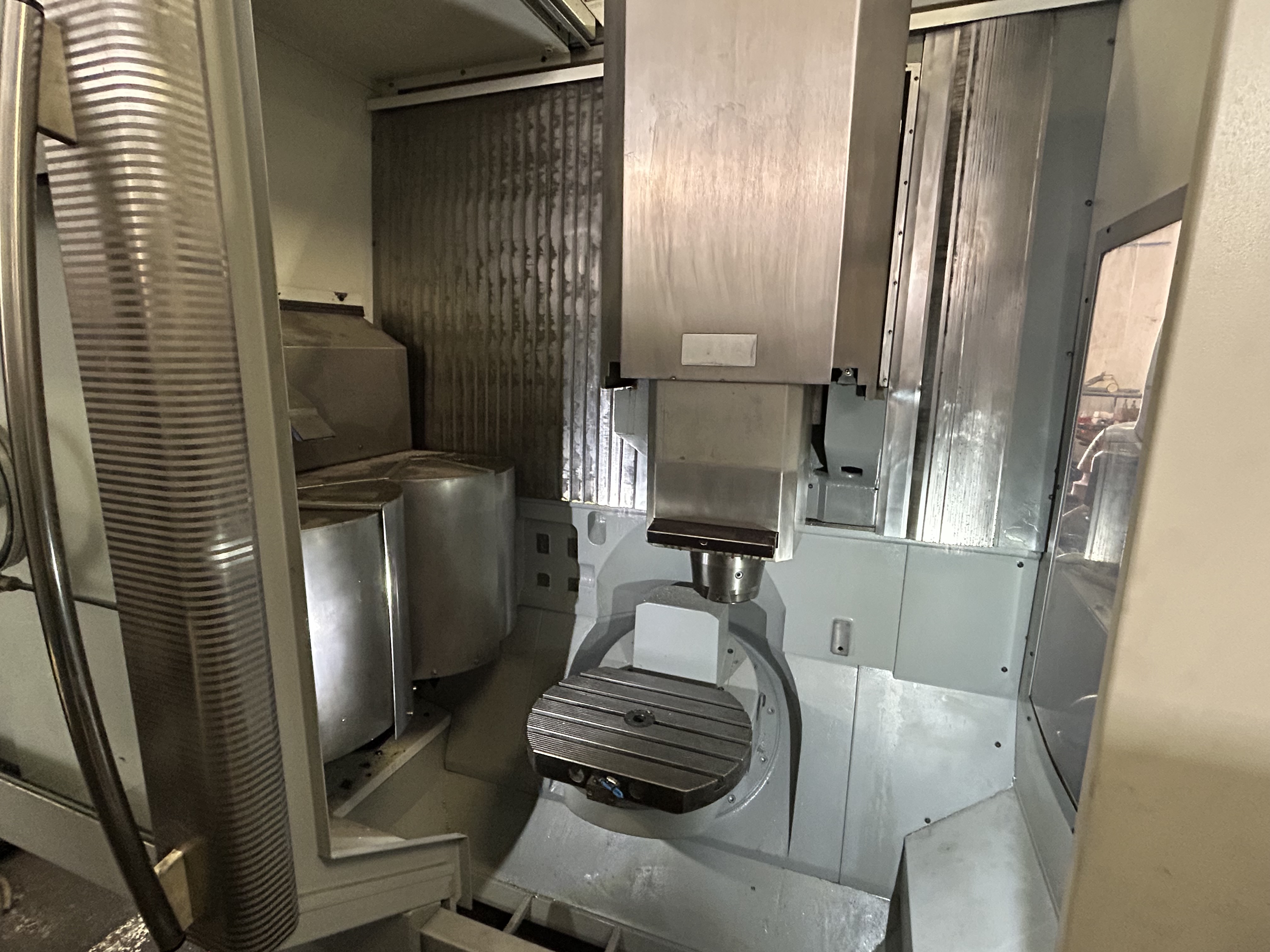

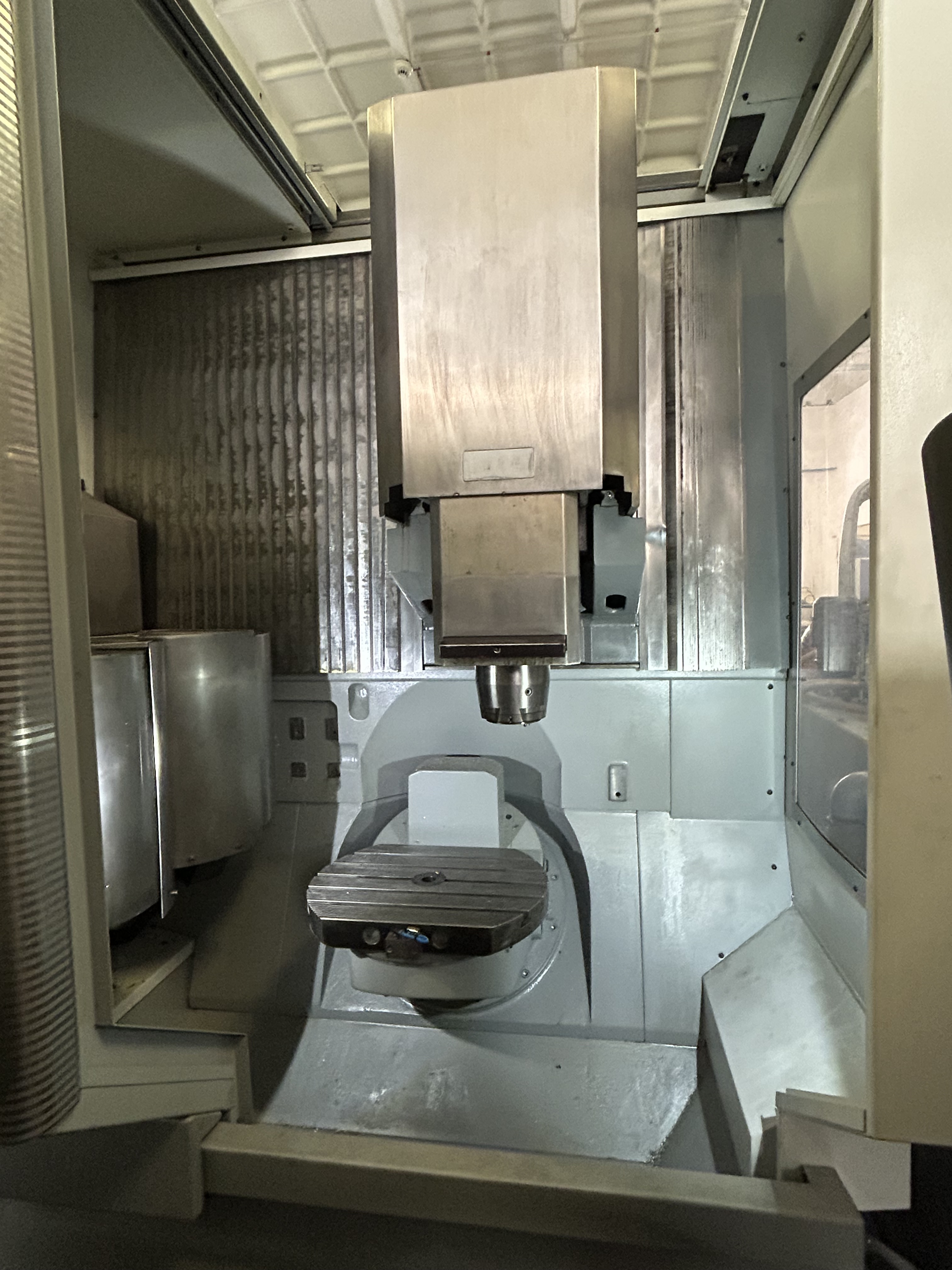

DMG DMU50 Evolution, 5-axis simultan

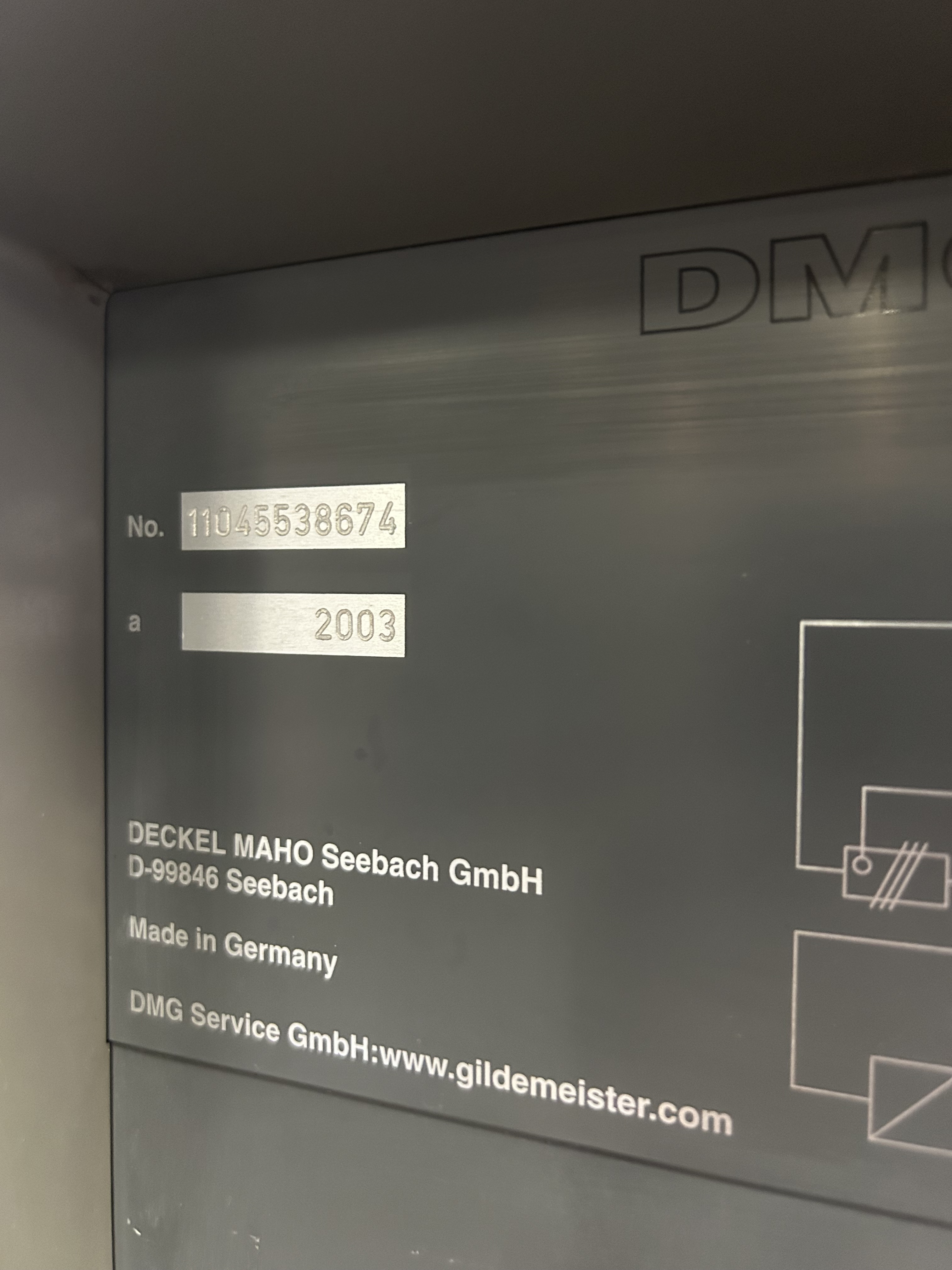

Year: 2003

x-travel 500 mm
y-travel 420 mm
z-travel 380 mm

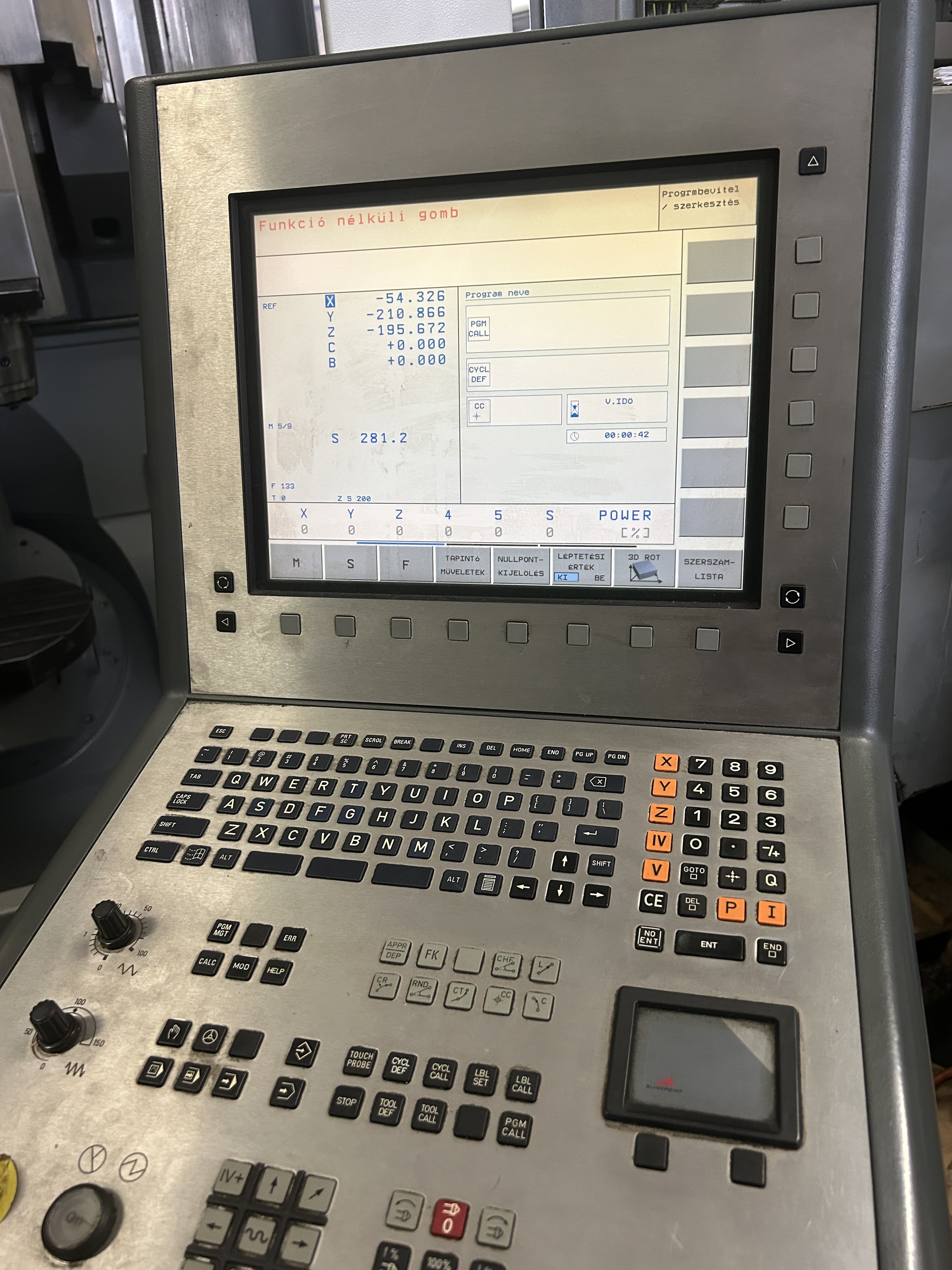

control iTNC 530 Heidenhain
spindle speeds 20 - 12000 U/min
tool taper SK 40 DIN 69871 A
Feed speed 20.000 mm/min
rapid traverse X-axis 50 m/min
rapid traverse Y-axis 50 m/min
rapid traverse Z-axis 50 m/min
tools in tool magazin 24 (2x12)
max. tool length 200 mm
max. tool weight 6 kg
max. tool diameter 50 mm

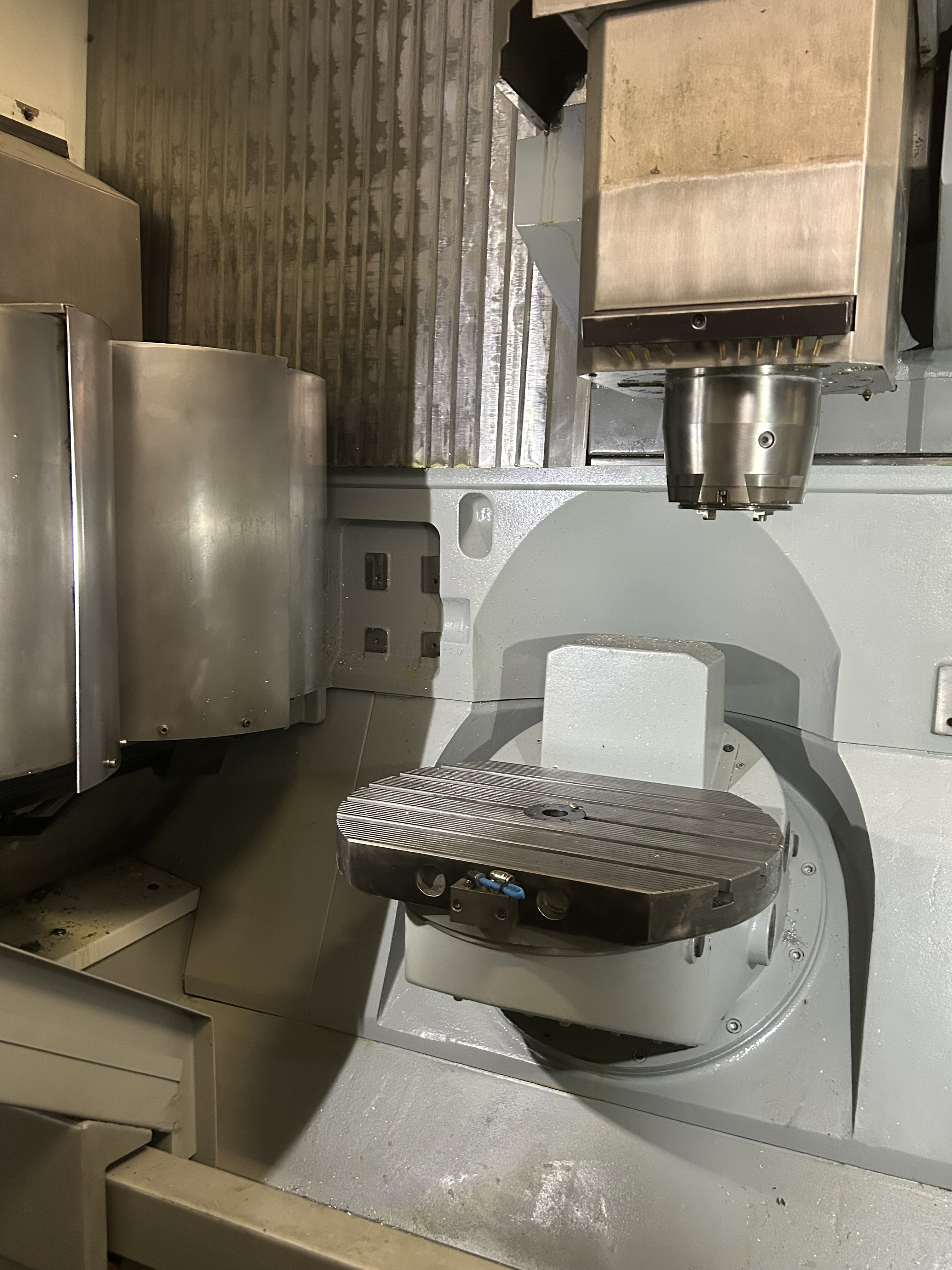

table surface area 500 x 380 mm
center bore 30 H6
T-slot - distance 63 - 14H7 mm
swivelling range 0° / +180° (B-Achse)
swivelling range 360° / 0,001° (C-Achse)
max. table load 200 kg
Rapids C - Axes 33 min -1
rapid traverse B-axis 26 min -1
total power requirement 38 kVA
weight of the machine ca. 6,0 t

Accessories/options:

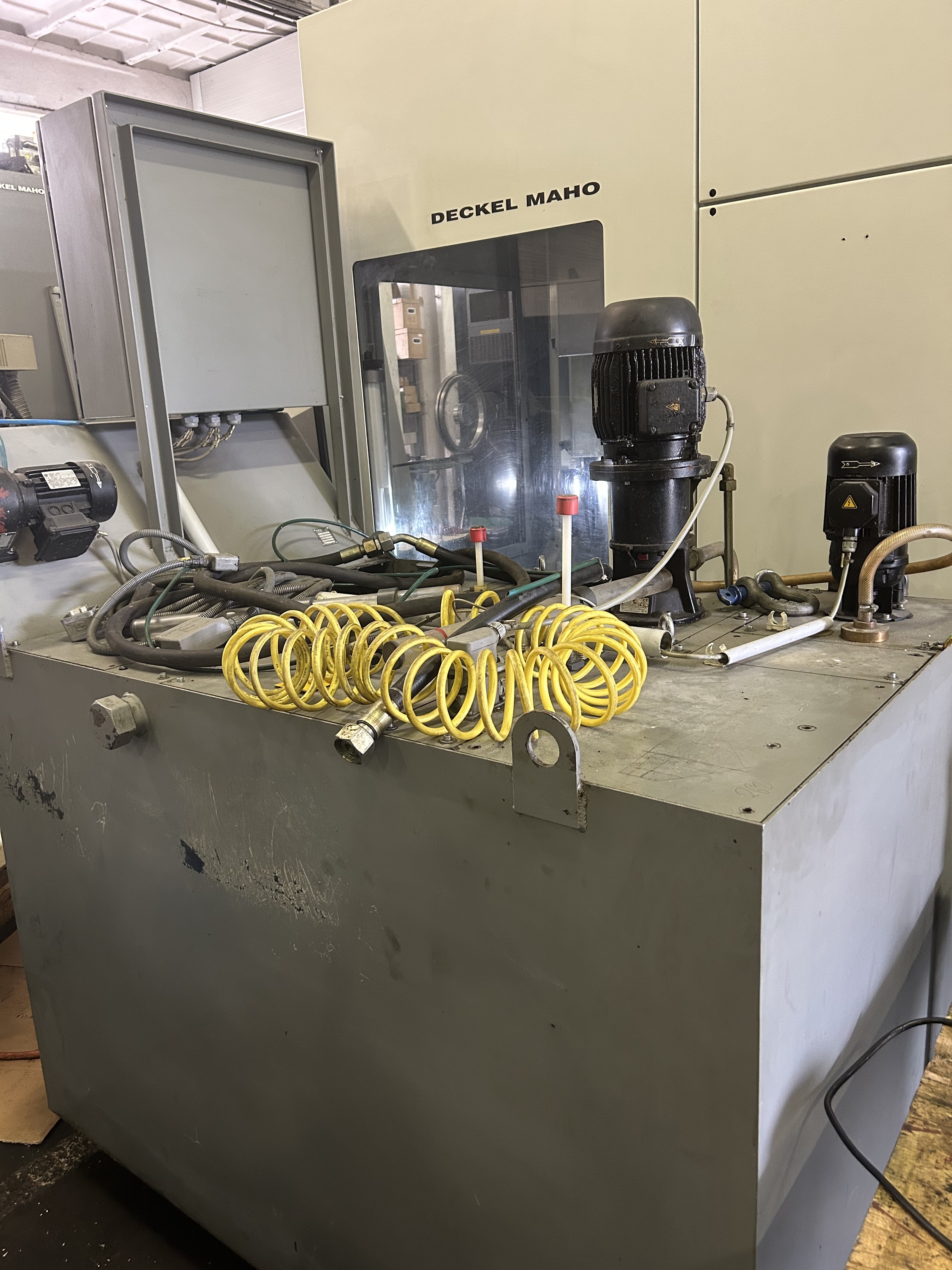

Through spindle coolant
Swarf conveyor
Documentations
Visiport window system
Vice
Tool holders


Under power in our warehouse, ready for inspection.
