Daewoo Mynx 540 VMC - 4.axis

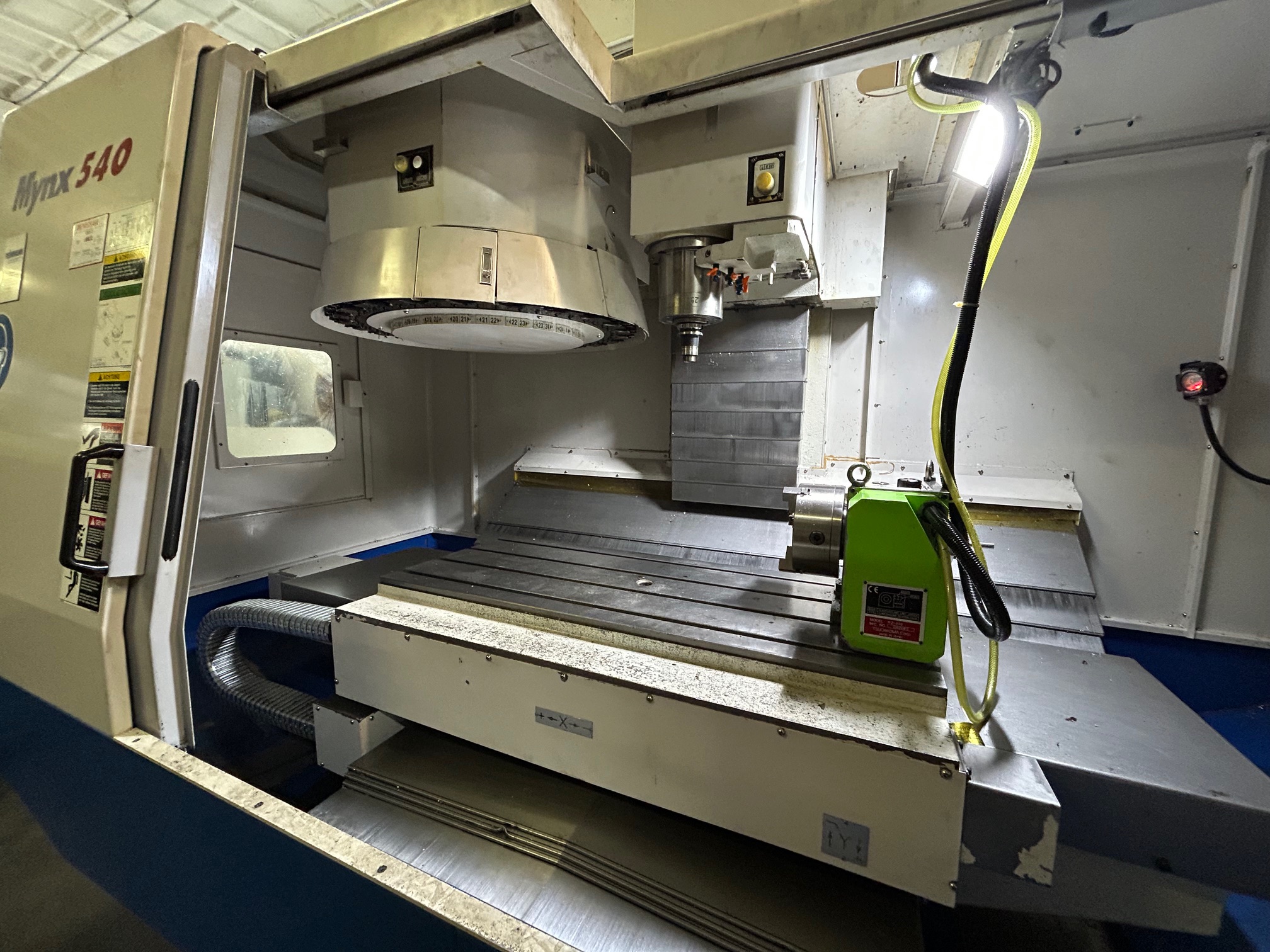

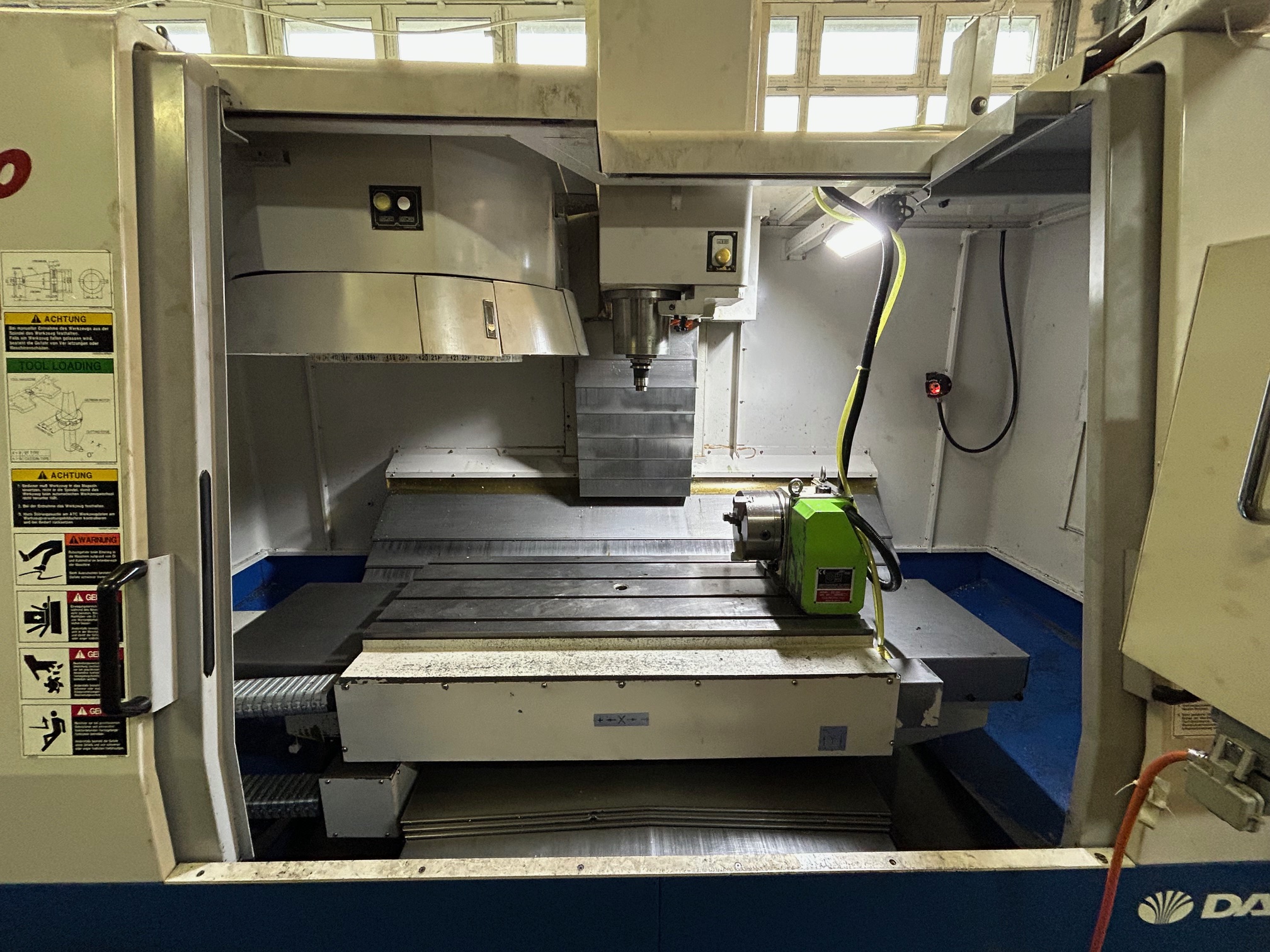

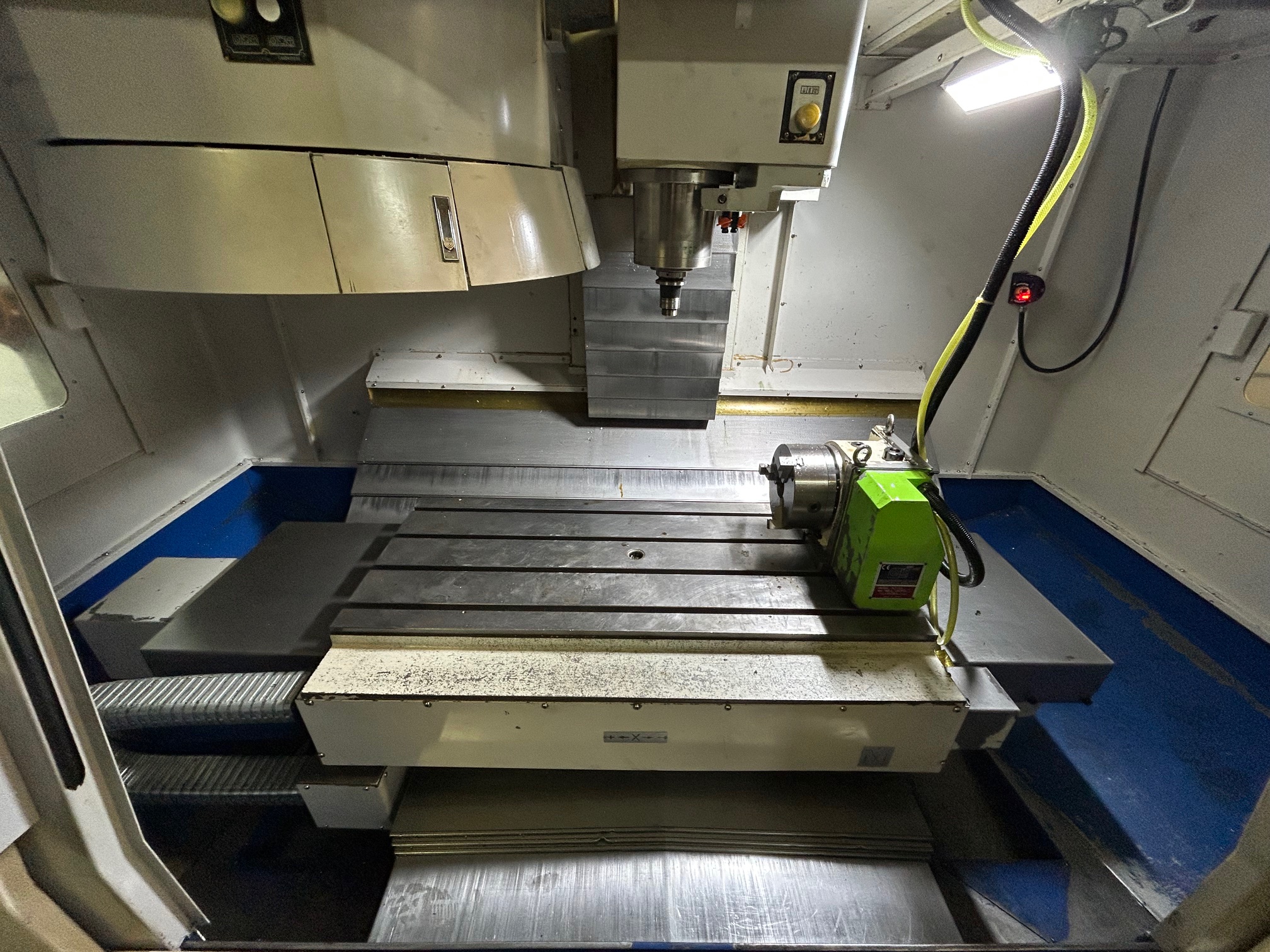

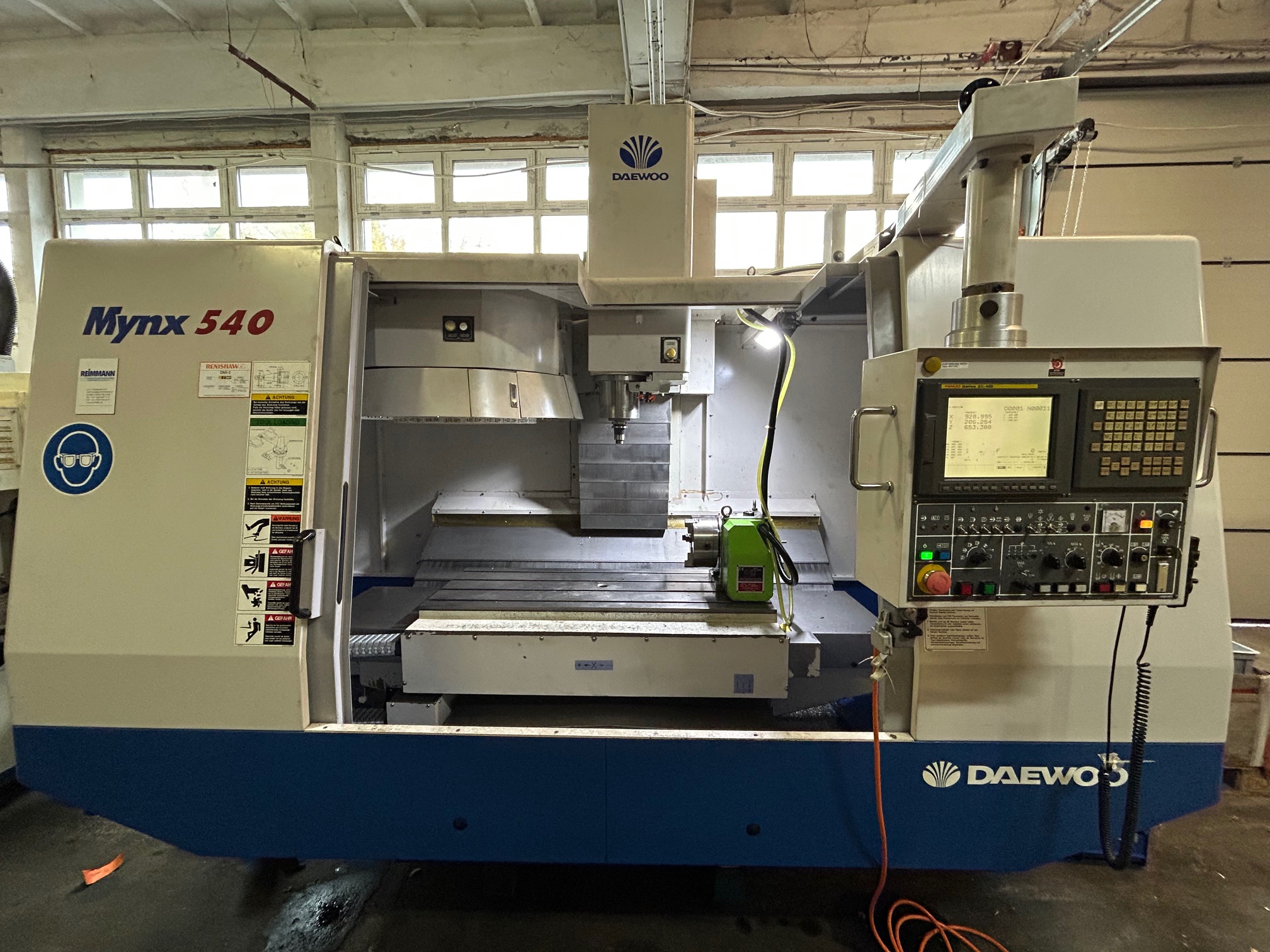

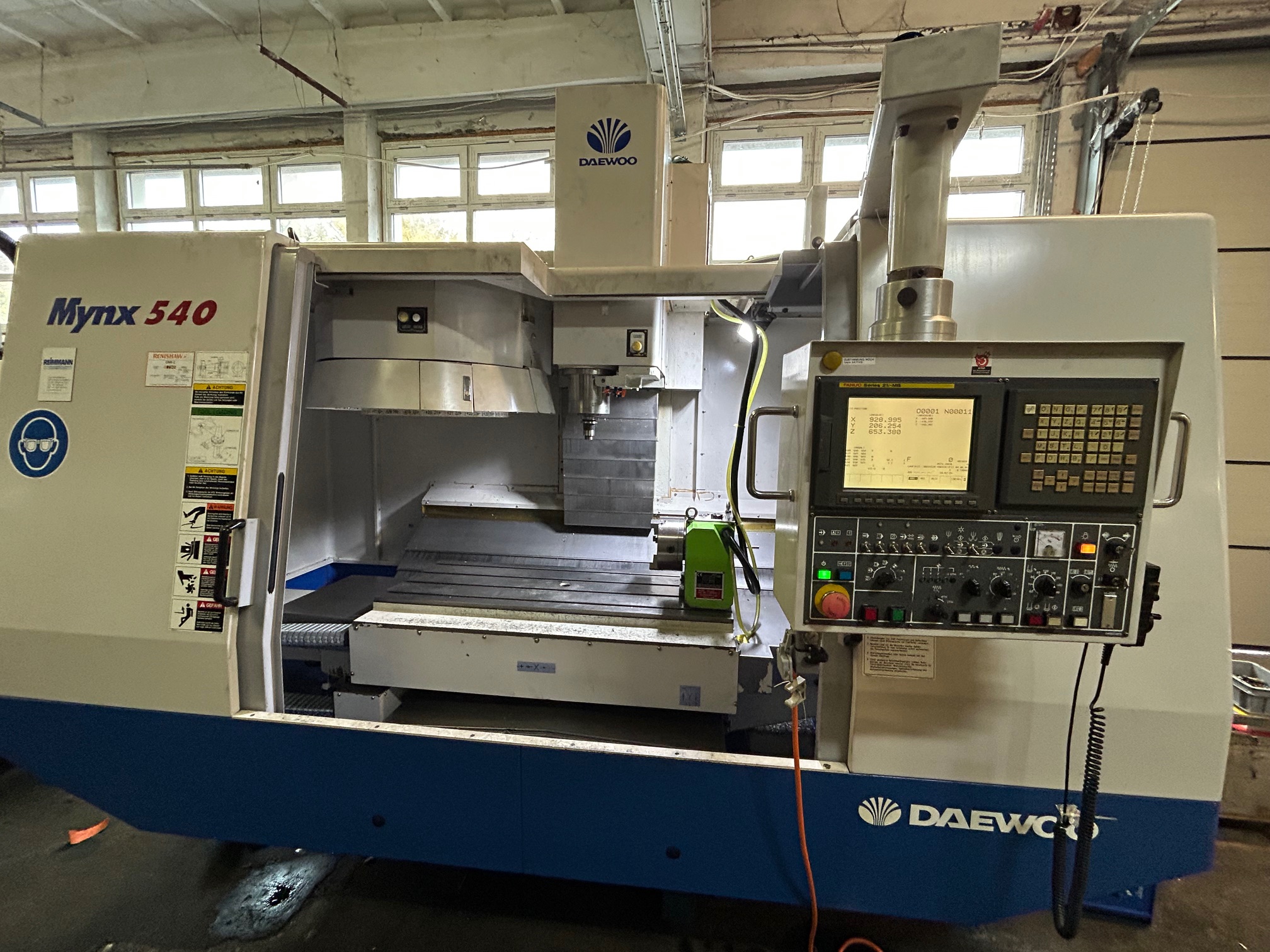

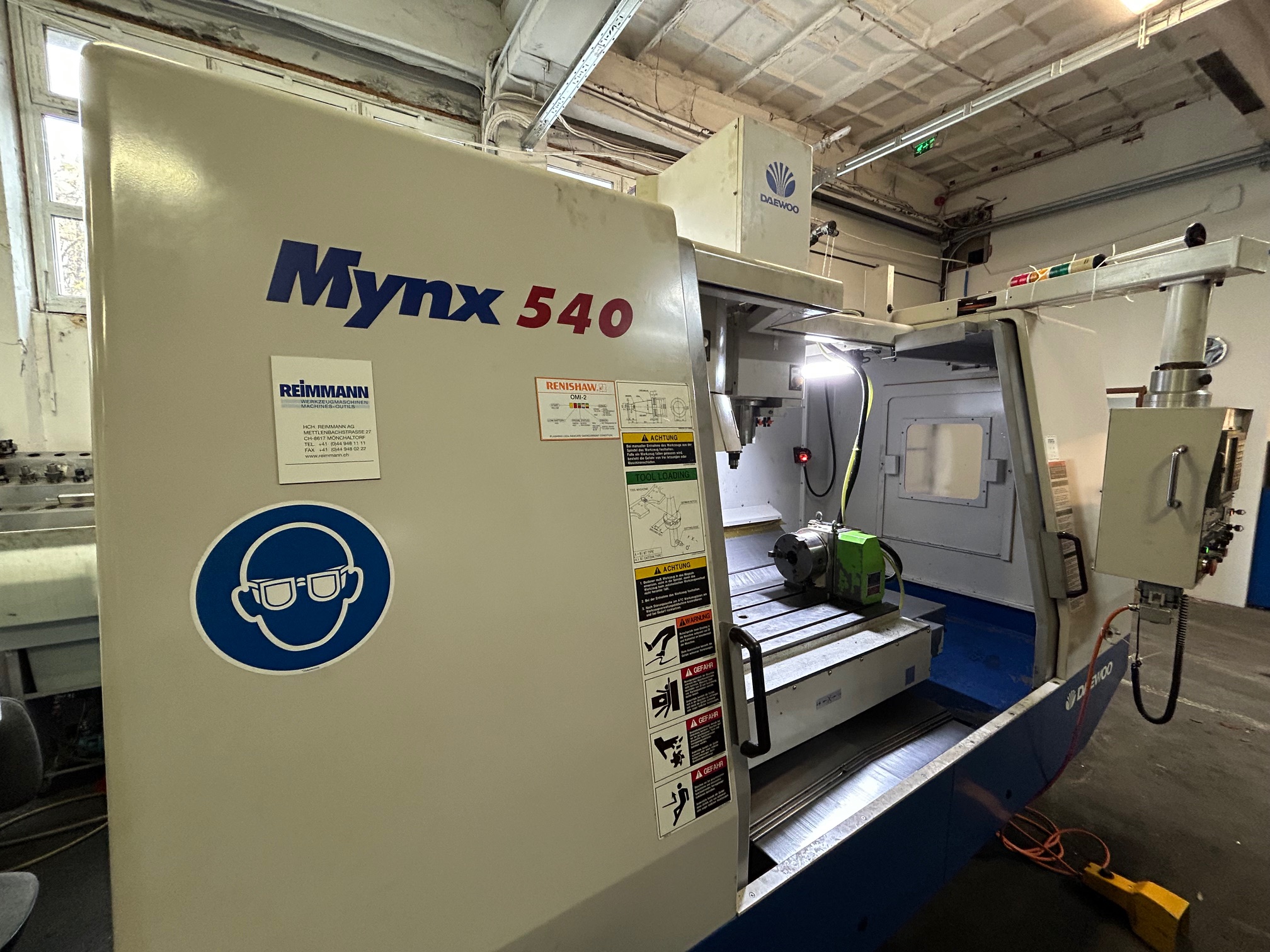

DAEWOO Mynx 540 cnc vertical machining center
Year: 2004

Specifications:

Axis X travel 1020 mm
Axis Y travel 510 mm
Axis Z travel 625 mm

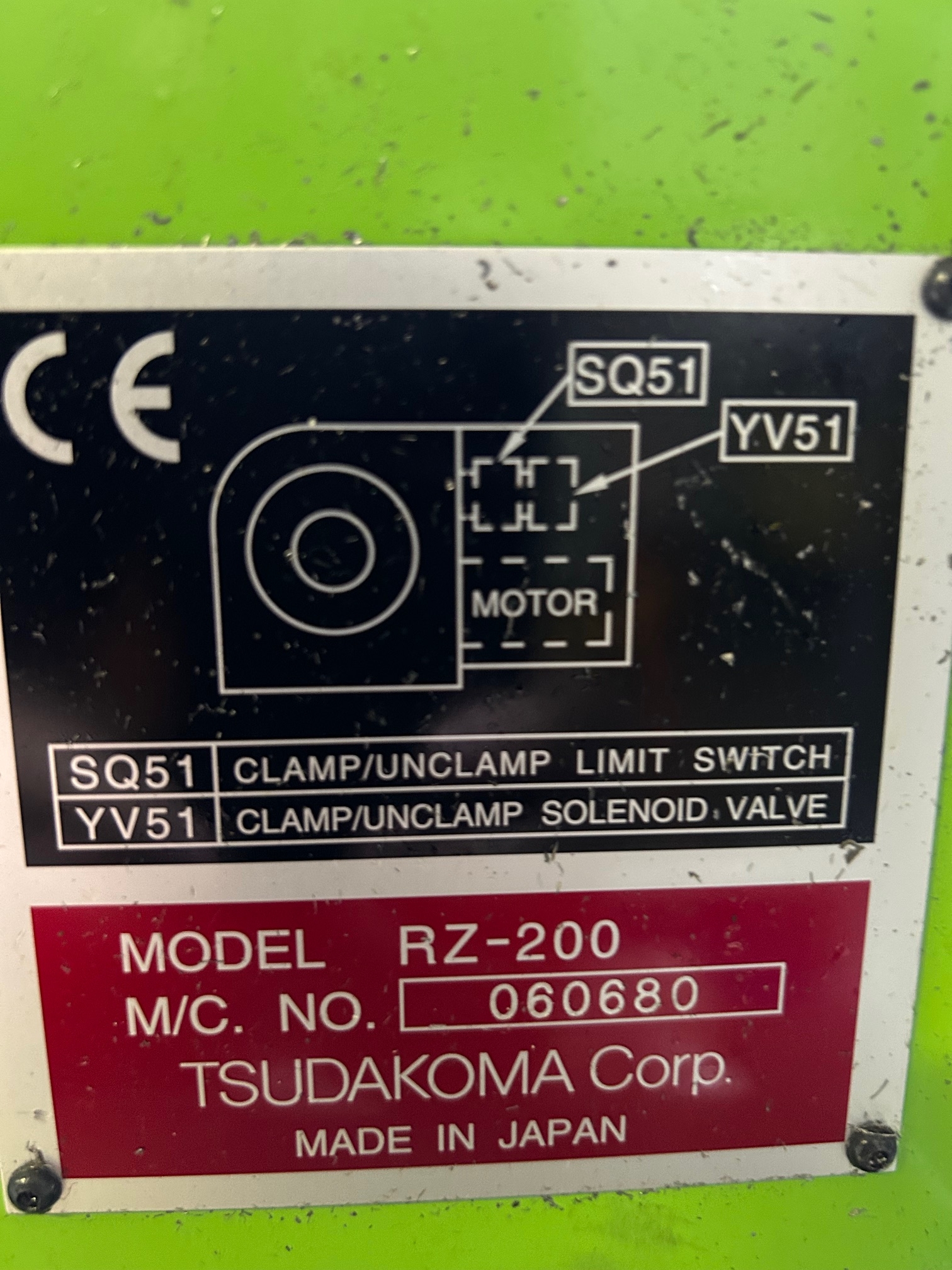

Rotary table ( Tsudakoma RZ-200 )

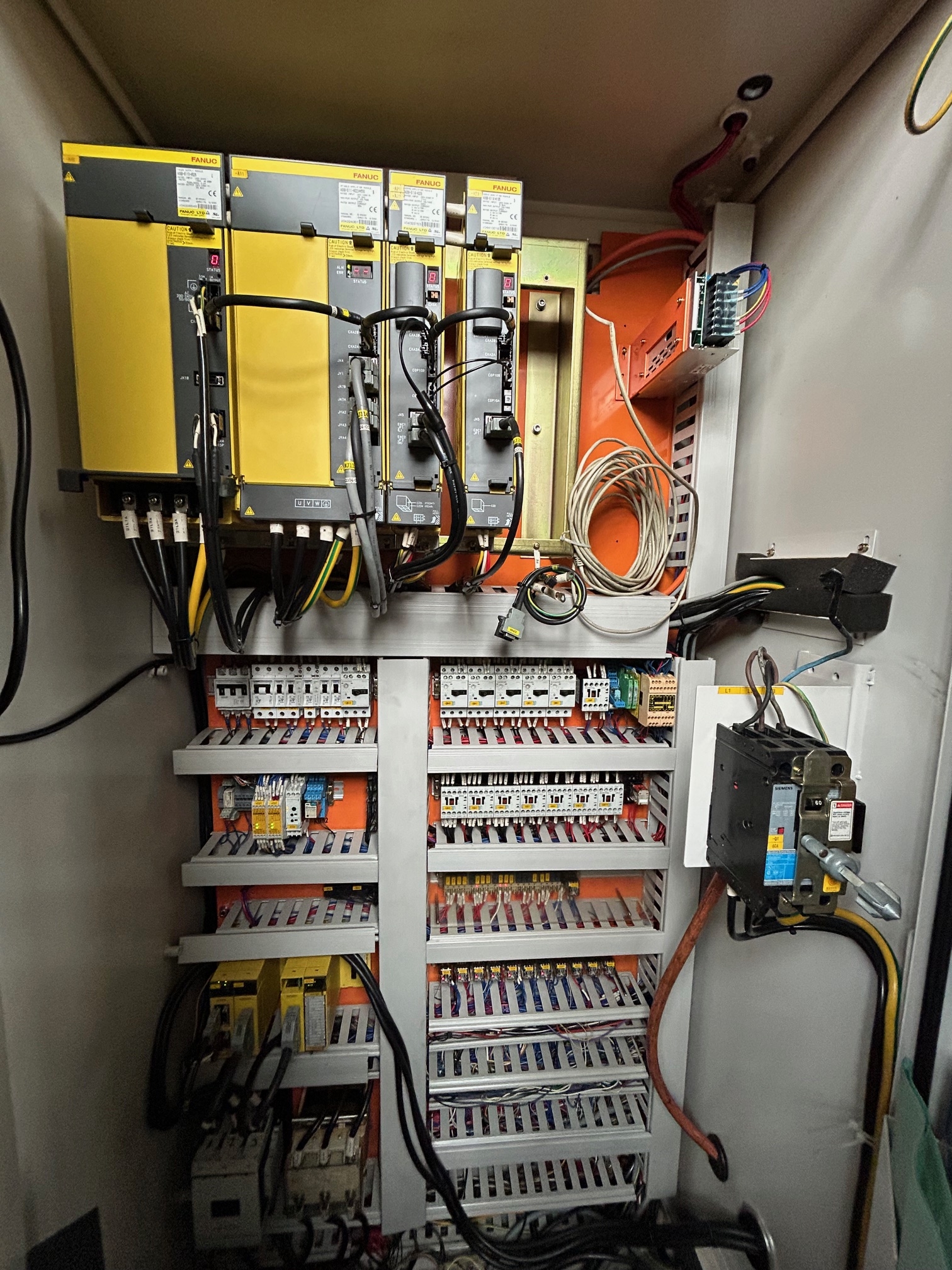

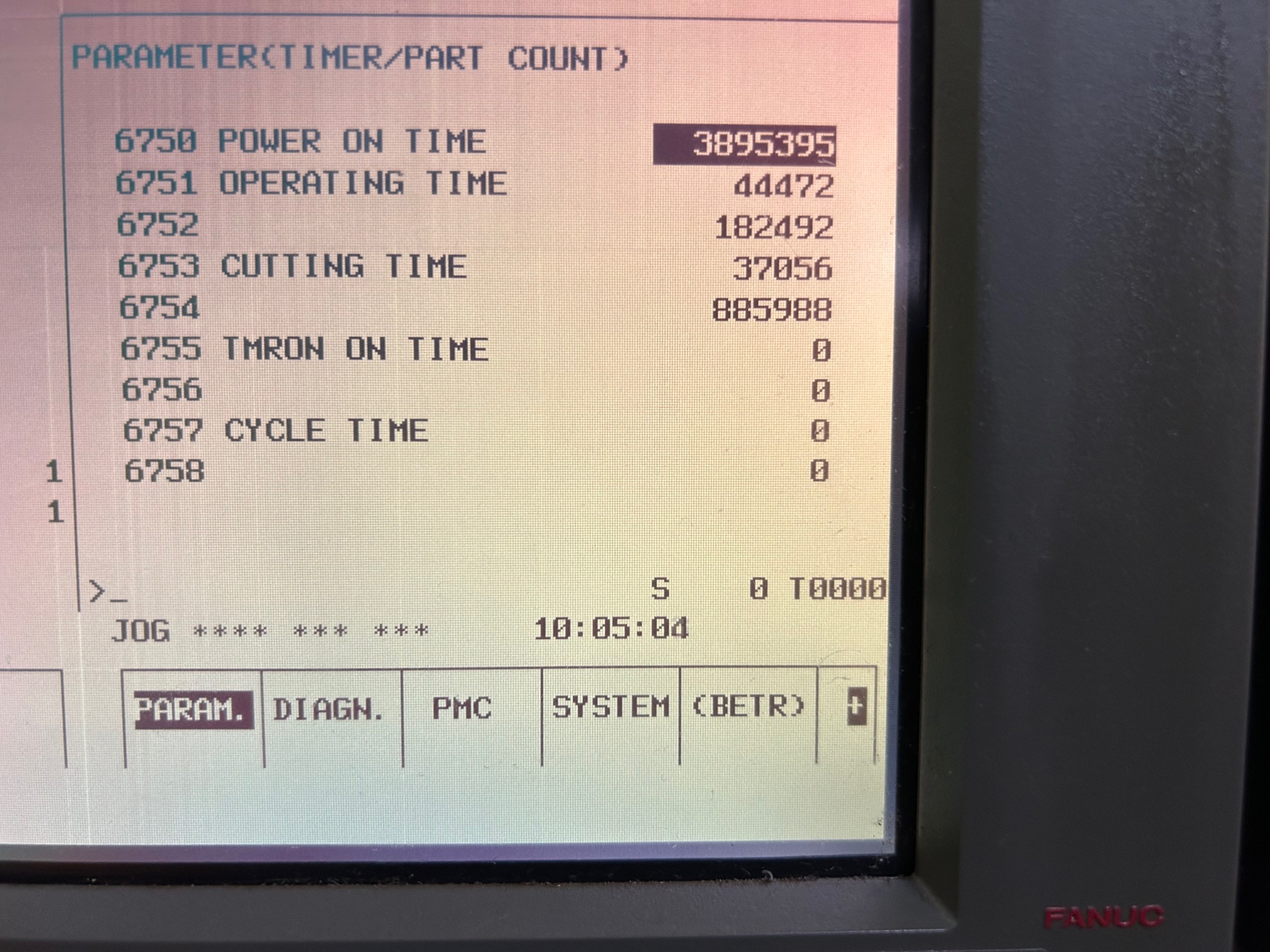

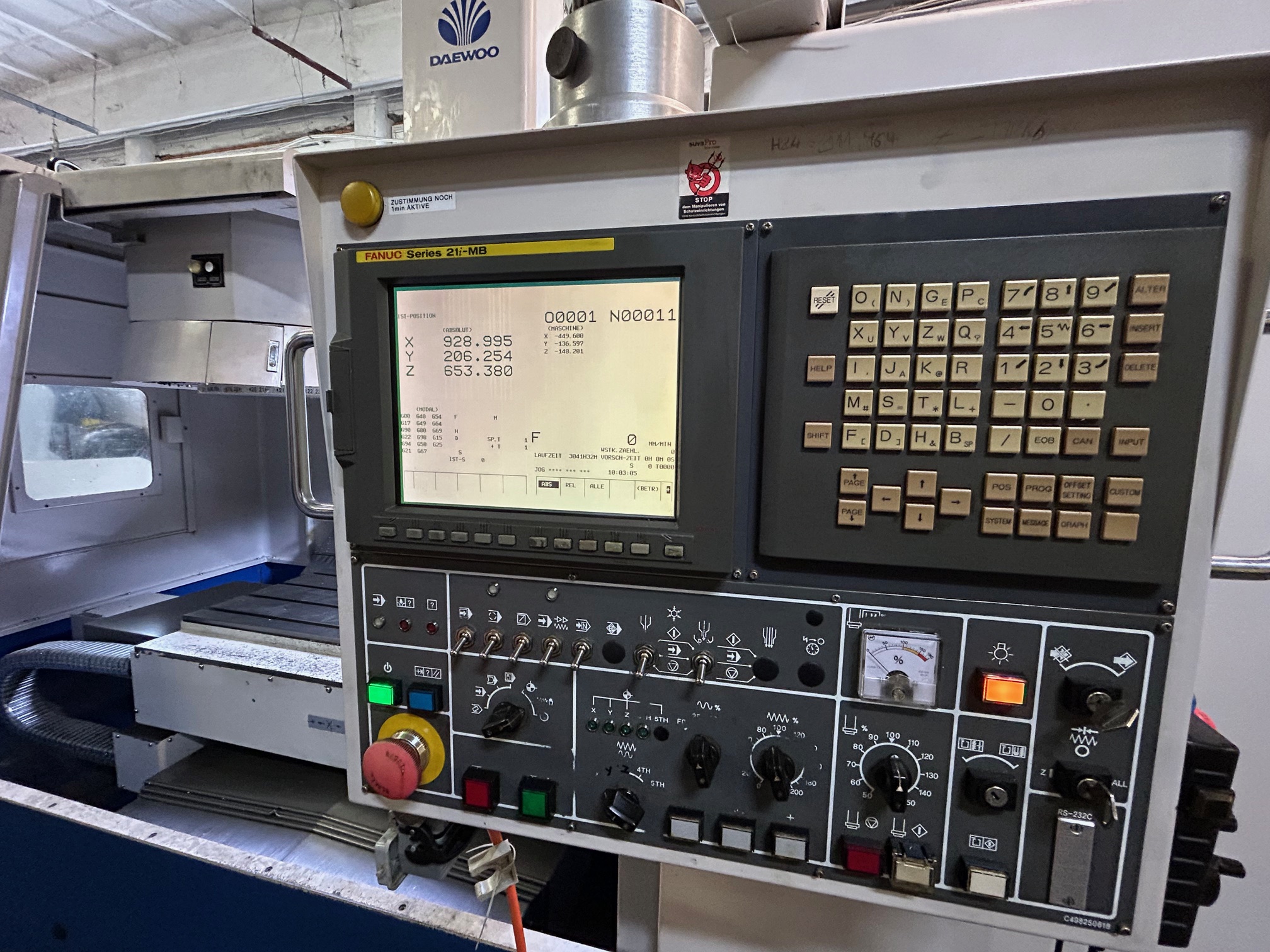

Type of CNC FANUC 21i-MB
Table length 1200 mm
Table width 500 mm
Max. part weight 800 kg
Number of tool positions 24
Spindle taper BT 40
Max. spindle speed 8000 rpm
Spindle motor power 15 kW
Weight 7500 kg

Machine has new spindle, fitted in October 2025.

Accessories/options:

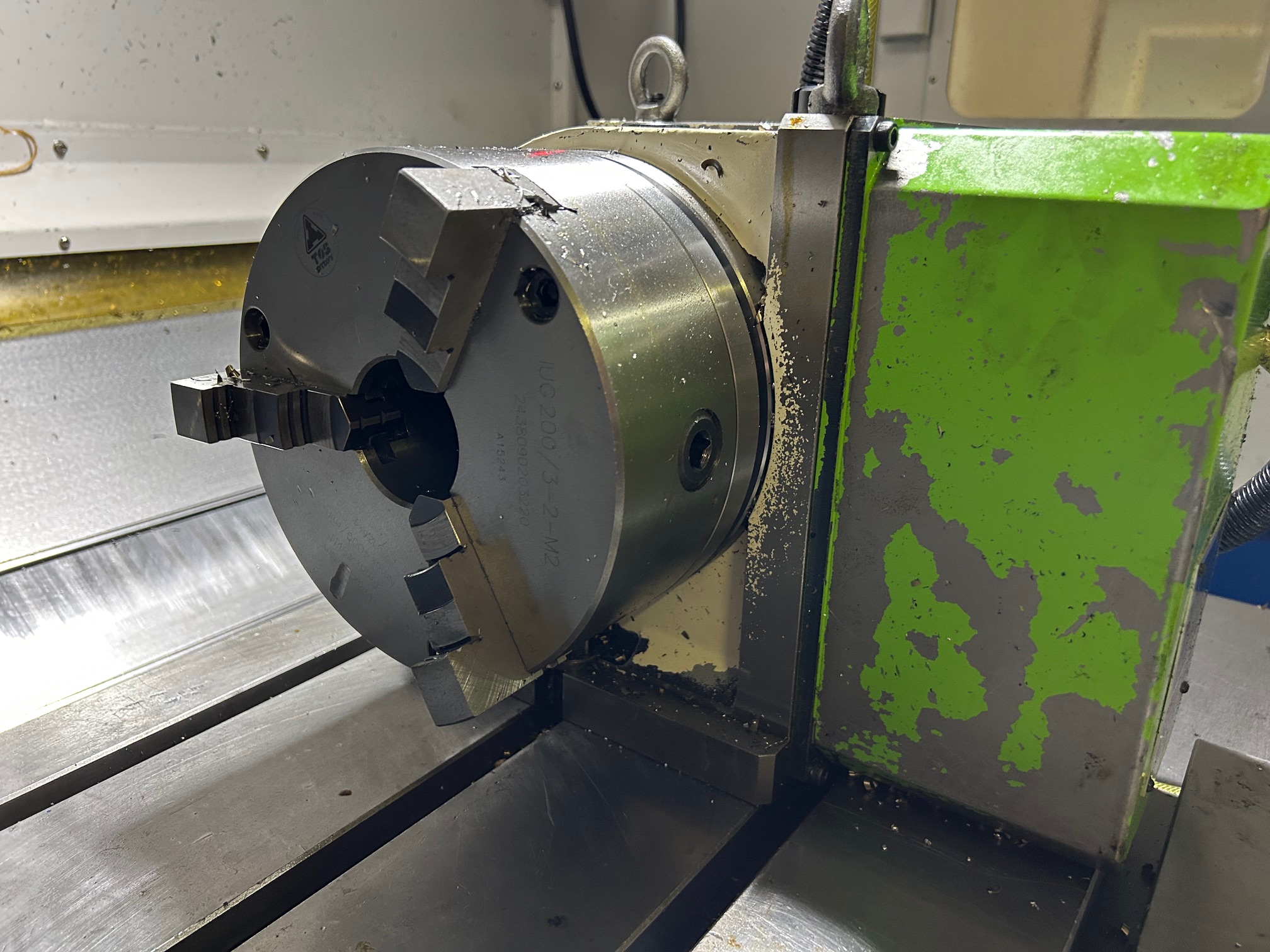

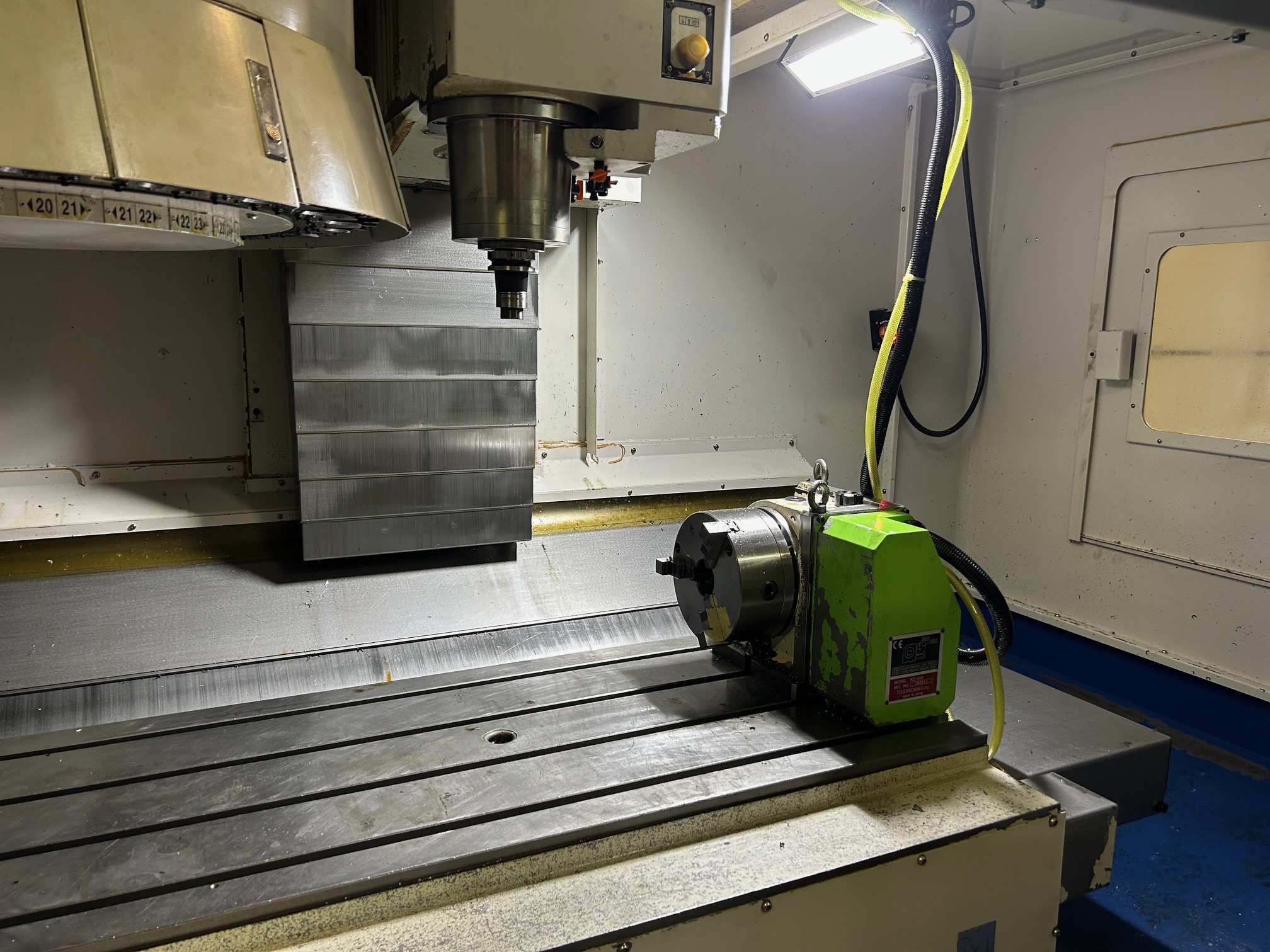

- 4.axis Rotary table ( Tsudakoma RZ-200 )
- Through spindle coolant

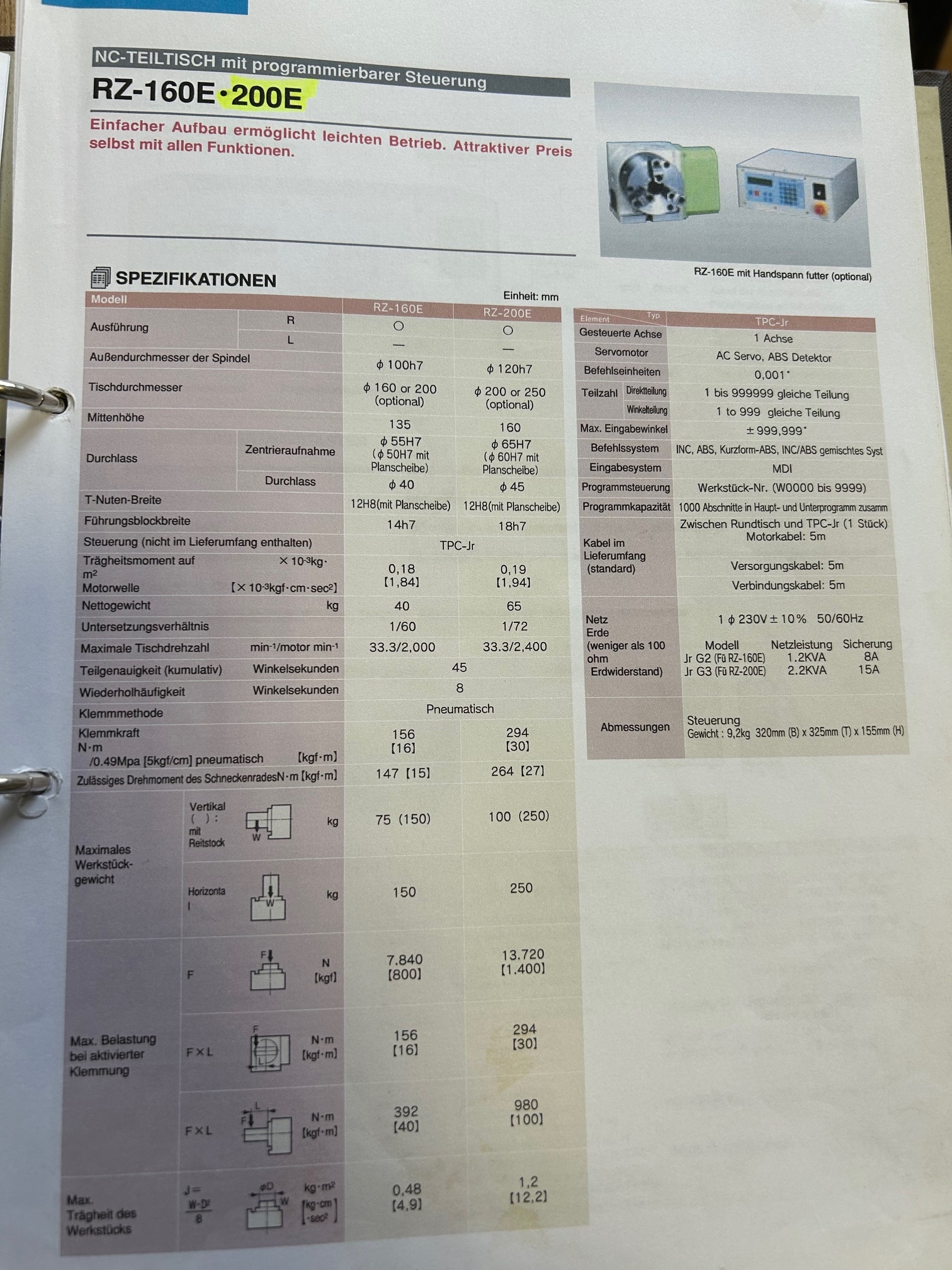

- Documentations
- Remote control
- Coolant tank

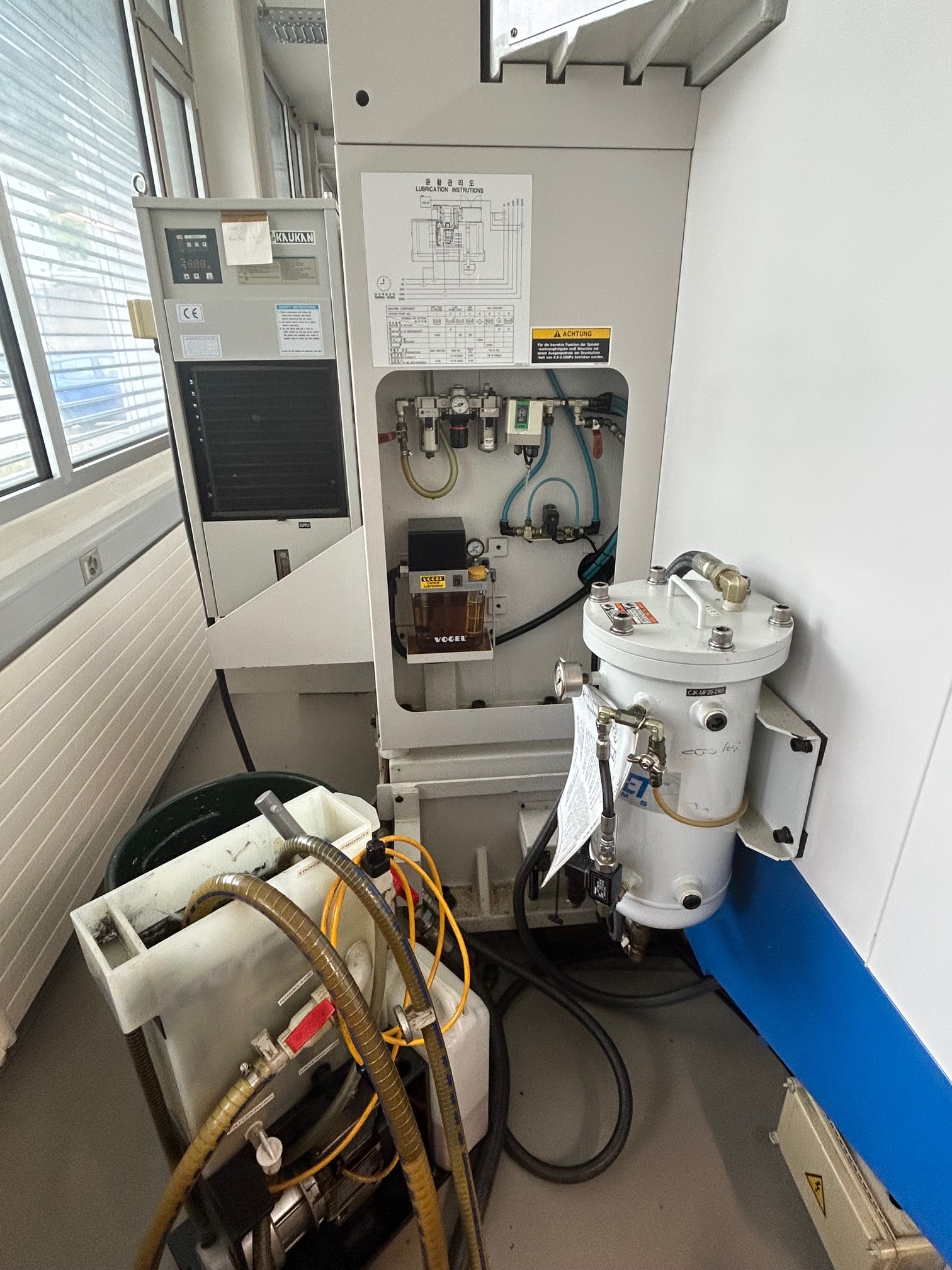

- Spindle cooler
