TECHNICAL DETAILS
- distance between centers : 1500 [mm]
- centers height : 250 [mm]
- max grinding diamater: 500 [mm]
- table orientation : -/+ 8 [°]
- universal wheelhead
- grinding wheels dimensions : 400 x 50 x 127 [mm]
- motor power : 3 [kW]
- spindle speed : 1500 / 1700 / 2200
- boring for internal spindle : 90 [mm]
- orientation of part holder headstock : 180 [°]
- spindle speed : 20 - 400 [Rpm]
- spindle internal cone : Morse 5
- motor power : 0,9 [kW]
- inner cone tailstock : Morse 4
- tailstock sleeve travel: 30 [mm]
- dimensions : 2860 x 1680 x 1670 [mm]
- weight : 2 500 [kg]

Accessories/options:
- automatic cycle works
- tailstock

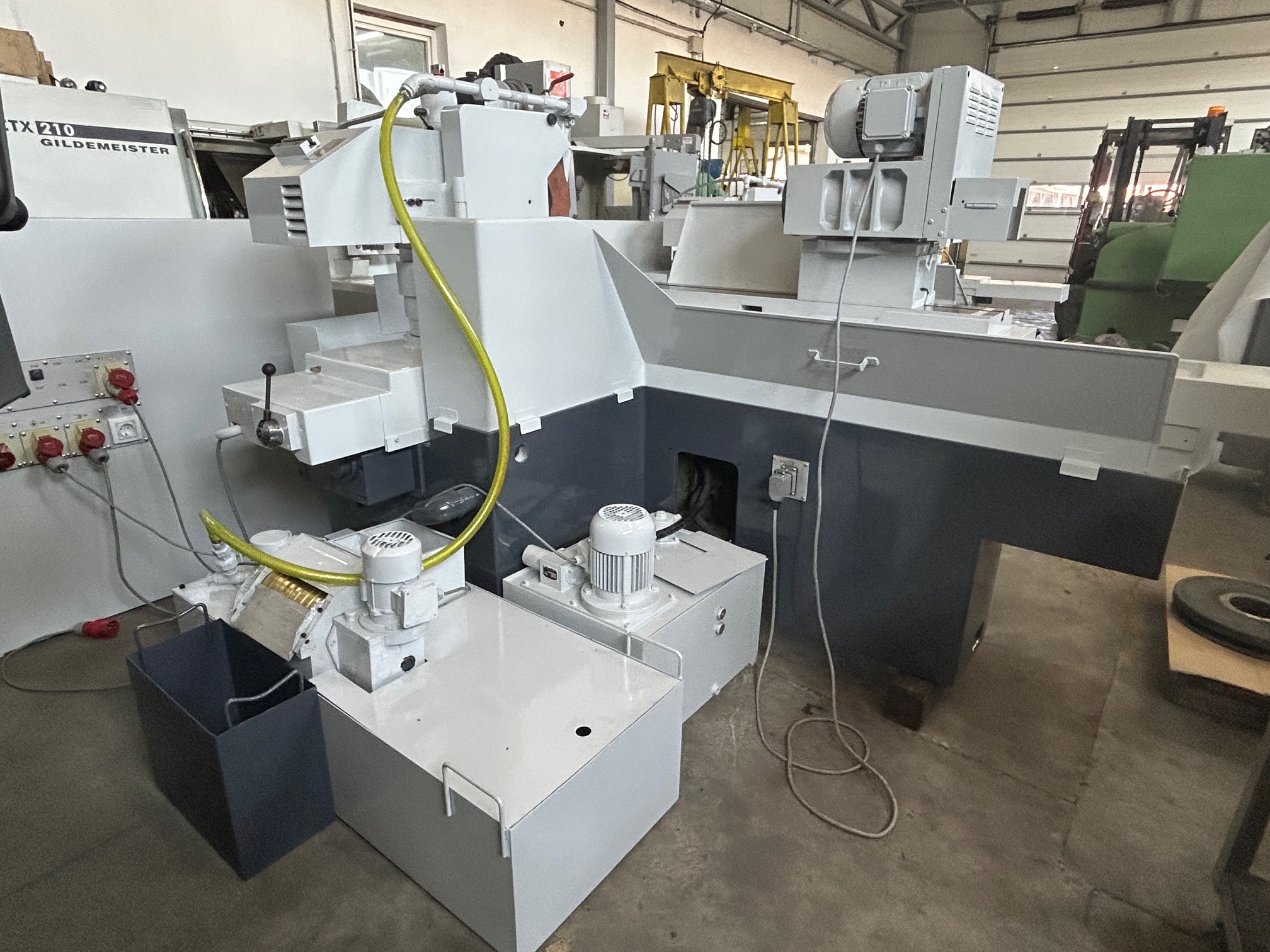

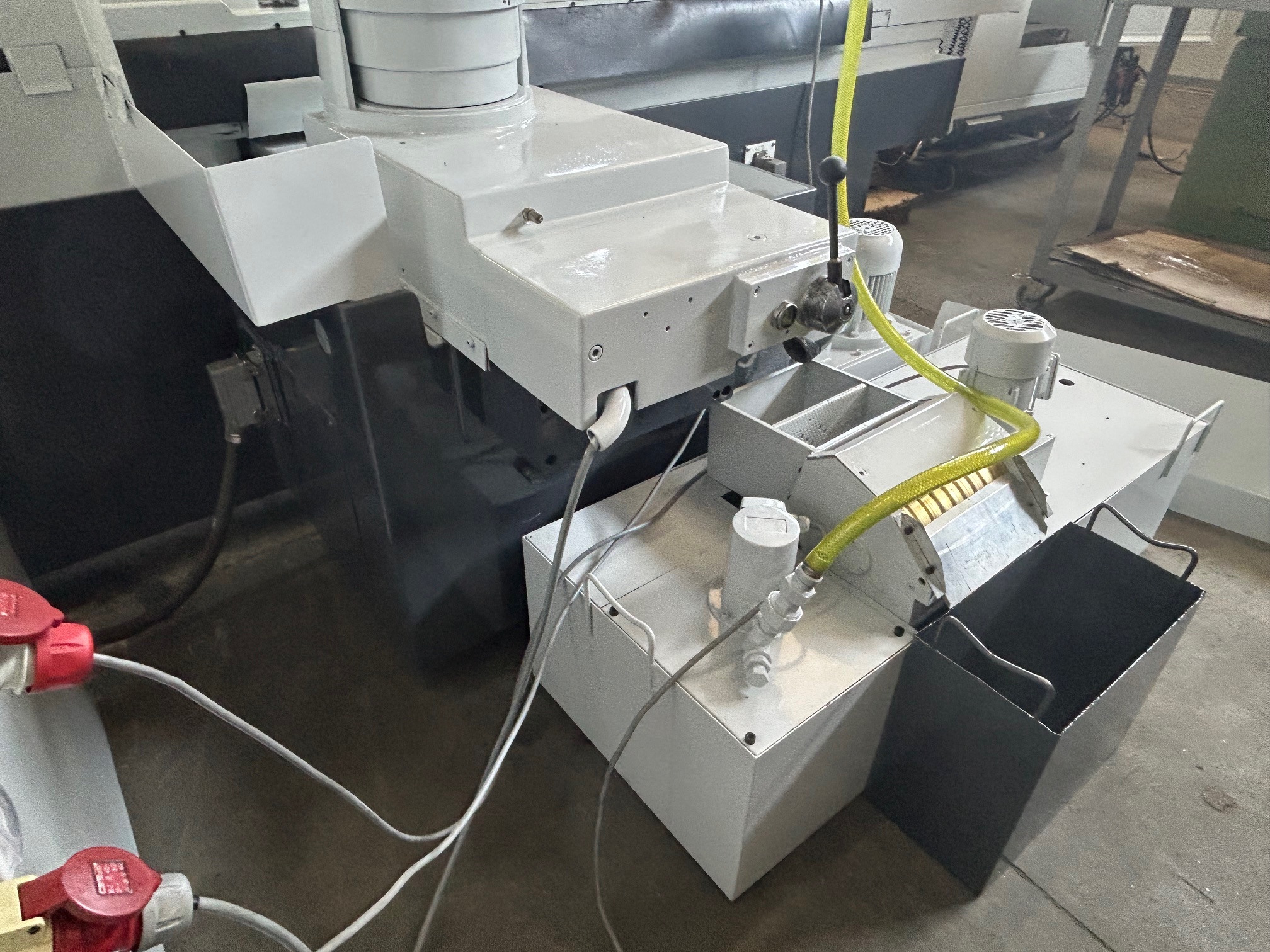

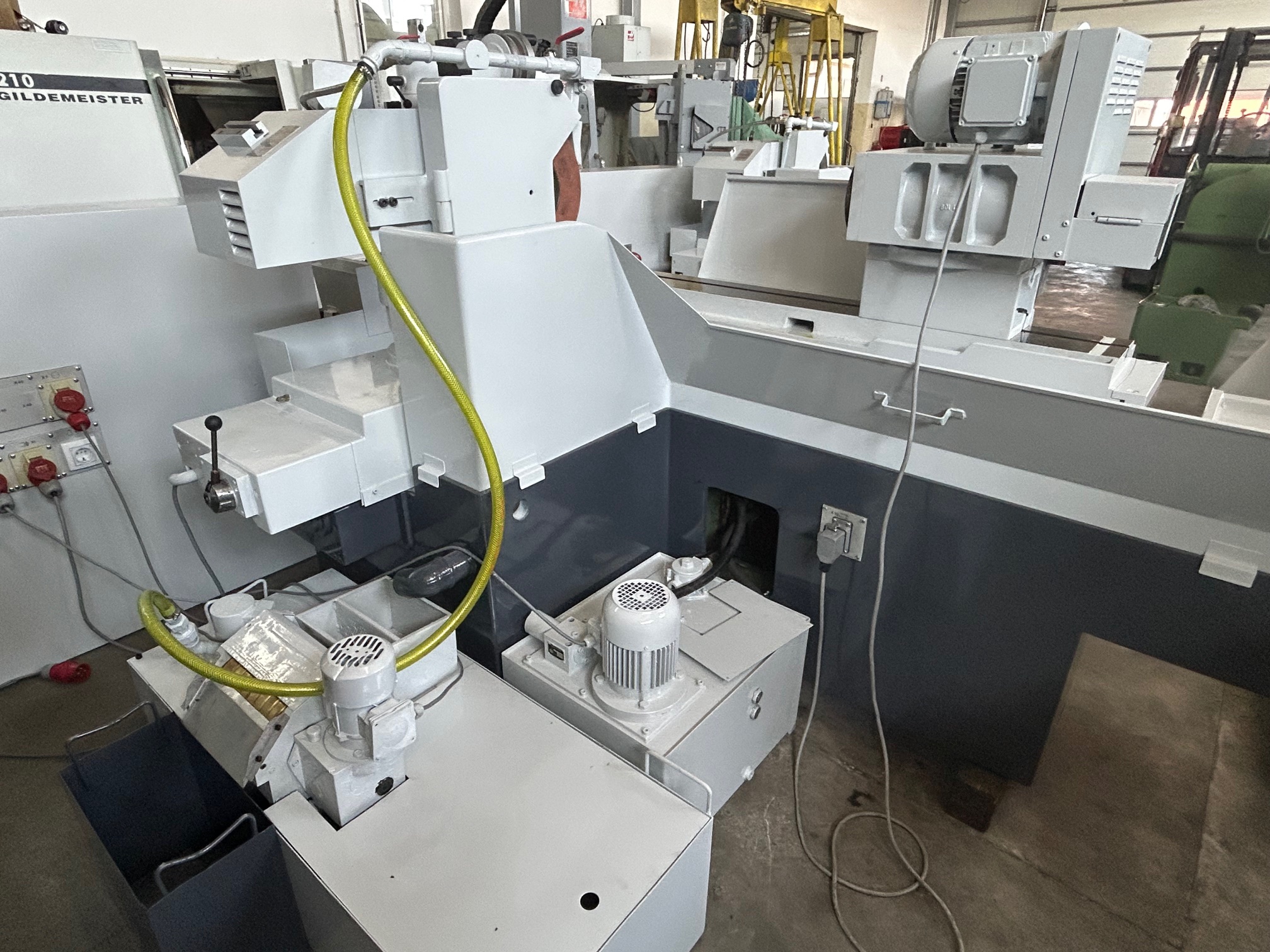

- lubricating tank with pump

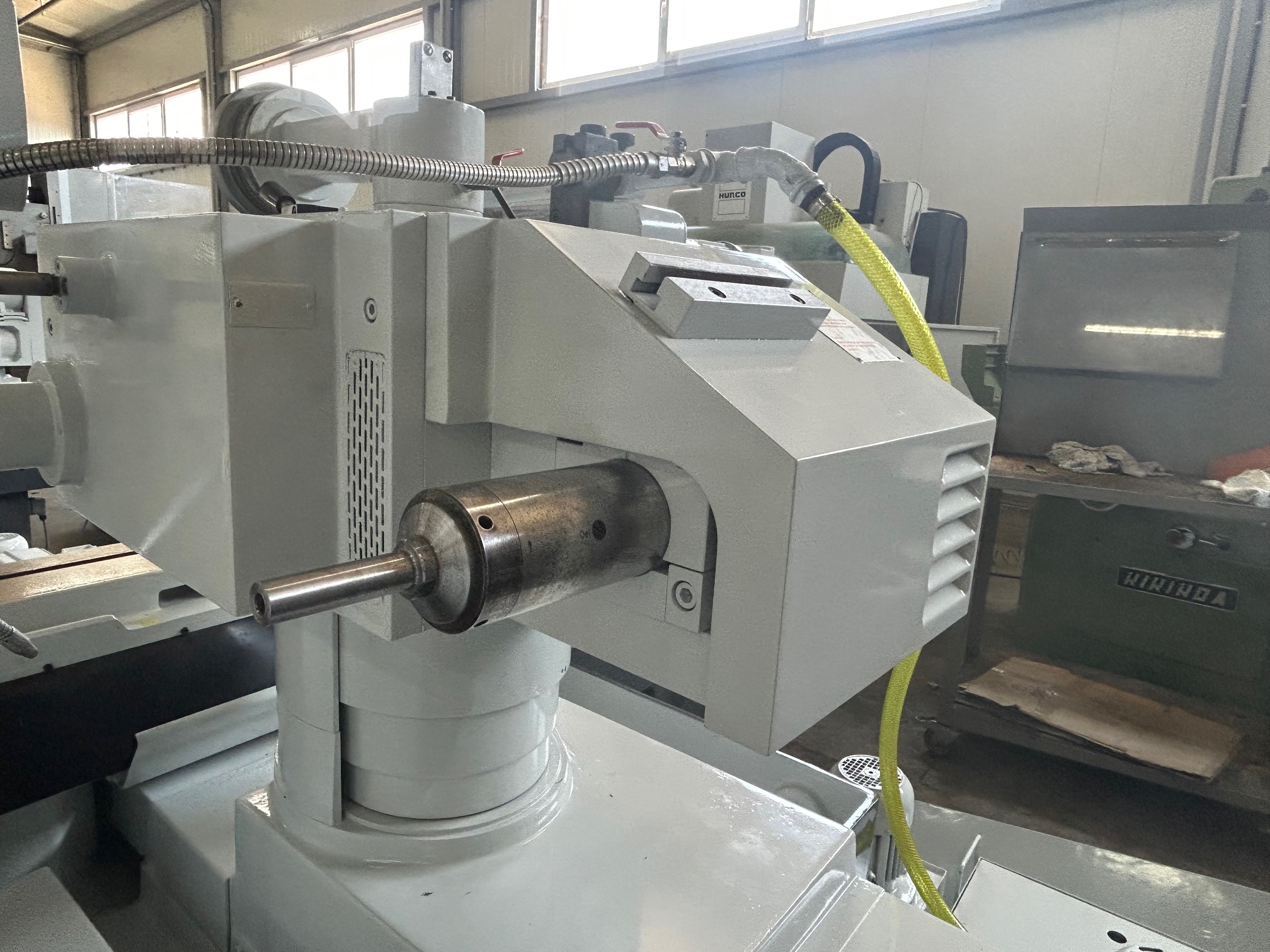

- 1 internal grinding spindle
- external grinding wheels
- wheel dresser
- documentations
- NEW digital readout system for 2-axis

The machine is partly overhauled, included:
- new geometry

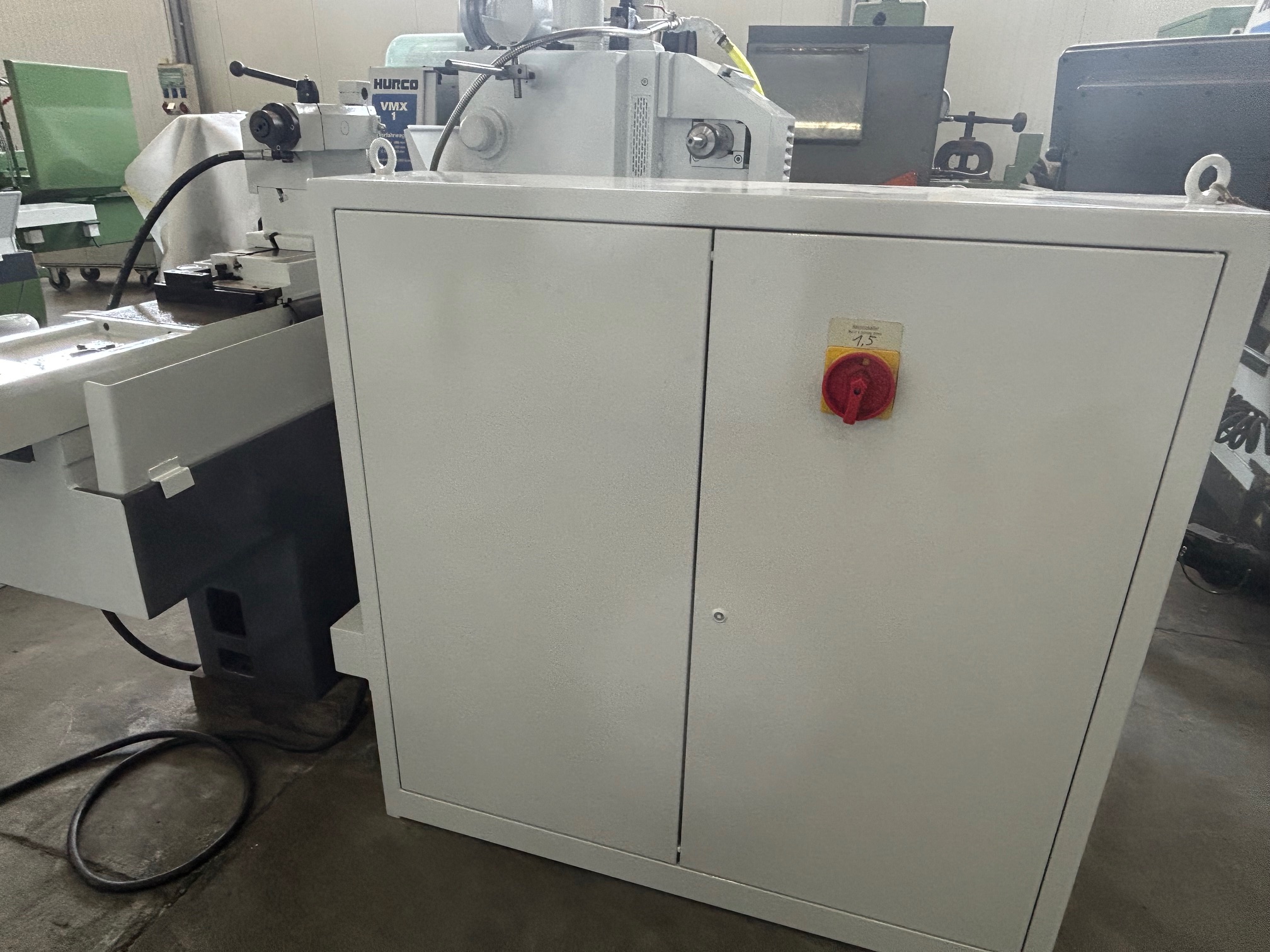

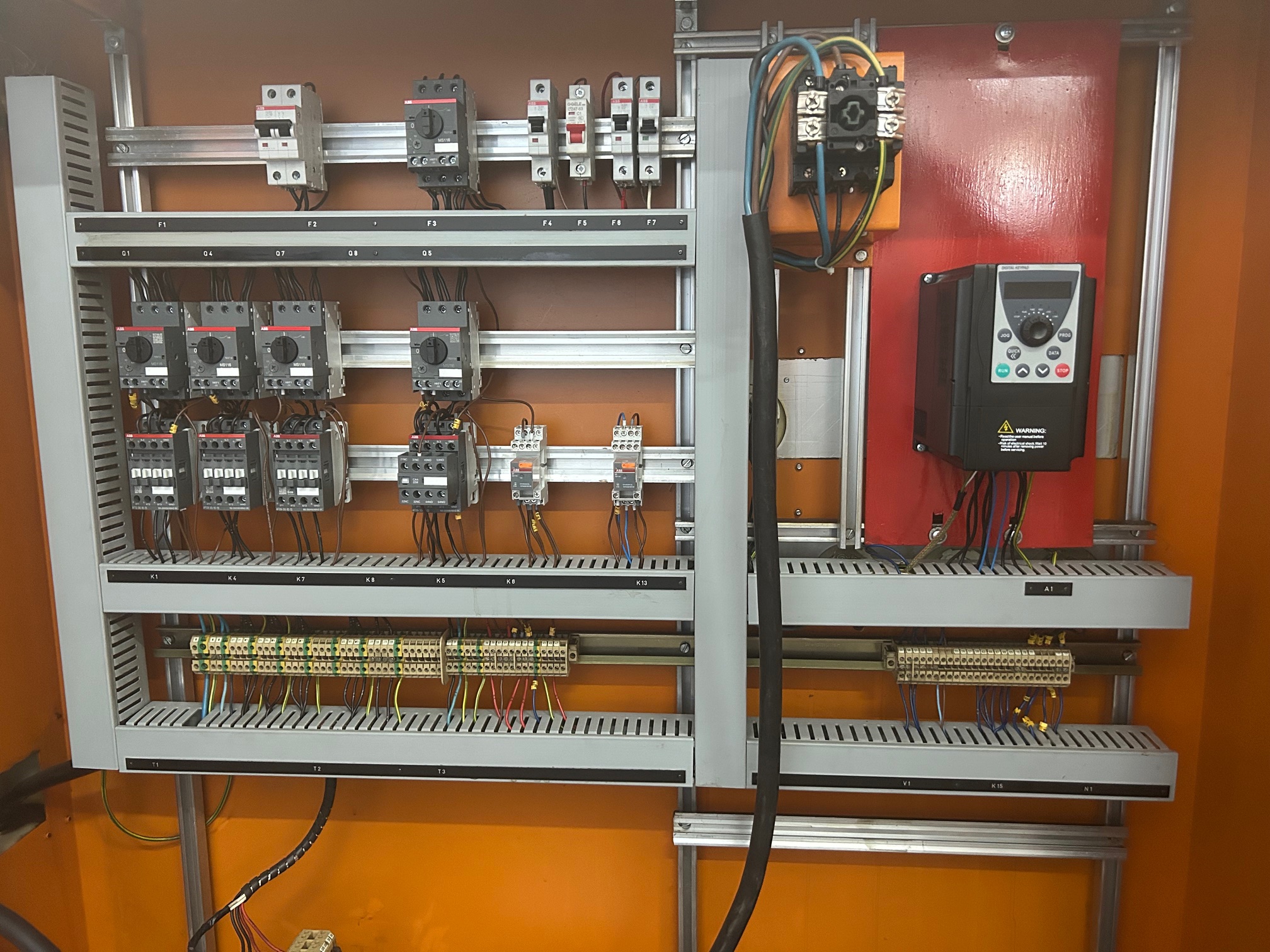

- new electrical cabinet
- bearings replaced
- new painting
- etc....
