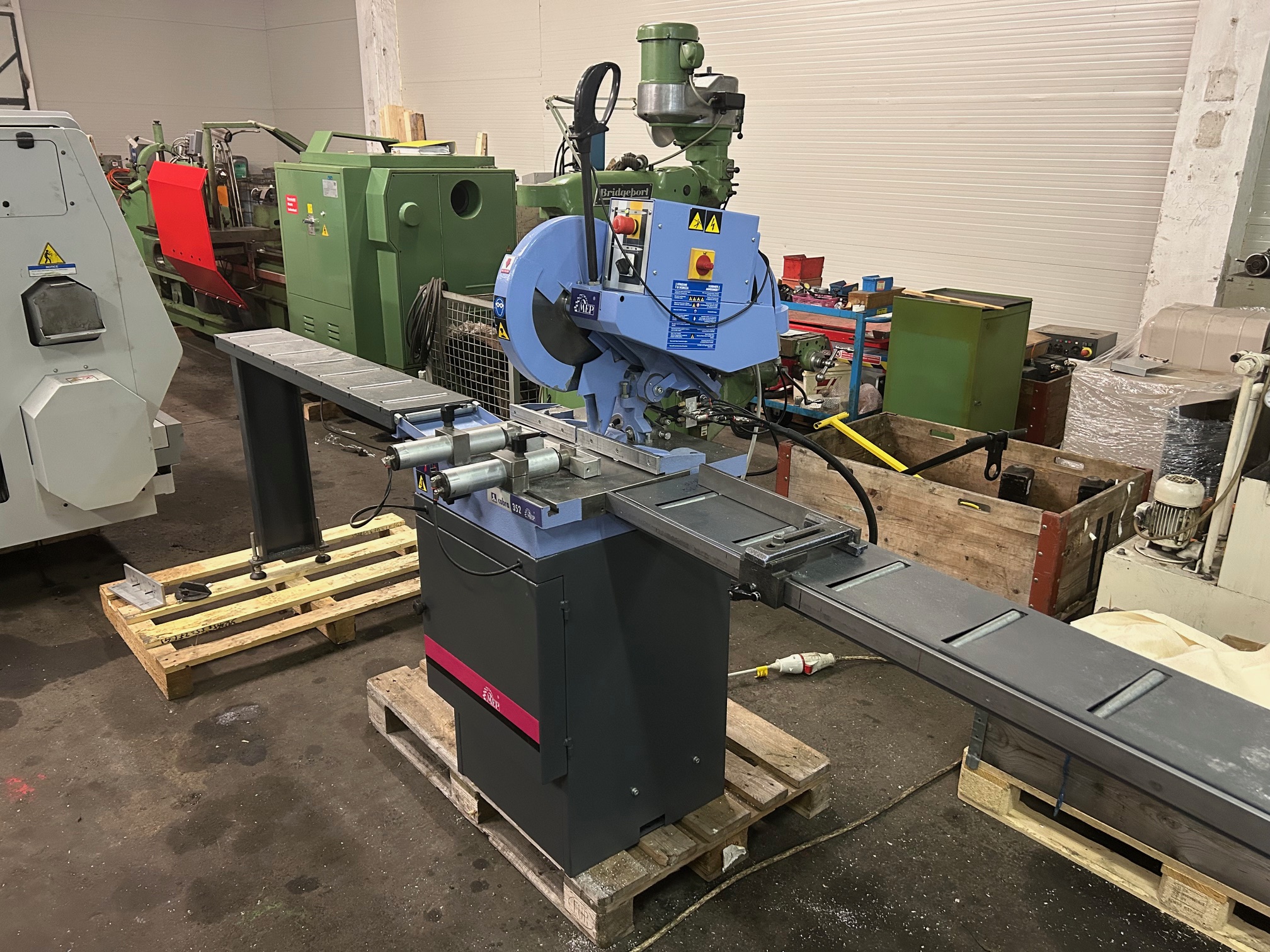

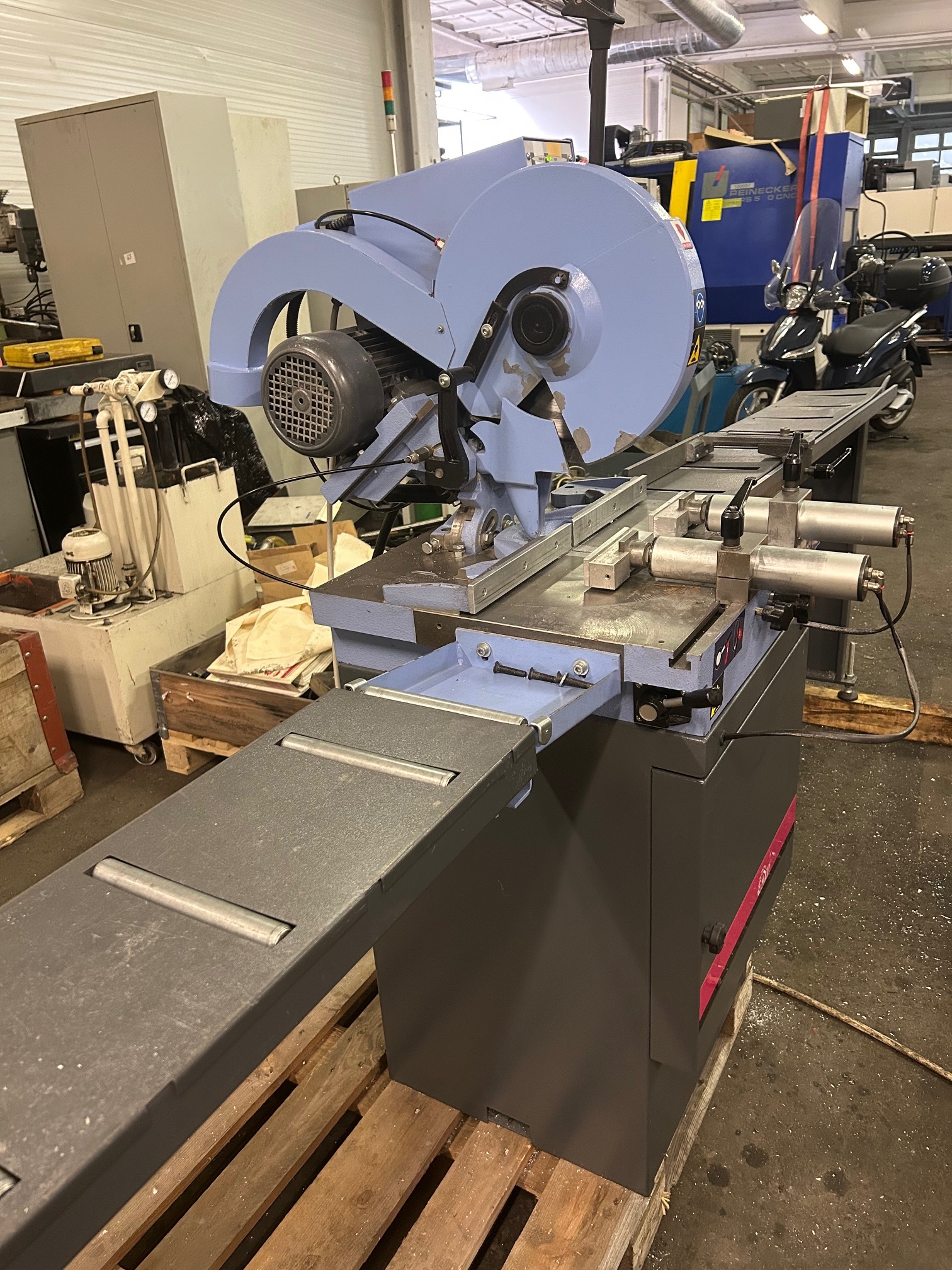

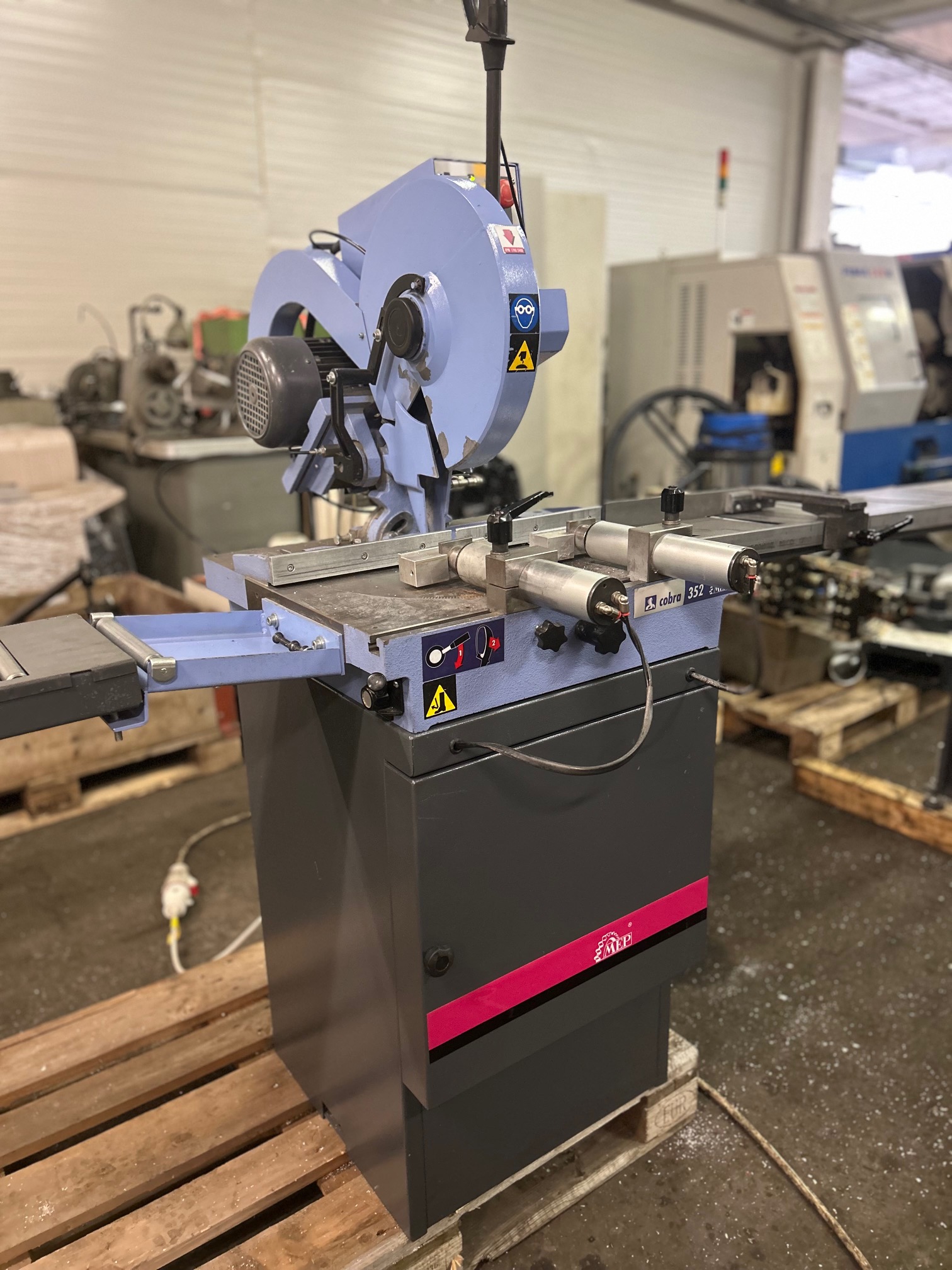

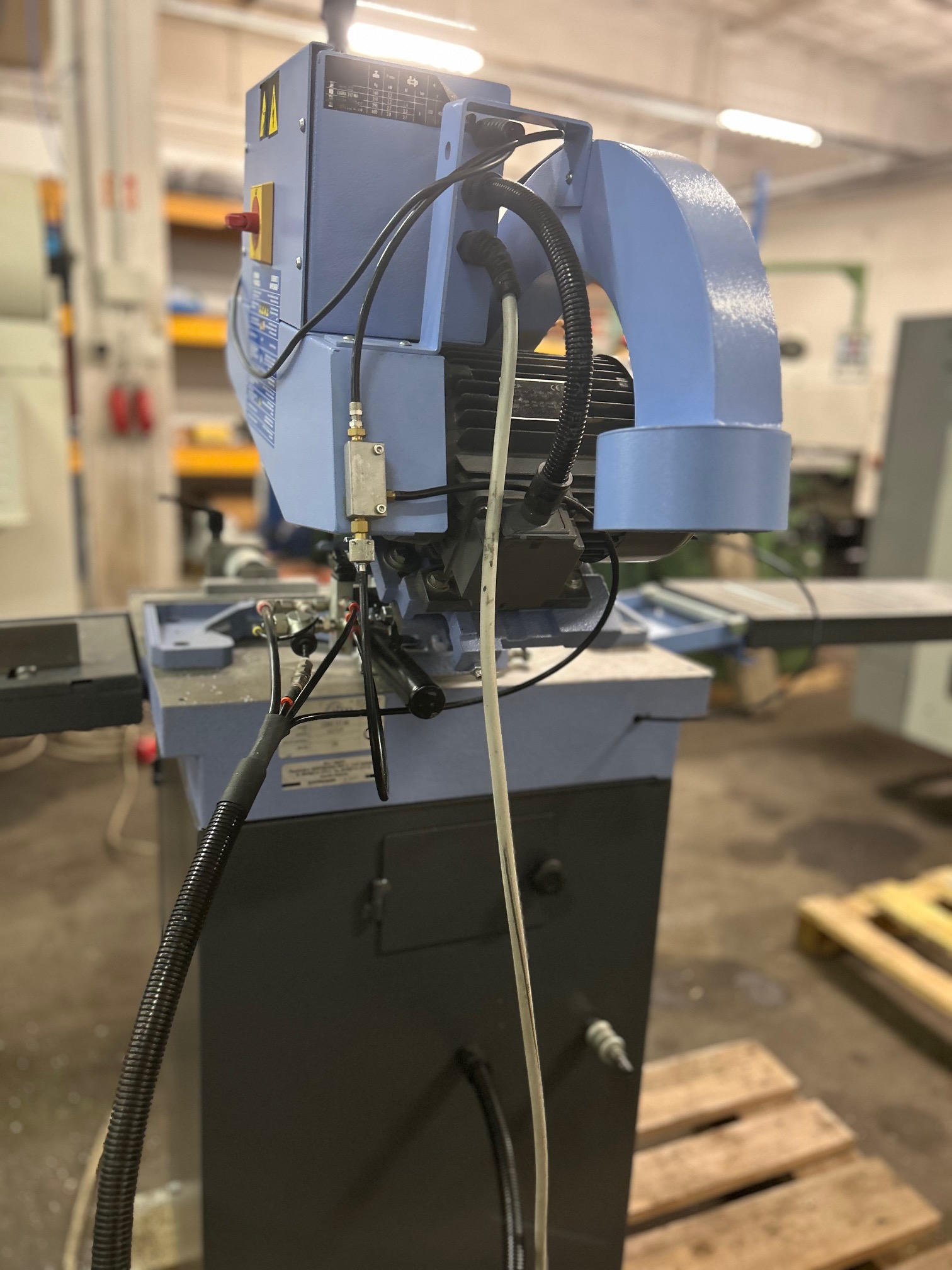

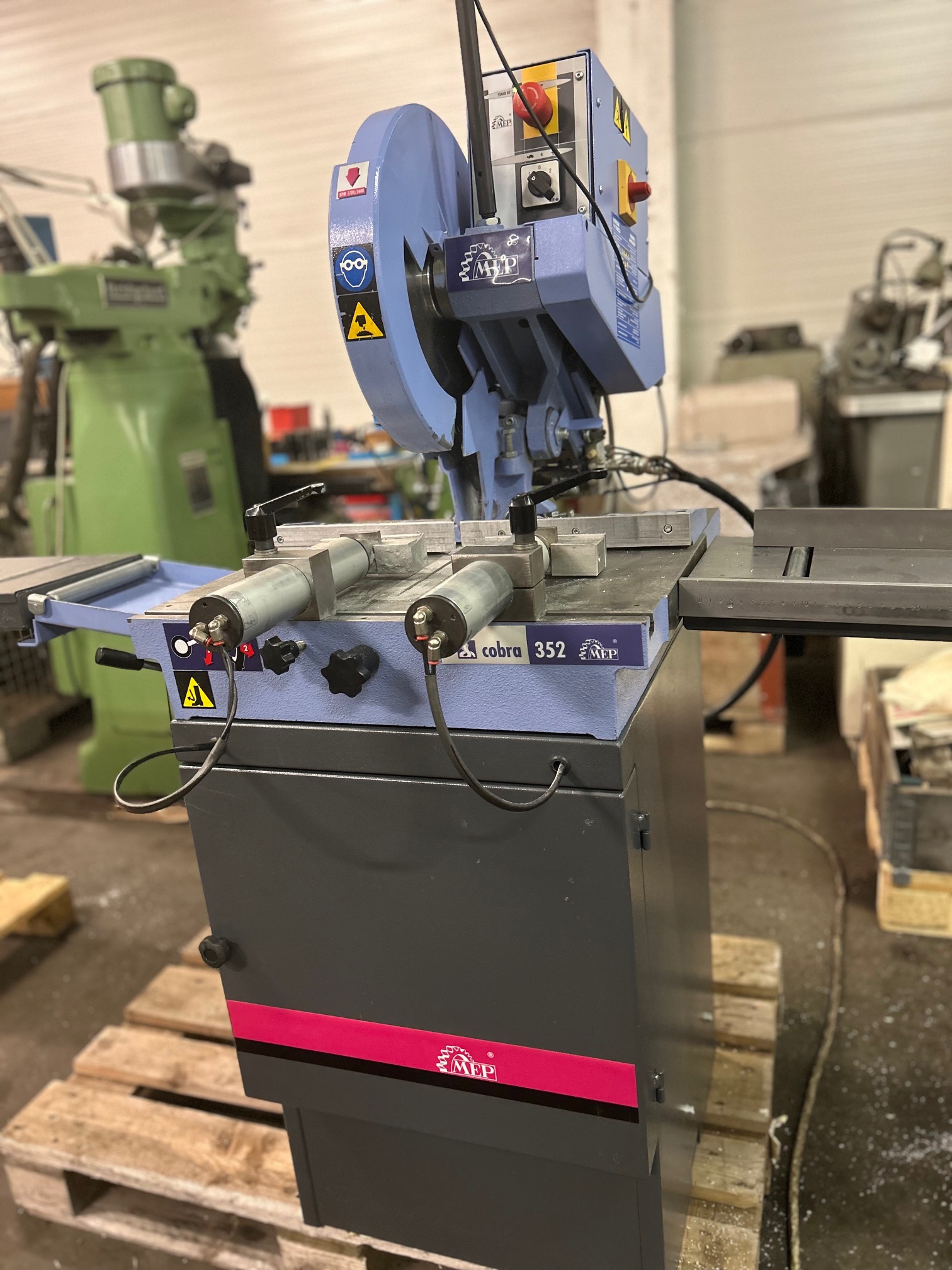

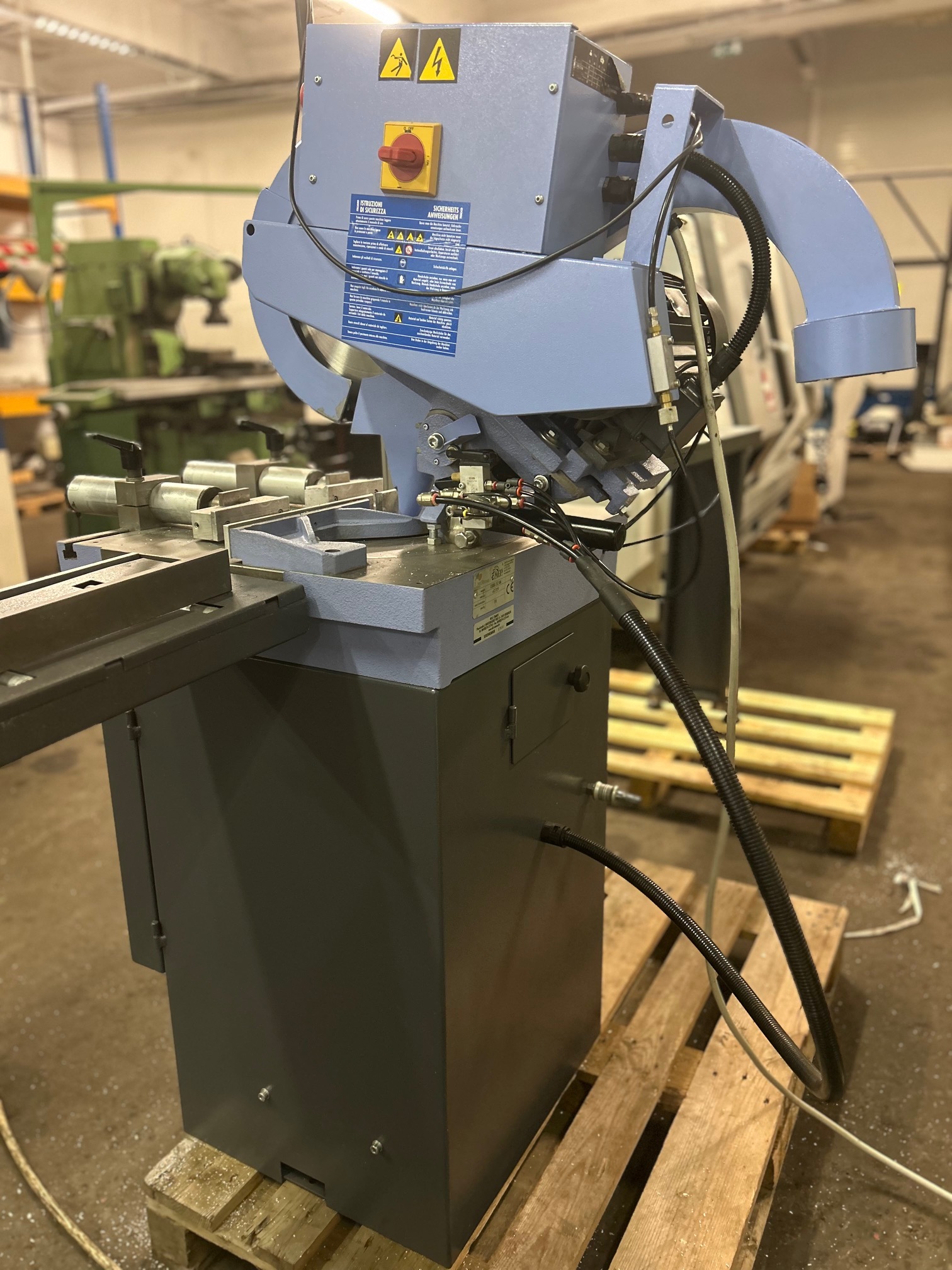

MEP Cobra 352 MA sawing machine

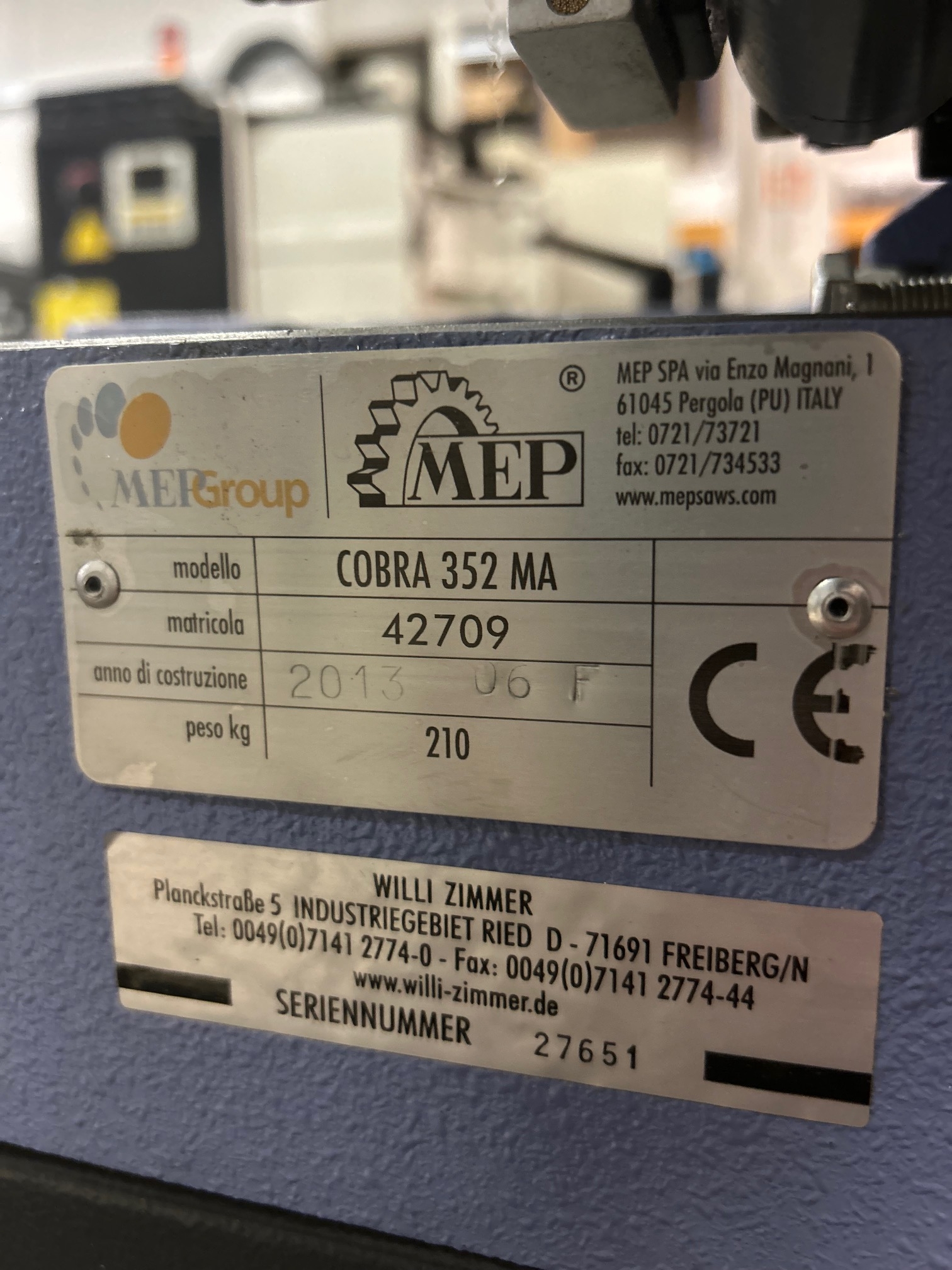

Year: 2013

COBRA 352 MA, manual pivoting sawing machine with hard-metal teeth blade to cut light alloys, aluminium profiles and solids mitering from -45° to +45°.

The saw head is vertically adjustable to also perfom cuts with head tilting from 0° to +45°.

Ideal for: miter cutting, light alloys, tubes, profiles and extruded profiles.

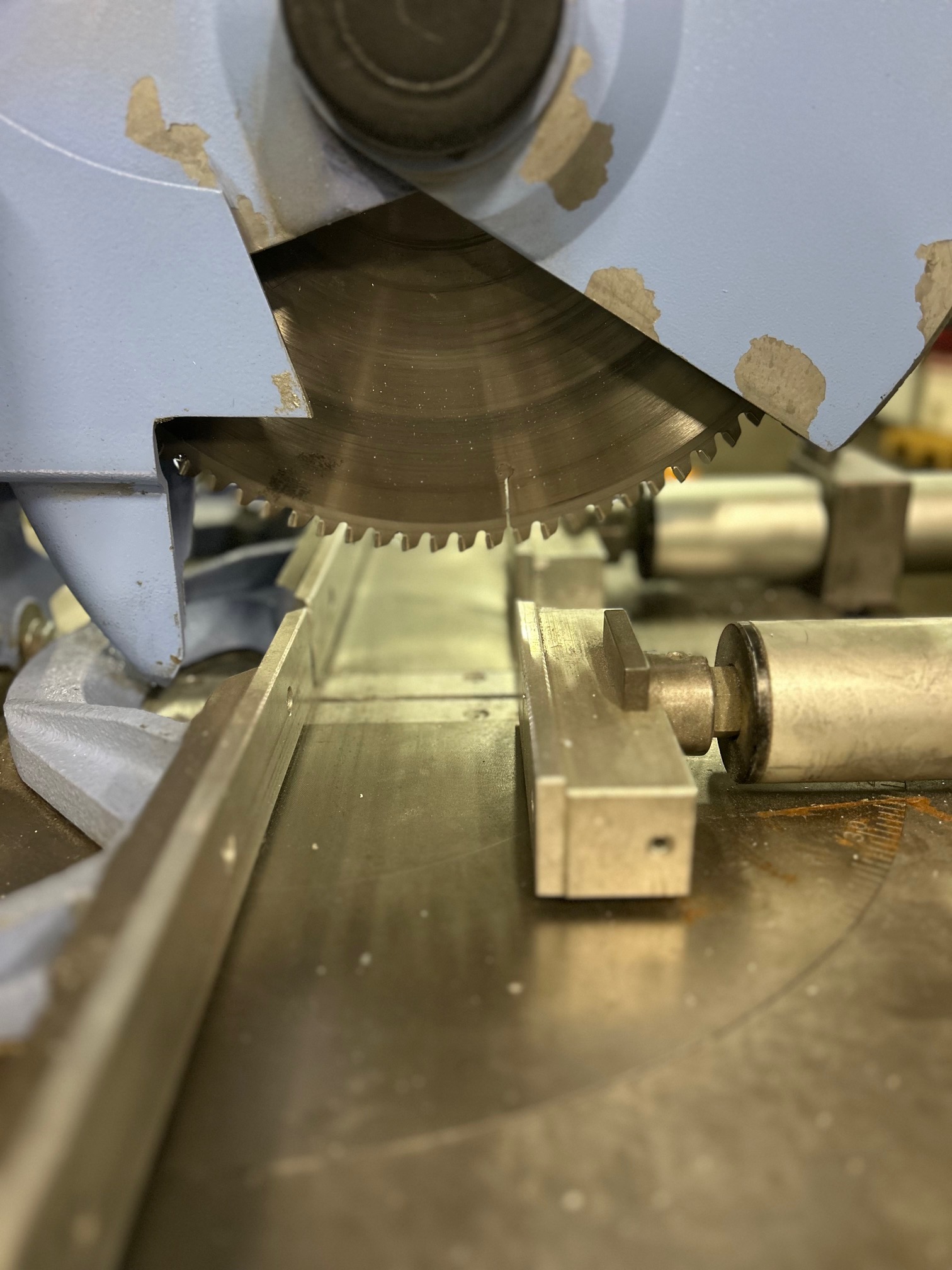

Circular blade size HM 350 x 32 x 3.4 mm
Blade motor power 2.2 Kw - Single-phase | 1.5 / 2.2 Kw - Three-phase

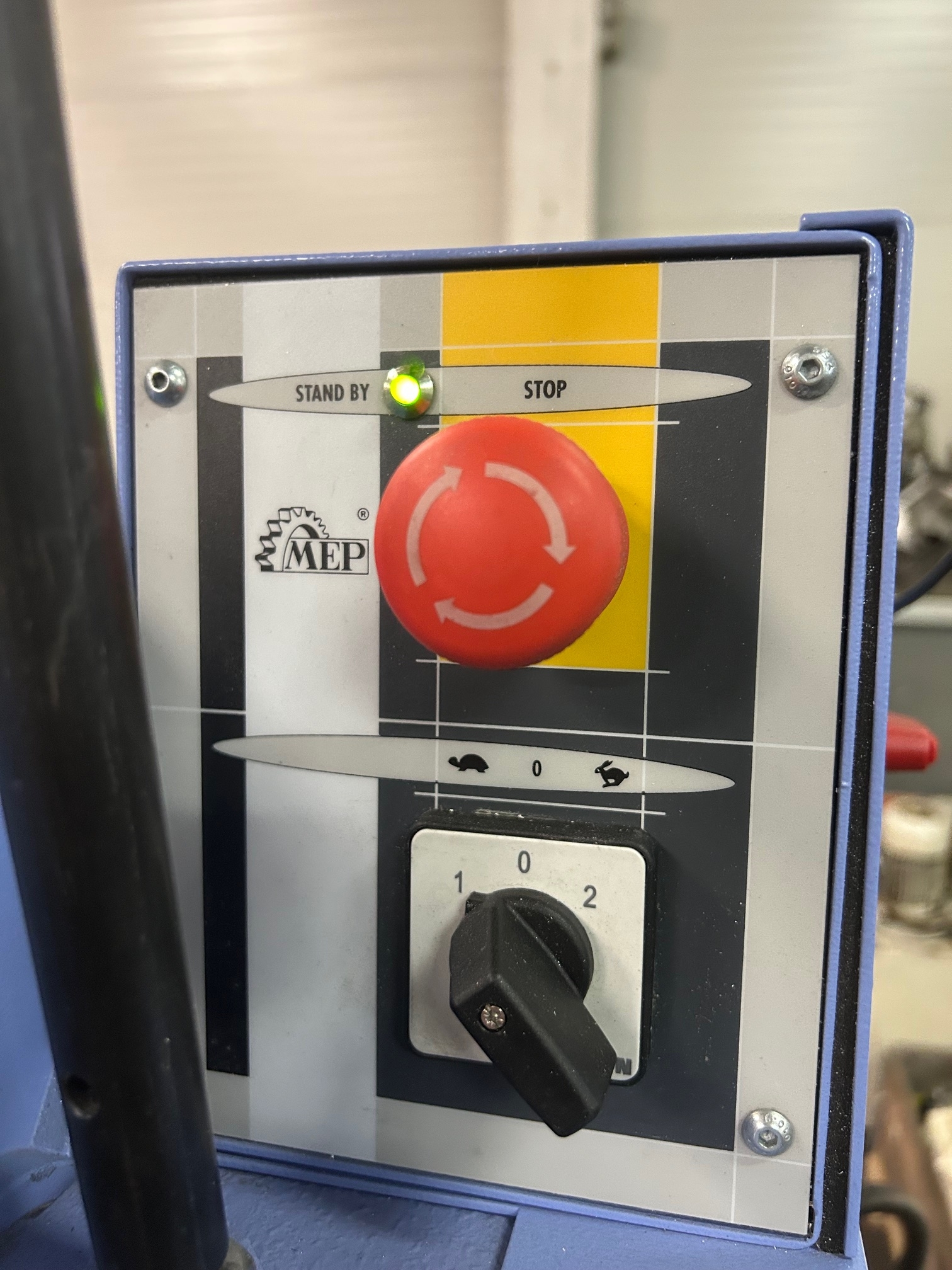

Blade rotation speed 3400 rpm - 1 Speed | 1700 / 3400 rpm - 2 Speeds

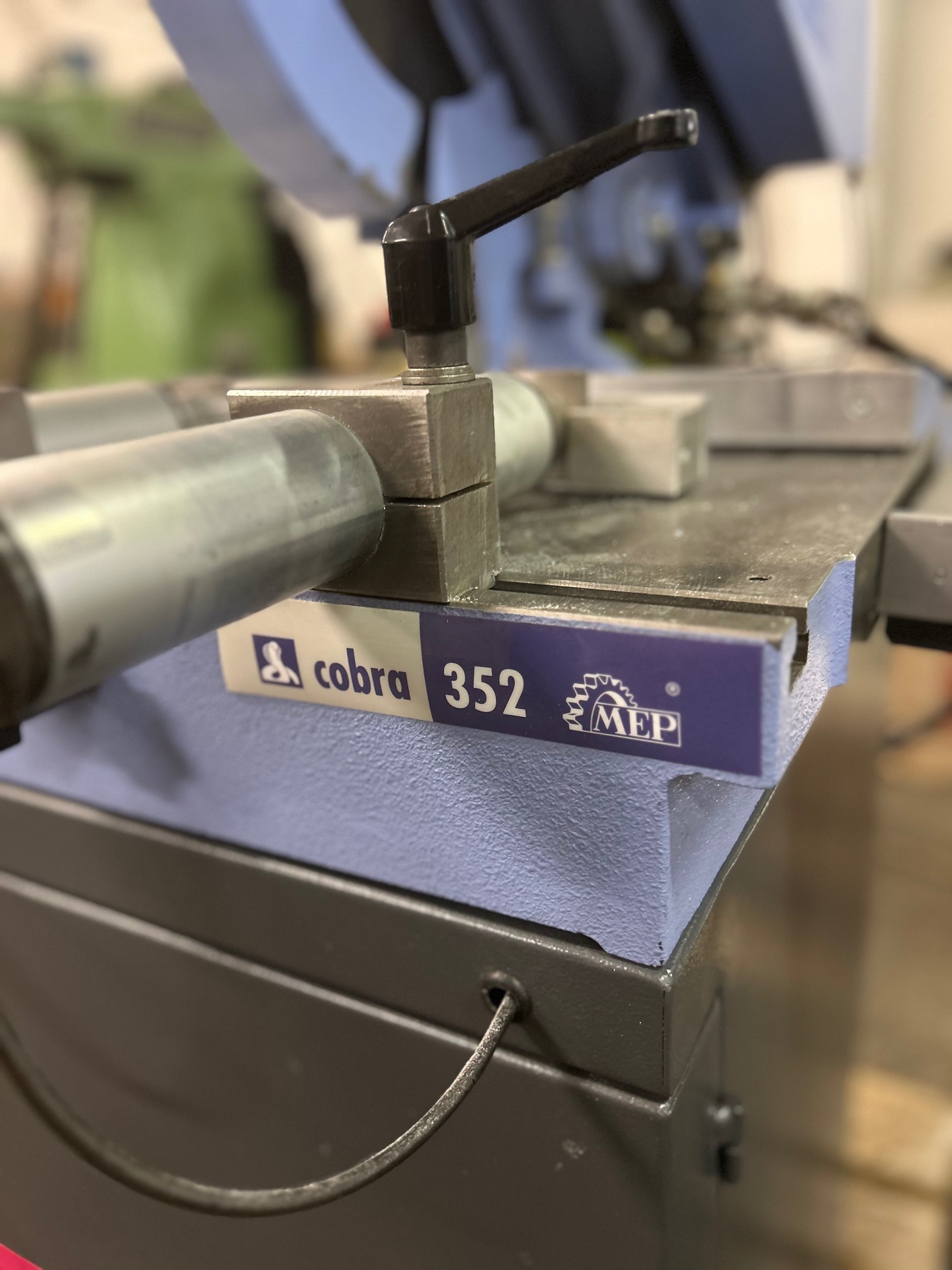

Max. vice opening 180 mm

Tube cutting 0°:
max diameter 120 mm
square 105 mm
flat 180 x 70 mm
solid material max square 80 mm

Tube cutting +45°/-45° :
max diameter 120 mm
square 100 mm
flat 136 x 60 mm
solid material max square 55 mm

Capacity of coolant tank: 10 liter

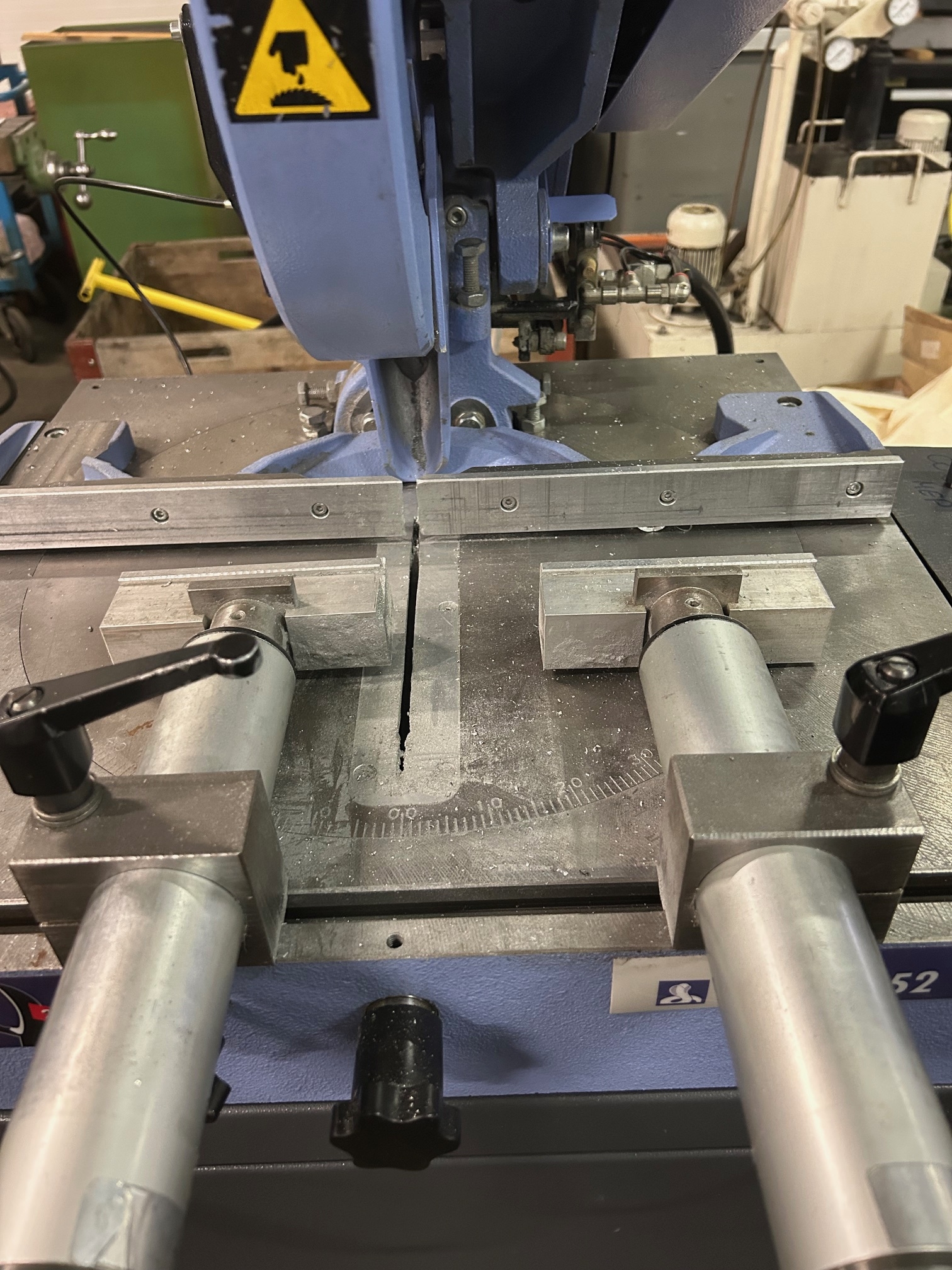

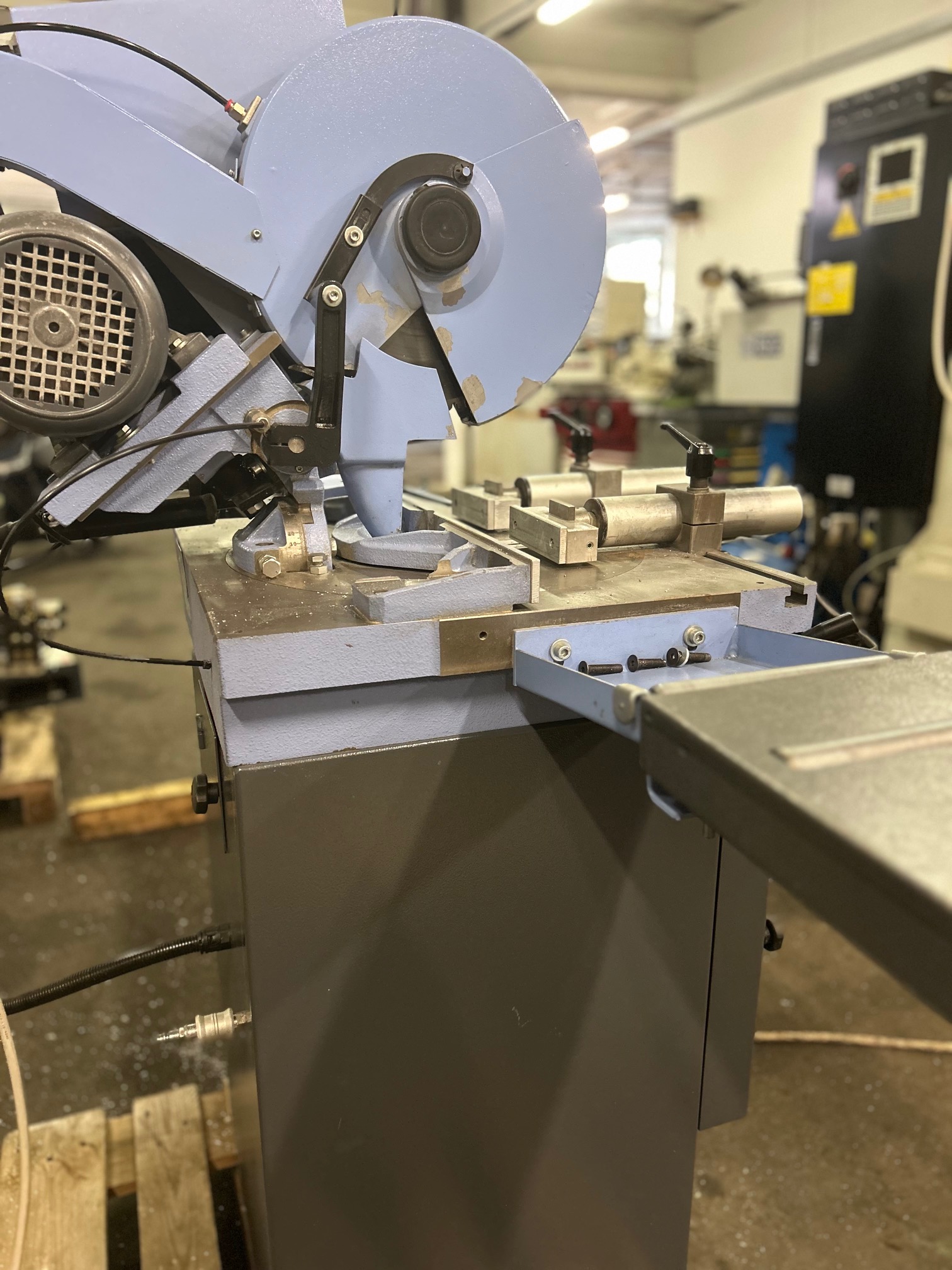

With pneumatic fast clapming system.

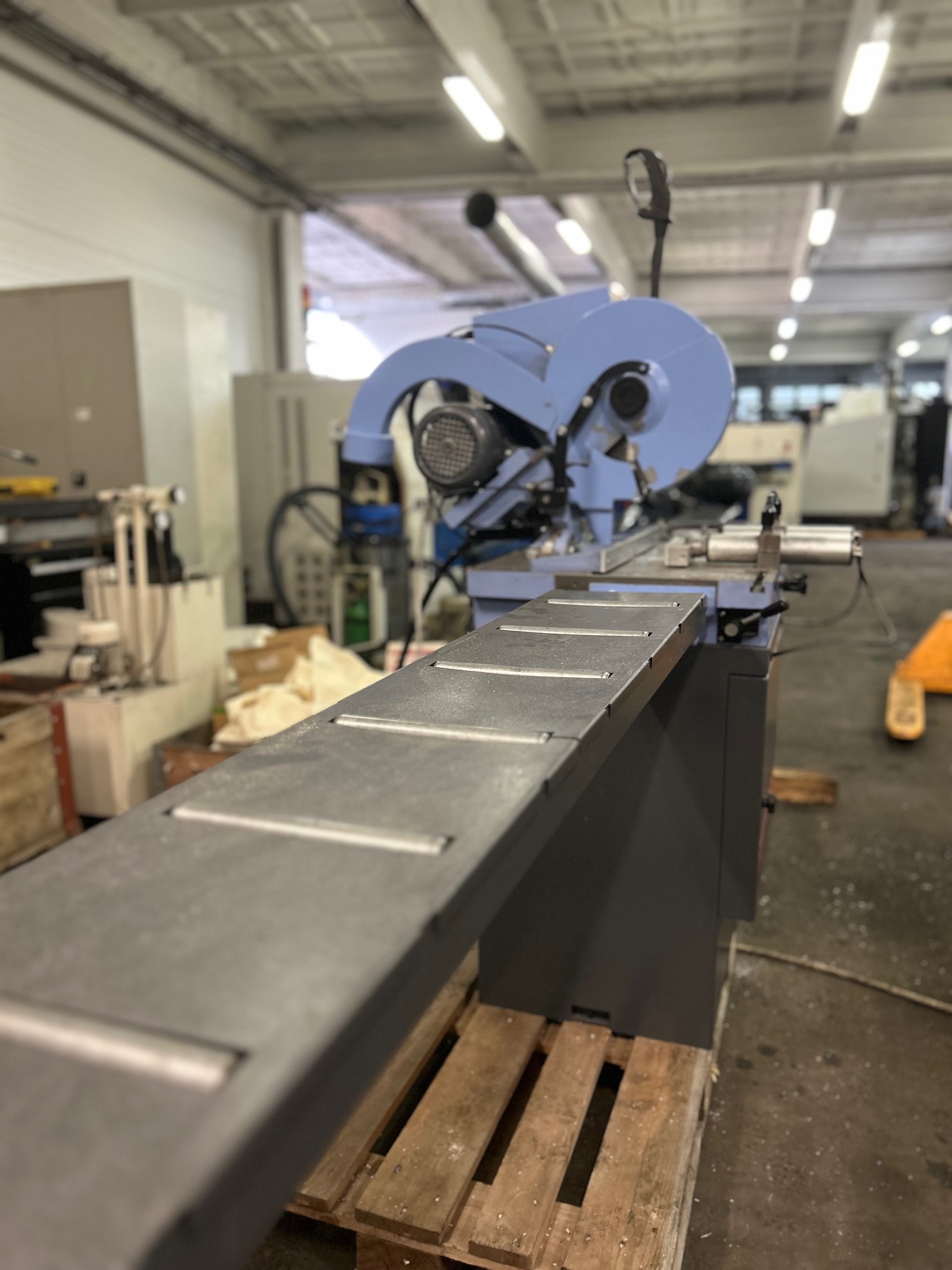

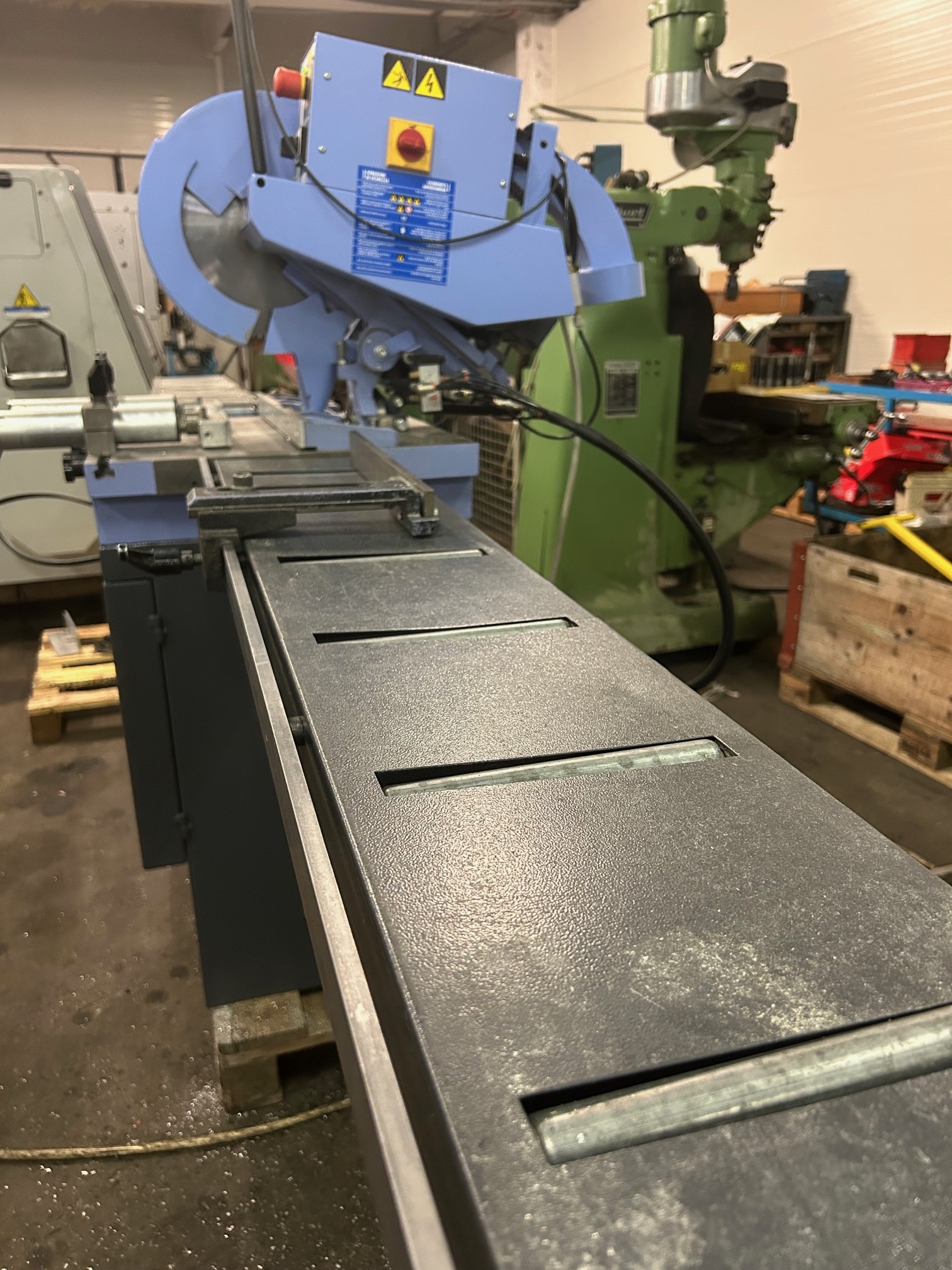

With roller stands.

Under power in our warehouse!
