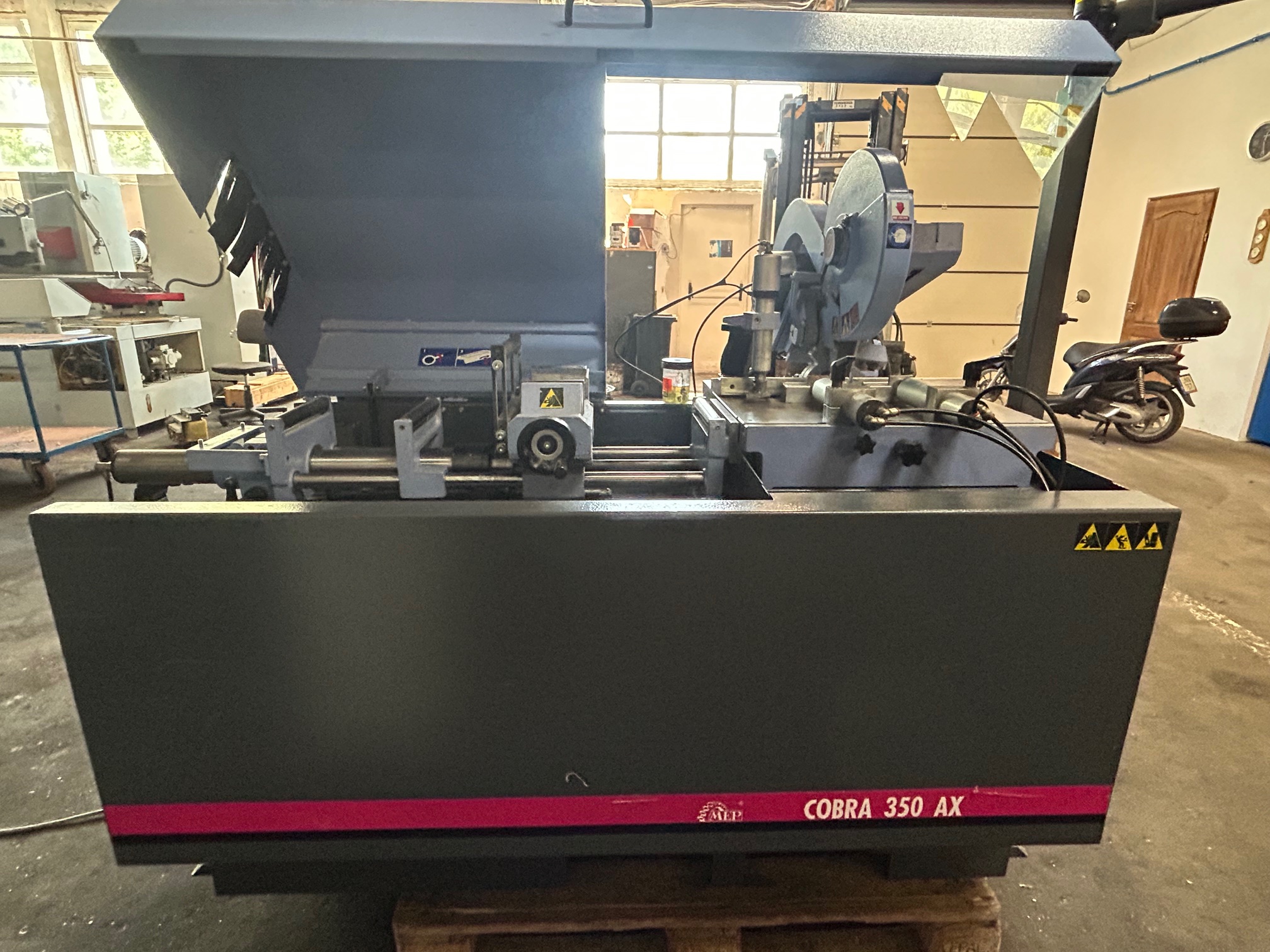

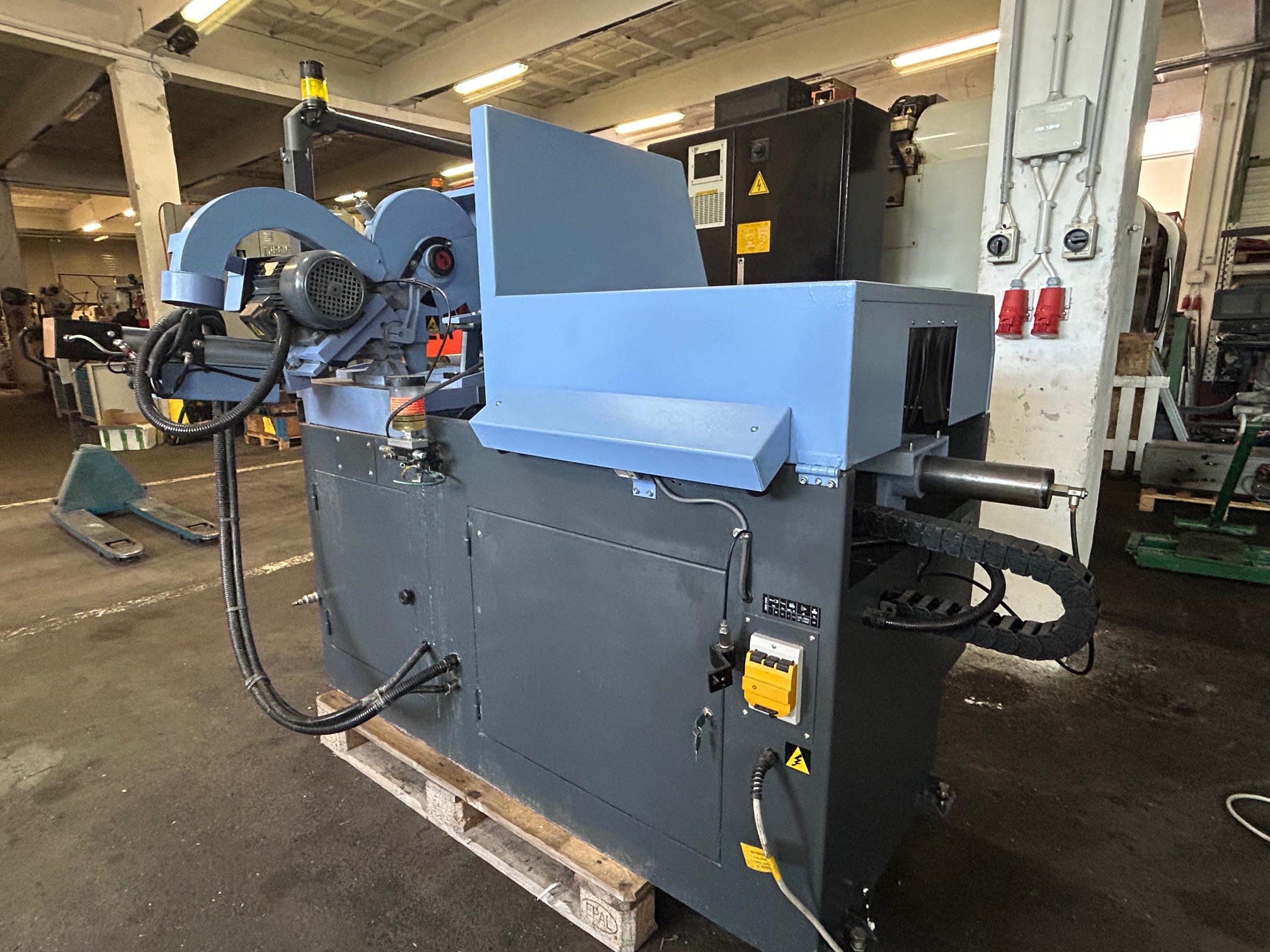

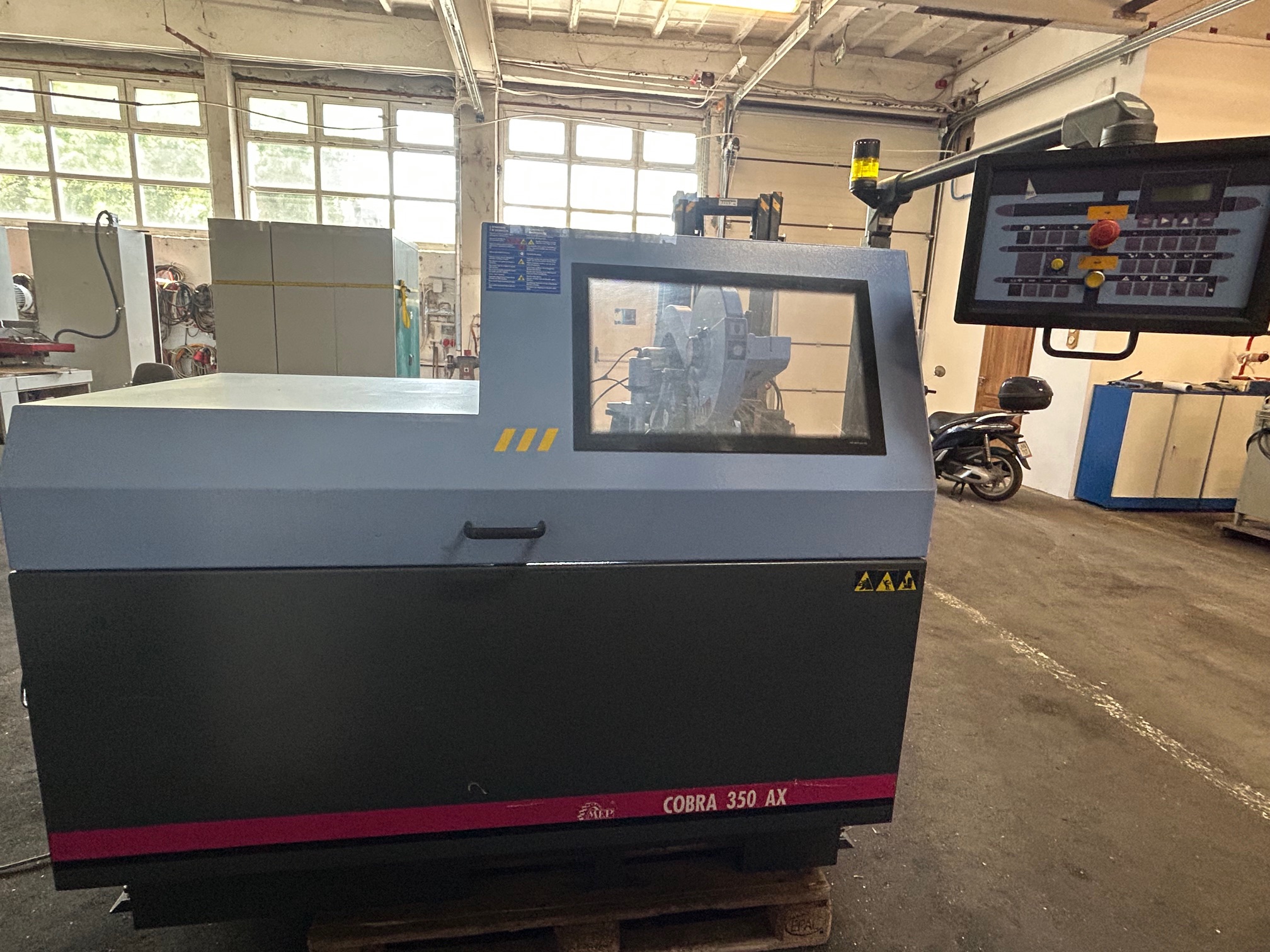

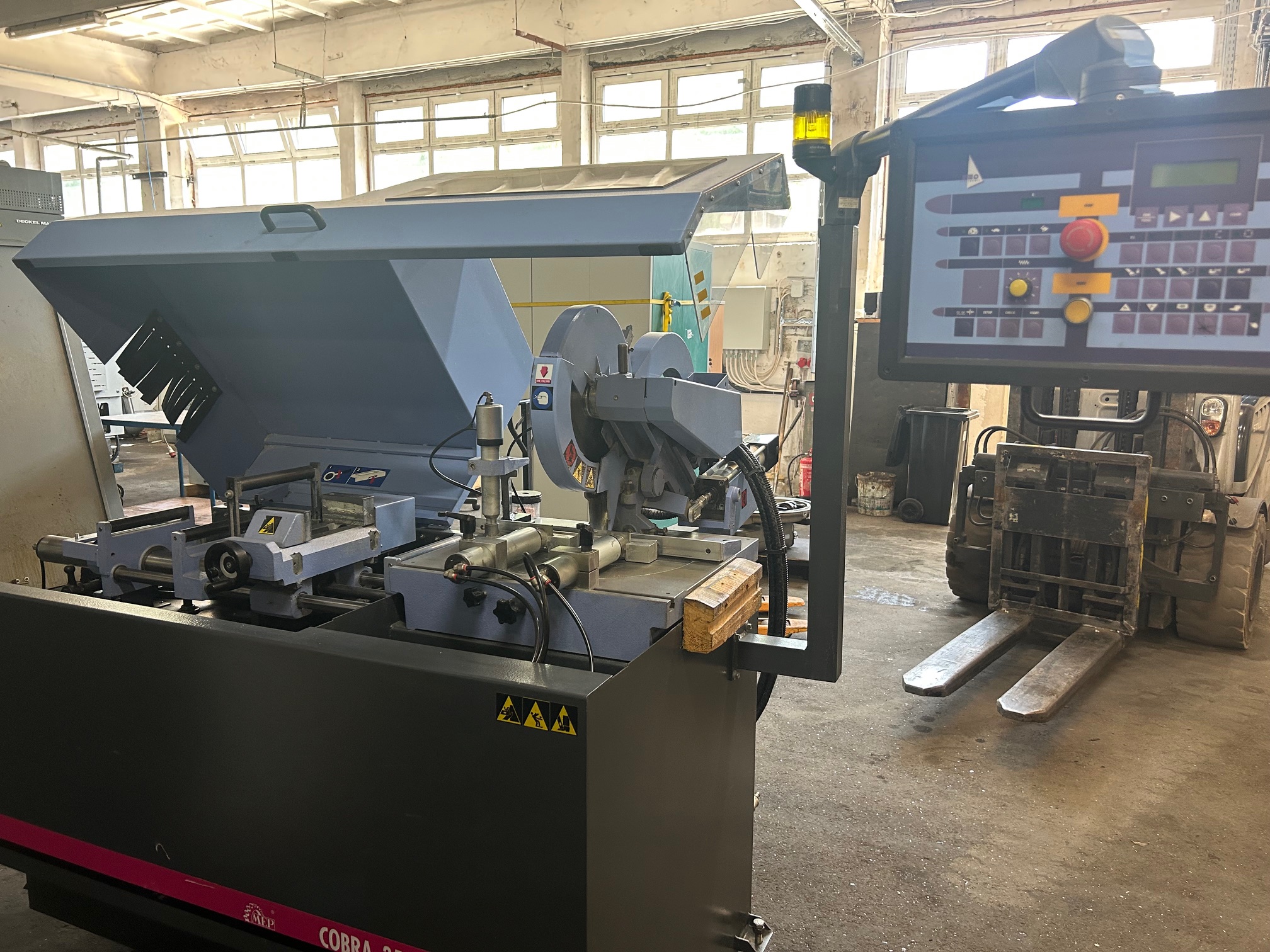

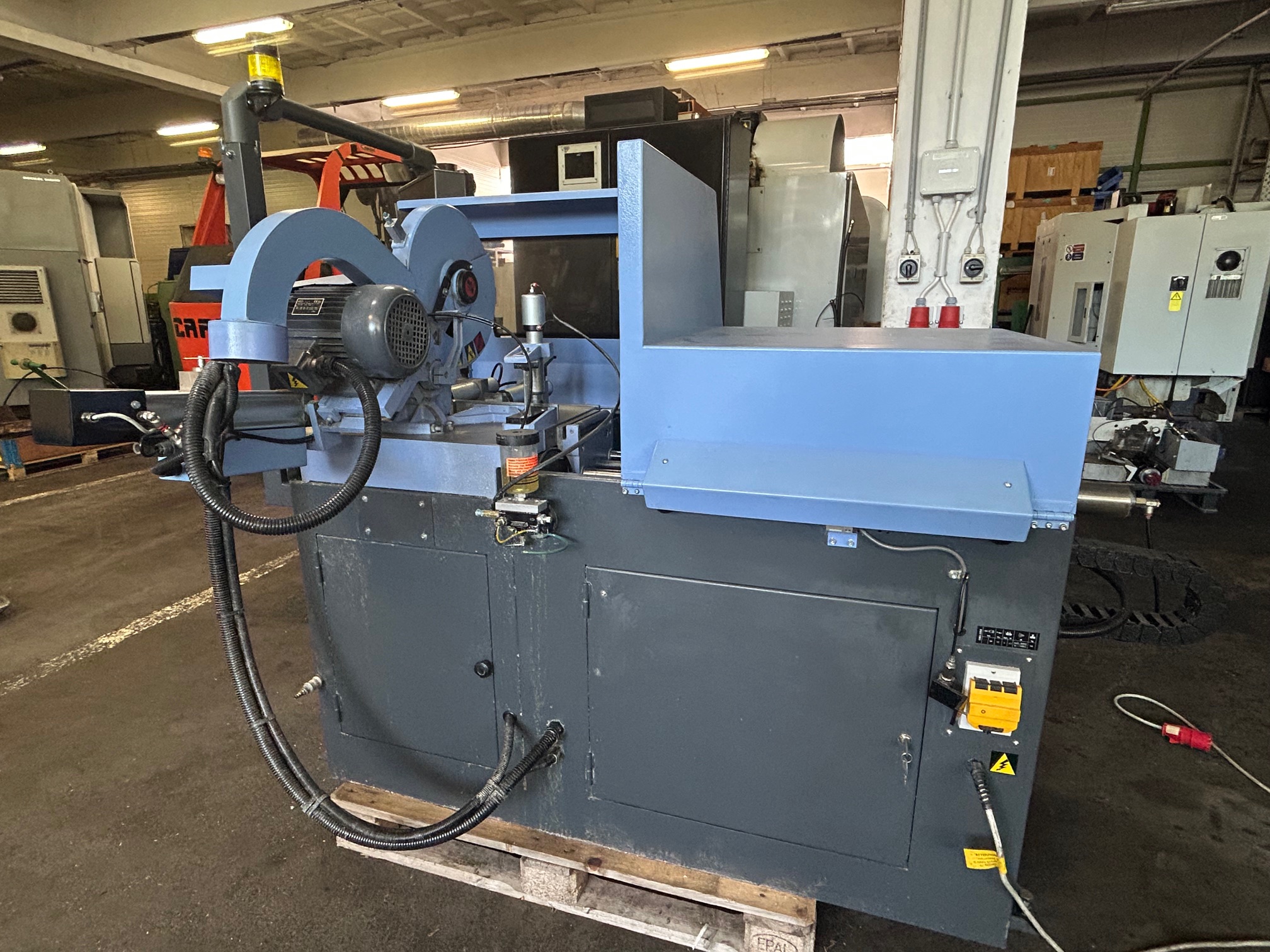

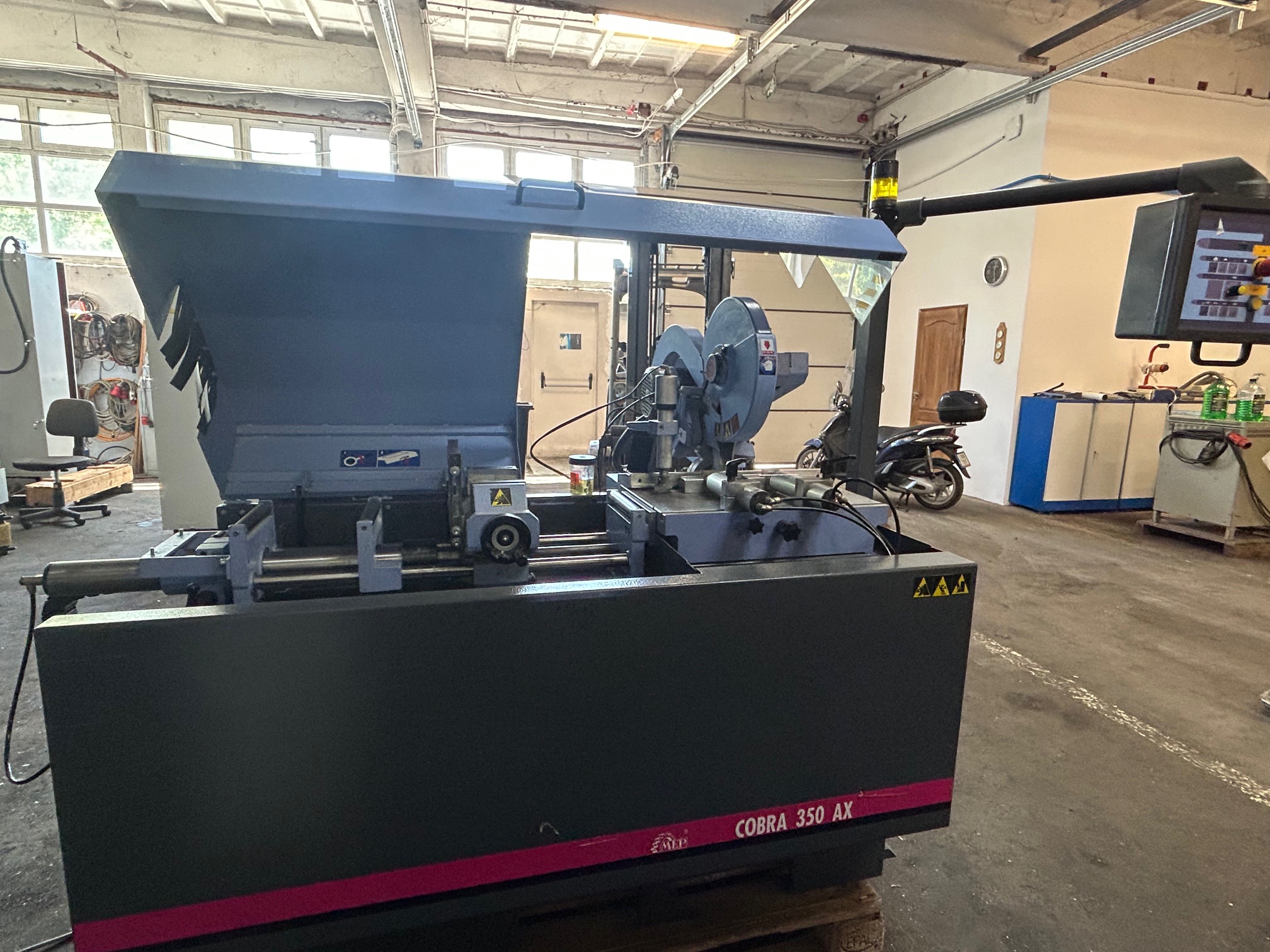

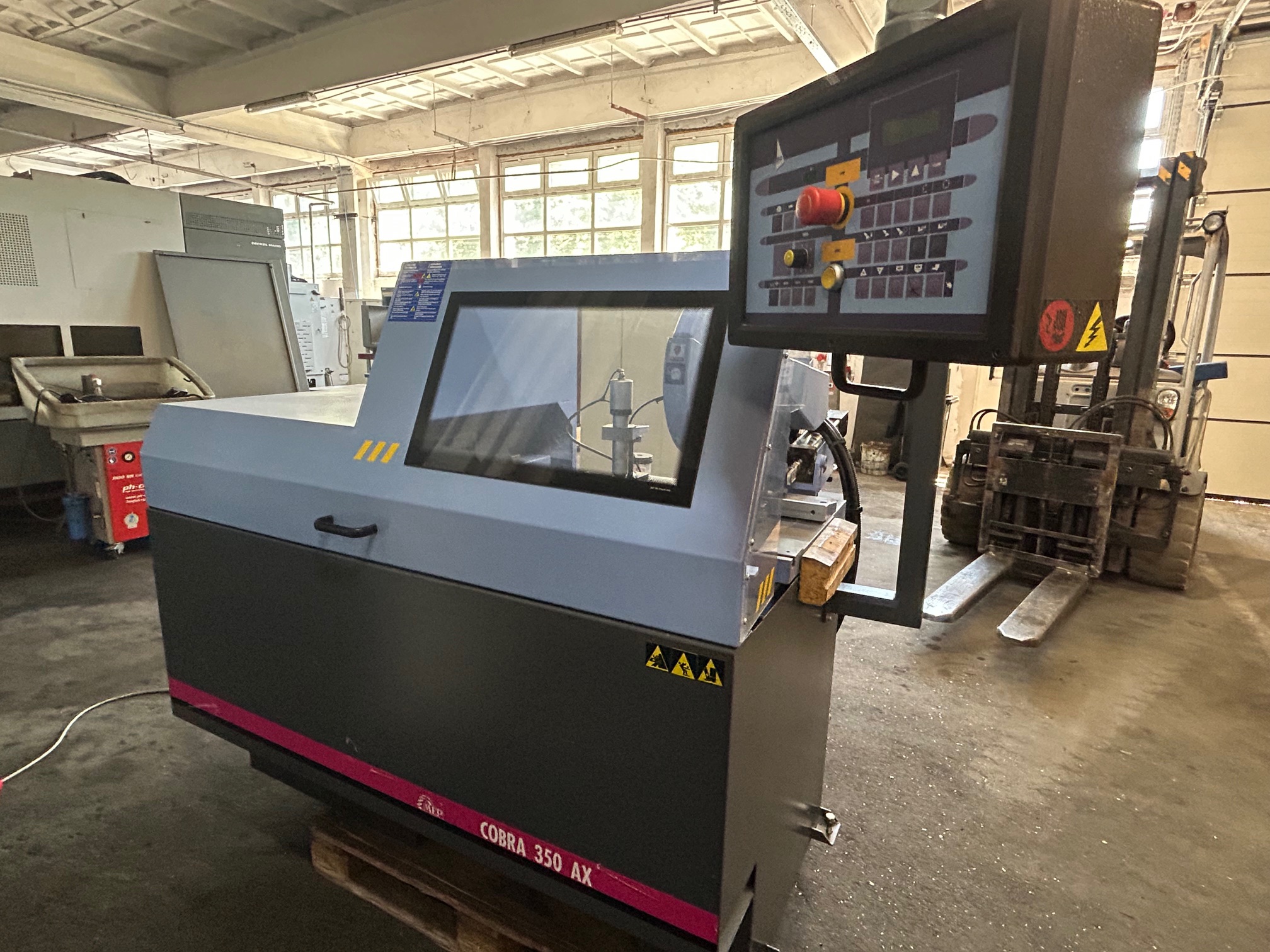

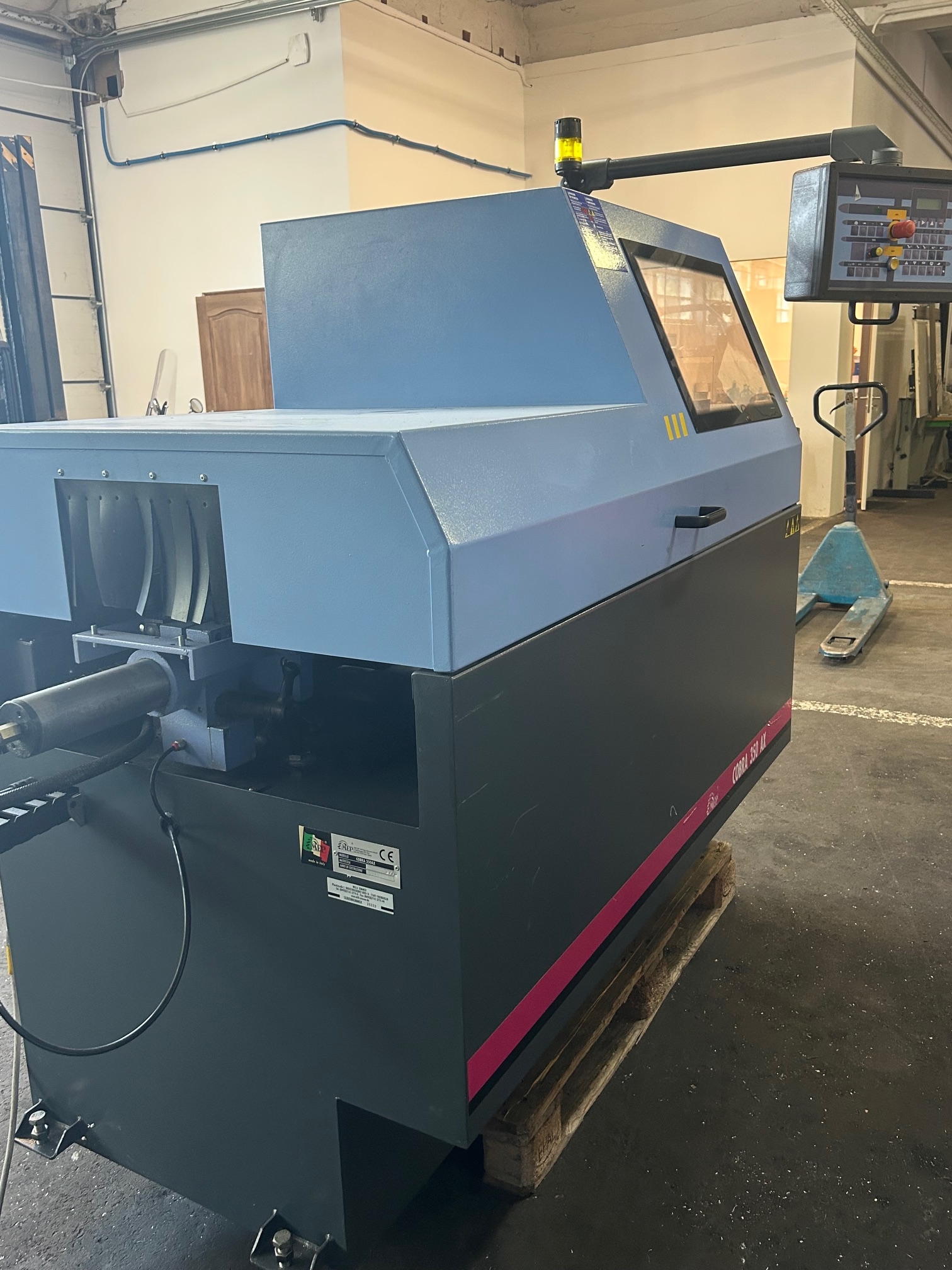

MEP Cobra 350 AX automatic aluminium circular saw

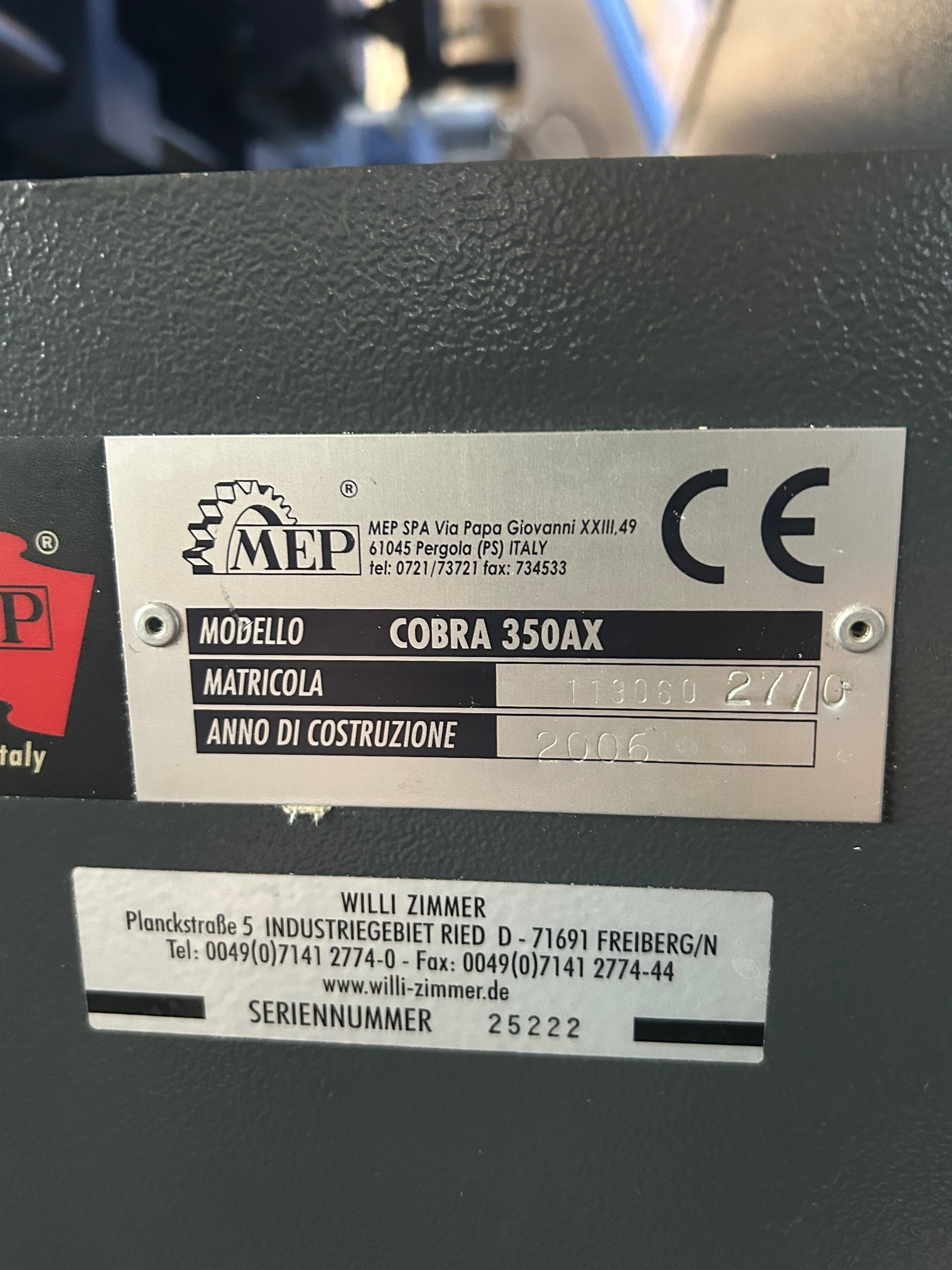

Year: 2006

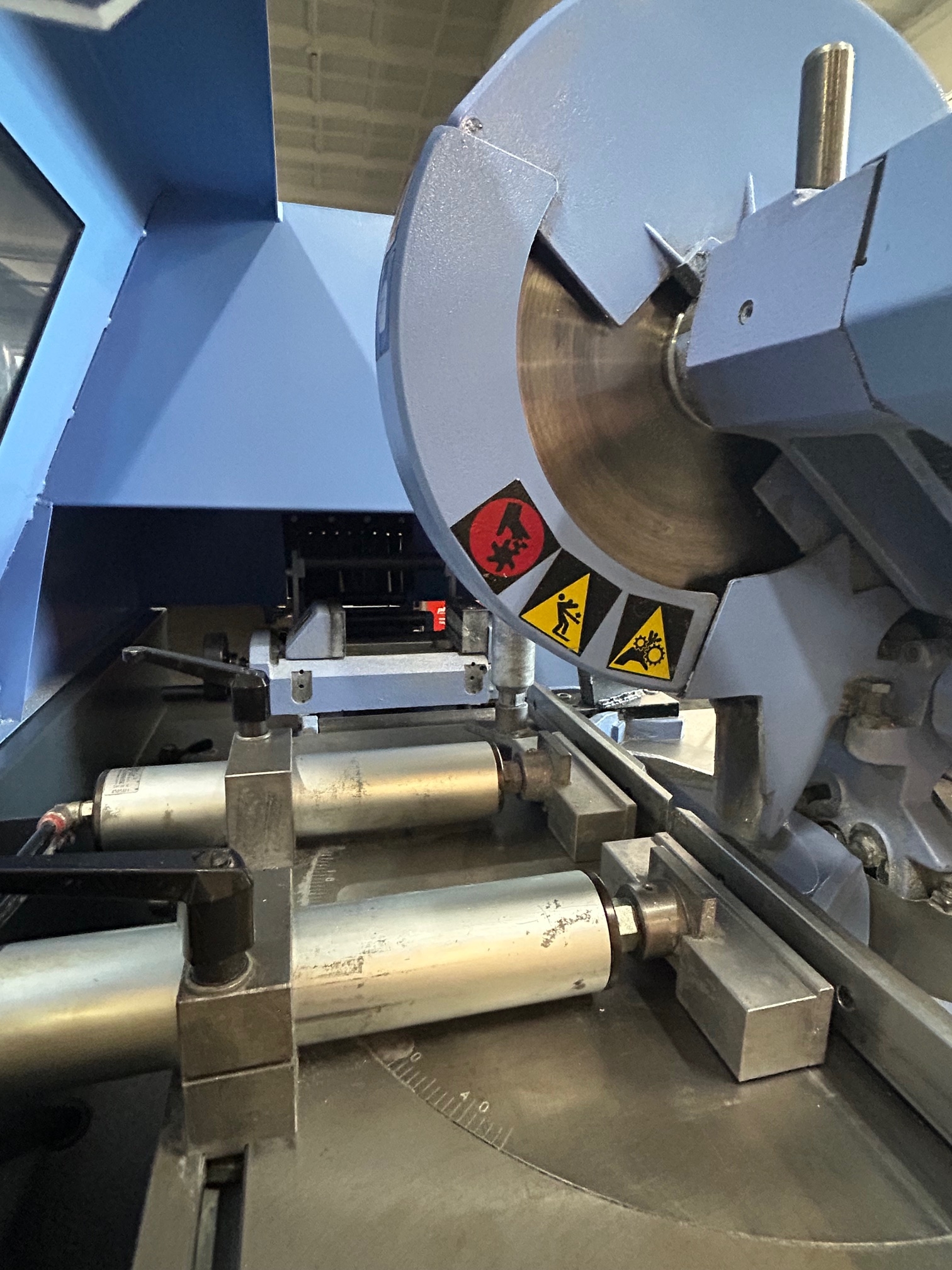

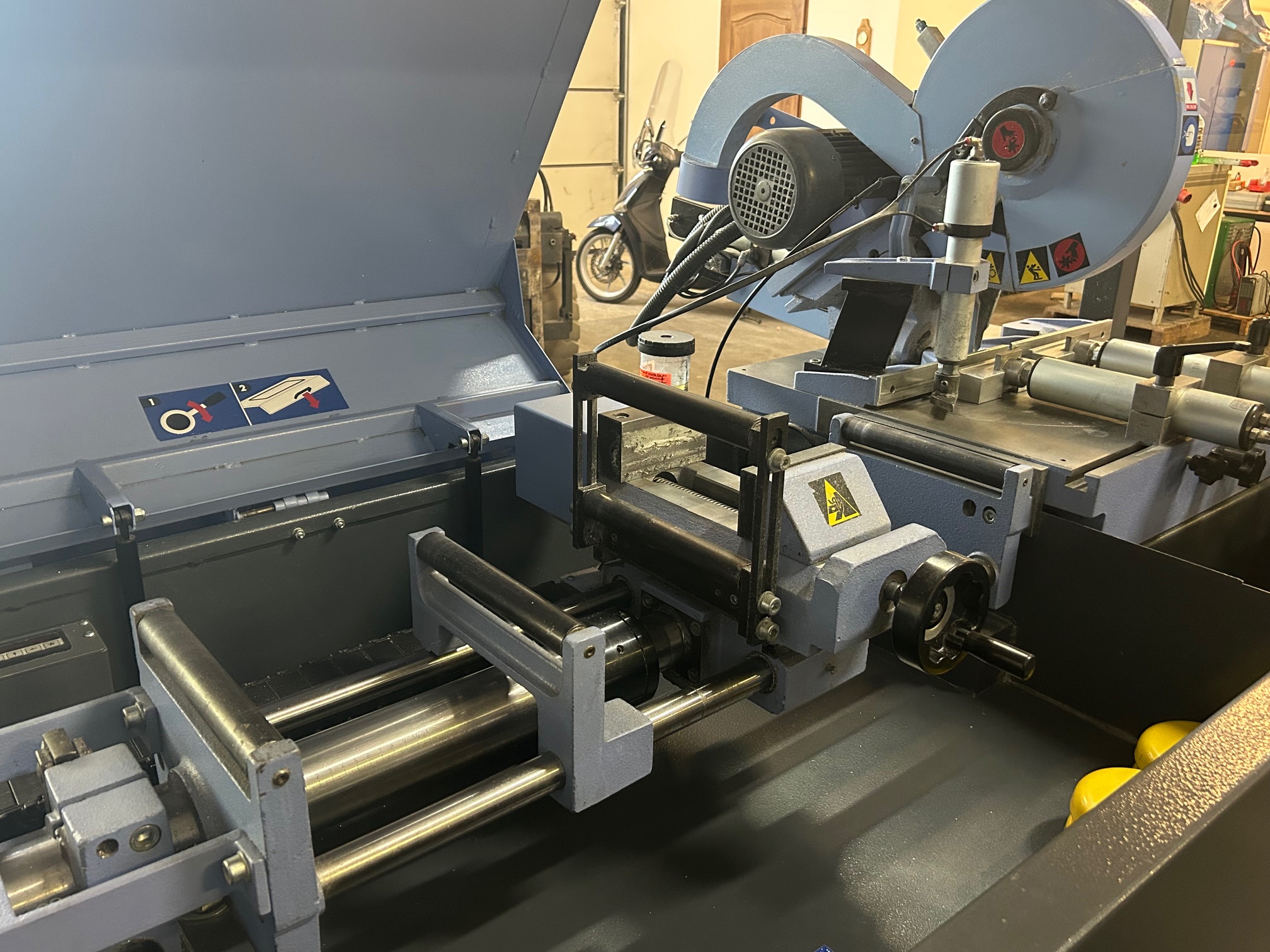

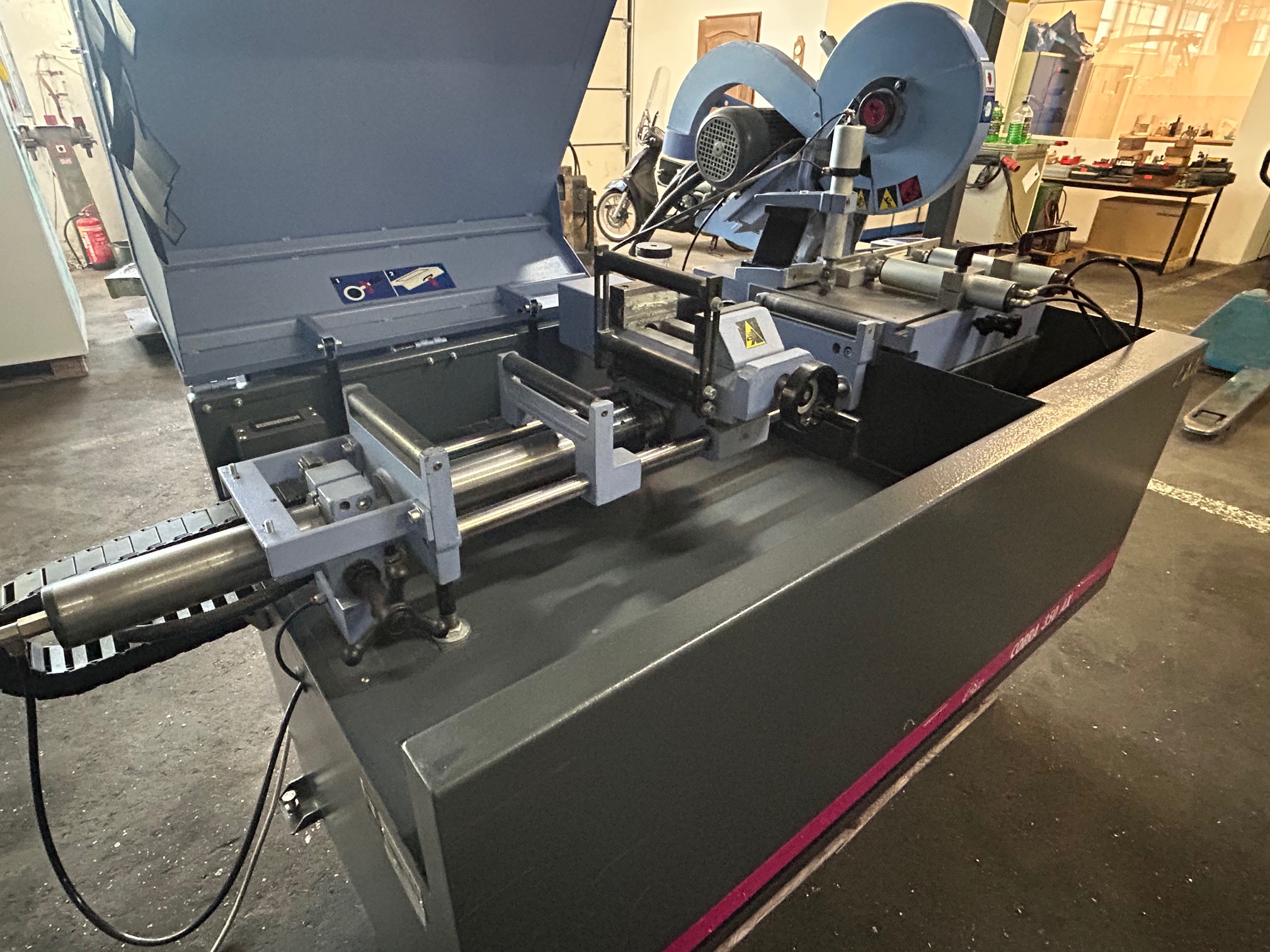

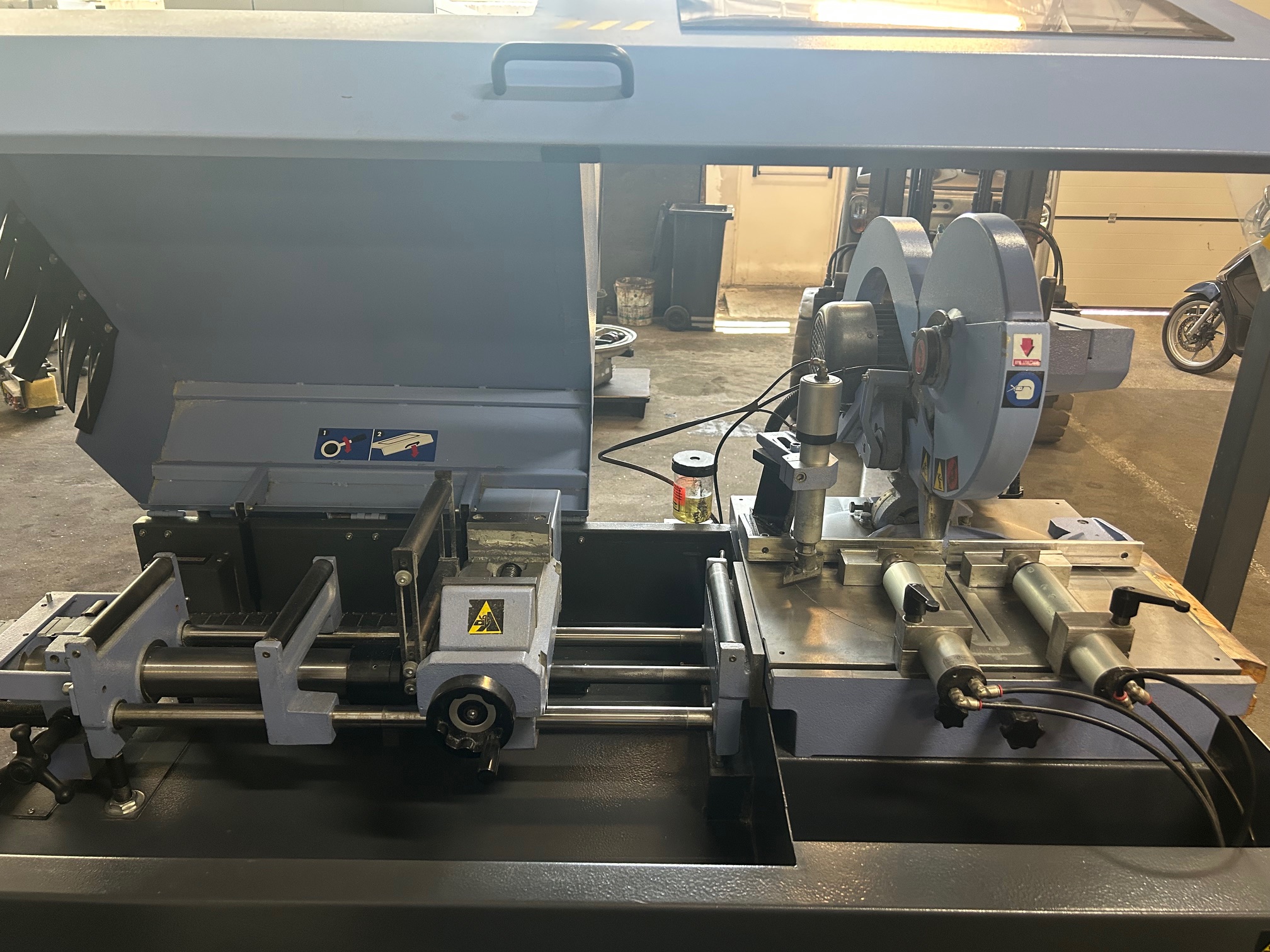

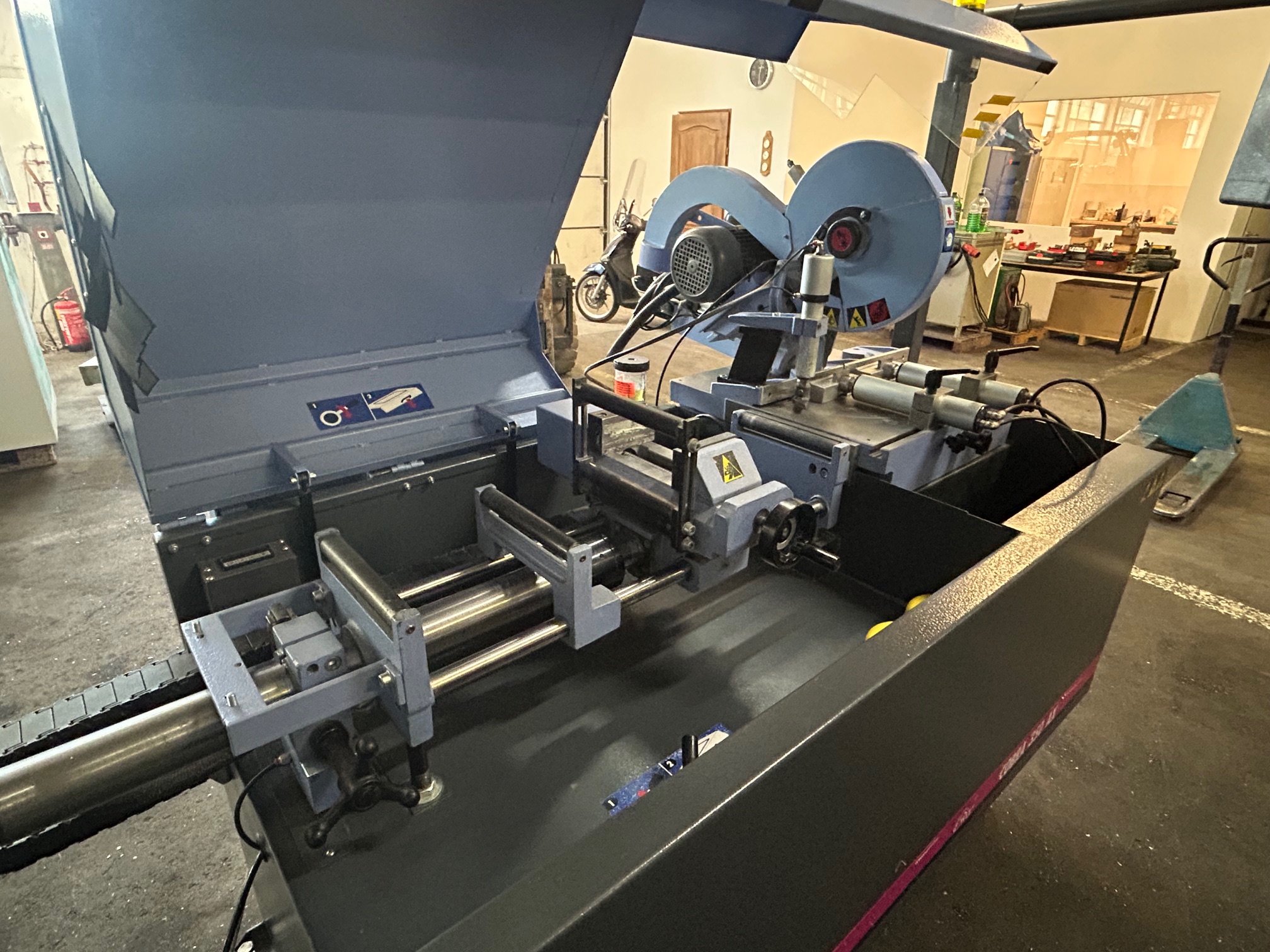

Pneumatic horizontal clamping of stock
Pneumatic vertical clamp of stock

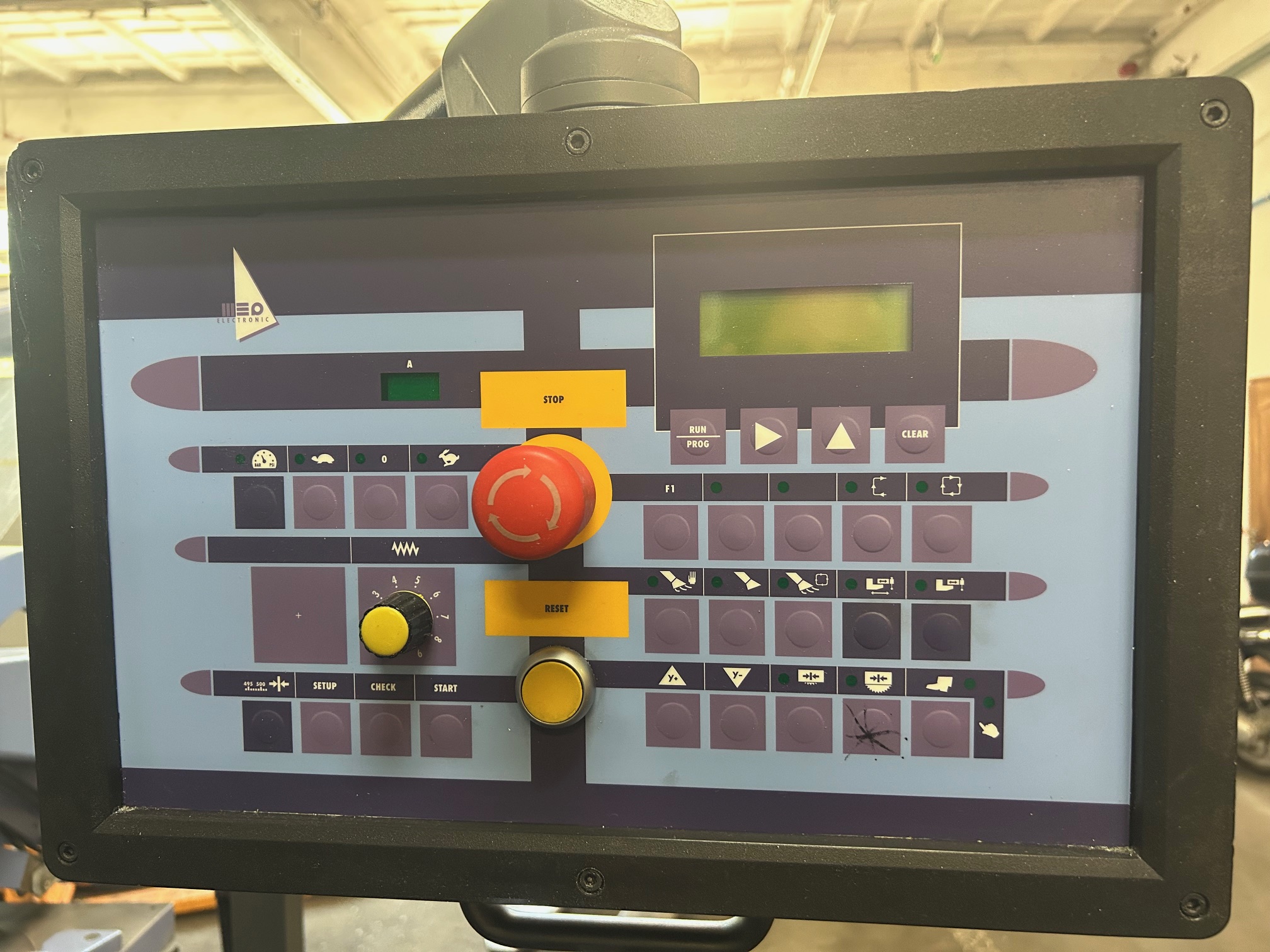

1 line, 6 position digital display
Adjustable Cutting Depth & Stop Height
Can be operated manually
Condition: used
Round cutting range 0°: 120 mm.
Square cutting range 0°: 105 x 105 mm.
Flat cutting range 0°:180 x 170 mm.
Cutting range full square material 0°:80 mm.
45° square cutting range: 110 x 95 mm.
45° flat cutting range: 160 / 35 – 180 / 20 mm.
45° cutting range with cutting head in left position with solid round/square/flat cutting disc diameter: 50/ 50/ 160 x 35 mm.
Nr. 02 speed: 1700 / 3400 rpm
Vice opening:180 mm.
Saw blade diameter : 350 mm
Drive power 3.5 Kw.
Dimensions: 2000 x 1000 x 1750 mm.
Weight: 600 Kg

Accessories/options:

manuals
rollers for long workpieces
