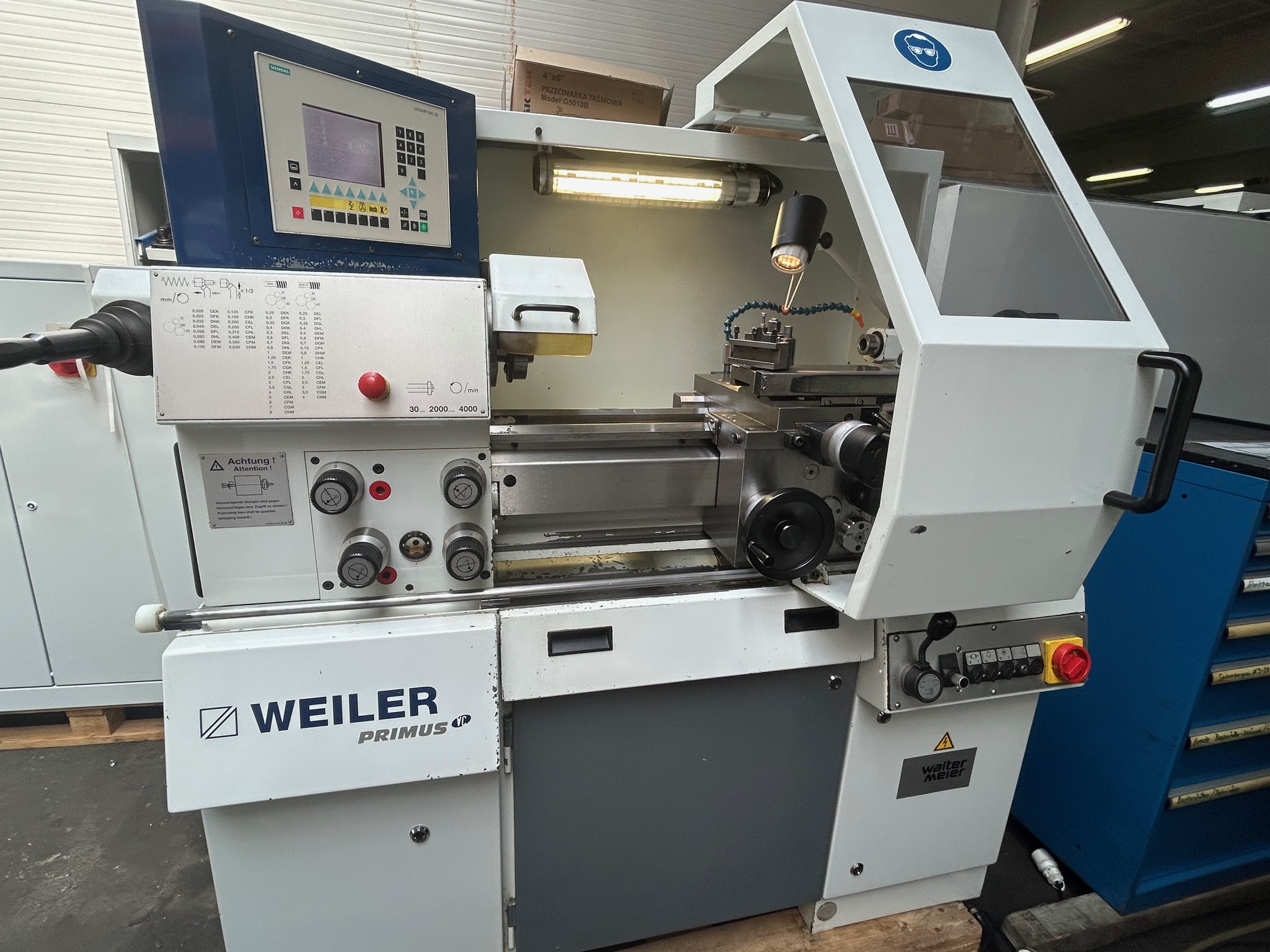

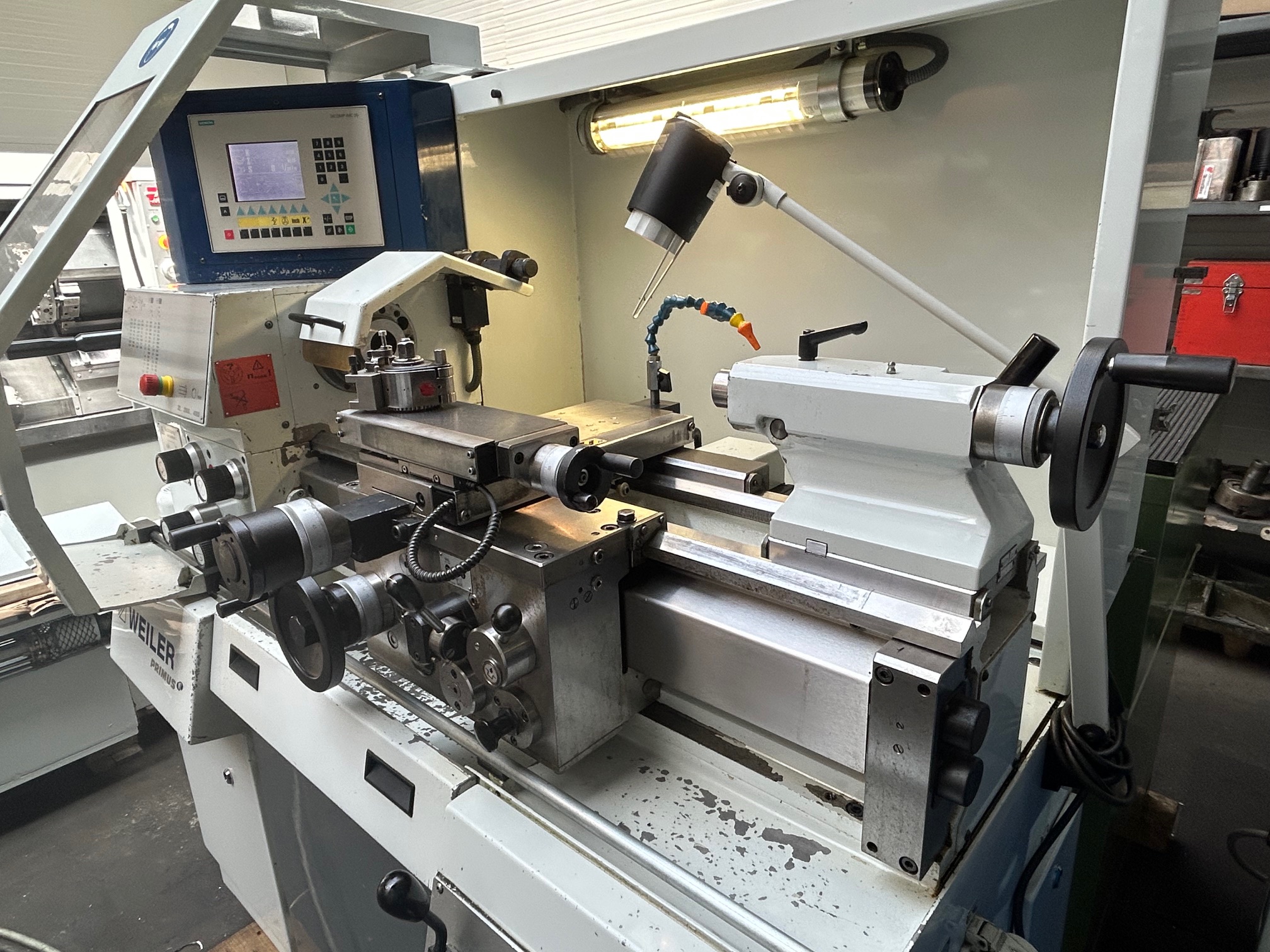

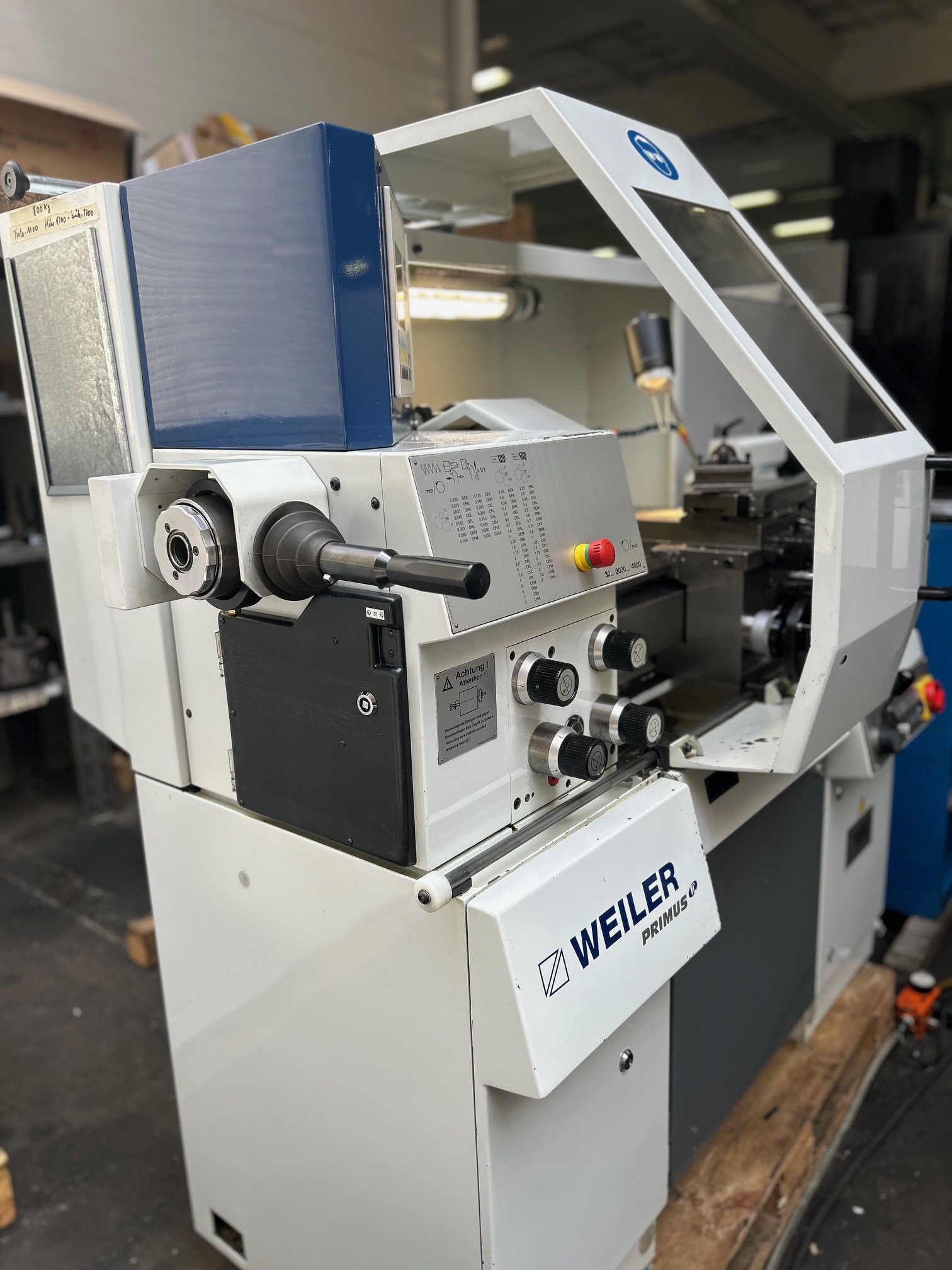

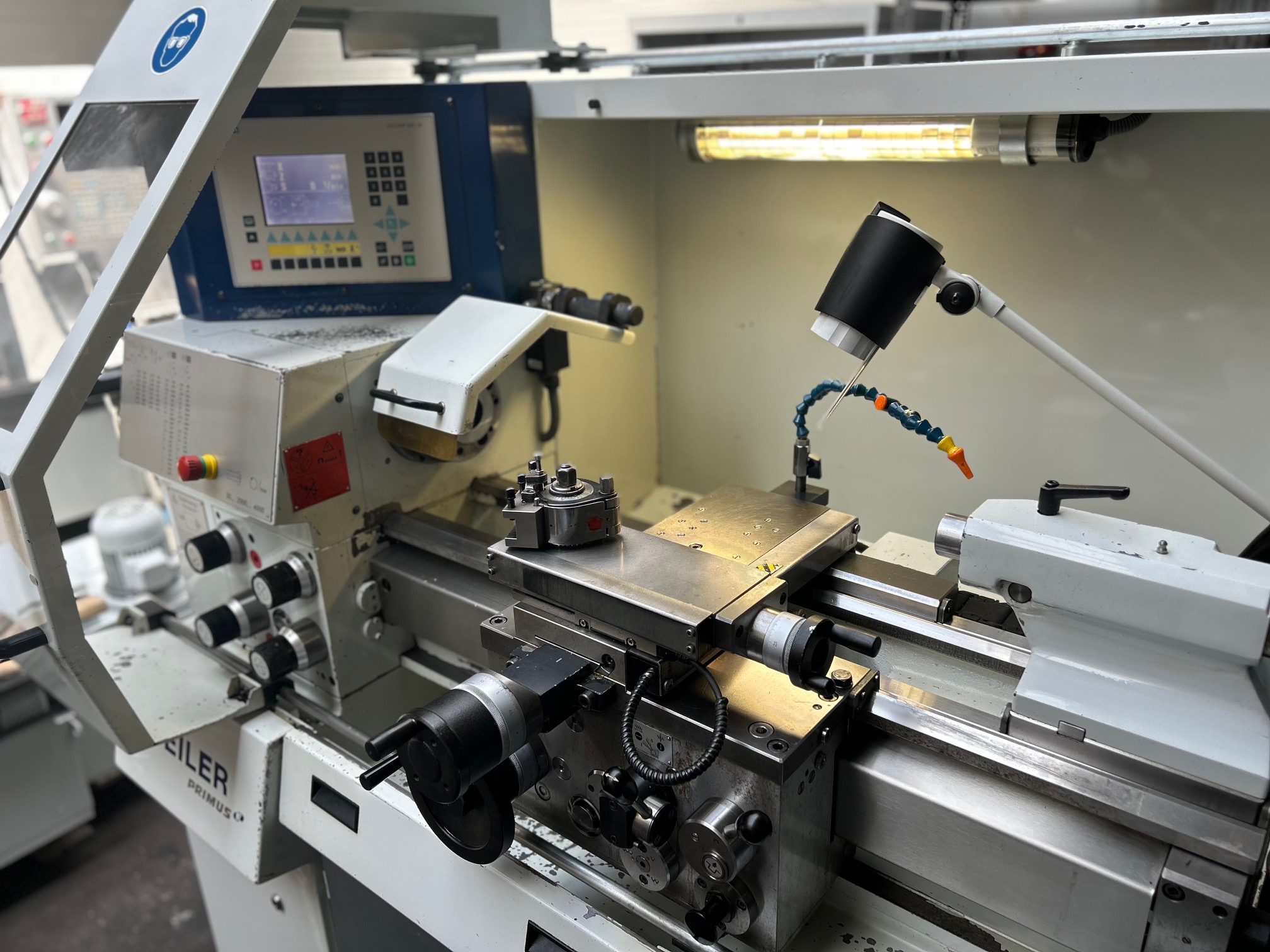

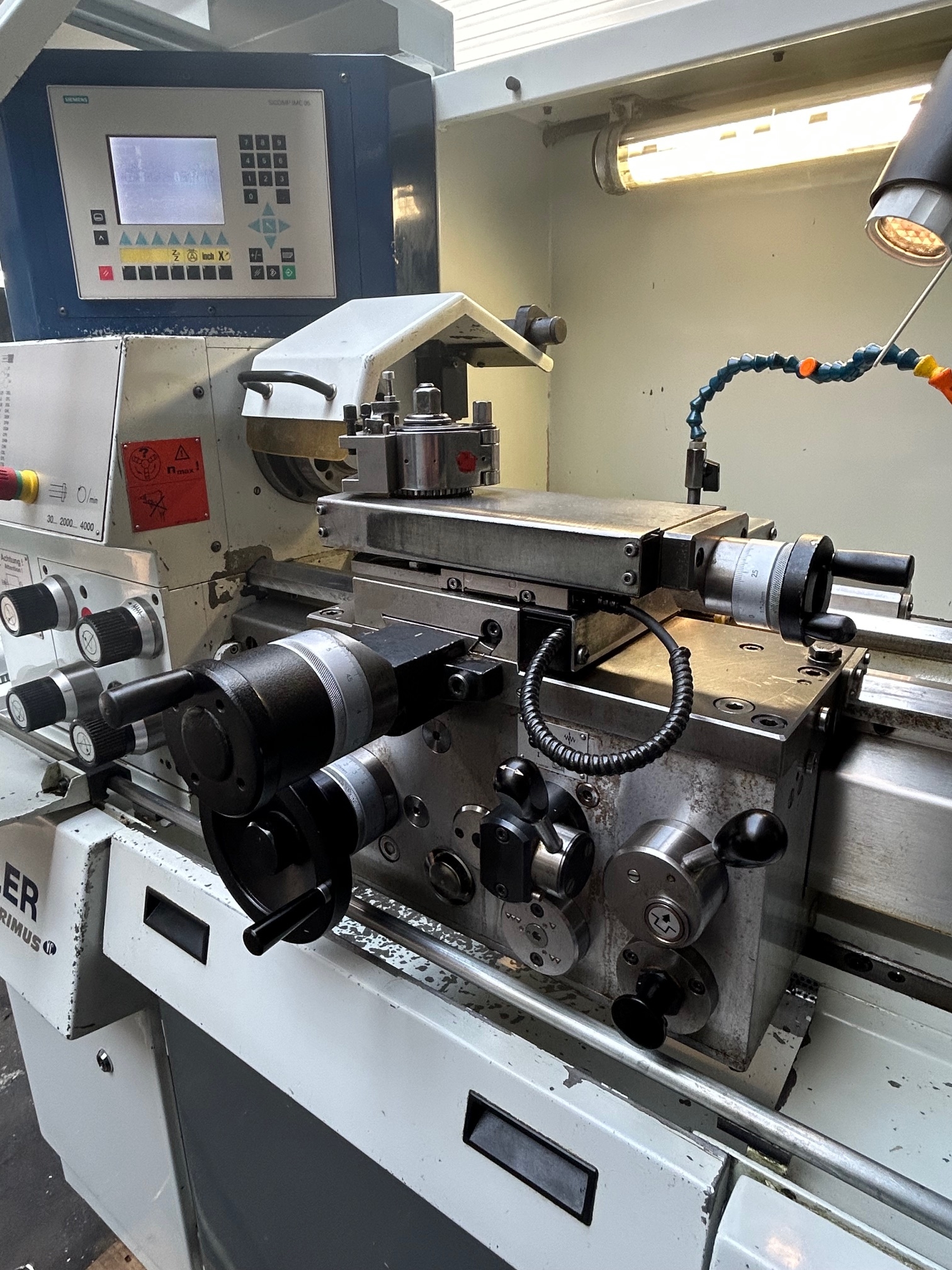

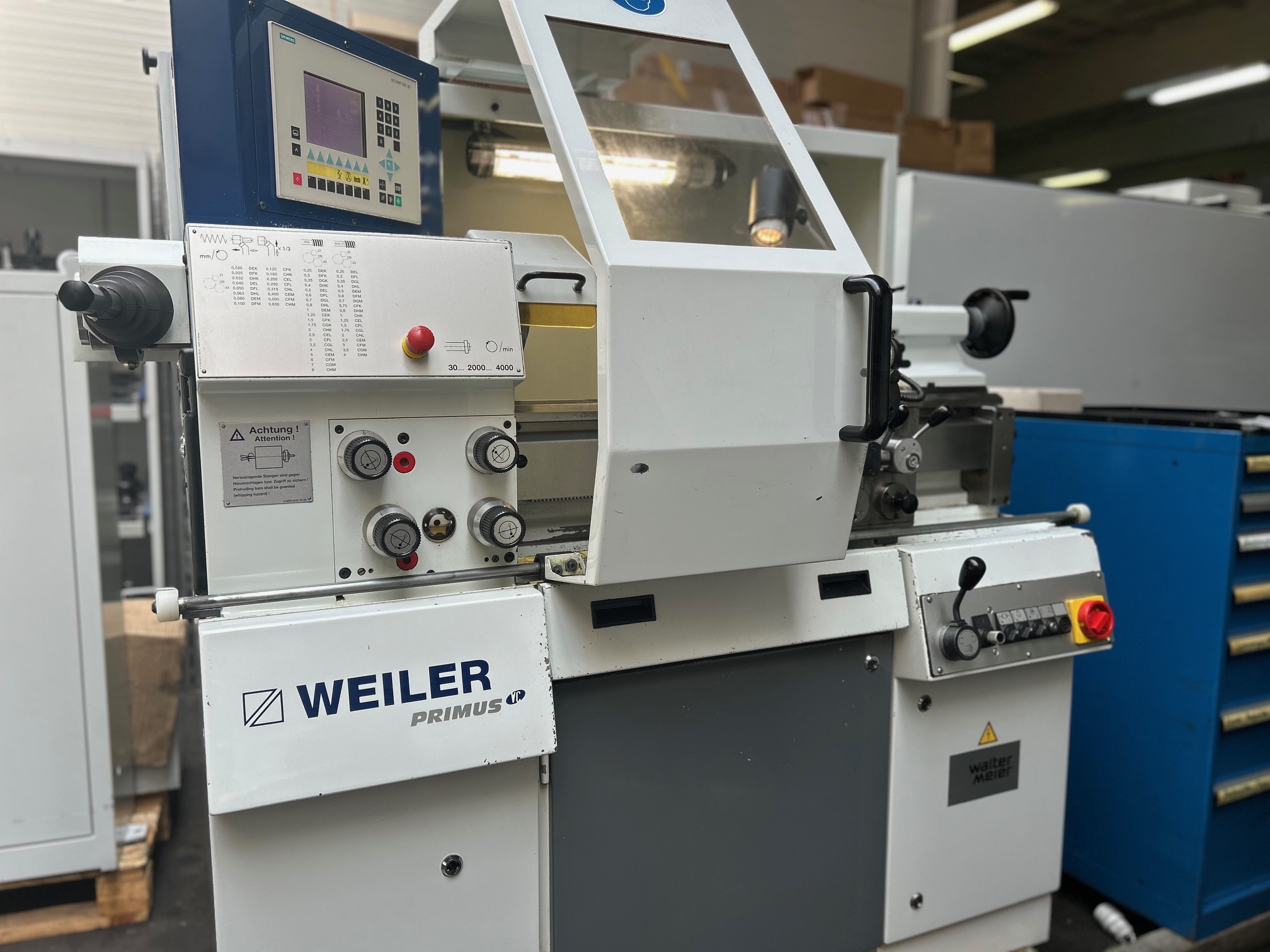

Weiler Primus VC precision lathe
Year of manufacture: 2011

Technical details
Turning diameter: 250 mm
Turning length: 500 mm
Center height: 140 mm
Swing diameter over bed slide: 280 mm
Max. swing diameter over cross slide: 150 mm
Main spindle:
Speed range – main spindle: 30 – 4,000 rpm
Power 4.0 kW
Number of gear stages: 1
Spindle head: 5 / DIN 55027
Spindle diameter in front bearing: 70 mm
Spindle bore: 40 mm
Usable bar diameter: 40 mm
Tool holder:
System: MultiFix B
Turning tool shank cross-section: 20 x 20
Tailstock:
Quill travel: 85 mm
Quill diameter: 40 mm
Tailstock taper: MK 3
Feeds:
Number of feeds: 24
Longitudinal feed: 0.02 – 0.63 mm/rev
Cross feed: 0.006 – 0.2 mm/rev
Thread cutting:
Metric: 0.25 – 8 mm
Inches: 80-2 1/”
Travel distances:
X-travel Cross slide travel: 150 mm
Z-travel by cross slide: 500 mm
Z-travel by top slide: 110 mm
Total power requirement: 15 kVA
Machine weight: approx. 800 kgs
Space requirements: 1400x935x1550 mm

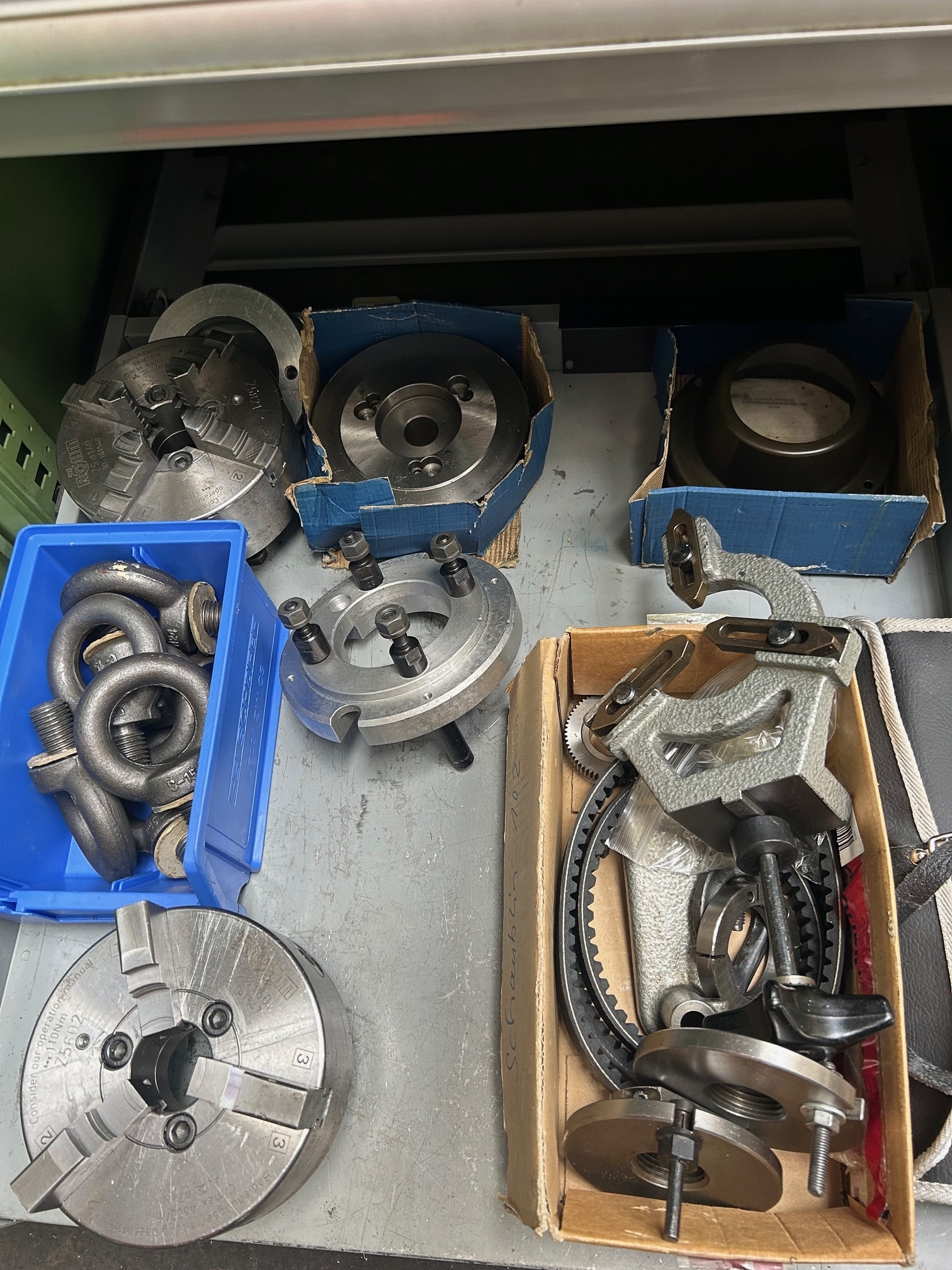

Accessories/options:

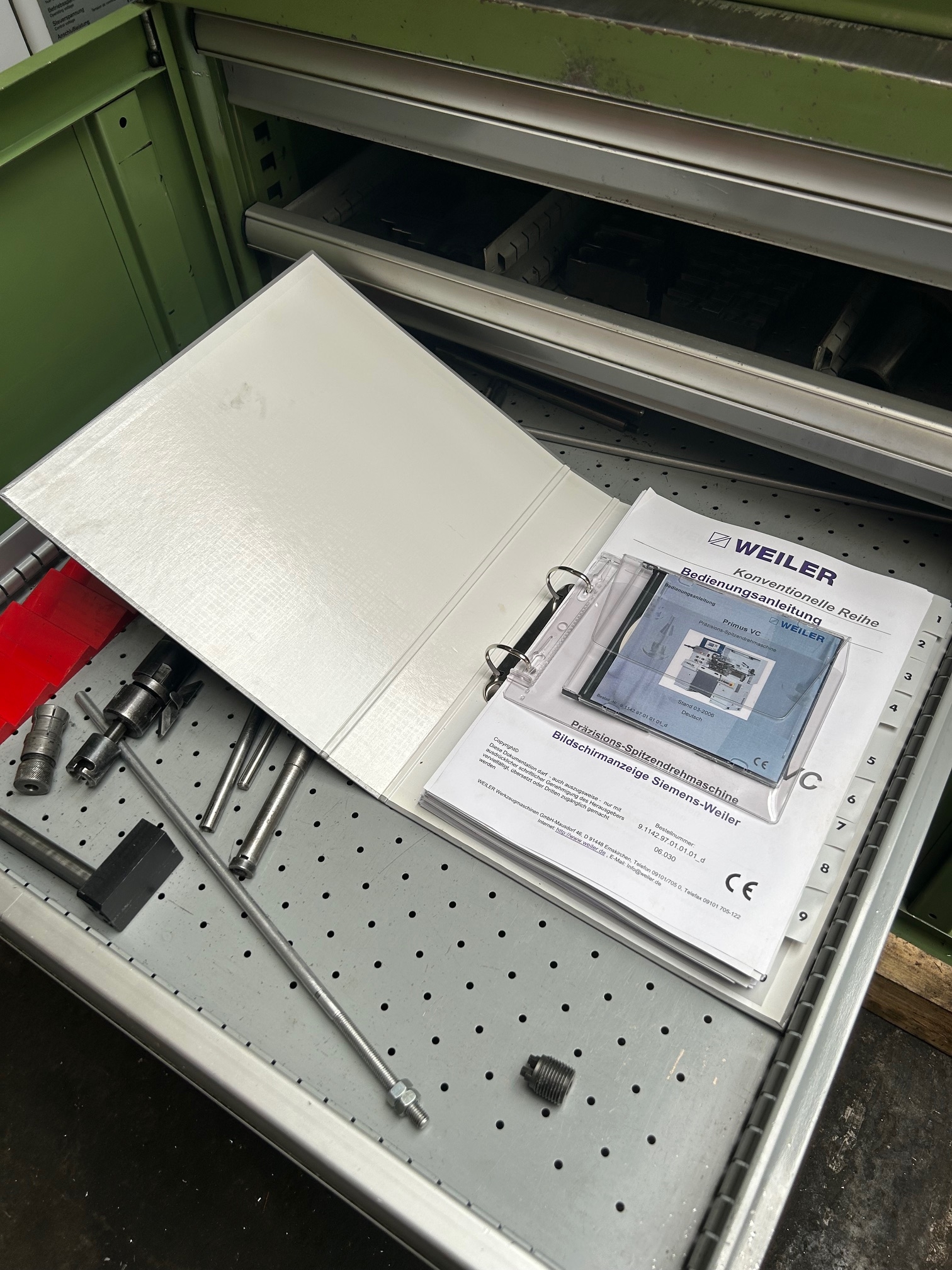

- Documentations
- 3-jaw chuck diameter 160mm, with jaws
- 4-jaw chuck diameter 160mm, with jaws

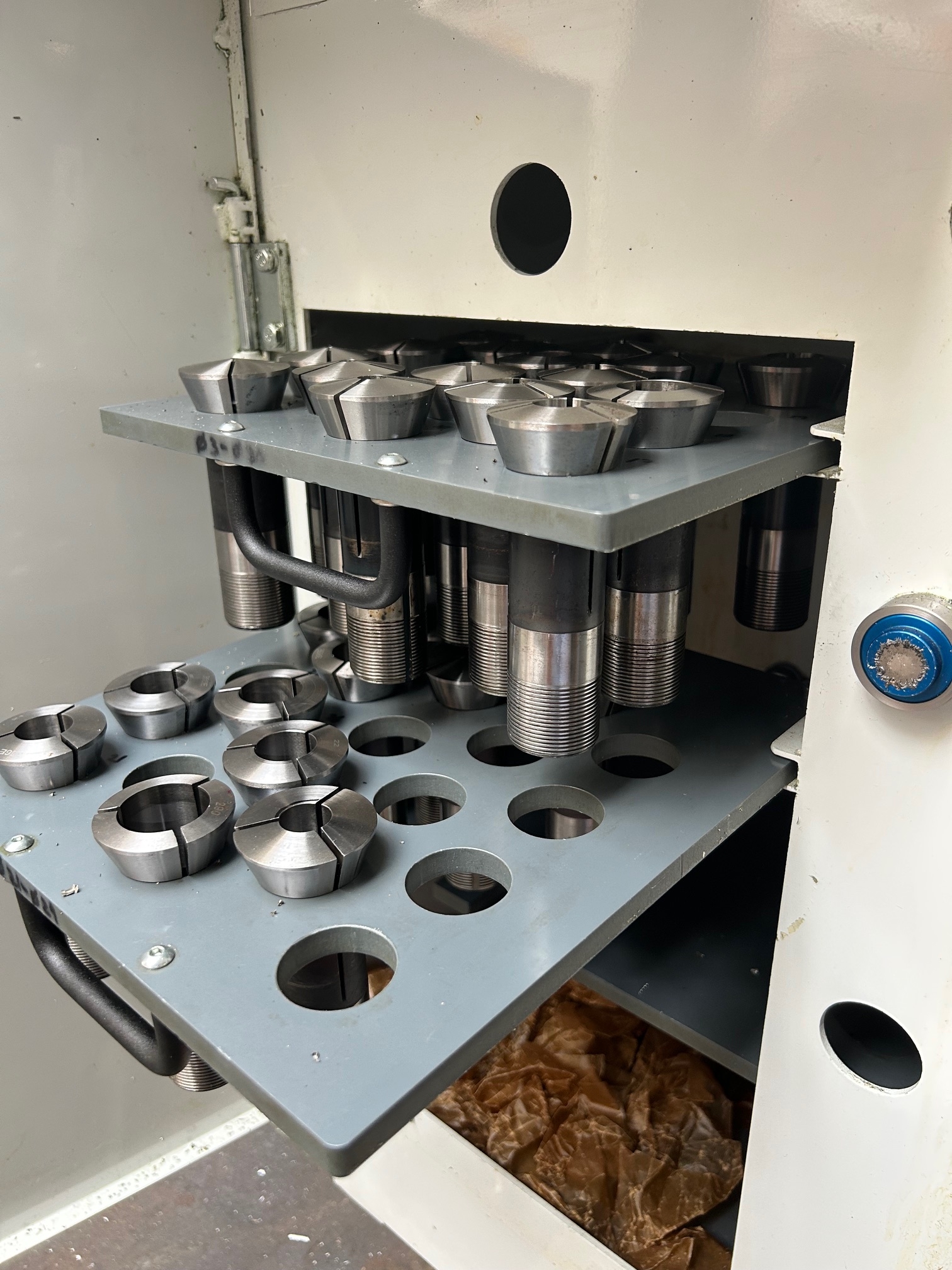

- Collet type chuck with collets
- Tailstock
- Multifix tool holder, with holders
- Steady
- Change gears

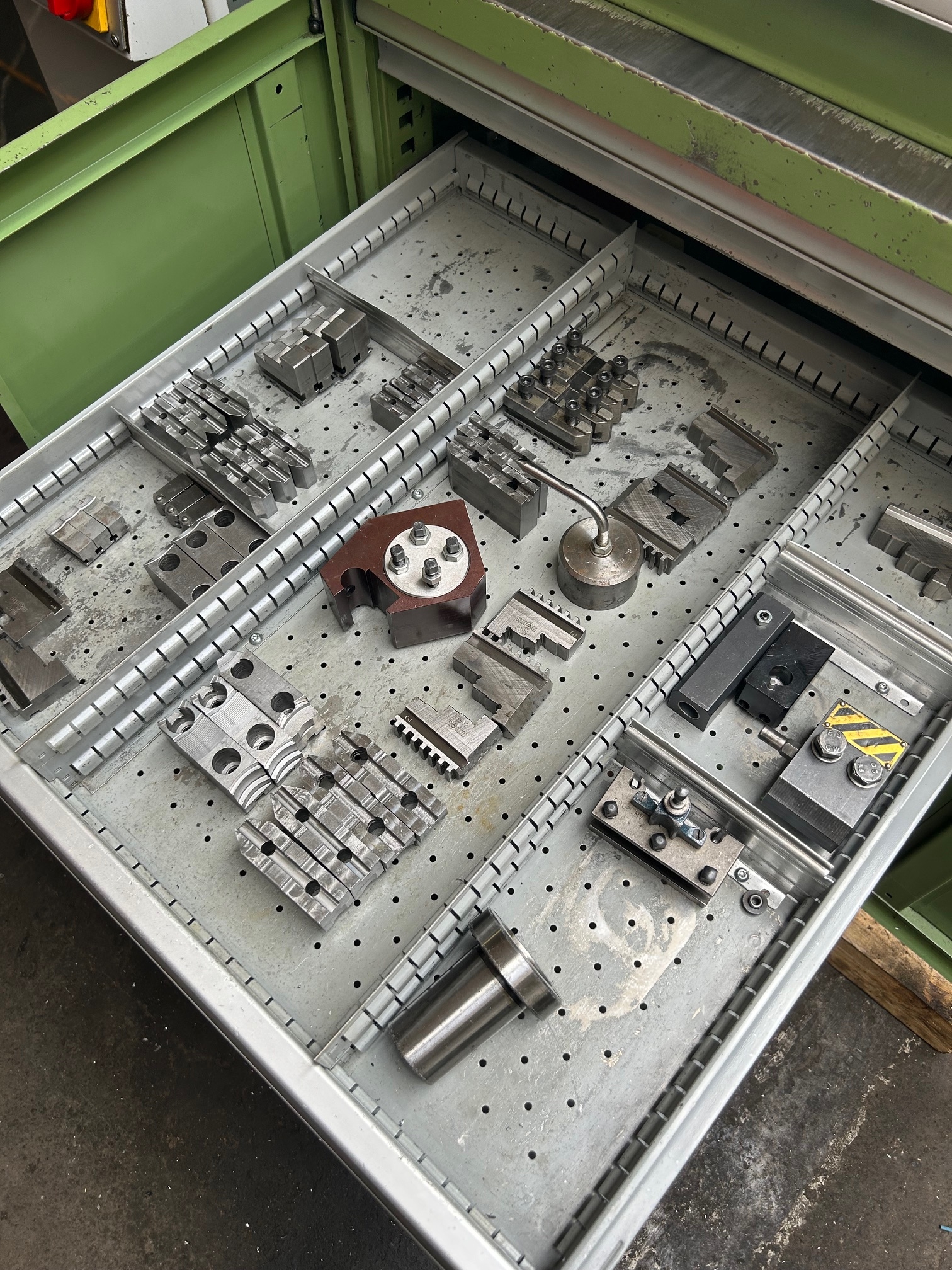

- Different kind of tooling

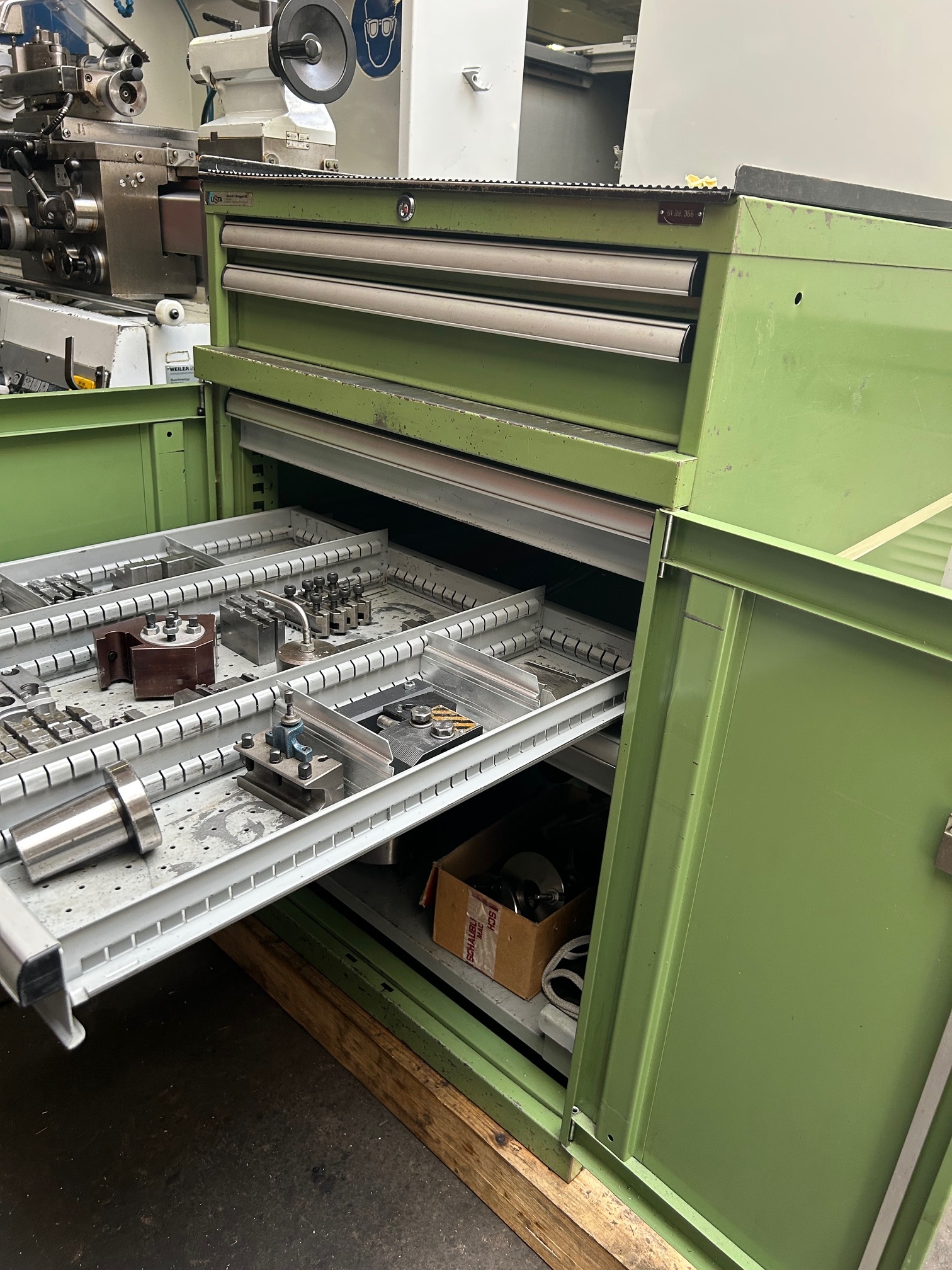

- Lista cabinet
- Spare parts
- etc...

Under power in our warehouse.
