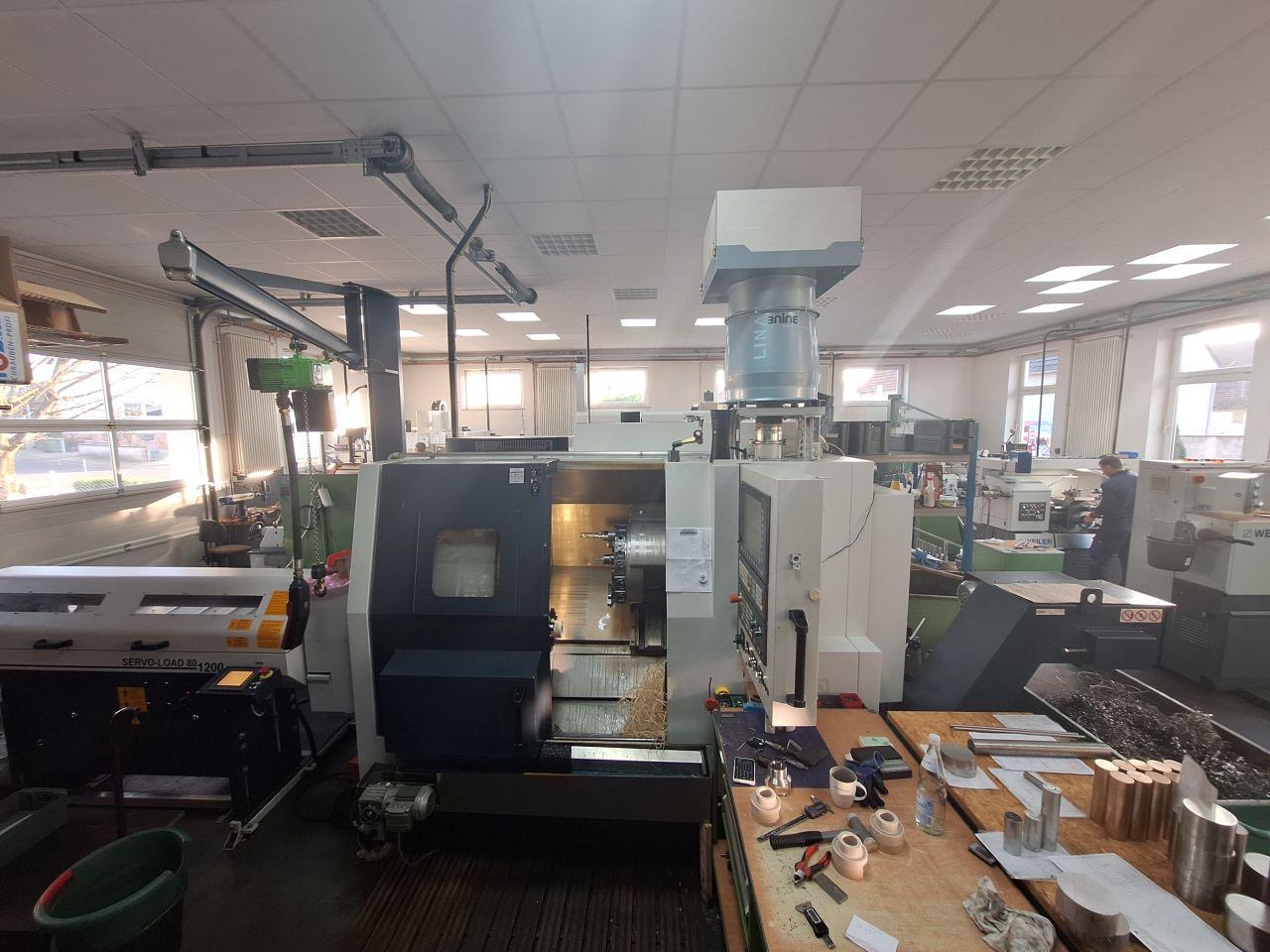

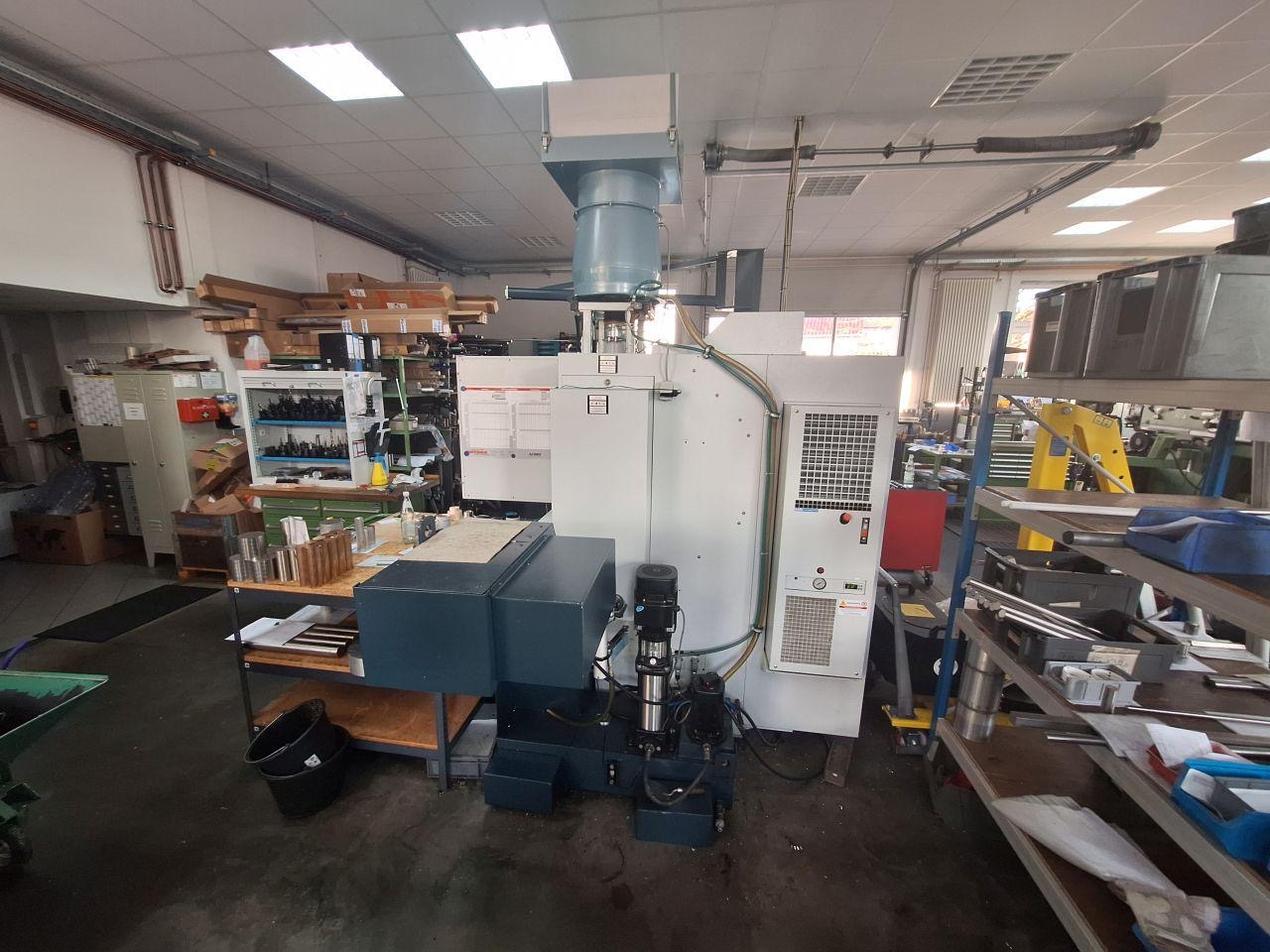

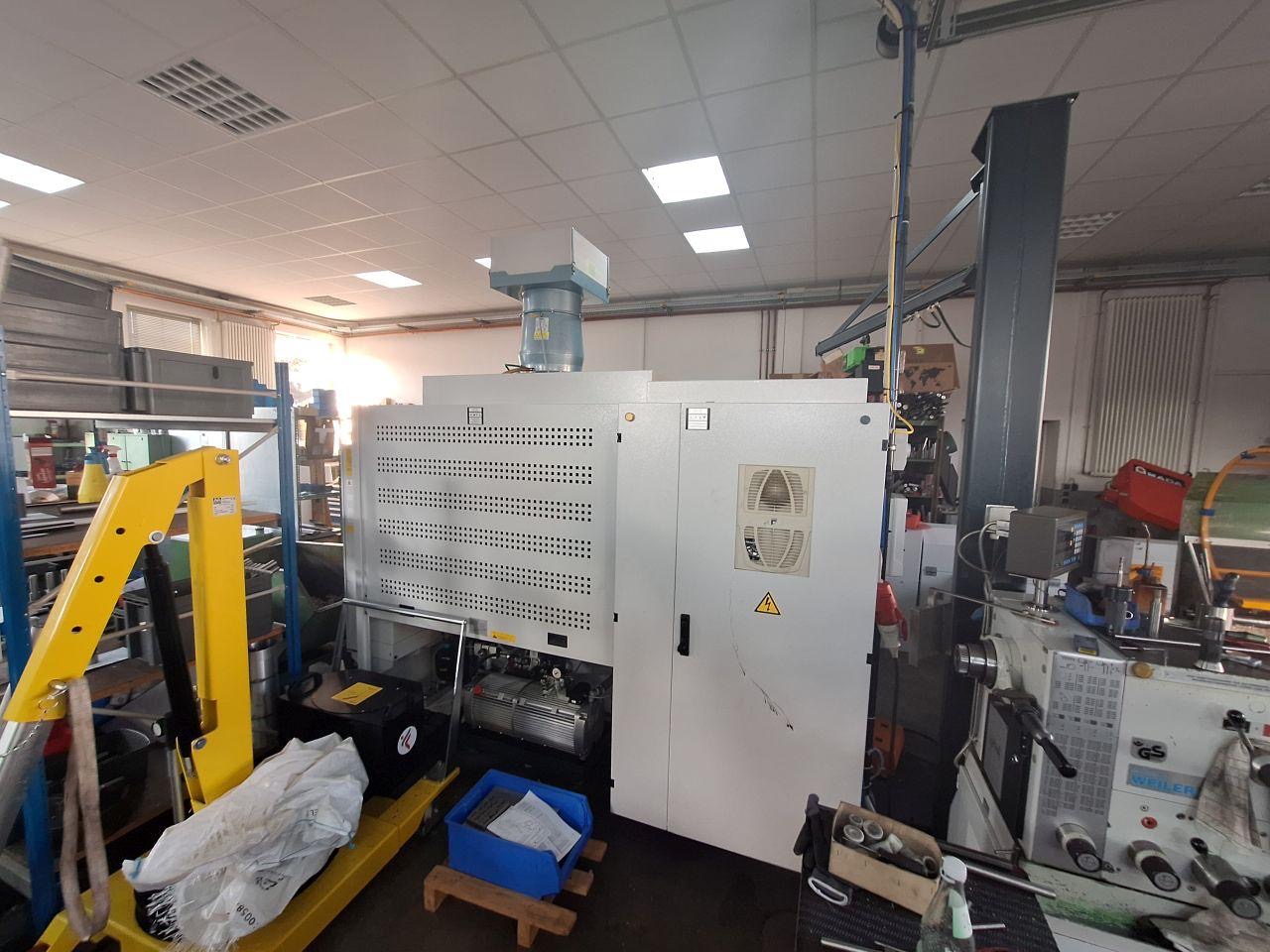

Spinner TC600-65MC cnc lathe with C-axis and driven tools
Year: 2013


Technical details:

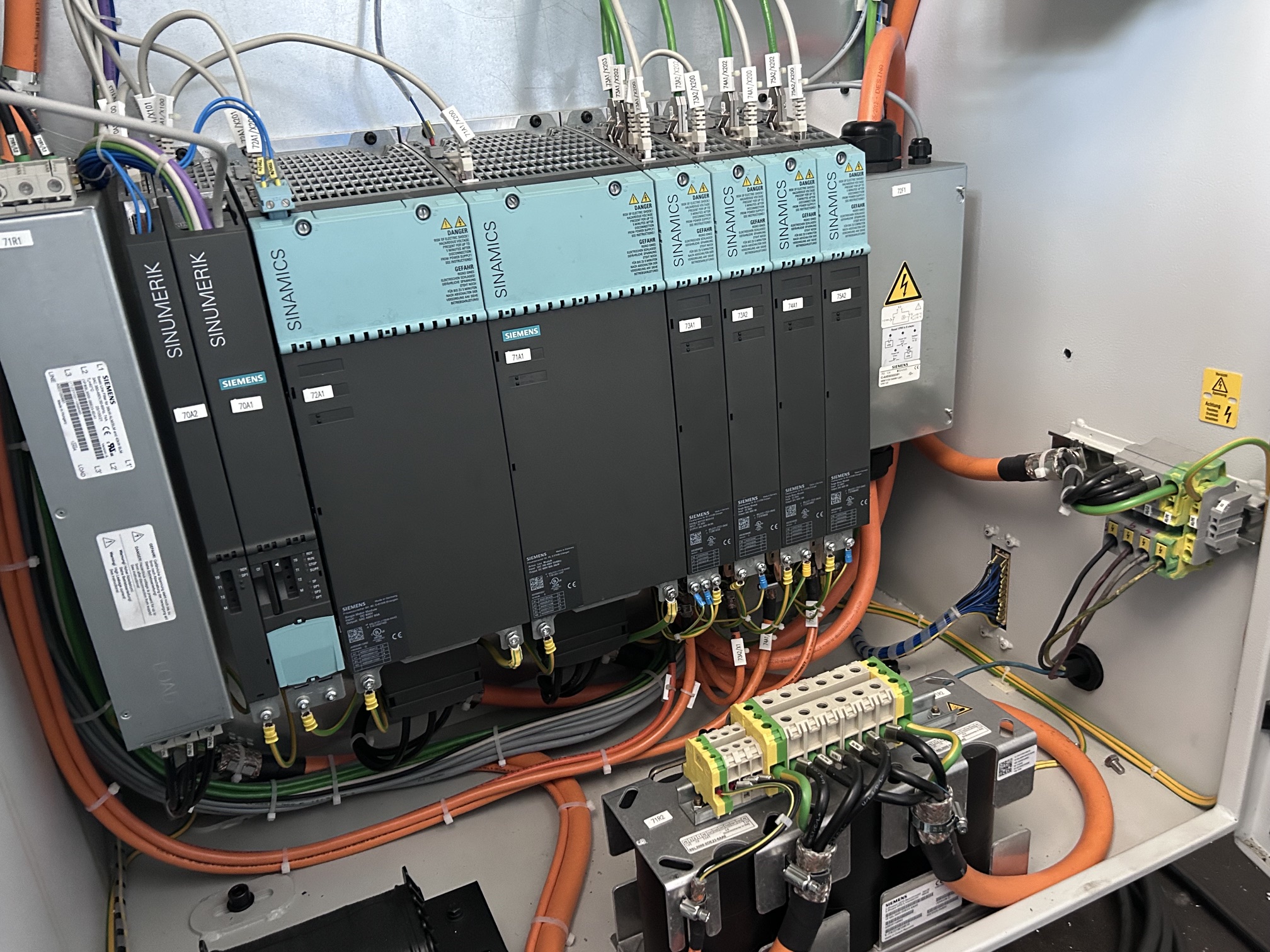

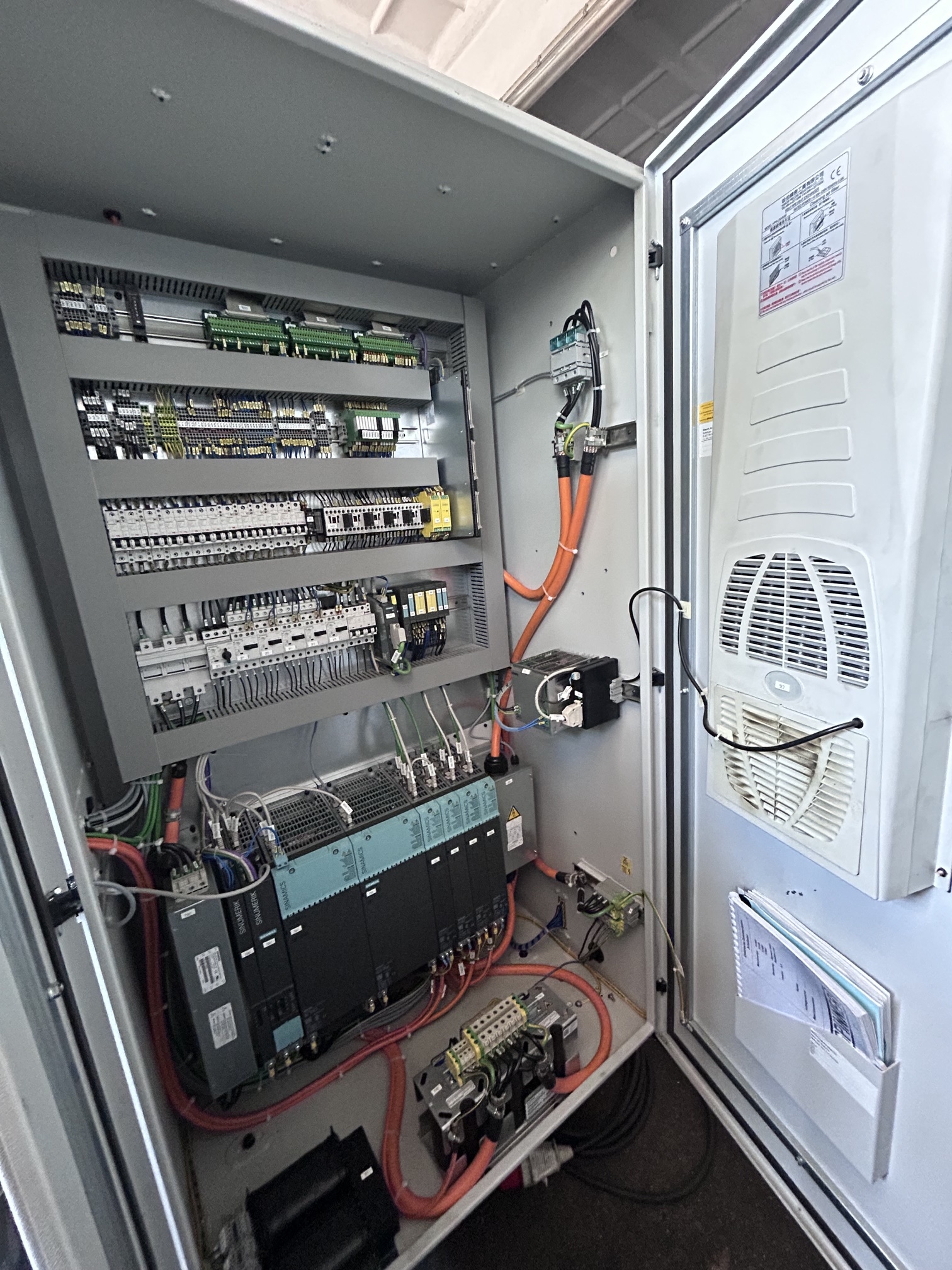

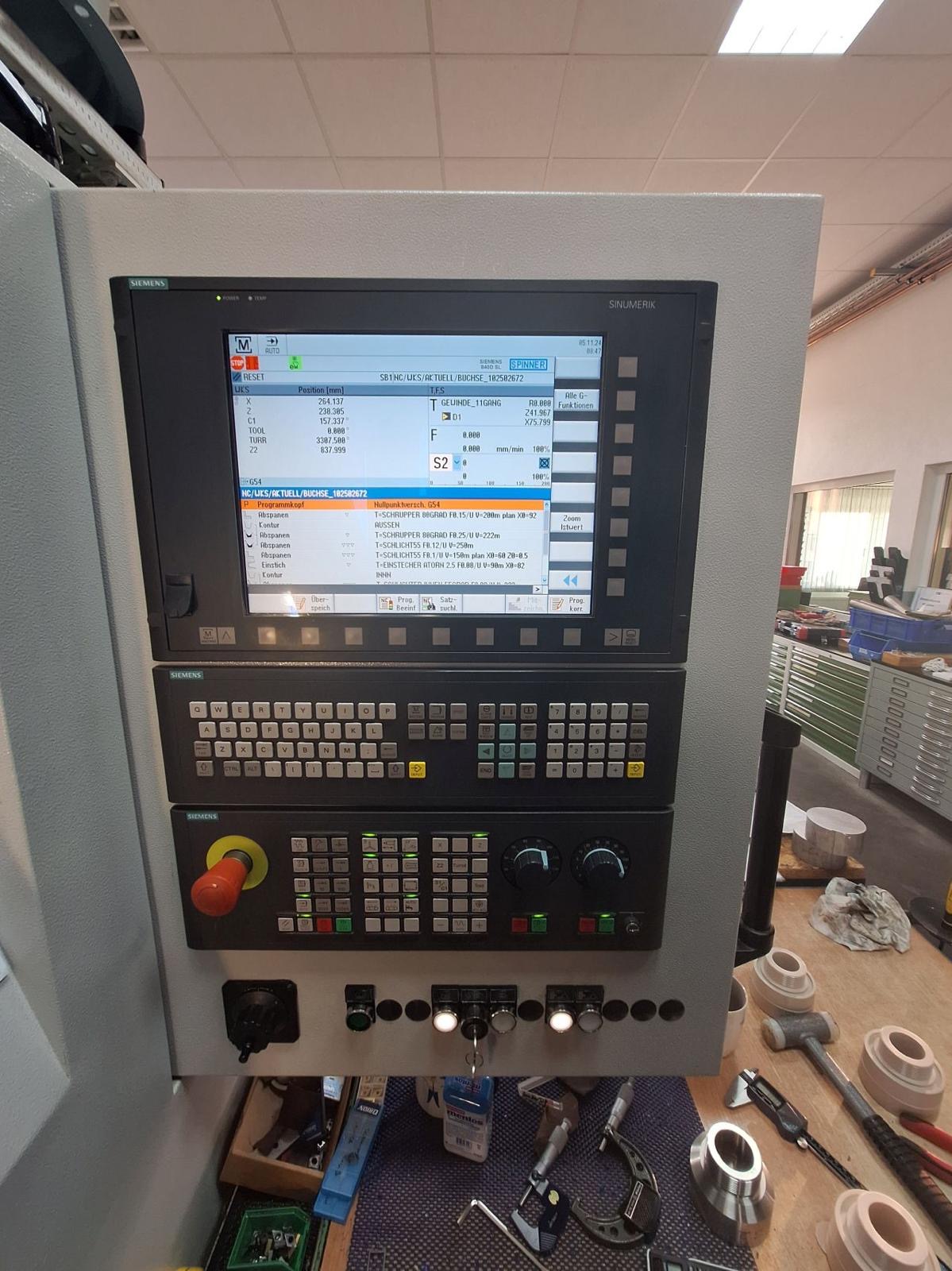

Control SIEMENS 840D-SolutionLine
Spindle speed range: 4500 rpm
Spindle motor power: 11 kW/ 16.5 kW
Torque: main spindle (siemens, s6 40%) 301 Nm
X-Axis Movement: 230 mm
X-Axis Rapid Traverse: 15 m/min
Z-Axis Movement: 740 mm
Z-Axis Rapid Traverse: 24 m/min
Center distance: approx. 600 mm
Max turning diameter: 310 mm
Workpiece diameter over bed: 425 mm

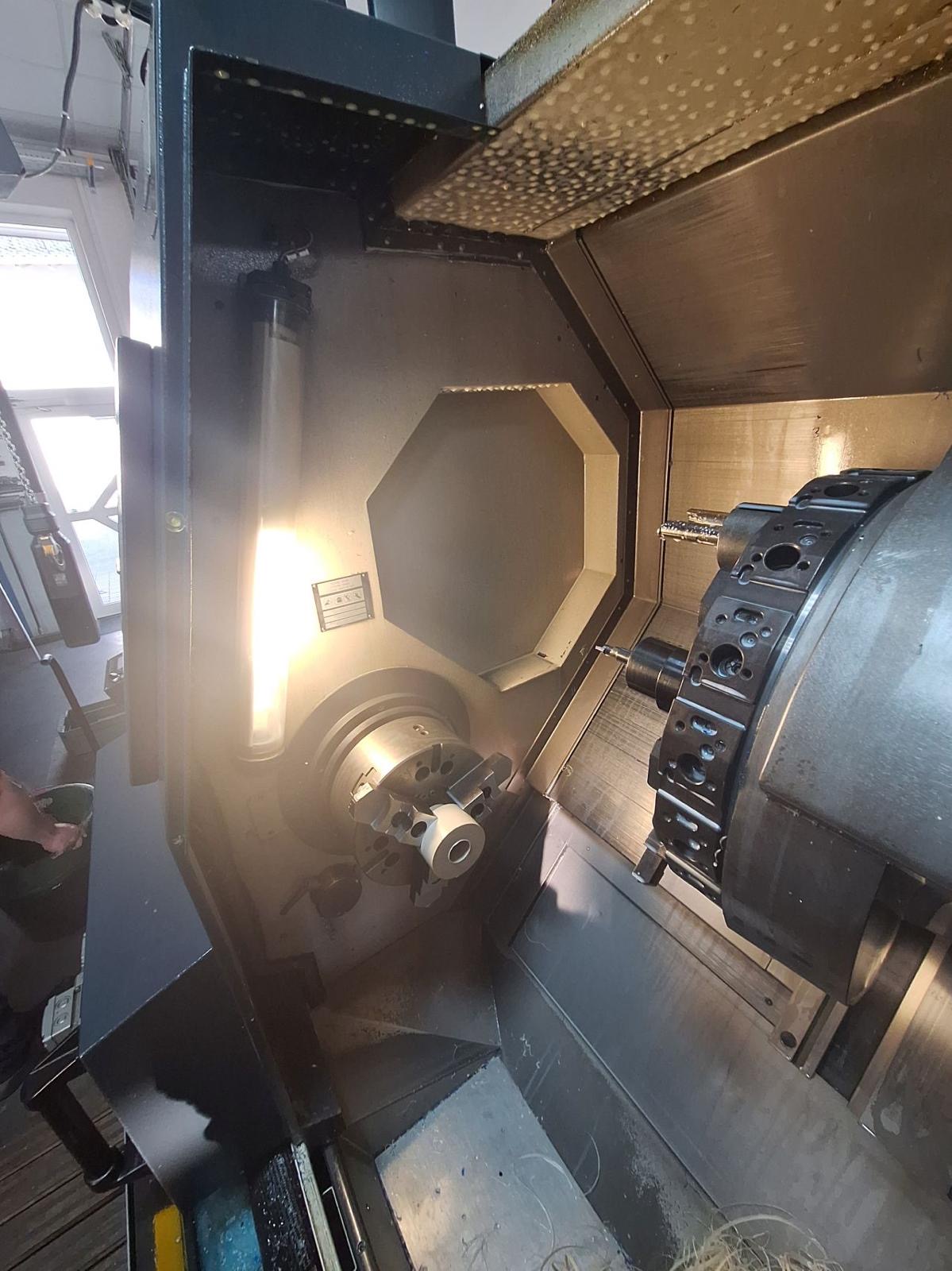

Number of turrets: 1
Tool taper: DIN 69880/ VDI30
Number of turret stations: 16
Driven tool holder positions: 16
C-axis
Speed of rotating tools: 6000 1/min
Driven tool power: 6 kW
Tailstock:
Quill stroke: 120 mm
Adjustment travel: 475 mm
Machine dimensions: 2730x1500x1620mm
Machine weight: 4500 kg

Accessories/options:

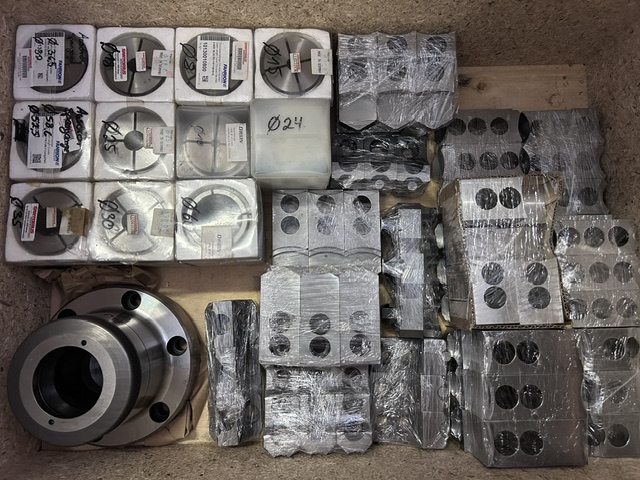

- hydraulic chuck with jaws

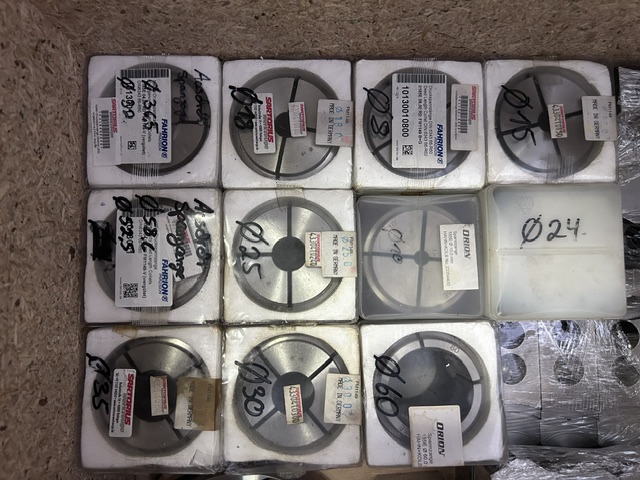

- collet type chuck with collets

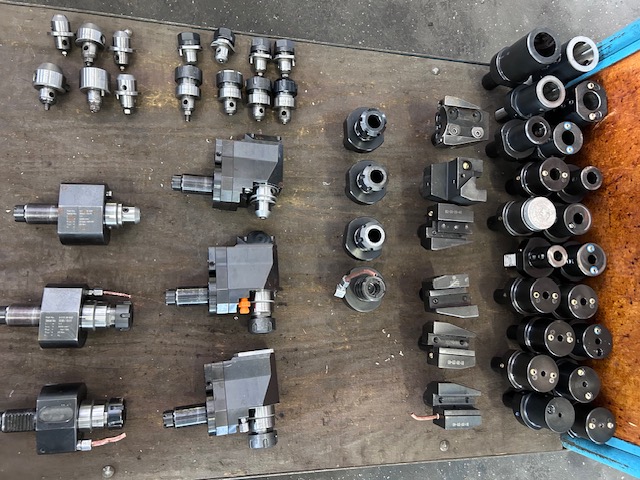

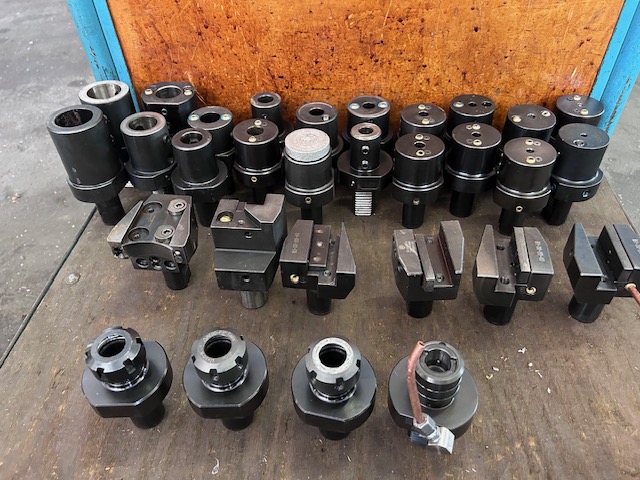

- static tool holders

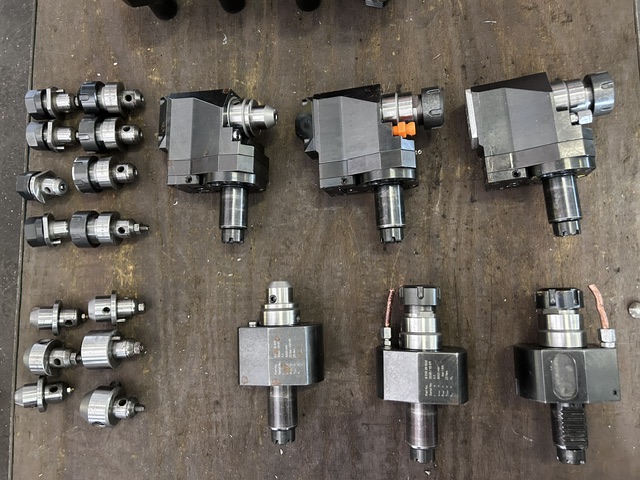

- driven tool holders

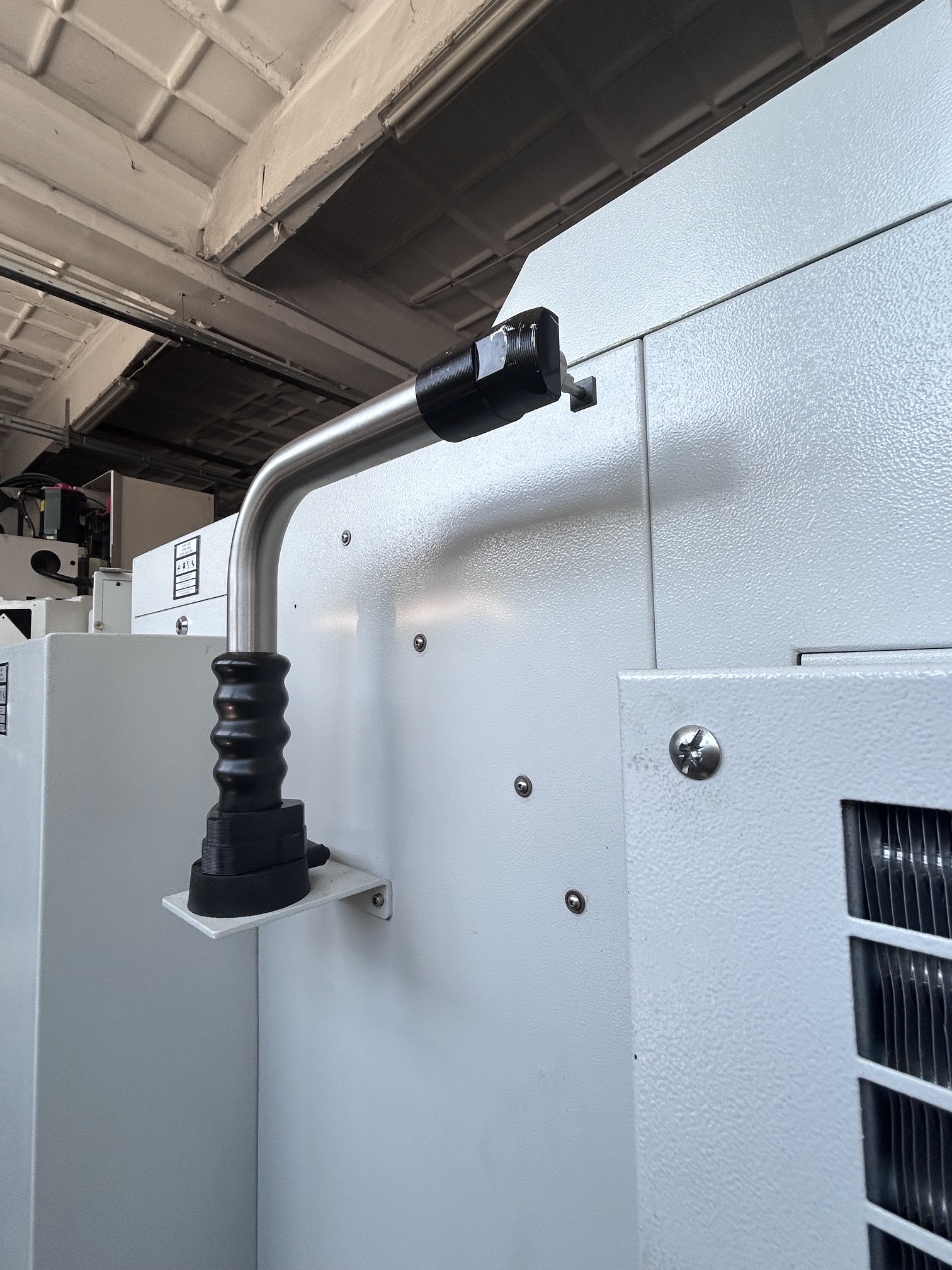

- Renishaw tool measuring arm
- Swarf conveyor
- High pressure coolant system

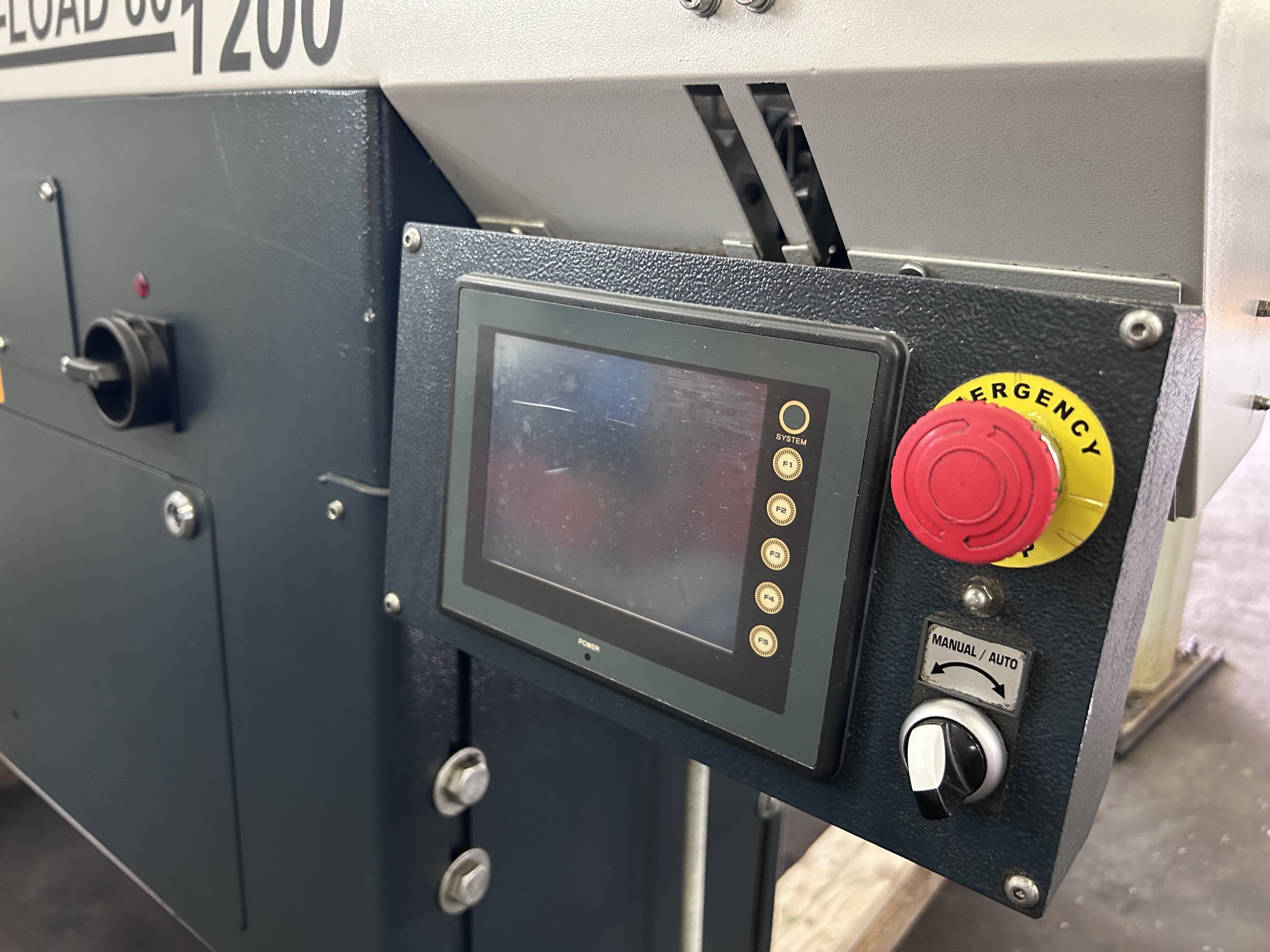

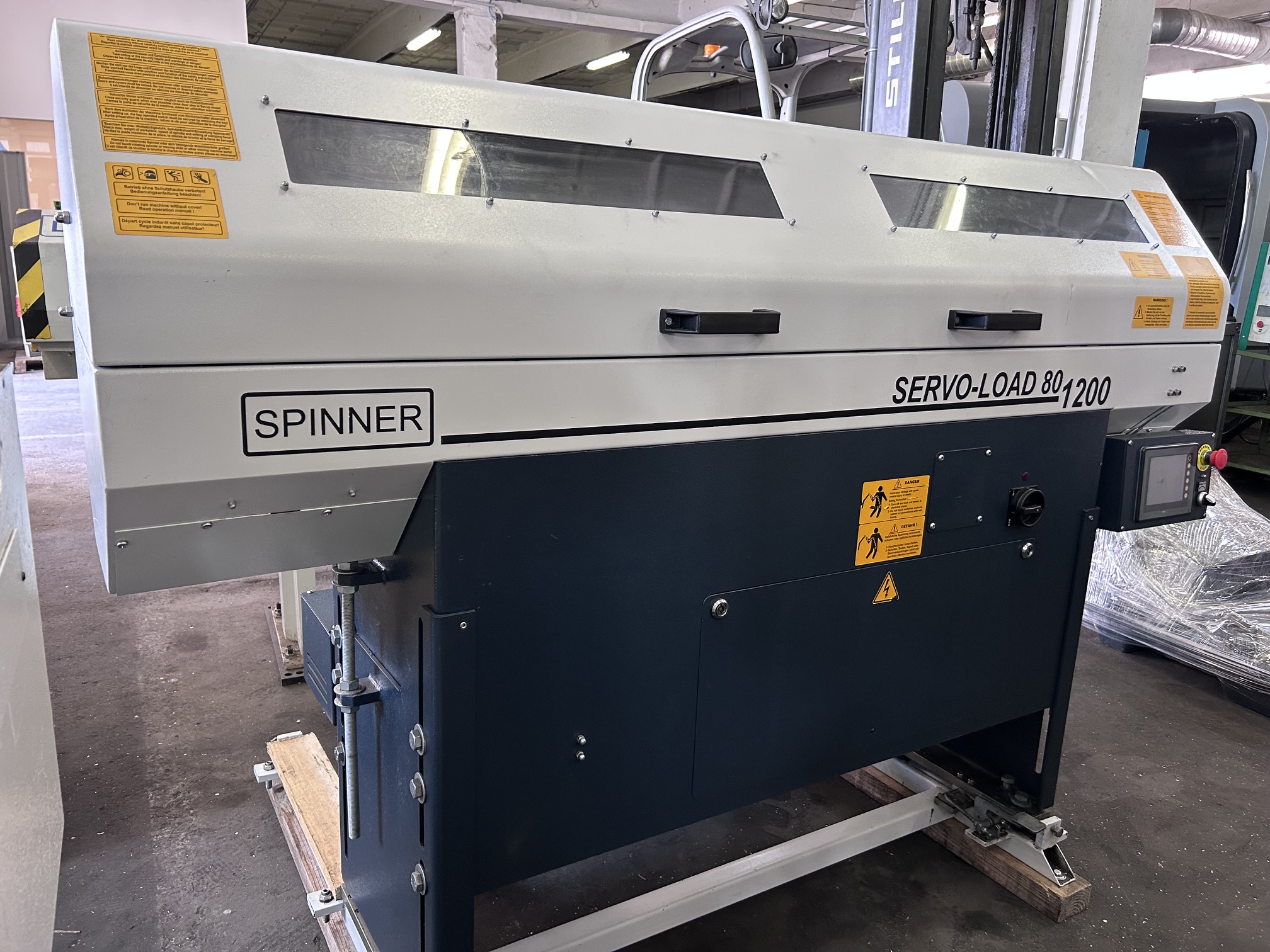

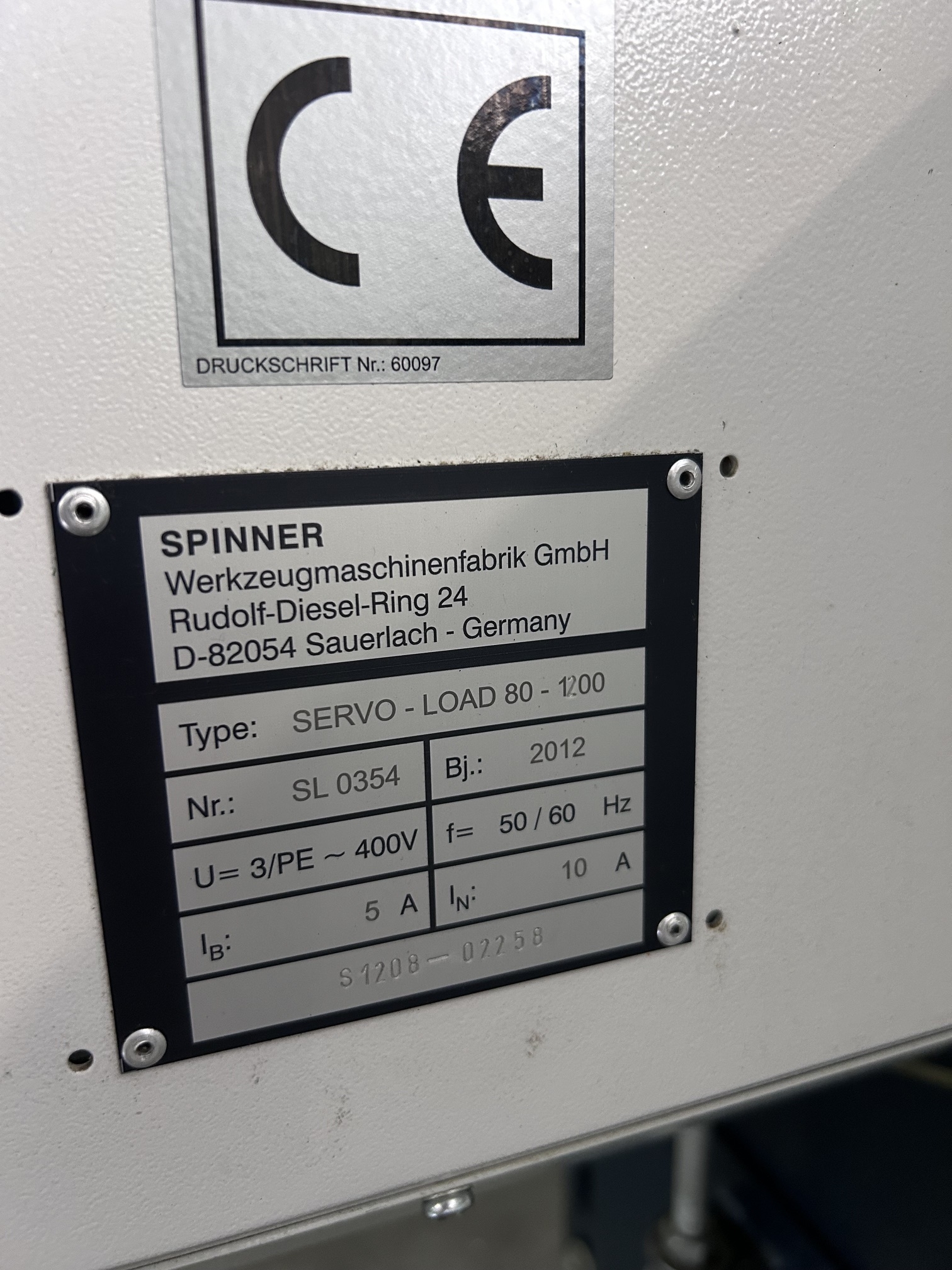

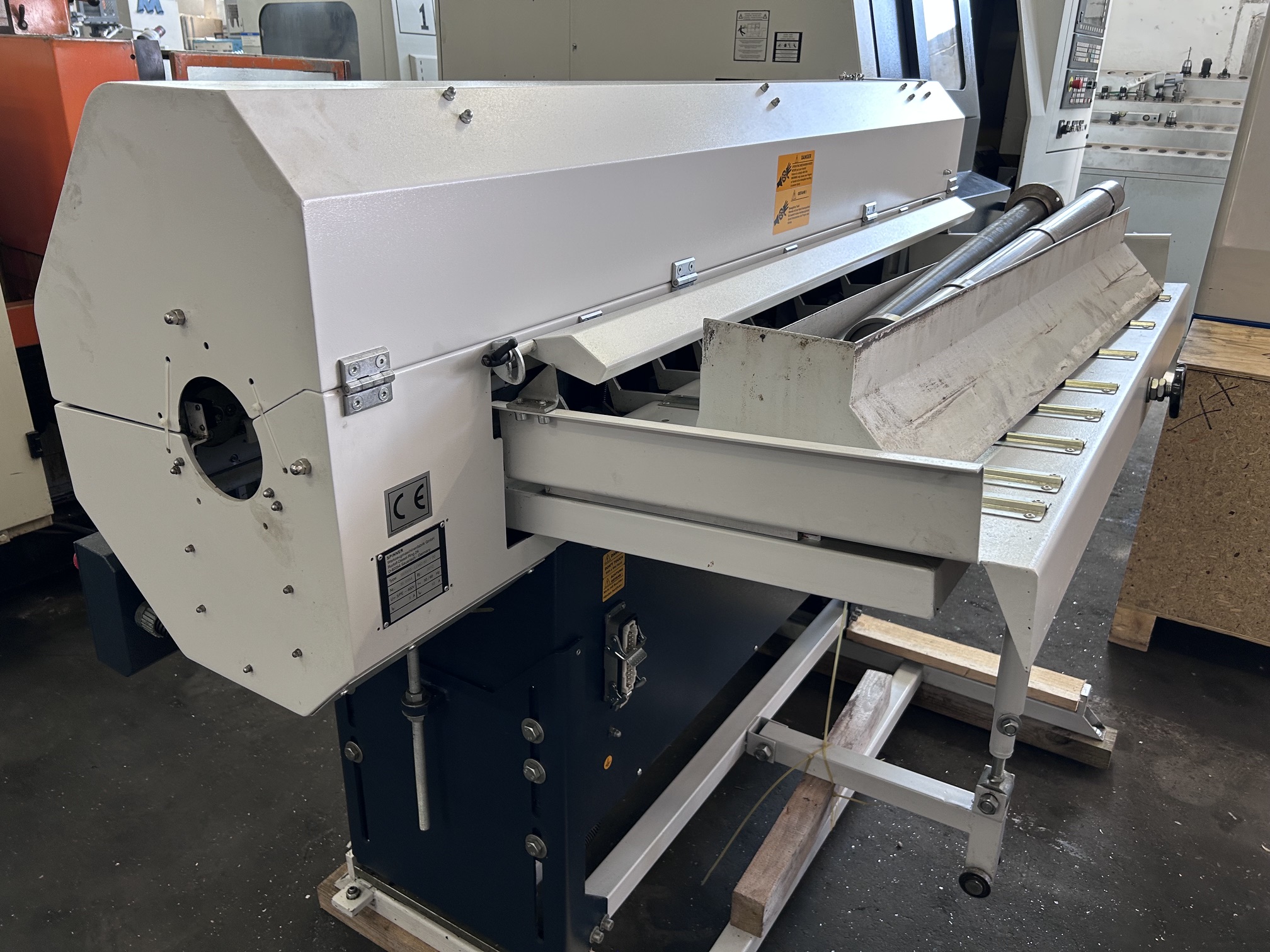

- Bar feeder
- Documentations
