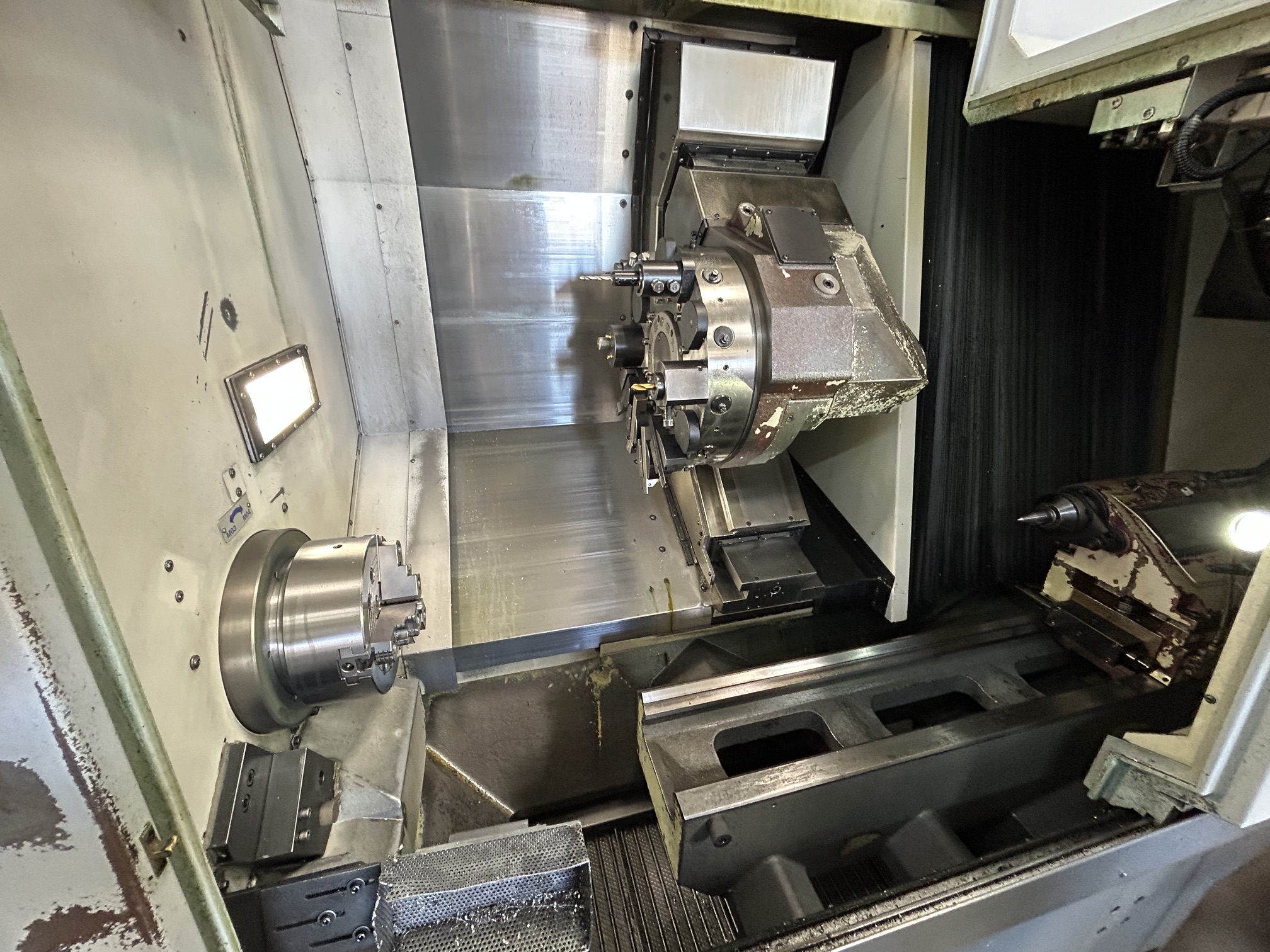

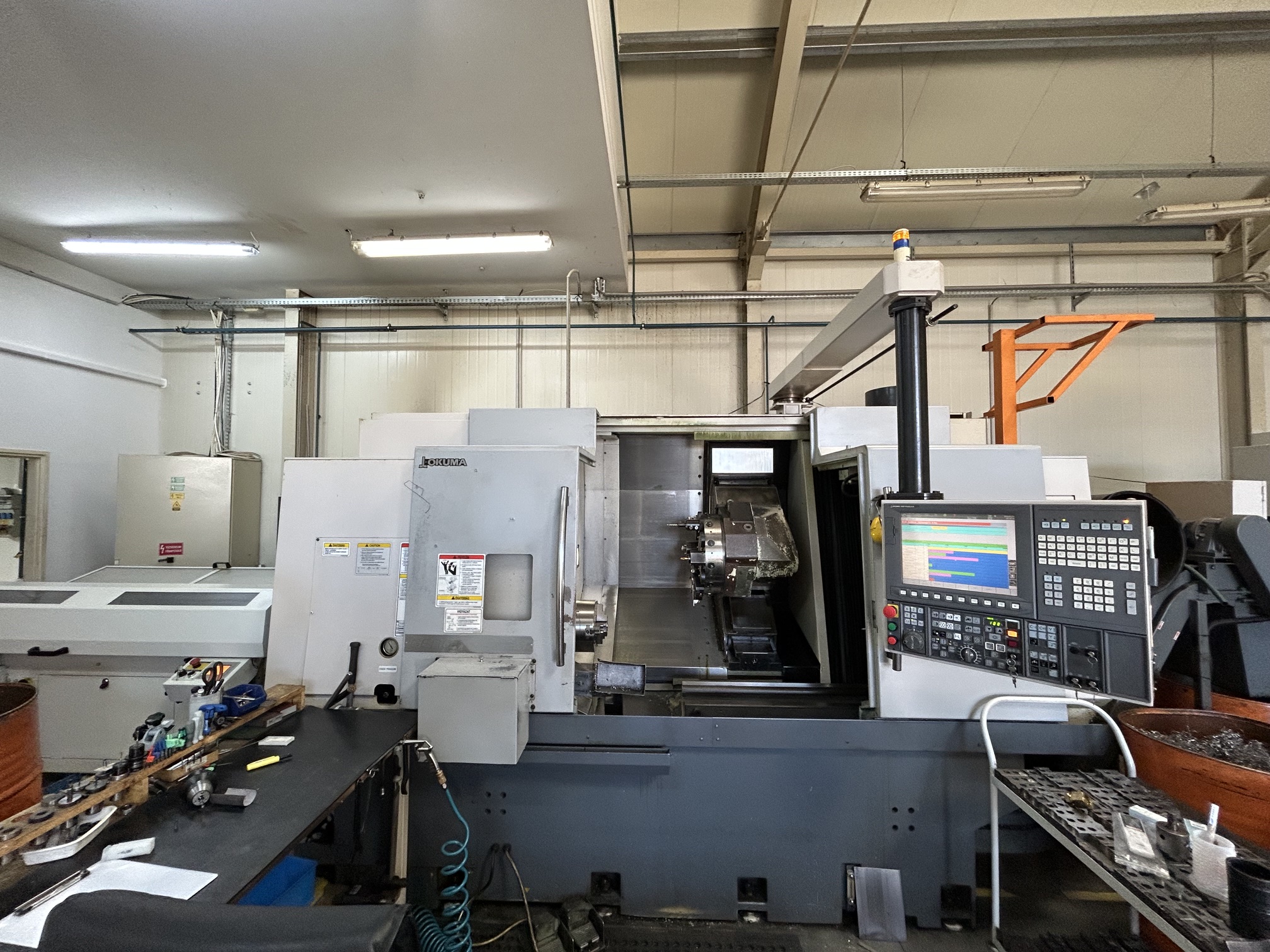

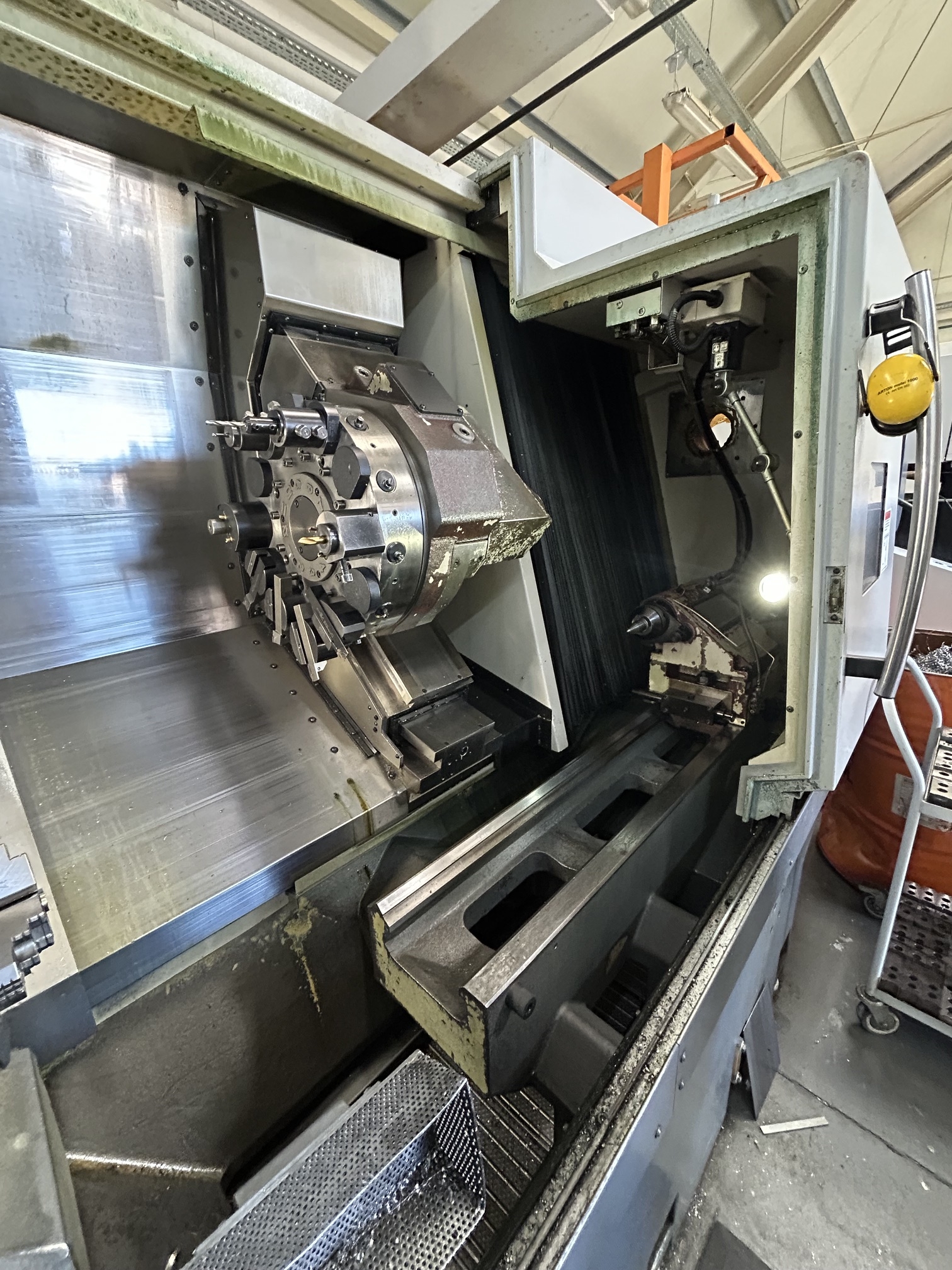

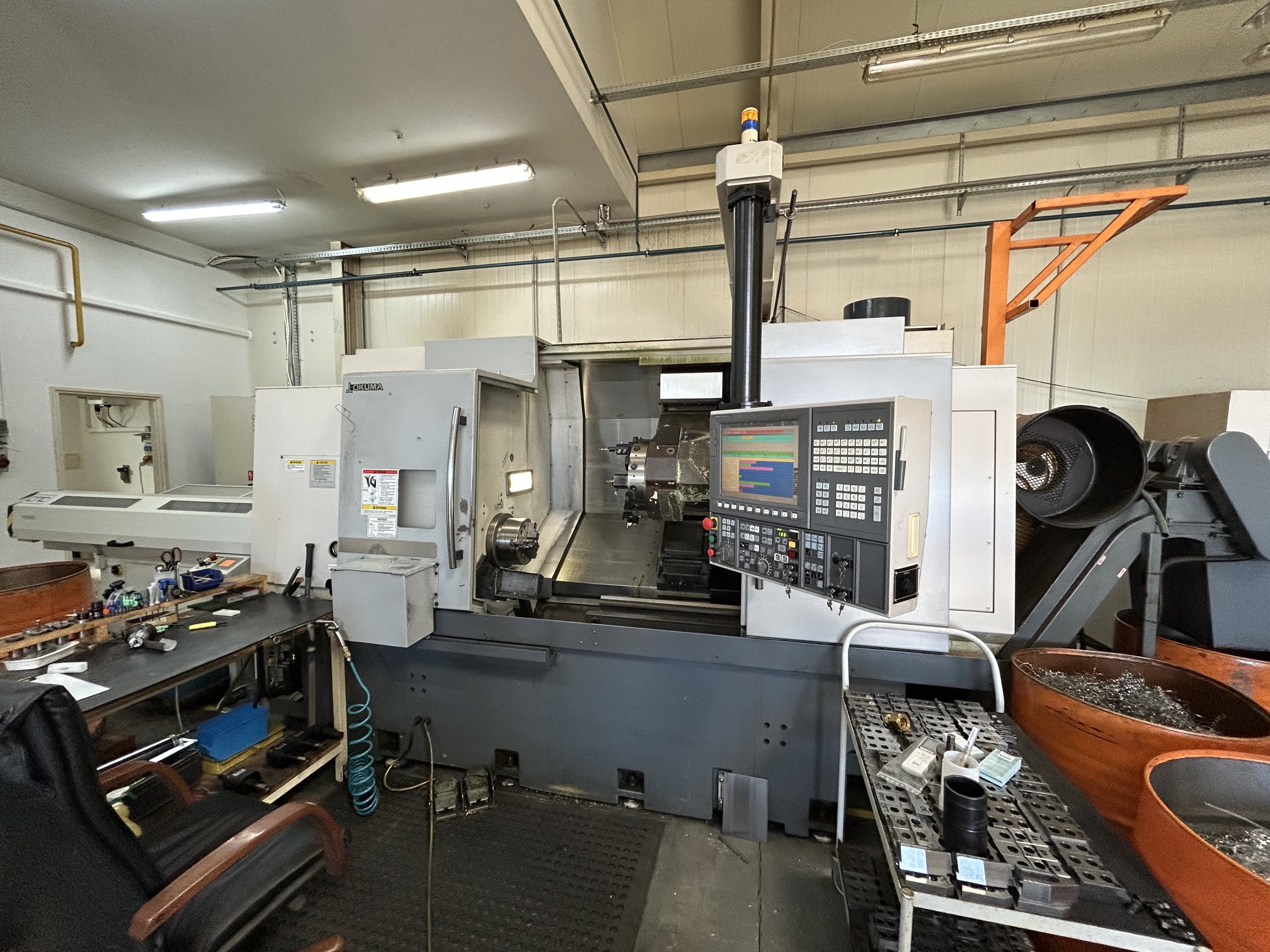

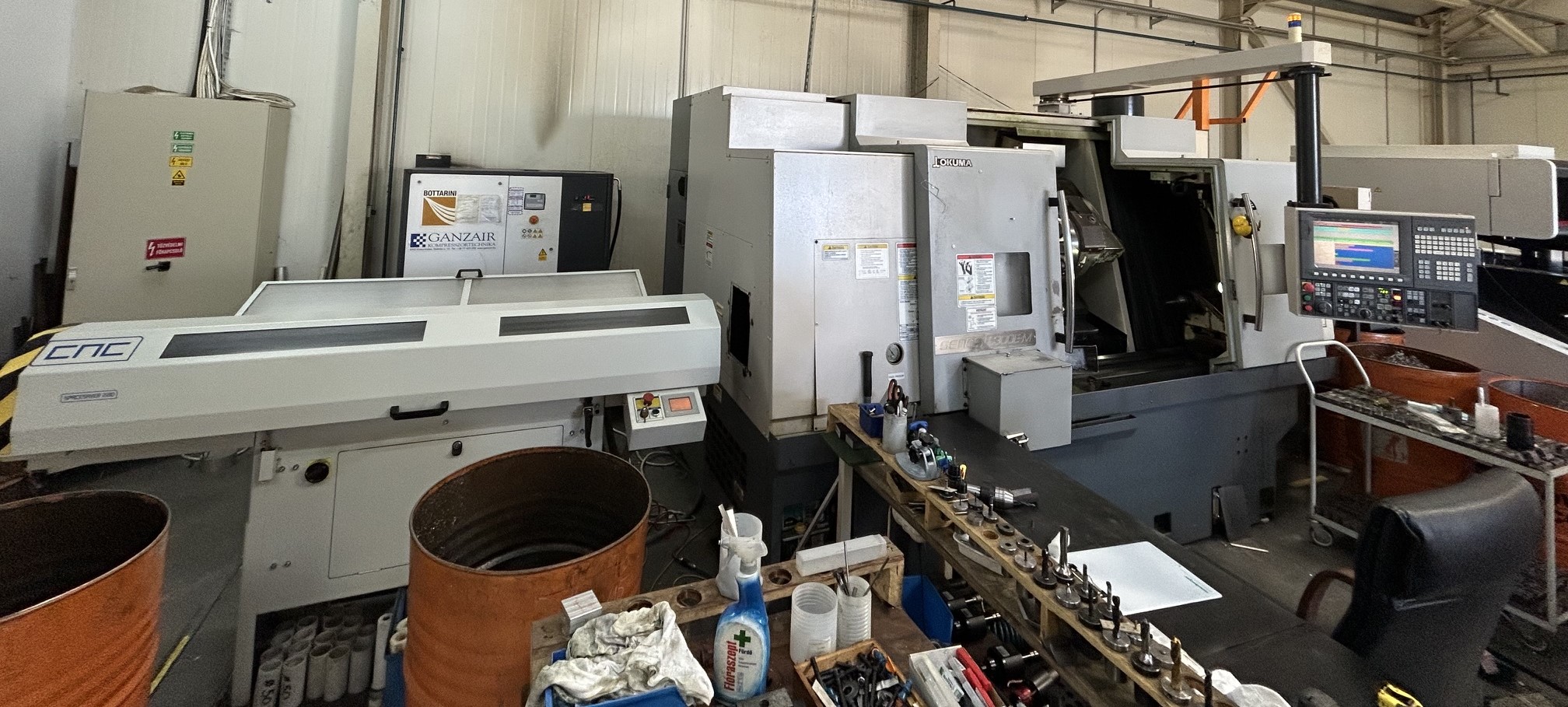

Okuma Genos L300e-MY turning center
Year: 2013

Technical details:

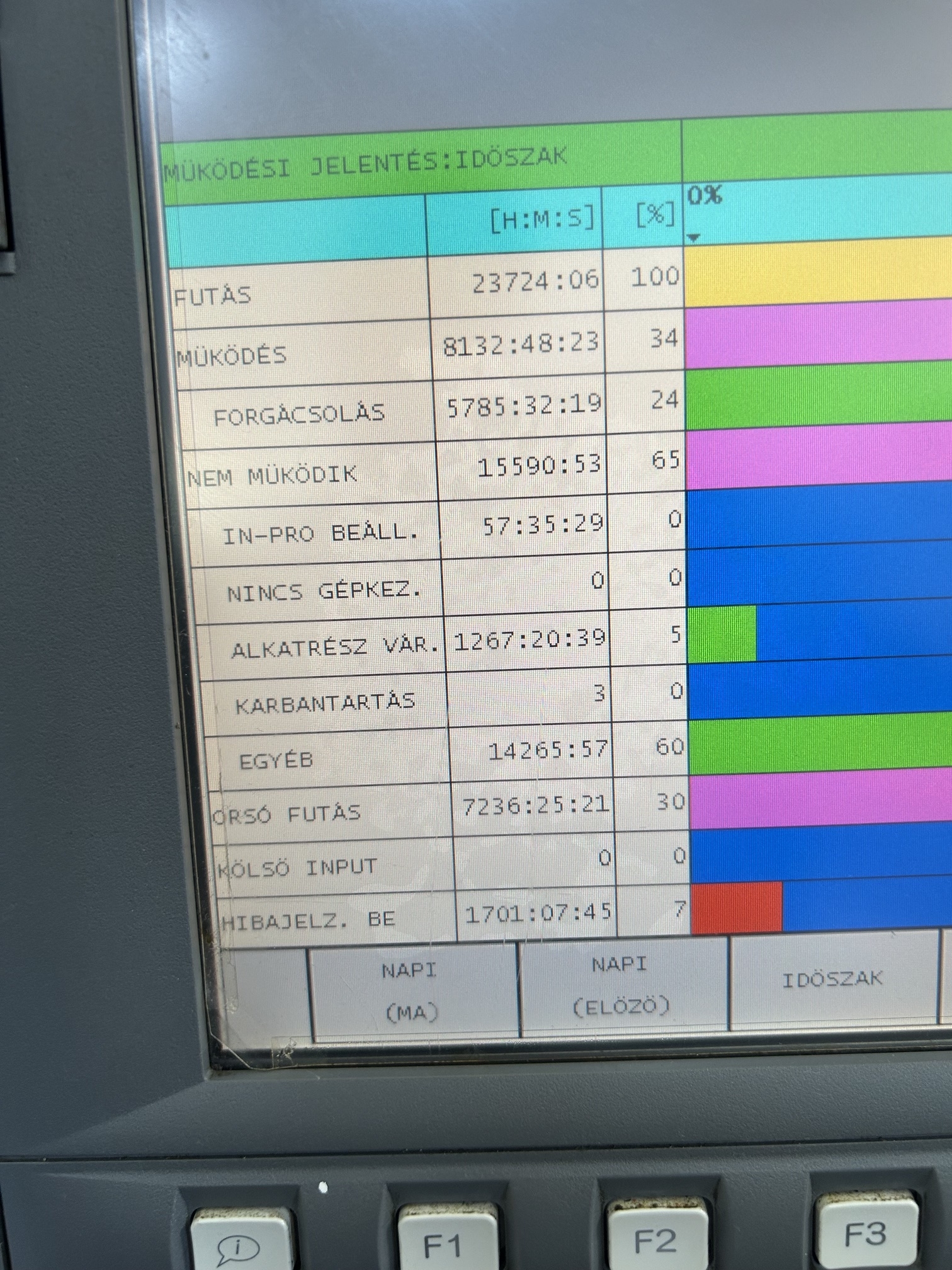

Control OSP P300L-R
Turning diameter 340 mm
Turning length 1020 mm
Spindle bore diameter 65 mm
Spindle Speed 25 - 3000 1/min
Spindle motor 15/11 kW
Movement X-axis 235 mm
Movement Y-axis +50 / -50 mm
Movement Z-axis 1074 mm
Minimum indexing C-Axis main Spindle 0,001 °

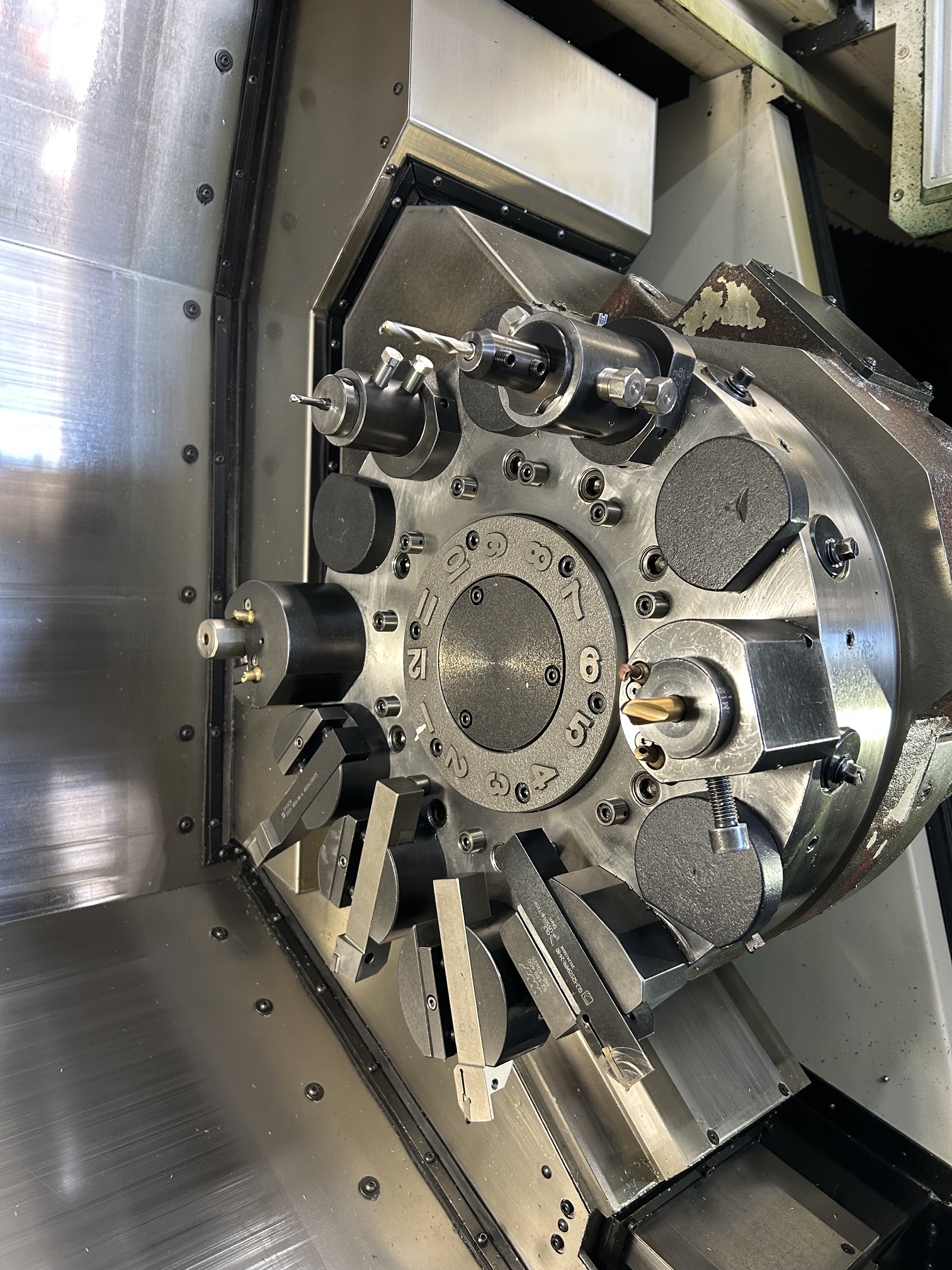

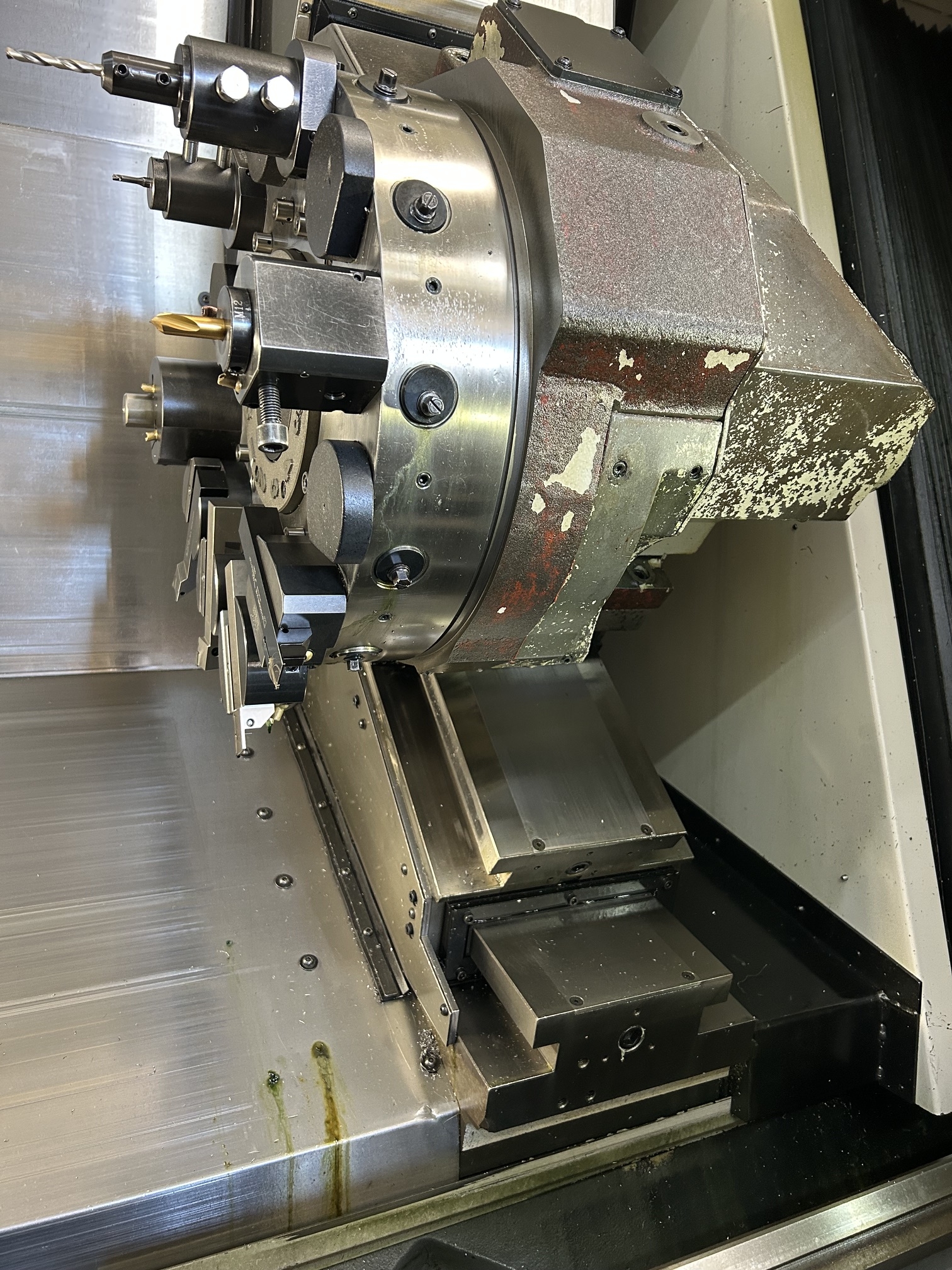

Number of tools on turret 12
Spindle speed driven tools 45 - 4500 1/min
Number of driven tools 12 position
Tool Taper VDI40
Spindle motor driven tools 7/3,3 kW

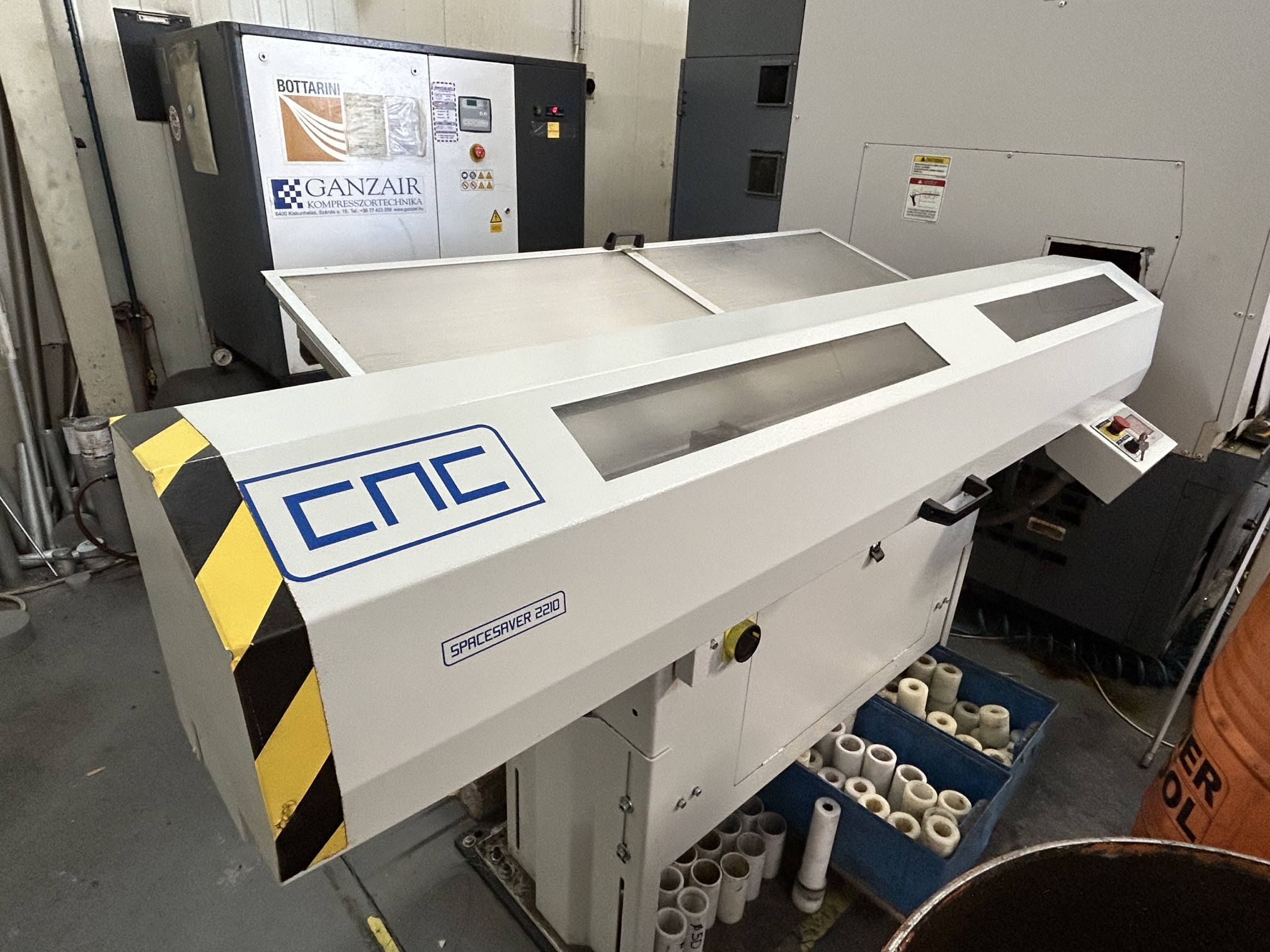

Bar feeder SPACESAVER 2210
( 1500 mm bar lenght, up to 67 mm diameter )
Machine dimensions 4370x2540x2490 mm
Weight 7500 kg


Accessories/options:
- SPACESAVER 2210 barfeeder
- swarf conveyor
- parts cather

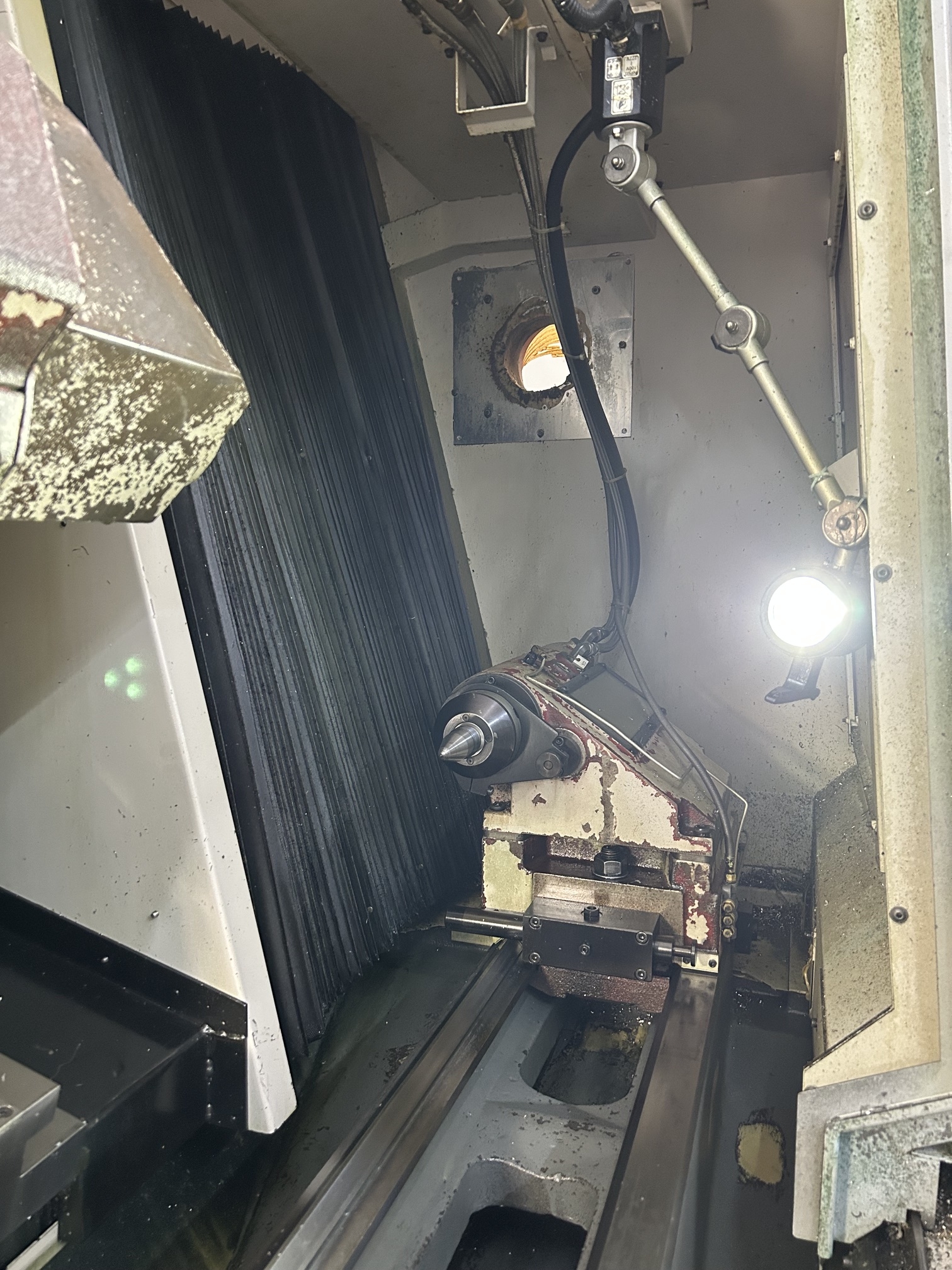

- Renishaw tool measuring arm

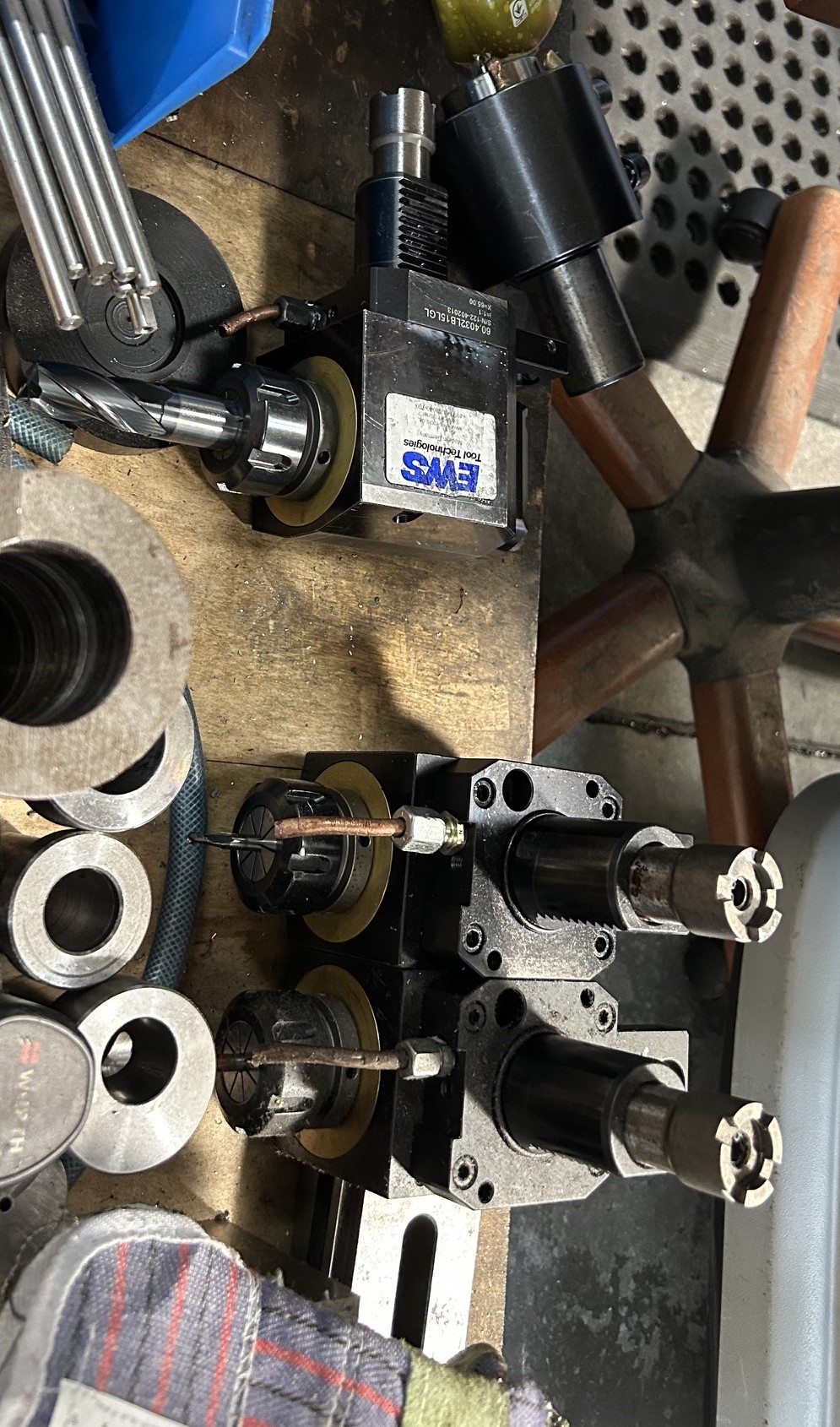

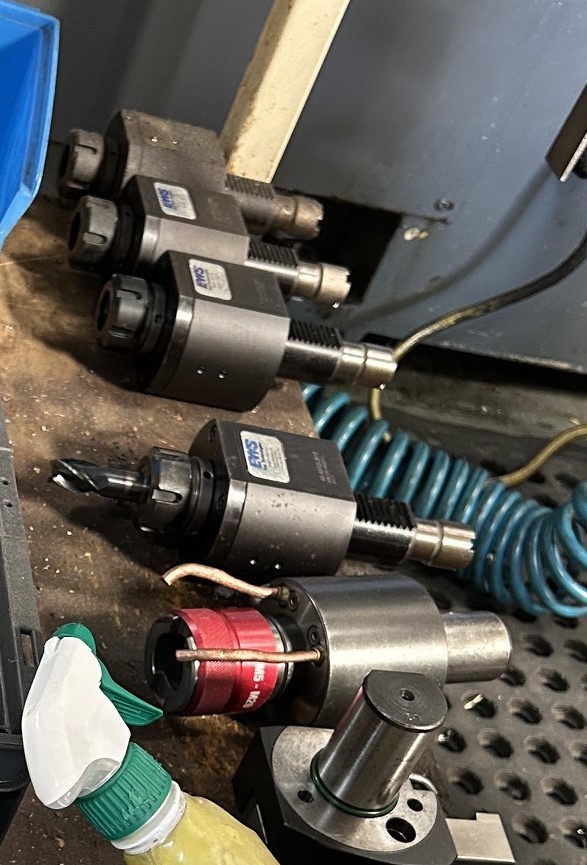

- Driven tool holders
- Static tool holders

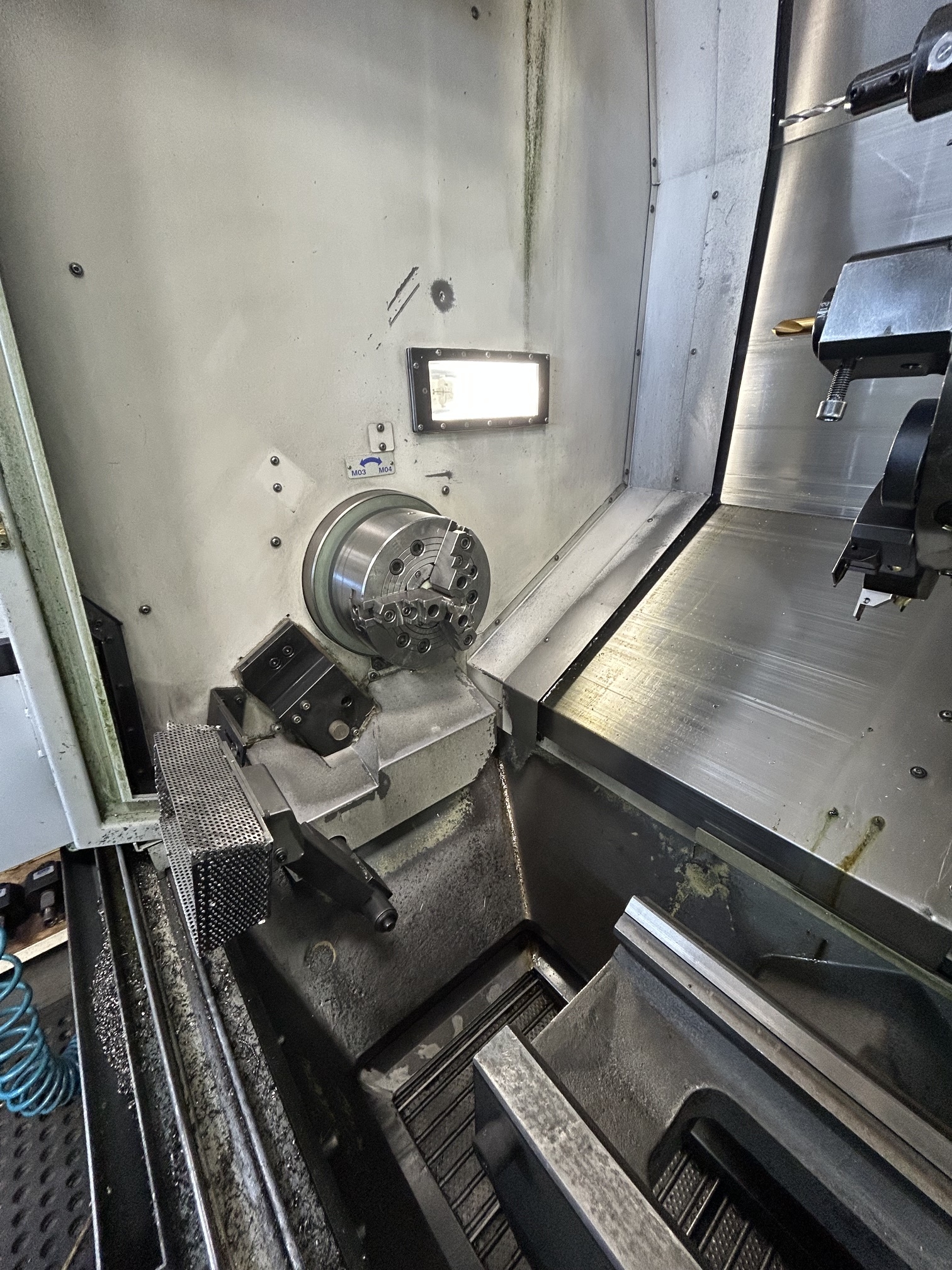

- Hydraulic chuck
- Jaws for chuck
- Documentations
- Dust extractor
