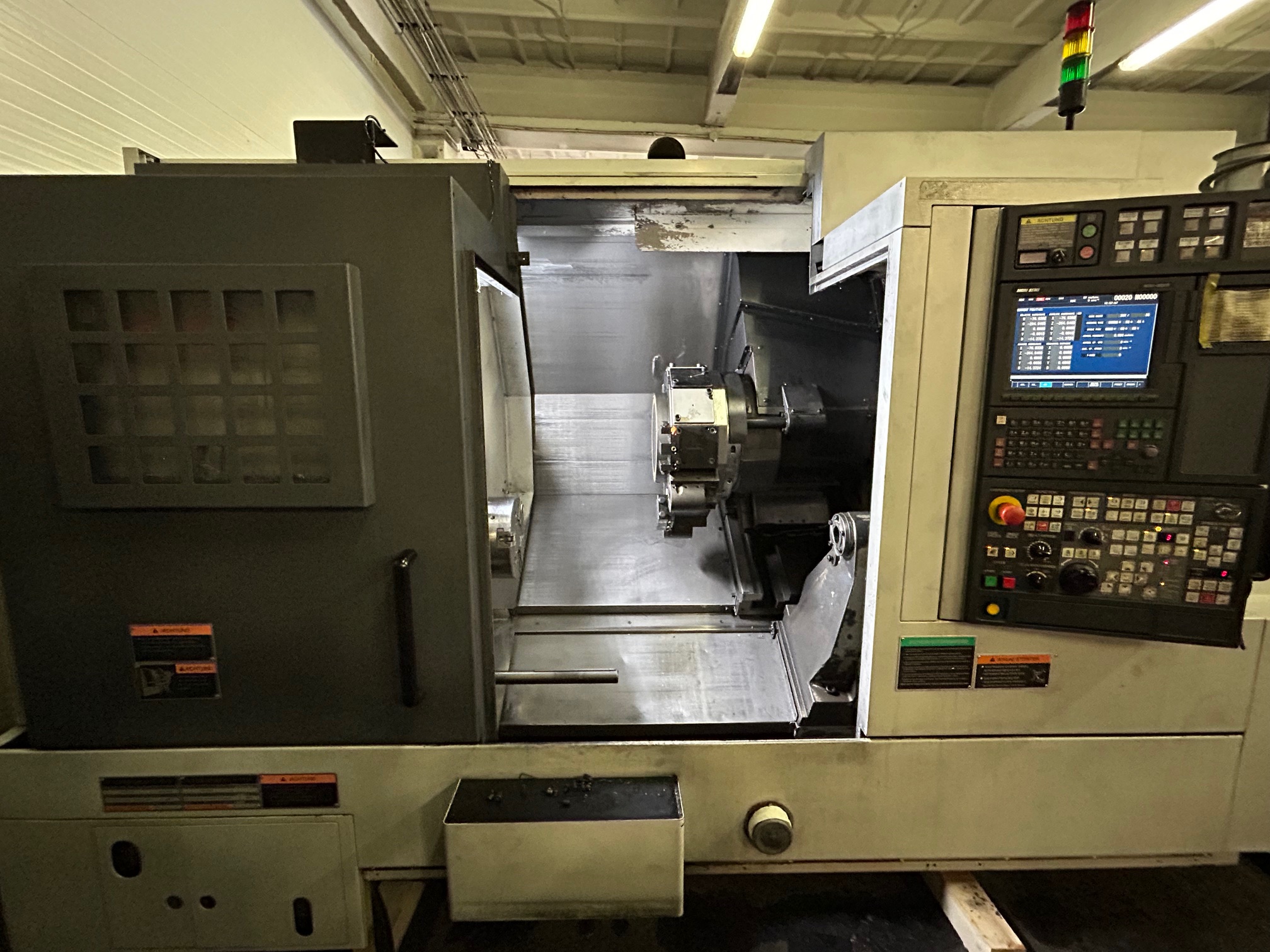

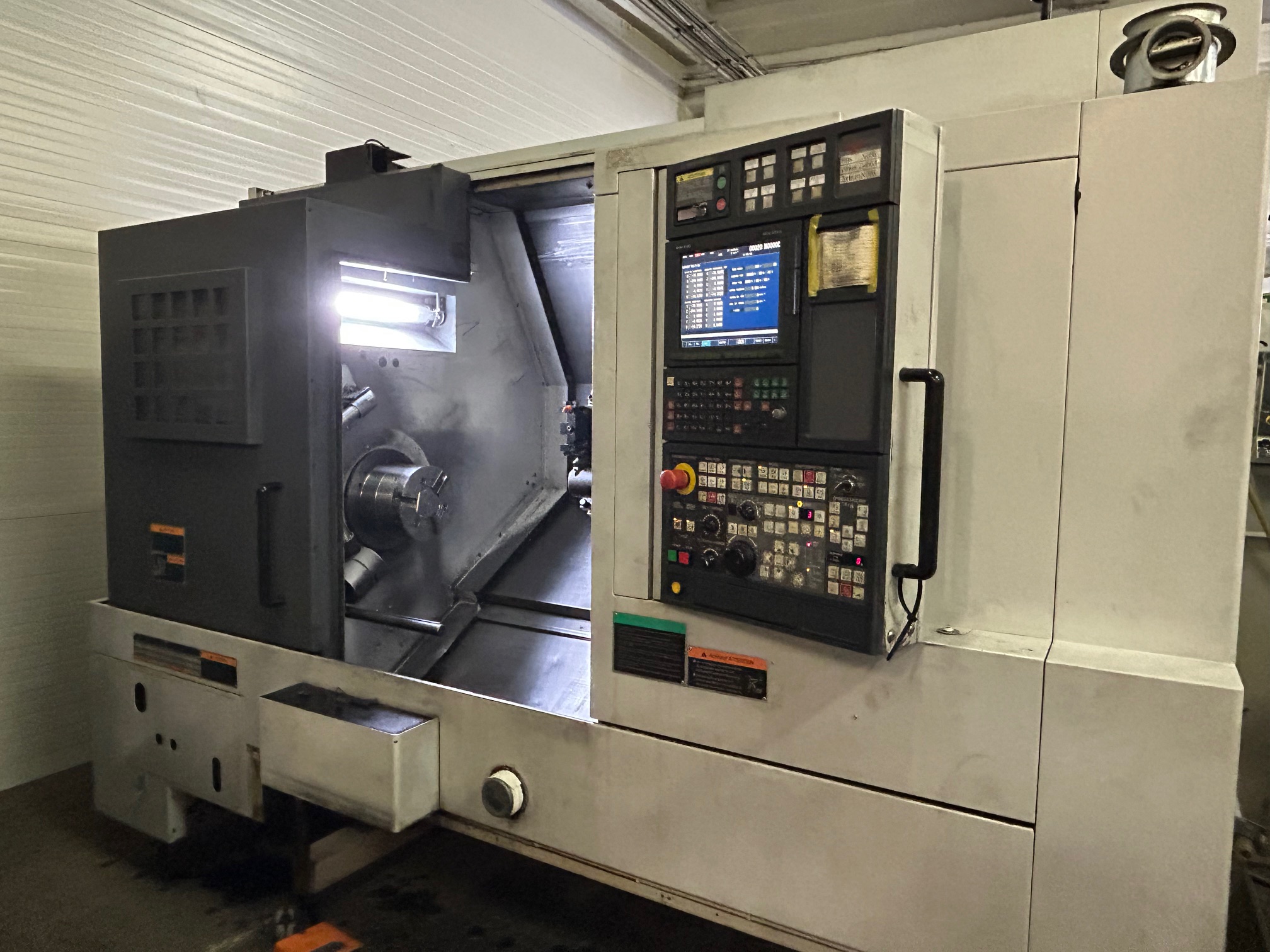

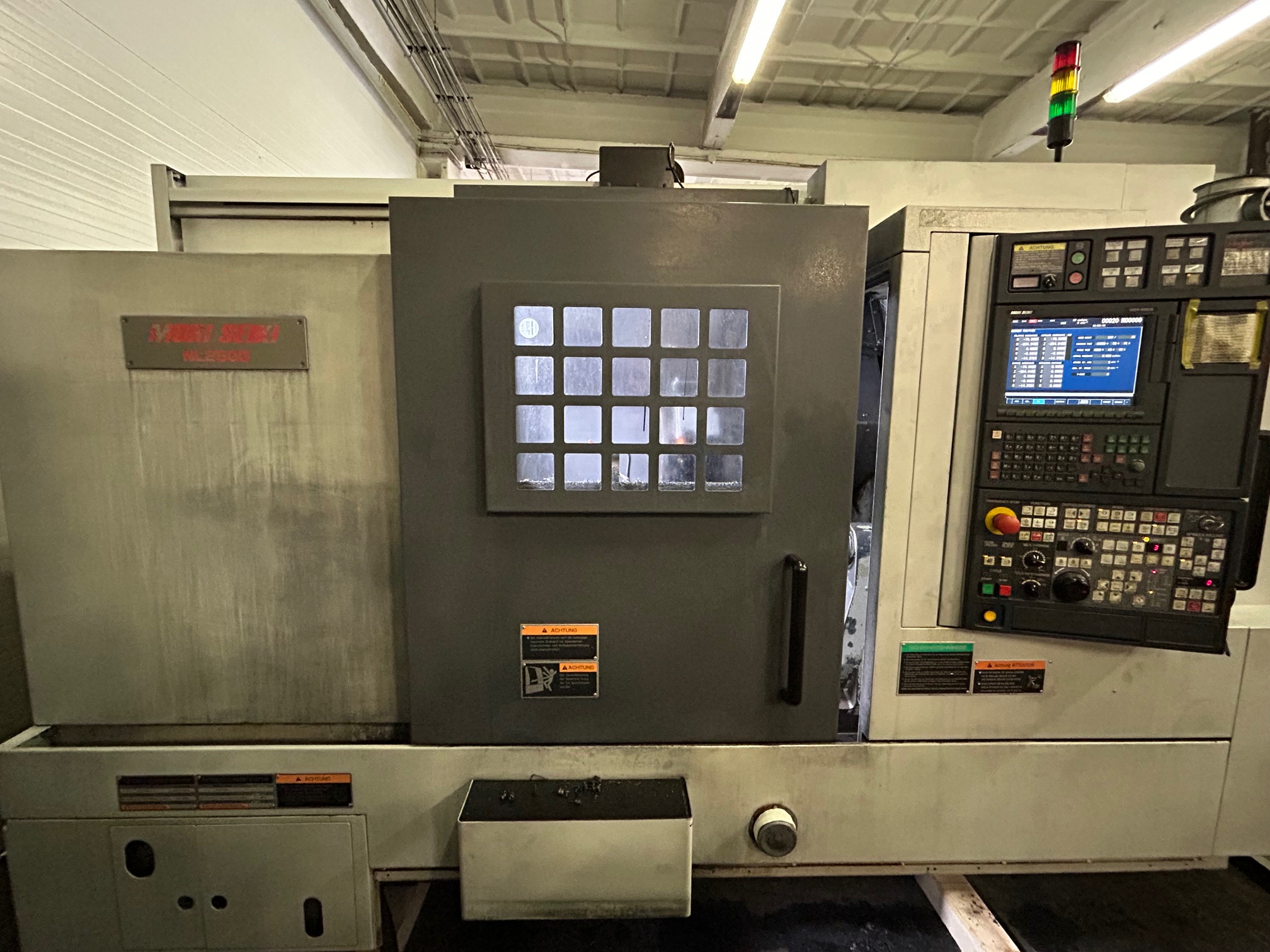

Mori Seiki NL2500Y/700 CNC lathe
Year: 2007

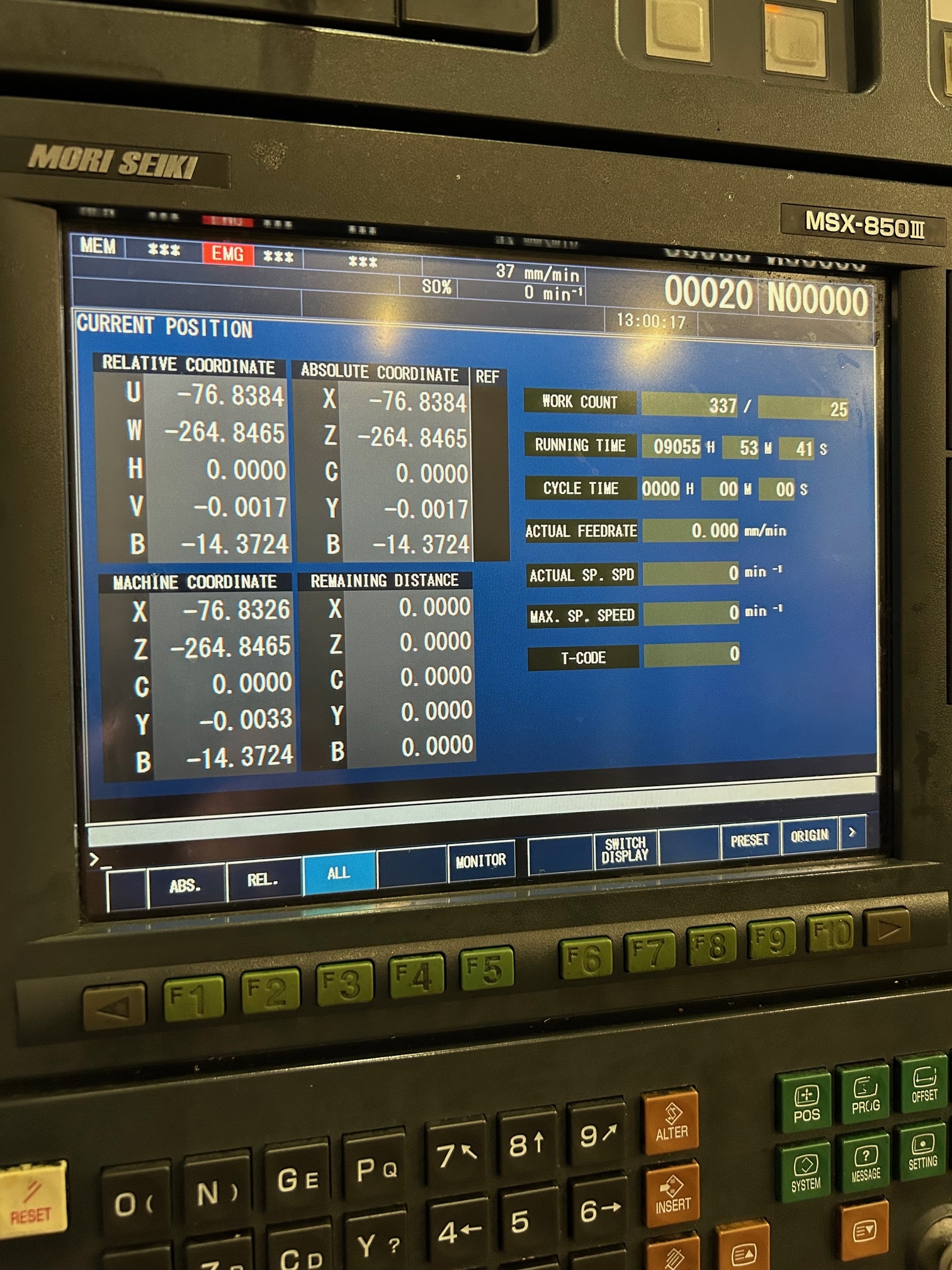

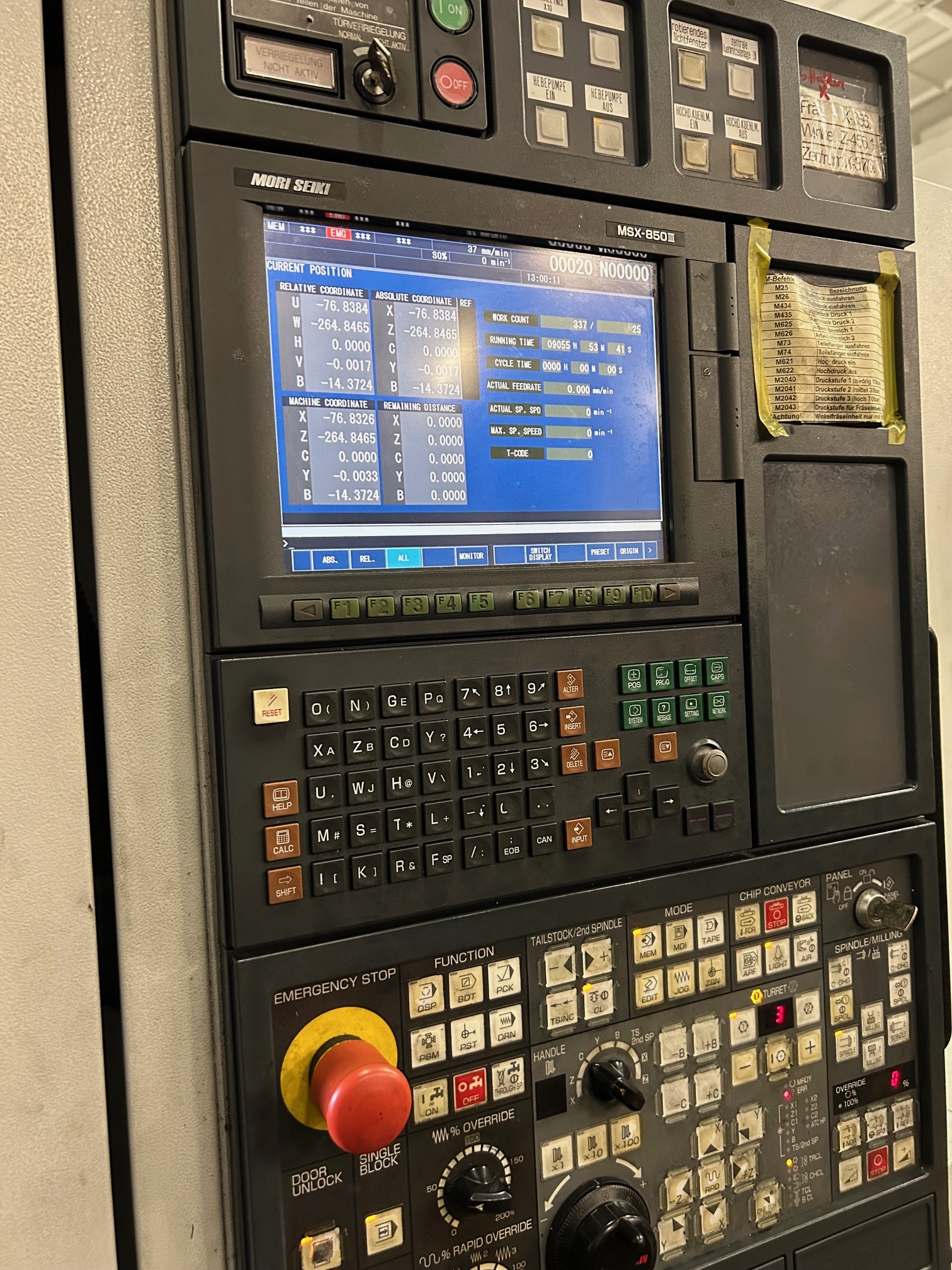

Control: MORI MSX-850 III

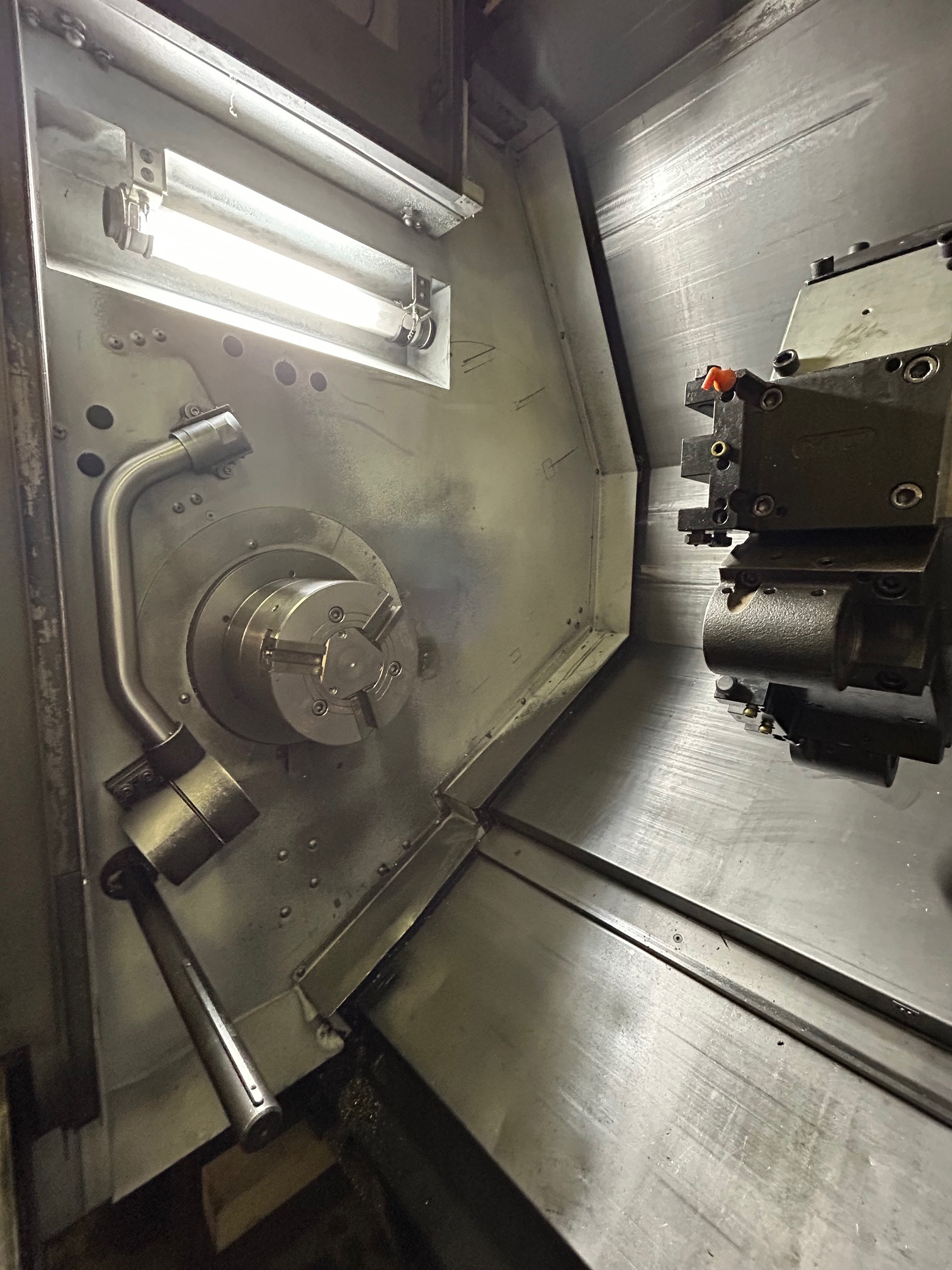

Main spindle:
Spindle nose: A2-8
Main spindle drive power: 18.5 kW
Max. main spindle speed: 4000 rpm
Max. spindle bore: 80 mm
Max. turning diameter: 366 mm
C-axis 0.001 degree

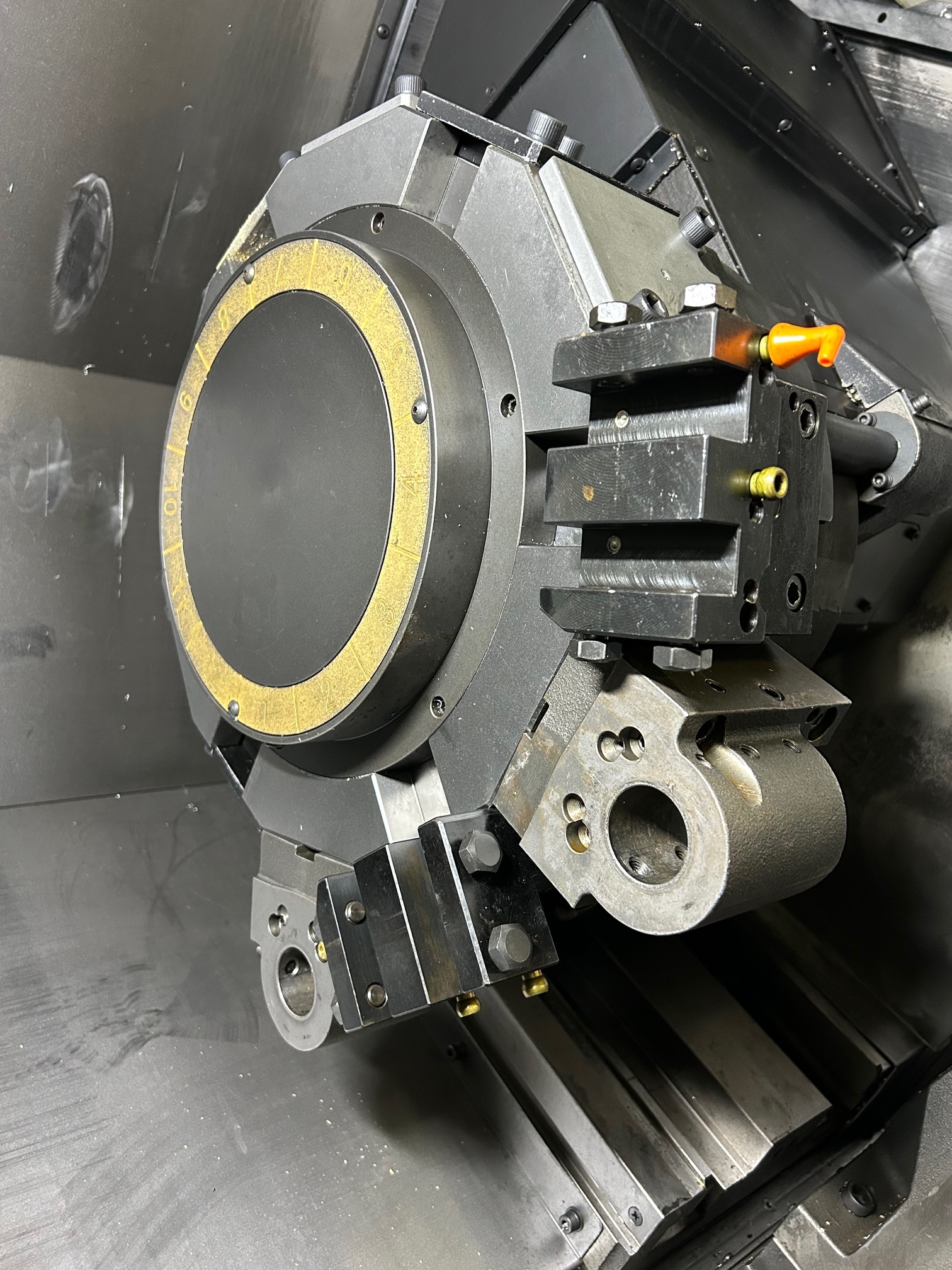

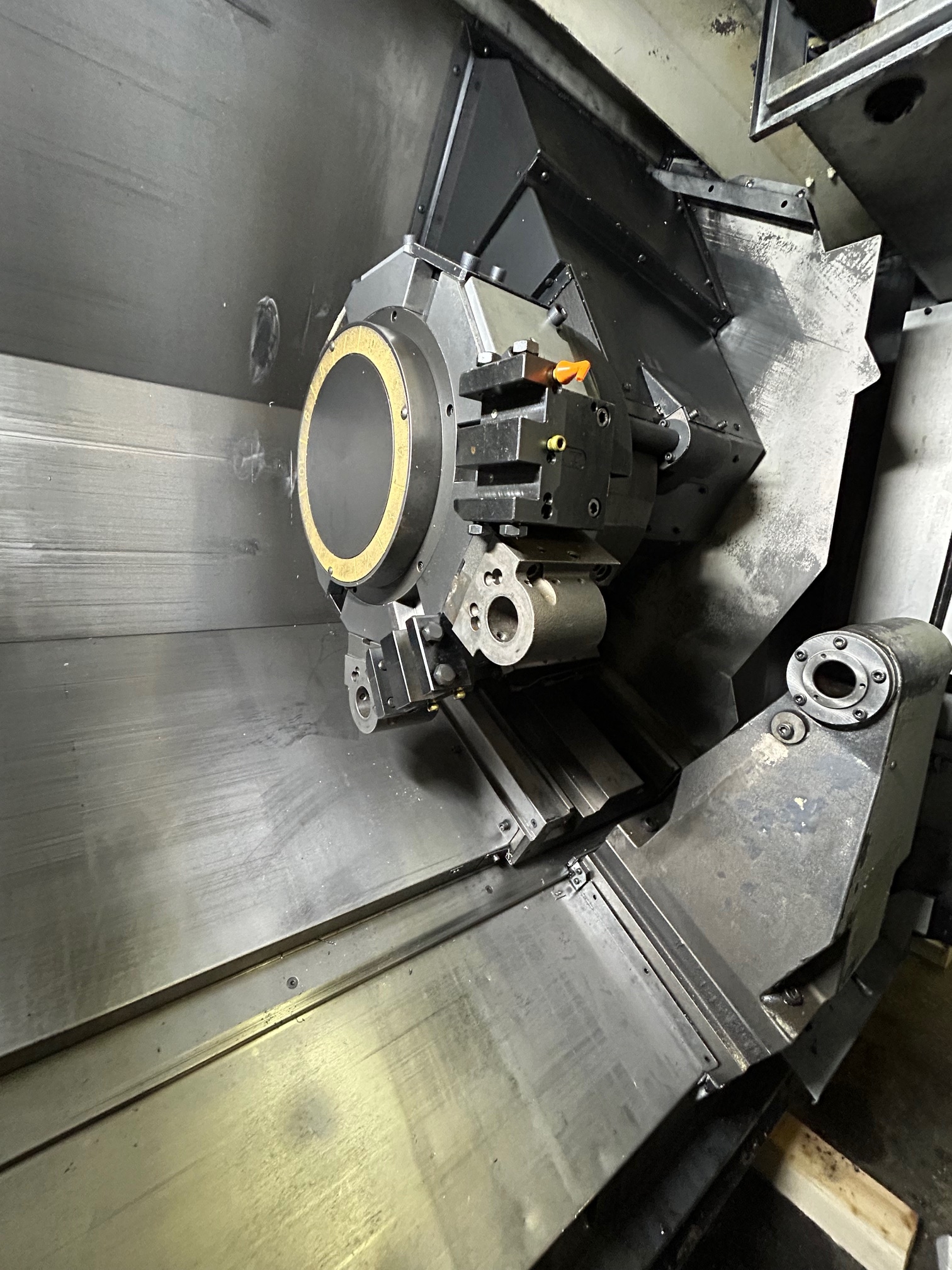

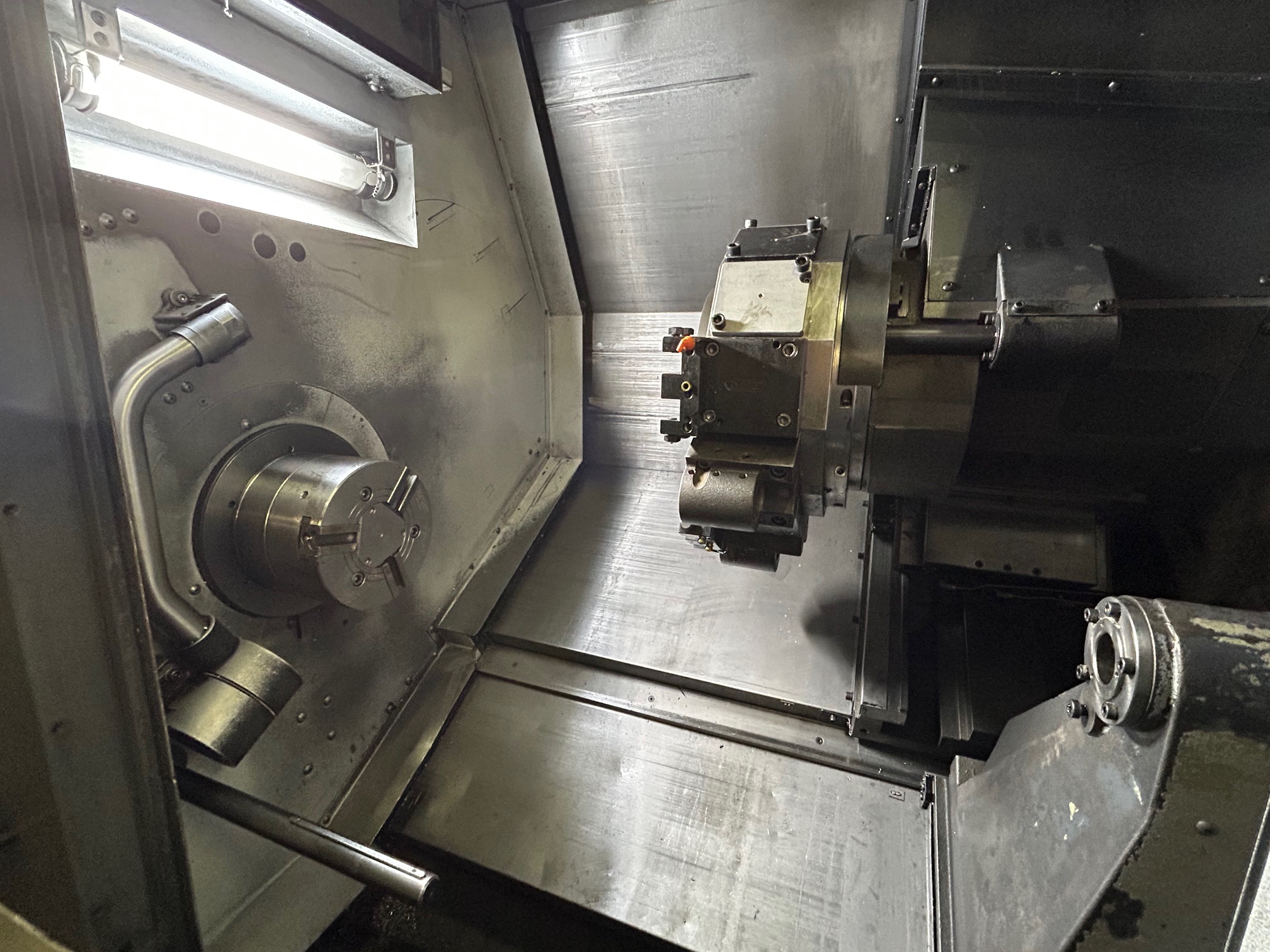

TURRET:
Number of positions: 12 pcs.
Number of driven tools positions: 12 pcs.
Min. spindle indexing increment 0.001°
Travel X/Z axis: 280 / 785 mm
Travel Y axis: +/- 50 mm
Max. speed driven tools: 6000 rpm
Power driven tools: 5.5 kW
TAILSTOCK:
Taper: MT5
Distance between centers: 705 mm

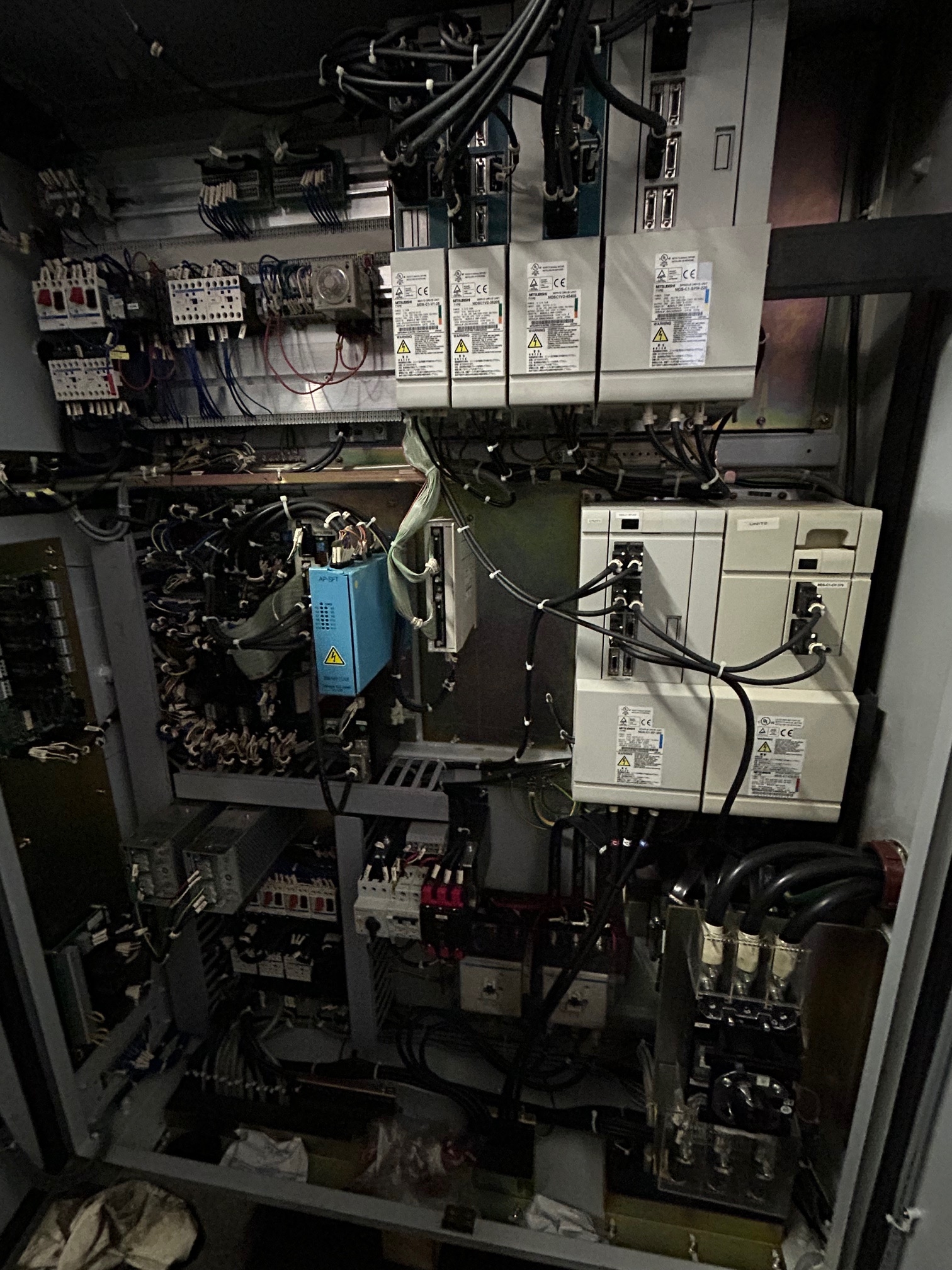

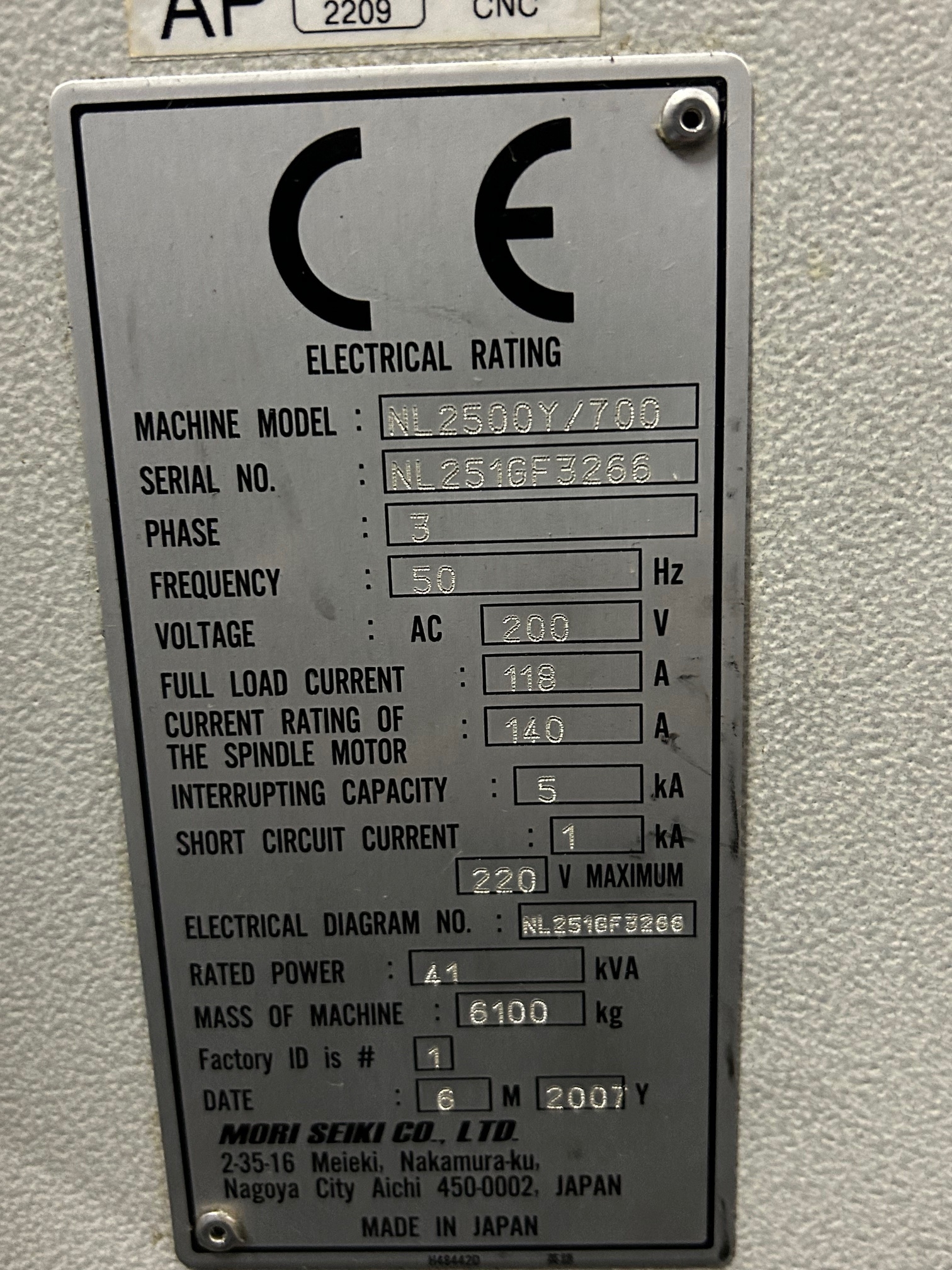

ELECTRICAL SUPPLY:
Total drive: 39 kVA
WEIGHT AND DIMENSIONS:
Space requirements: 3800 x 2143 mm
Machine height: 2232 mm
Machine weight: 6100 kg

Accessories/options:

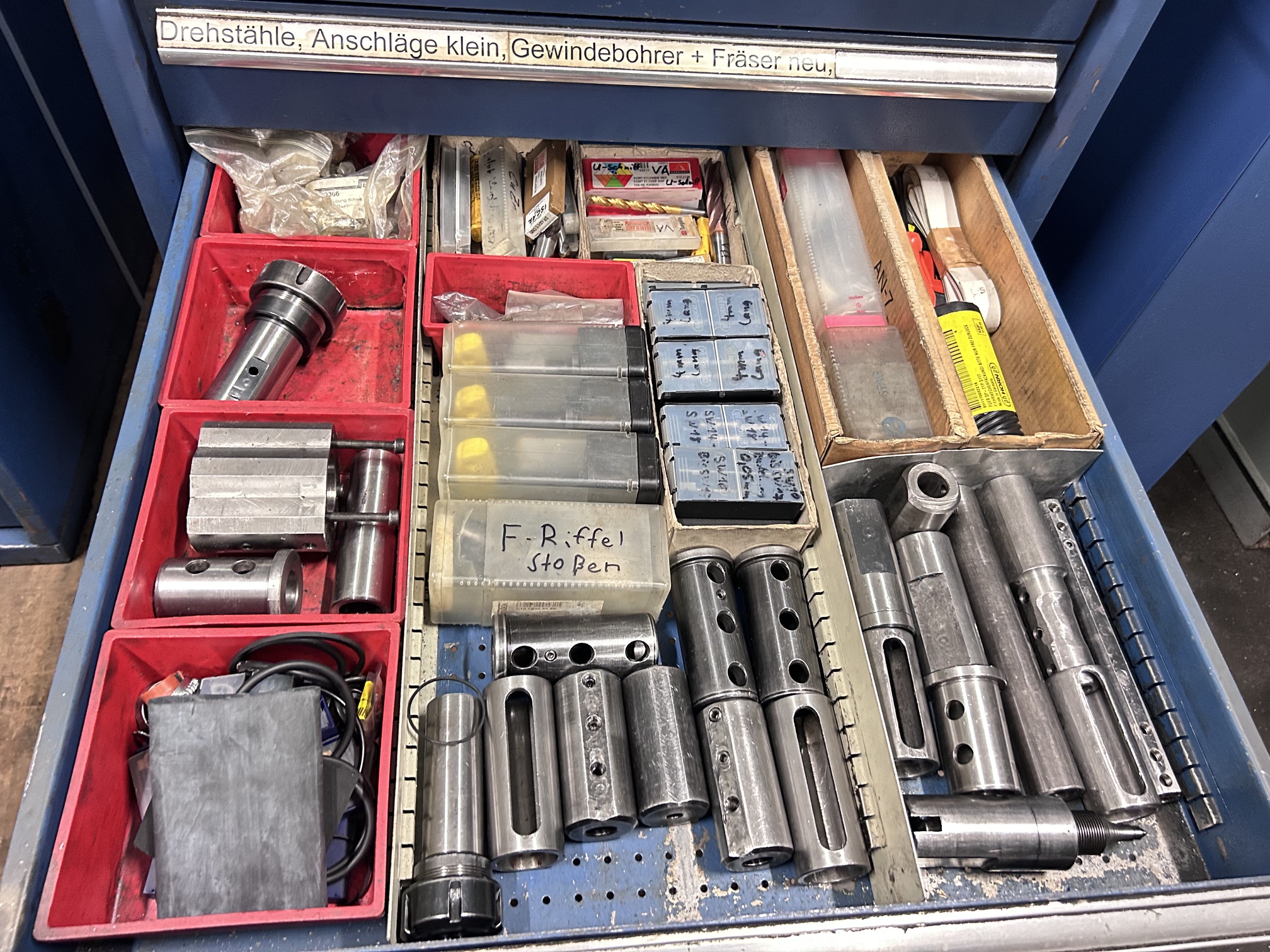

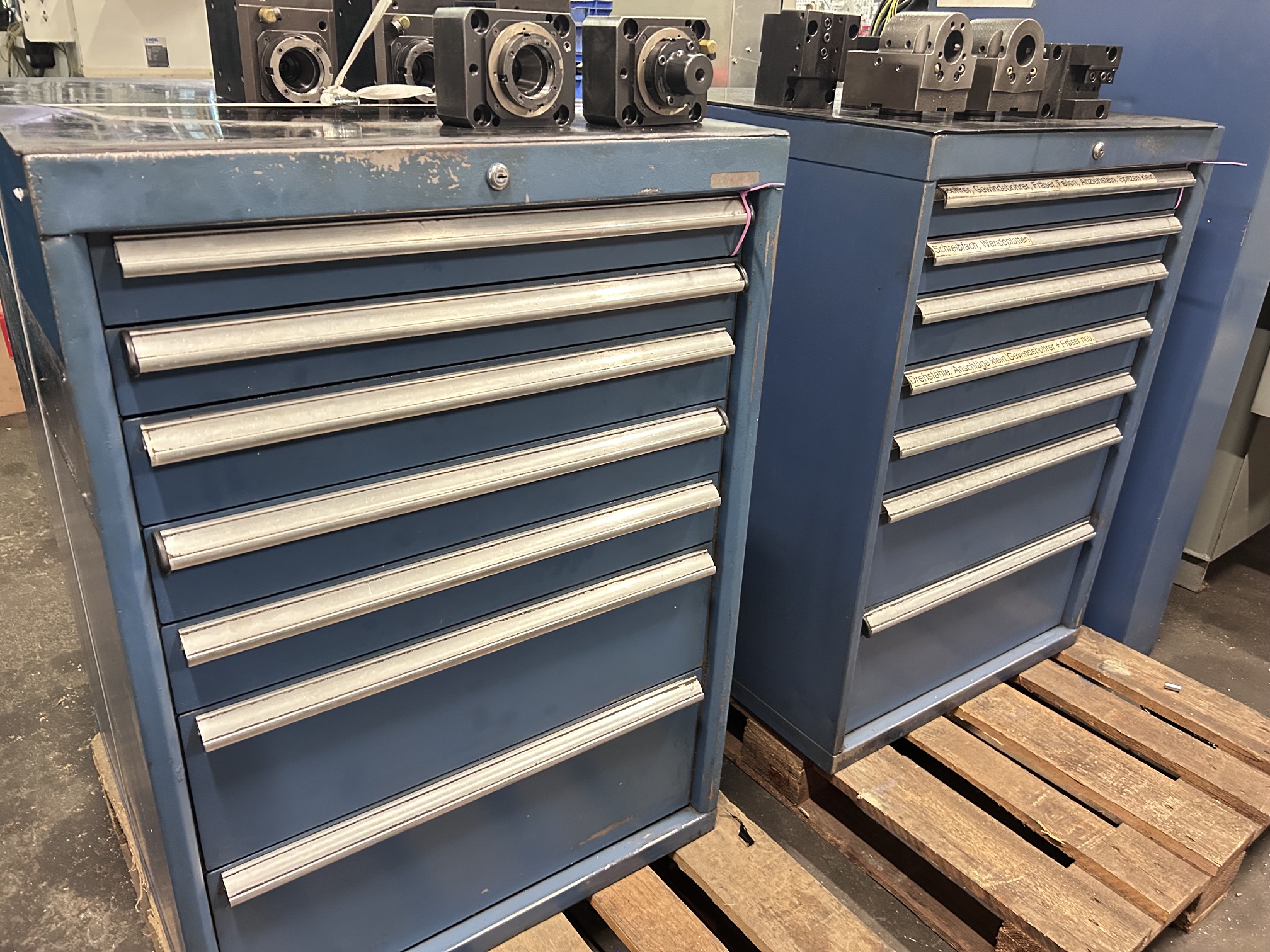

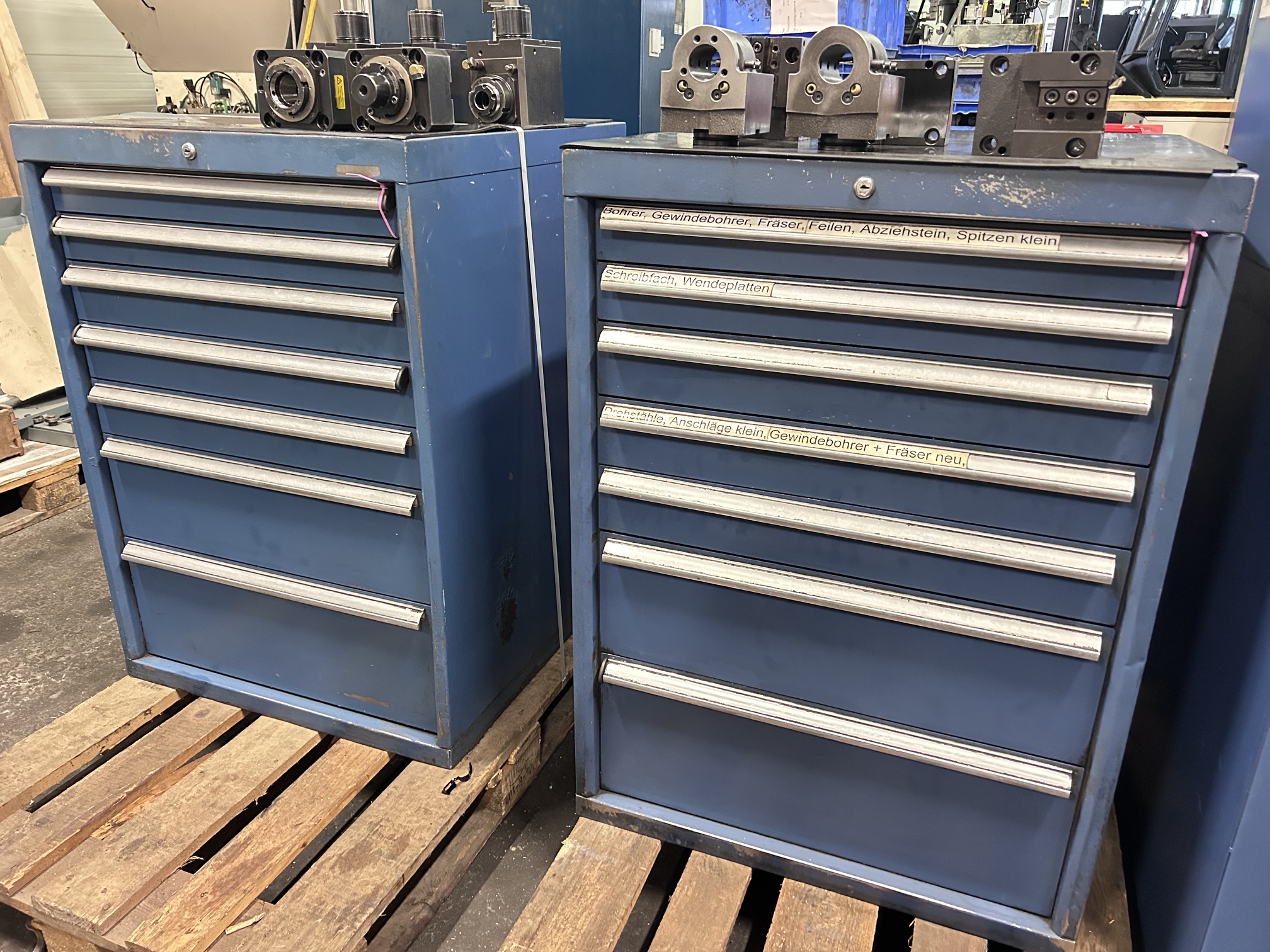

- 2 cabinet accessories

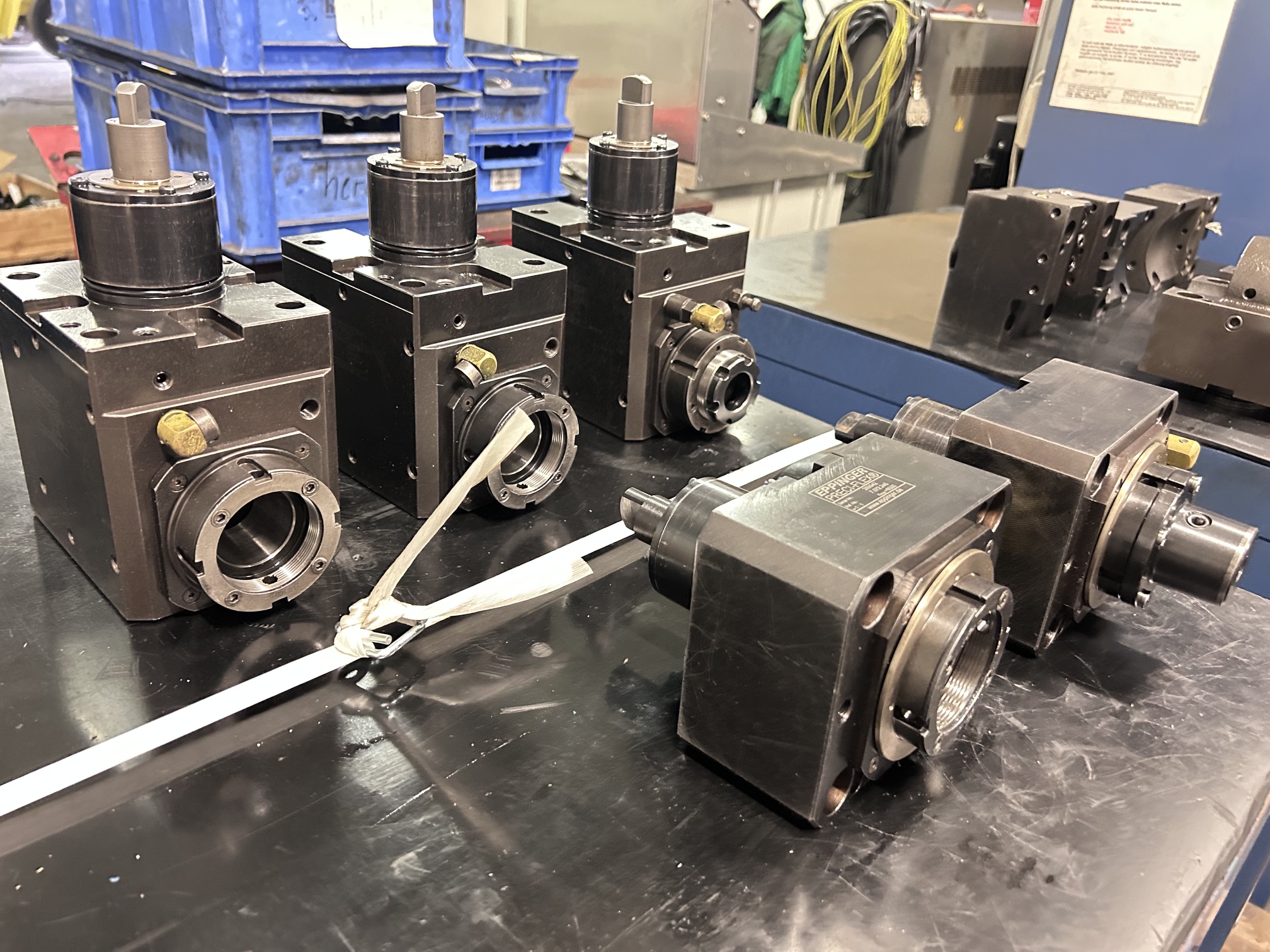

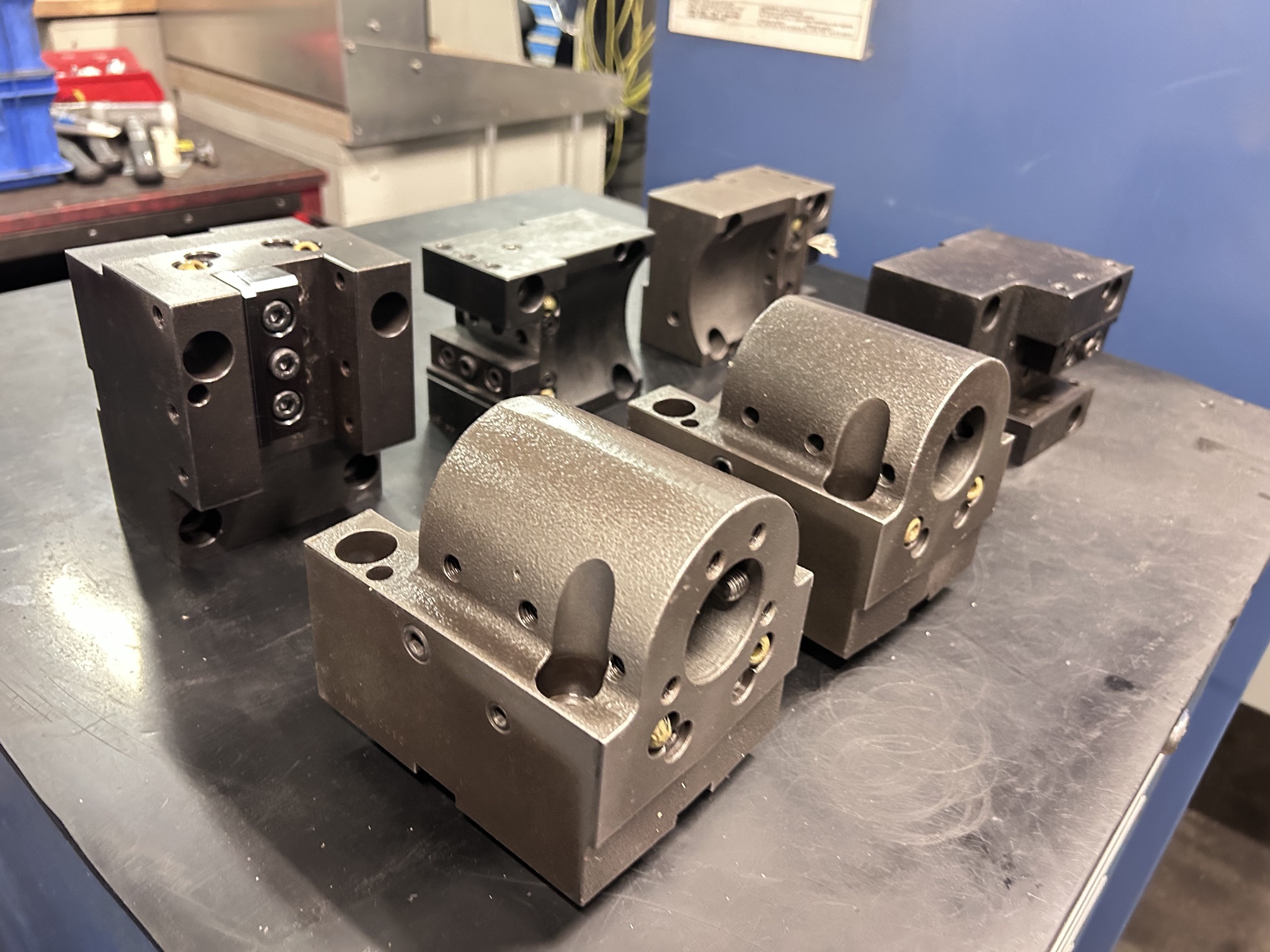

- 5 pieces driven tool holders, several static holders

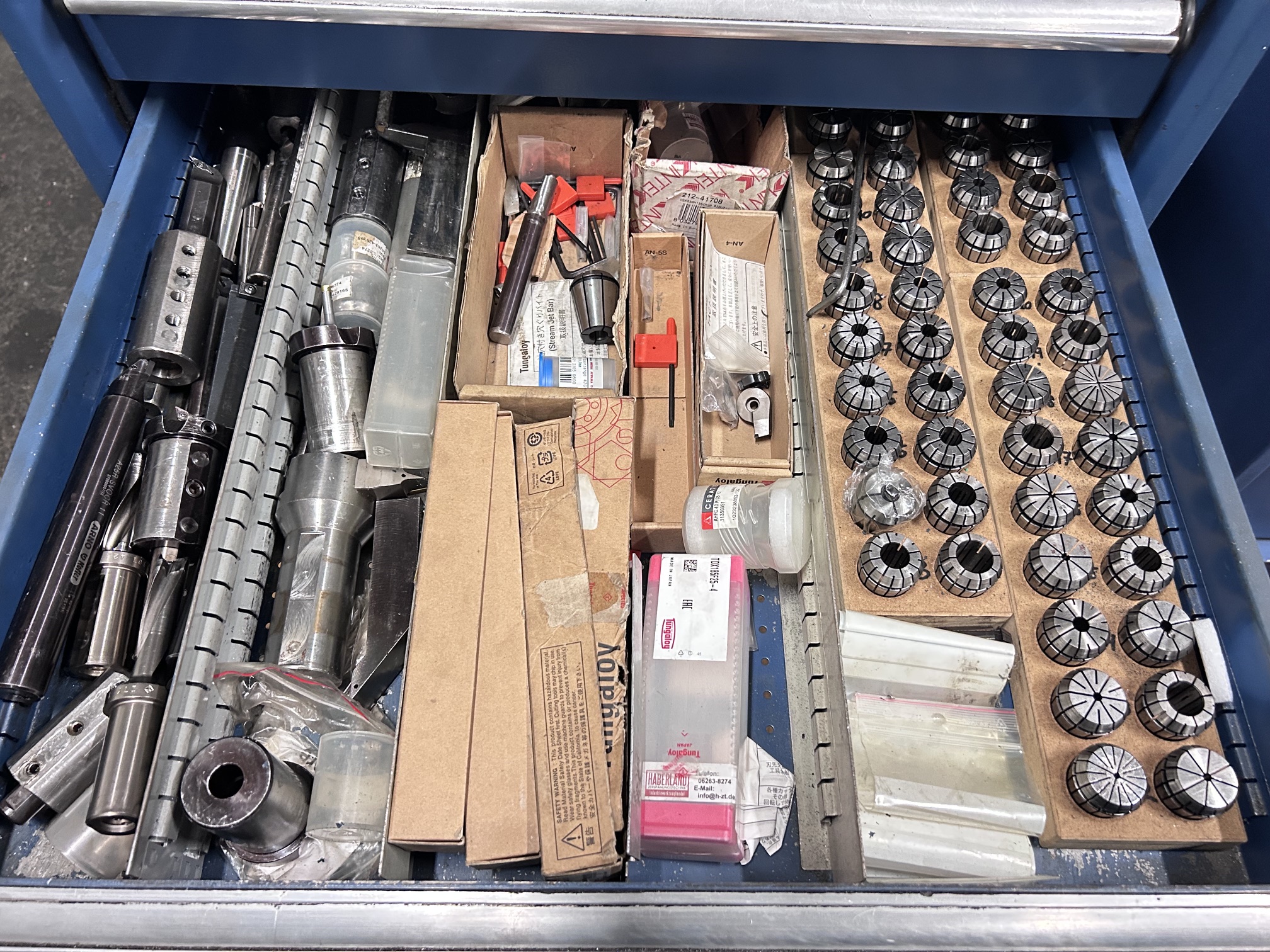

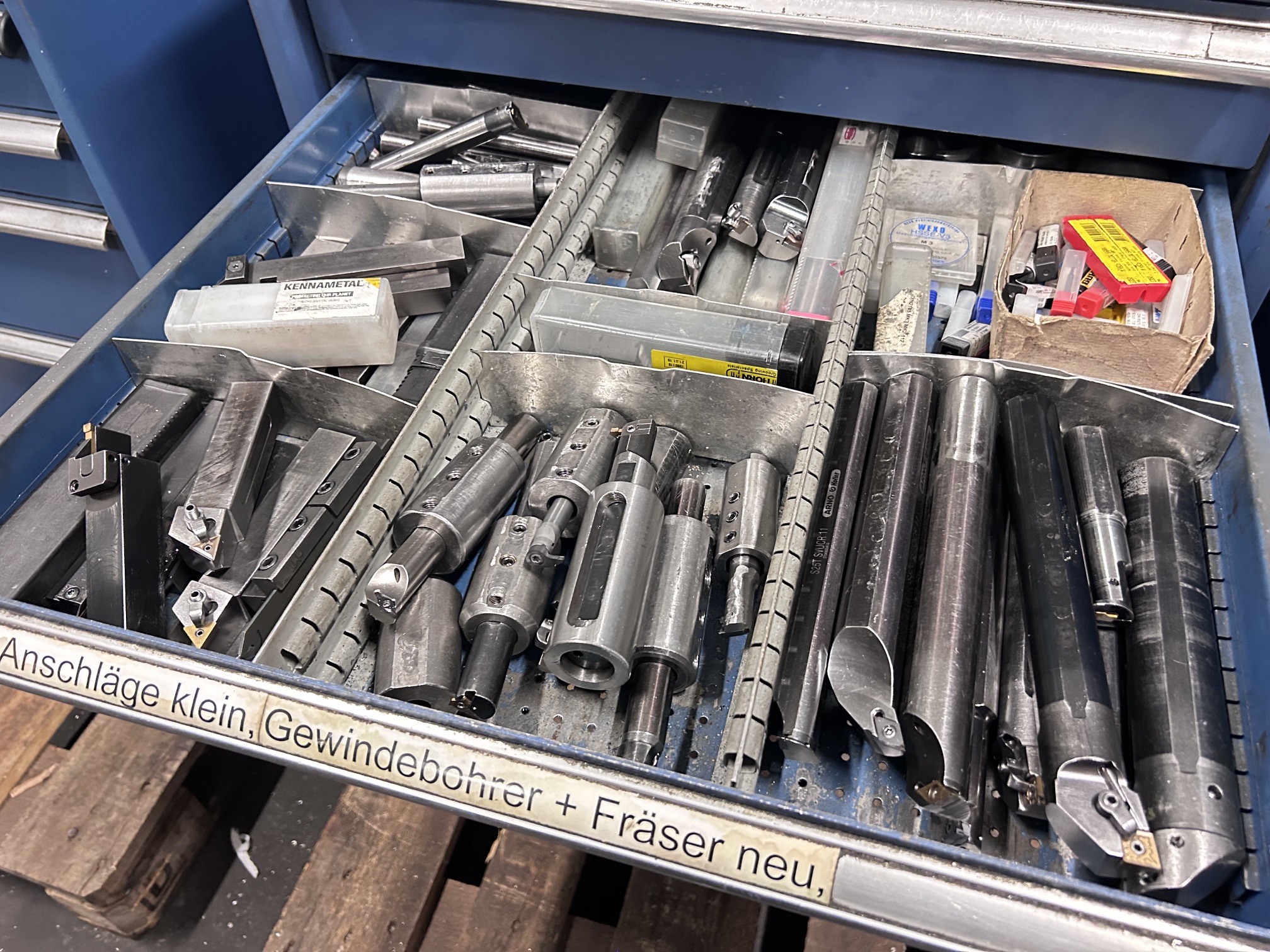

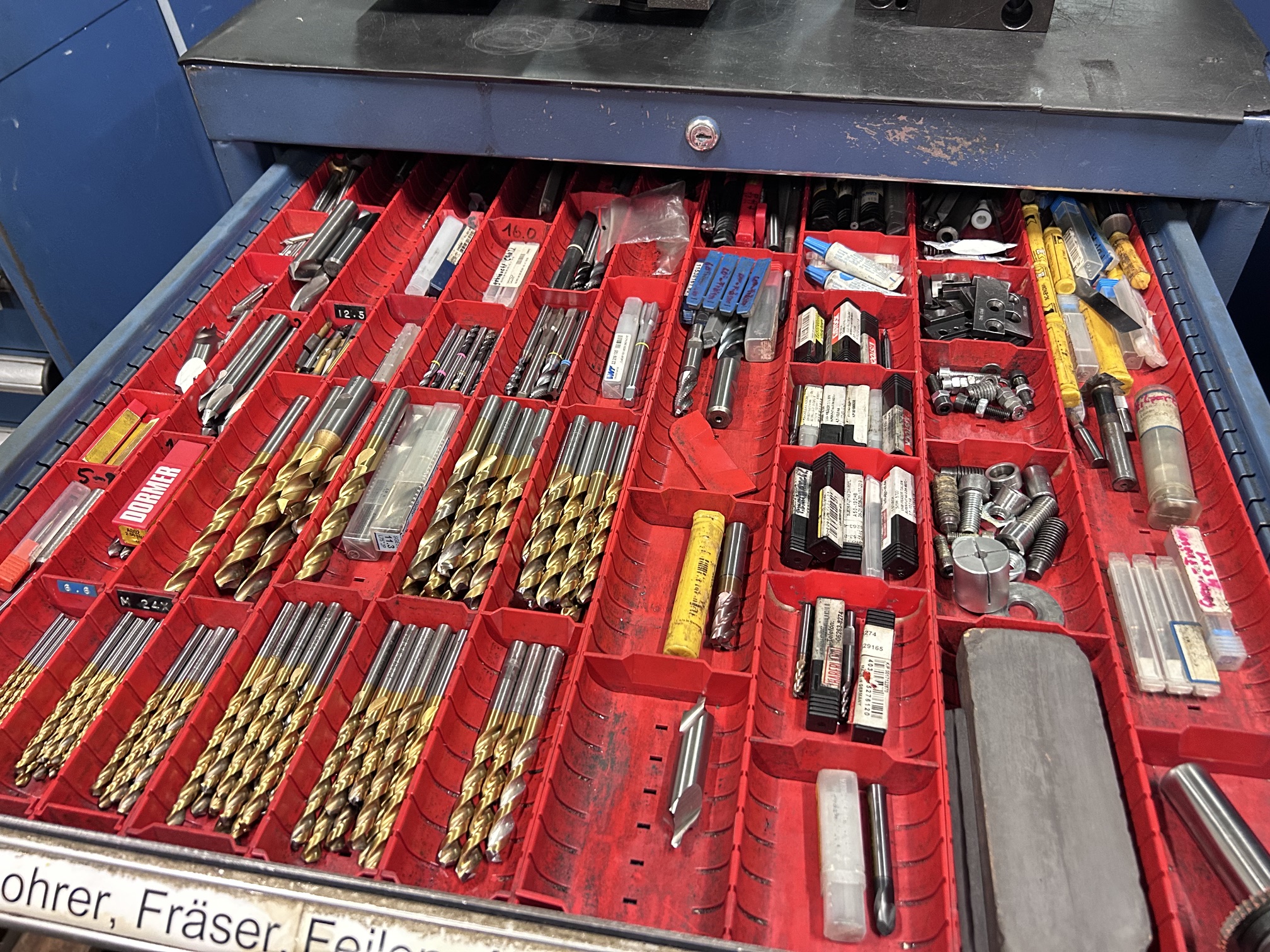

- collets, inserts, tools, sleeves, etc....

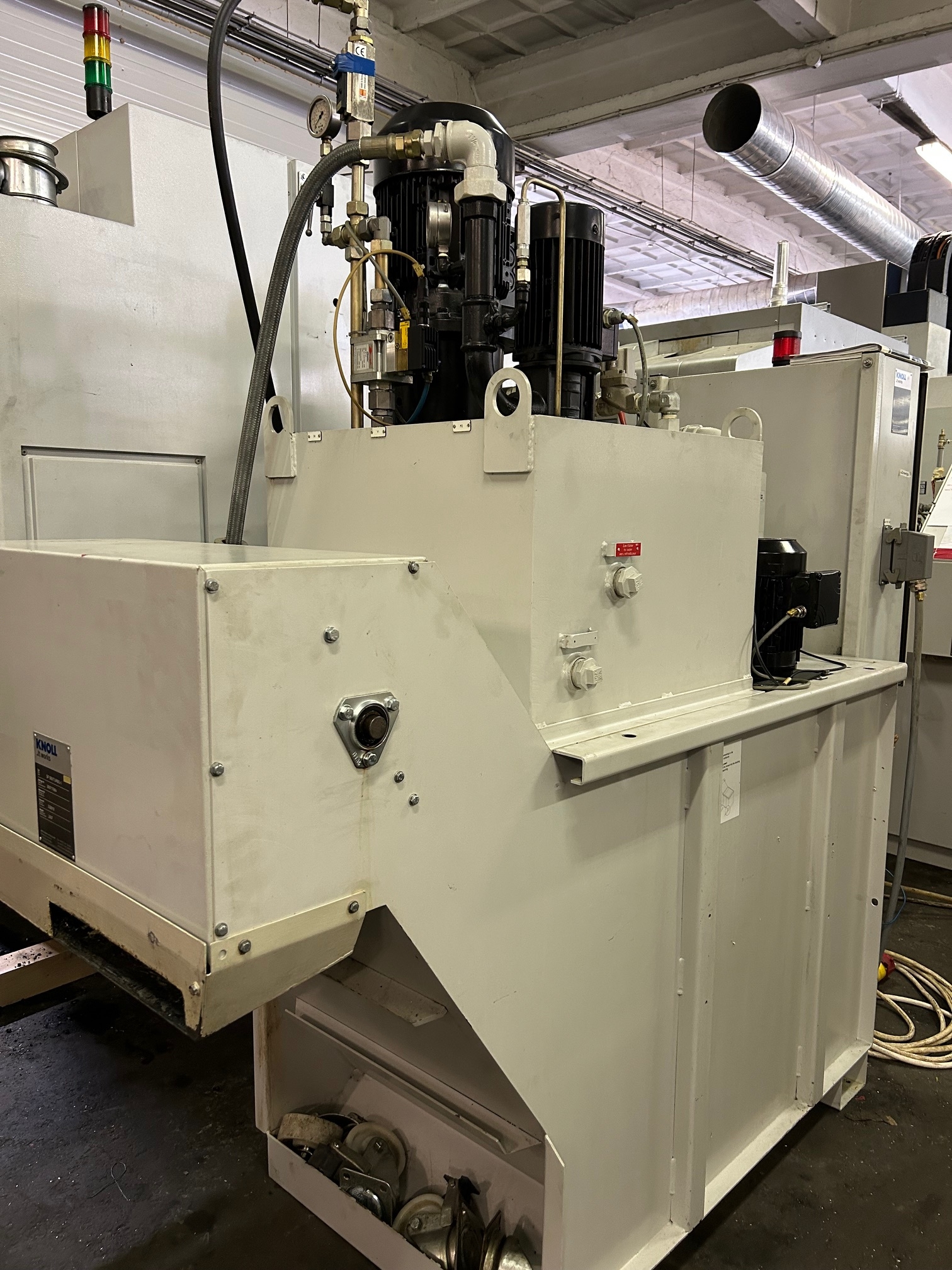

- high pressure paper band filter type, micro filtered, coolant tank
- swarf conveyor

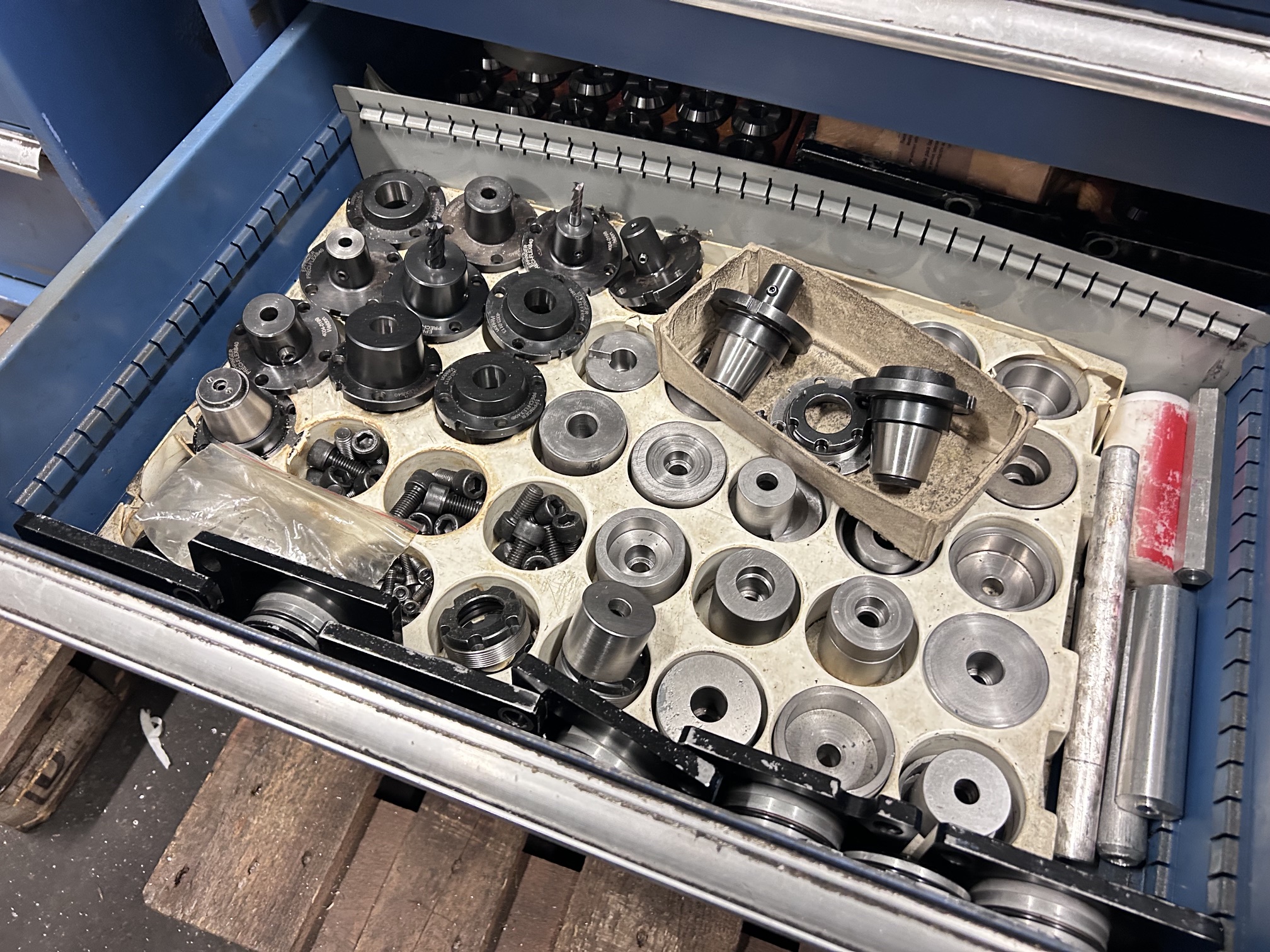

- collet type chucks, different sizes

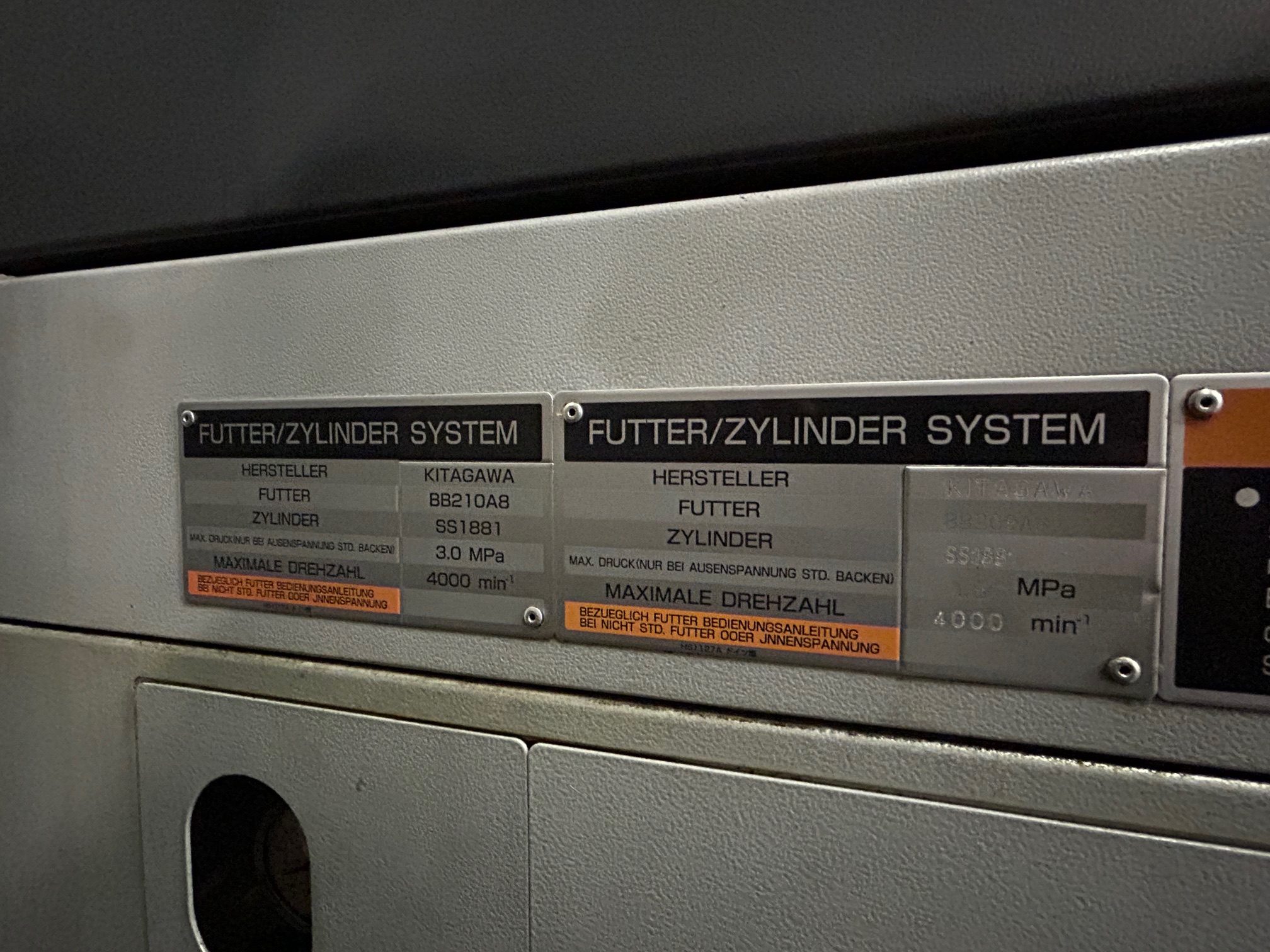

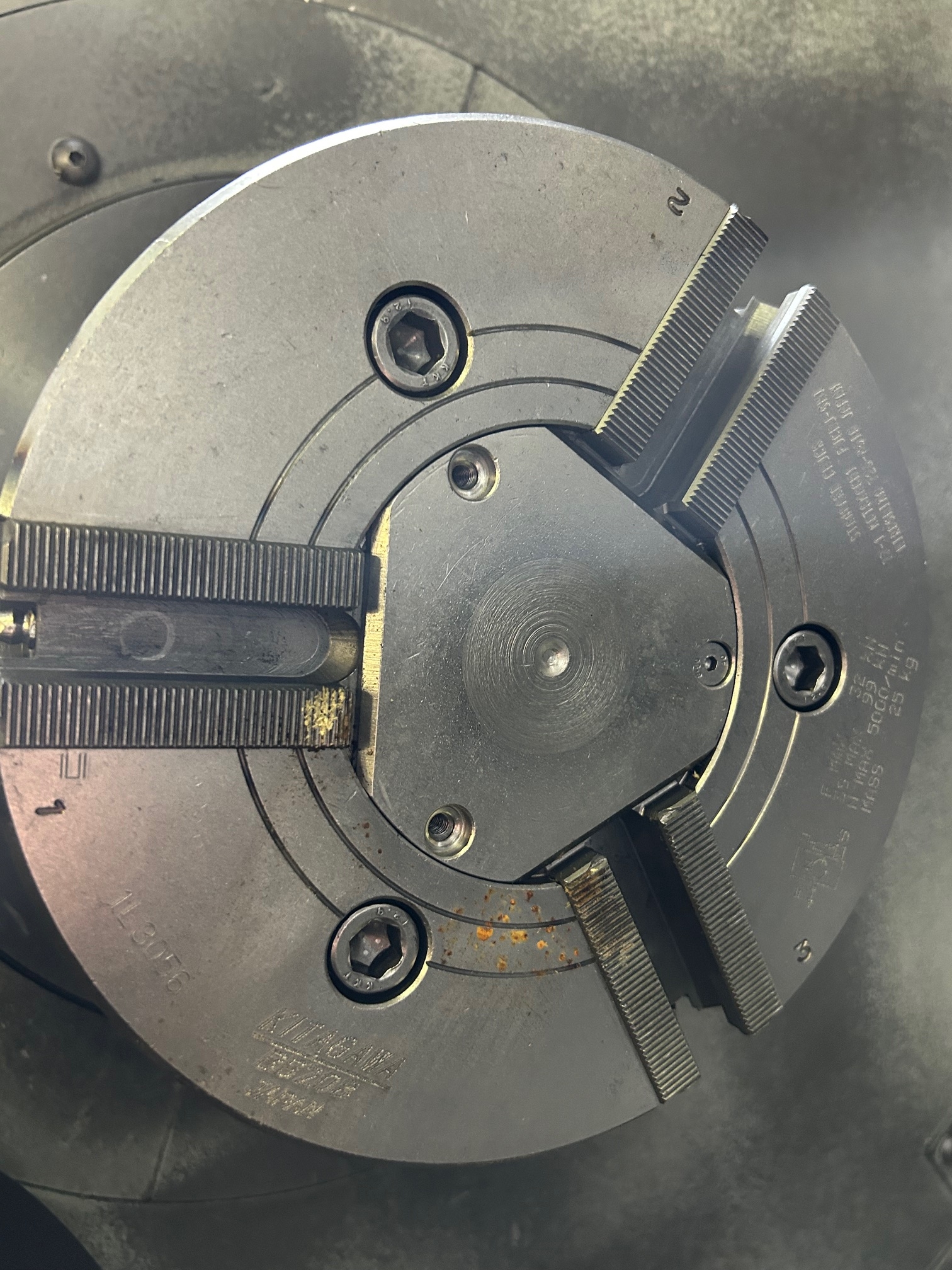

- Kitagawa 3-jaw hydraulic chuck diameter 210 mm
- Full set of documentations
- Parts catcher

Under power in our warehouse.
Video available upon request!
