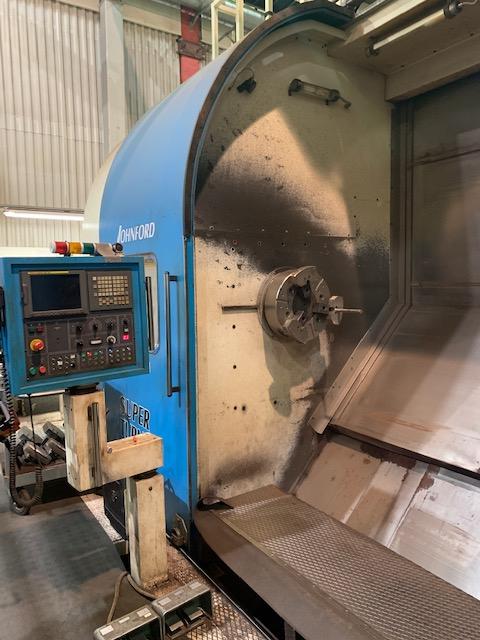

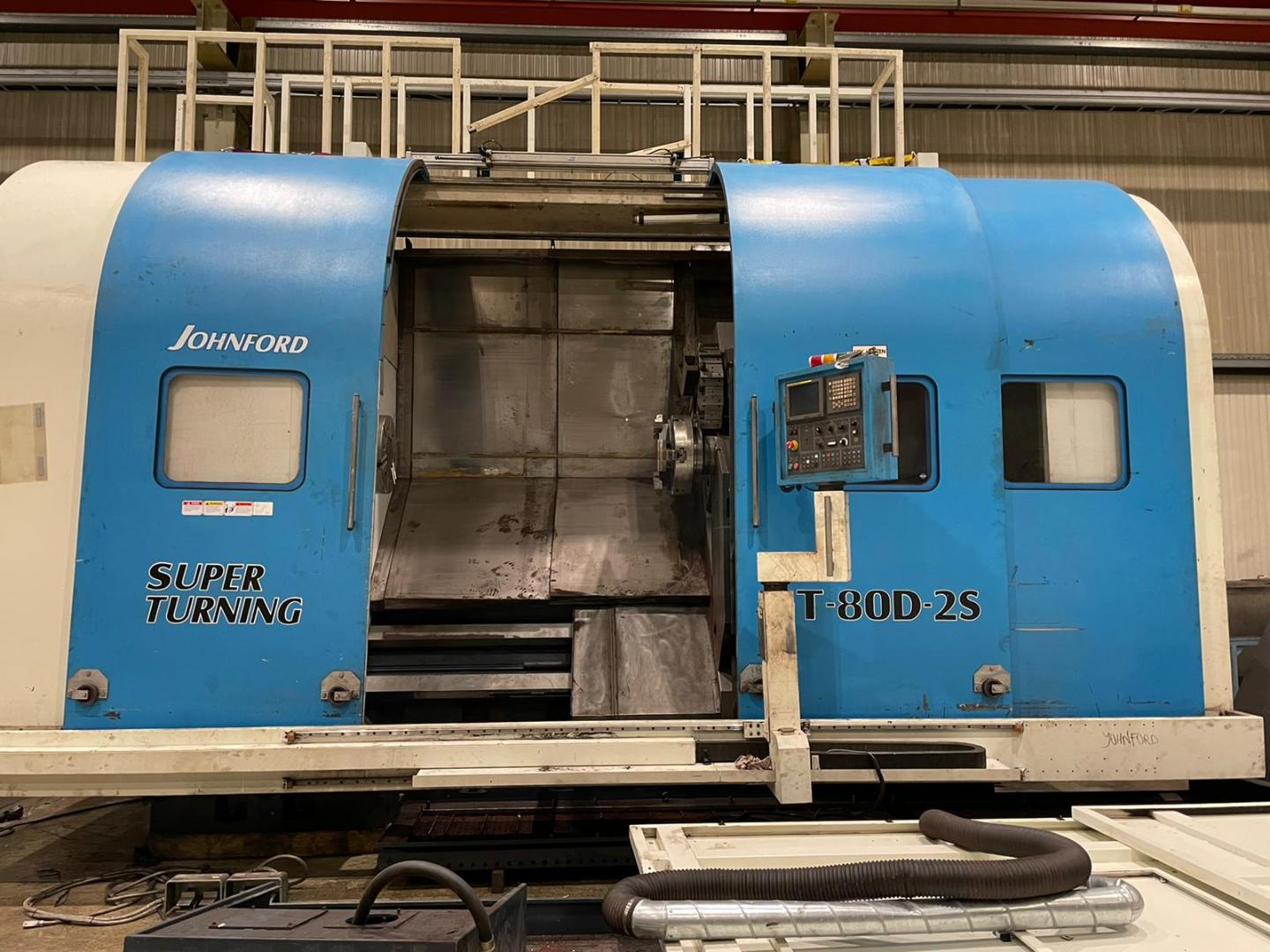

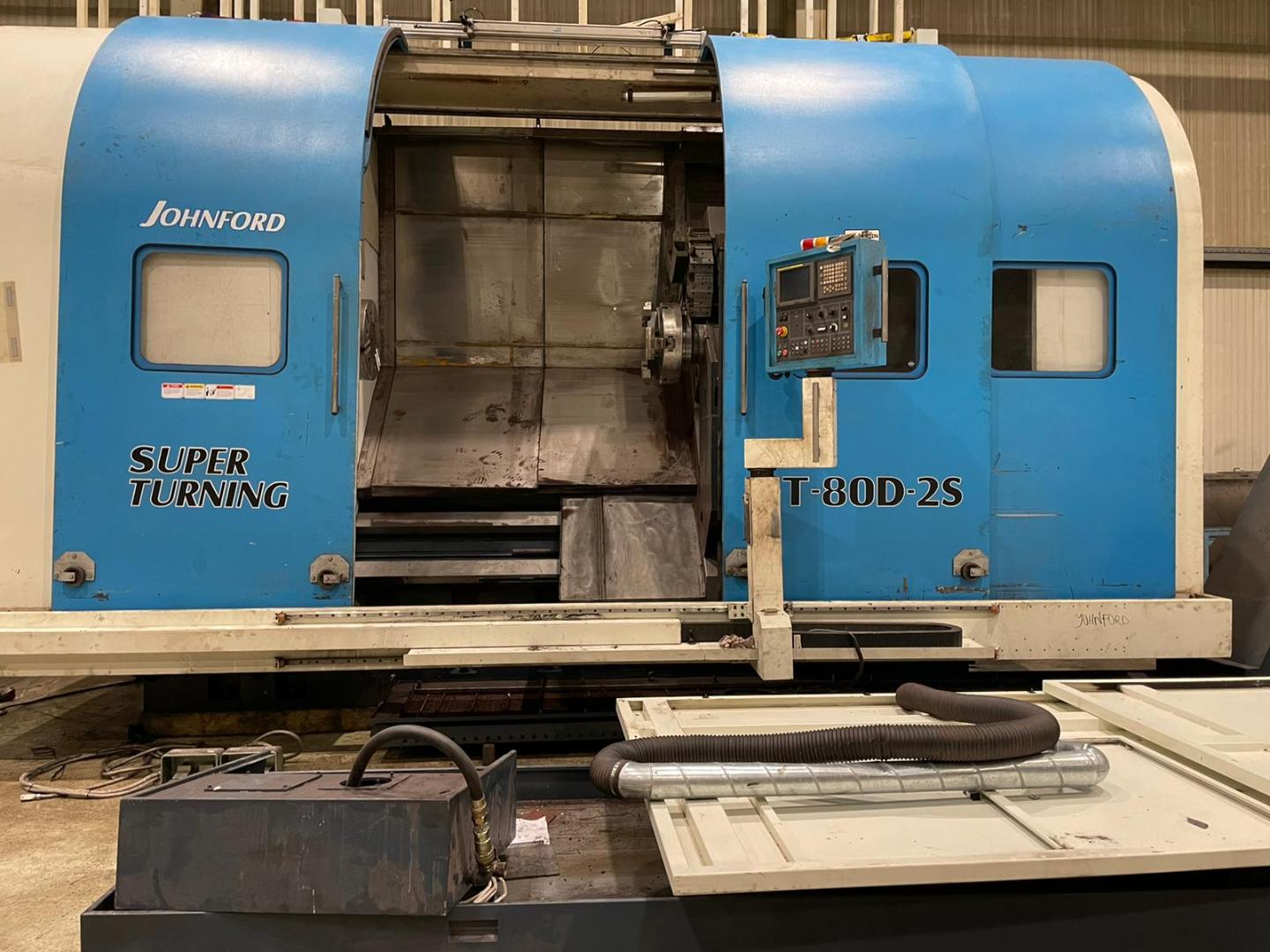

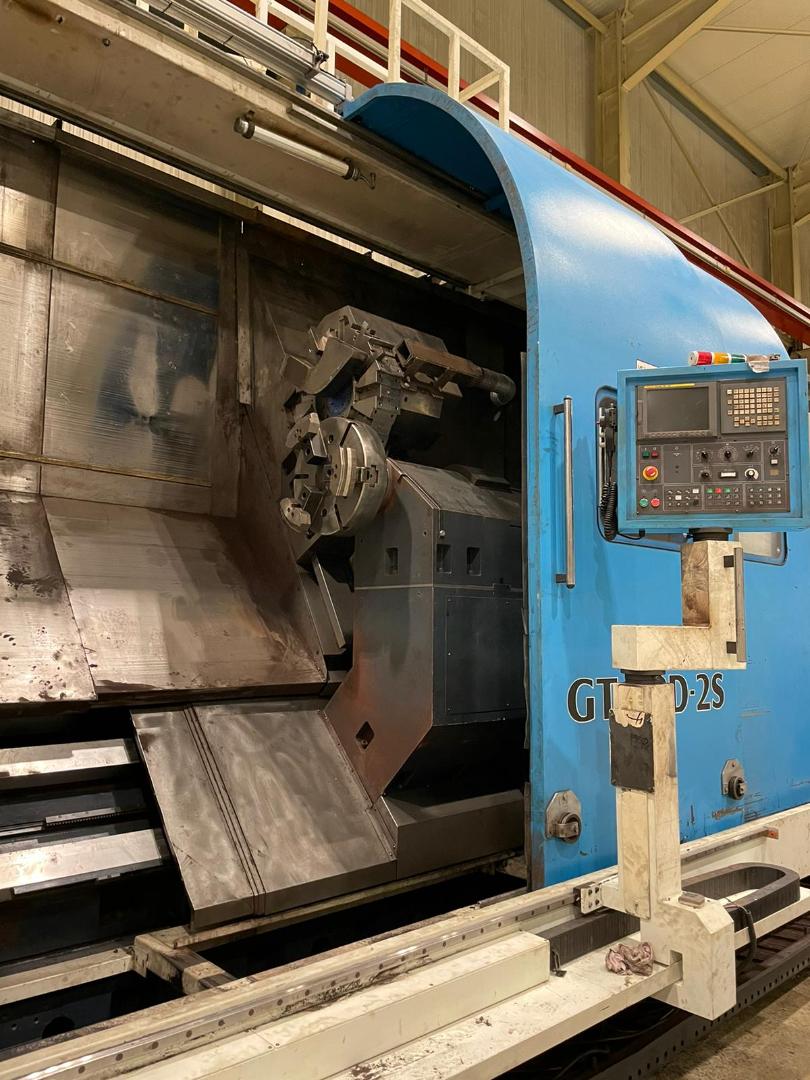

JOHNFORD CNC lathe
Type GT-80D-2S
Year 2009

CNC Control Fanuc Series 18i-TB
Country of origin Taiwan

Turret amount of positions 12
Bar passage 165 mm
Serial no. TDF9007
Turning Length 2000 mm
Turning Diameter Over Bed 1550 mm
Spindle Speeds 1000 RPM
Swing Diameter Over Bed Slide 1270 mm
Longitudinal Travel (Z-Axis) 2000 mm
Spindle Diameter In Front Bearing 240 mm
Spindle Bore 185 mm
Spindle power 37/30 kW
Cross Travel 685 mm
Rapid Travel Speed X-Axis 10 m / min
Rapid Travel Speed Z-Axis 12 m / min

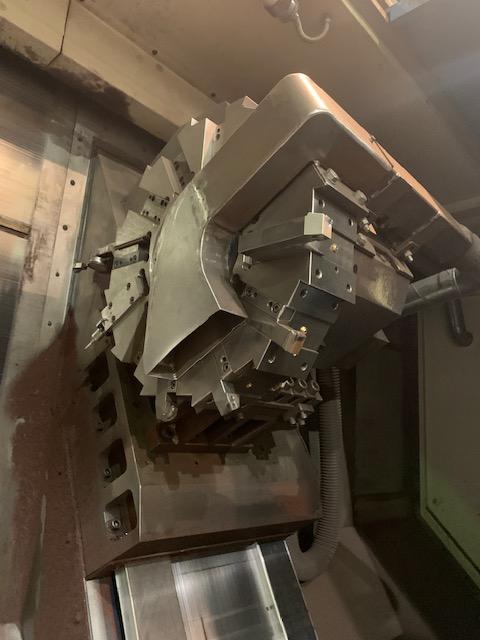

Turret head 12 positions
Machine length 9800 mm
Machine width 3695 mm
Machine Height 5292 mm
Weight of the Machine Ca. 40 t
