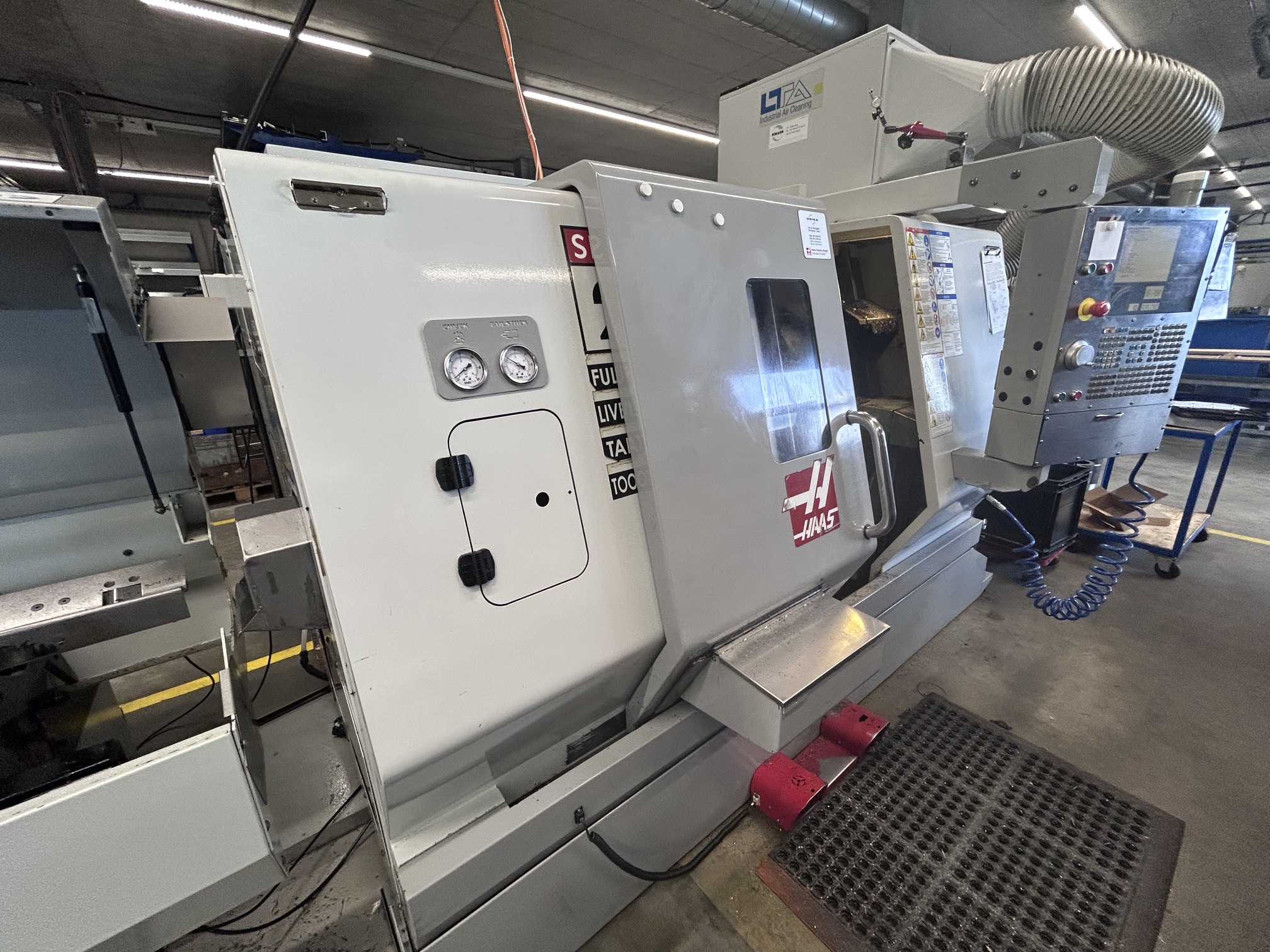

HAAS SL20 CNC lathe with C-axis

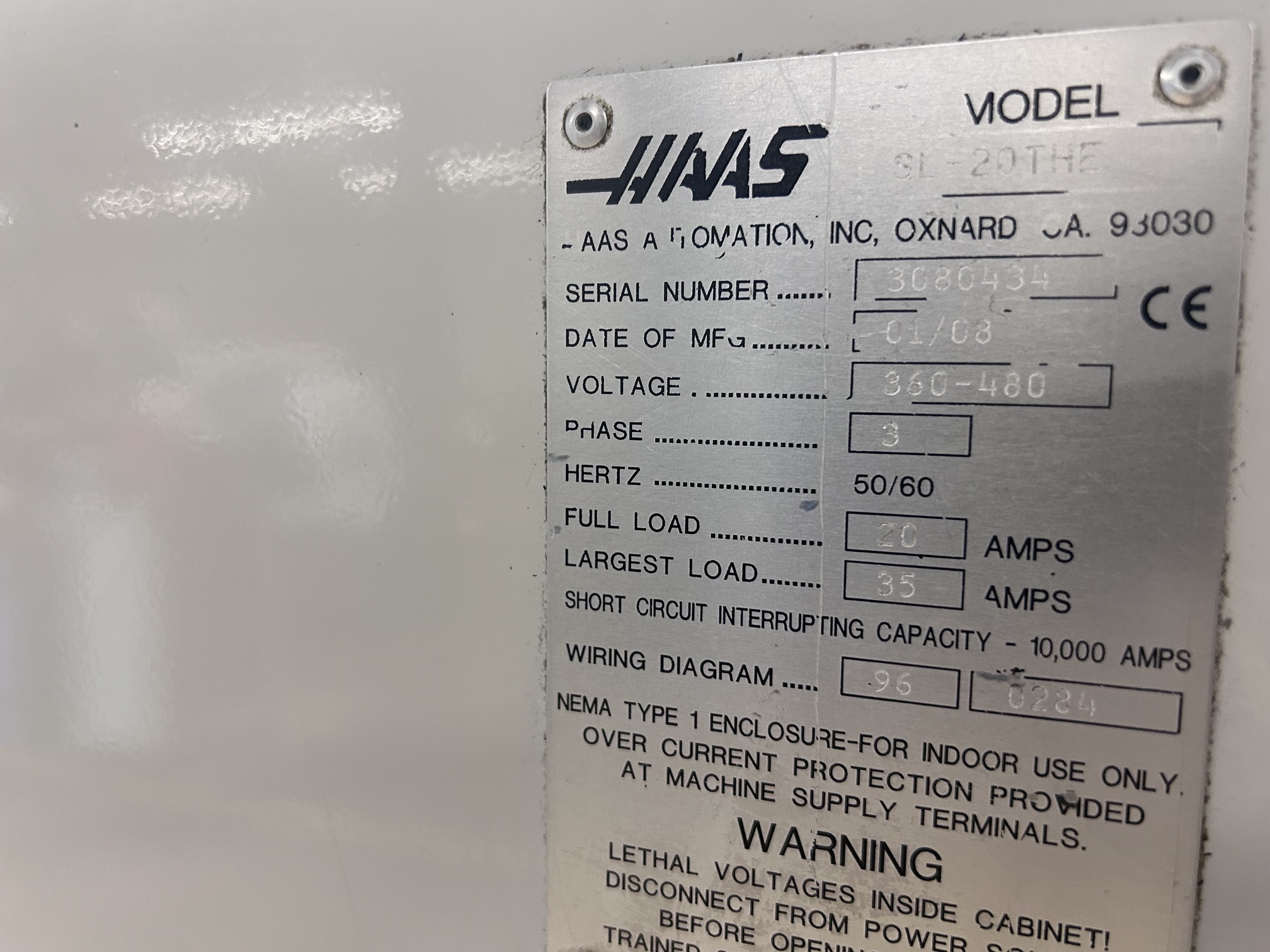

Year: 2008

Technical details:

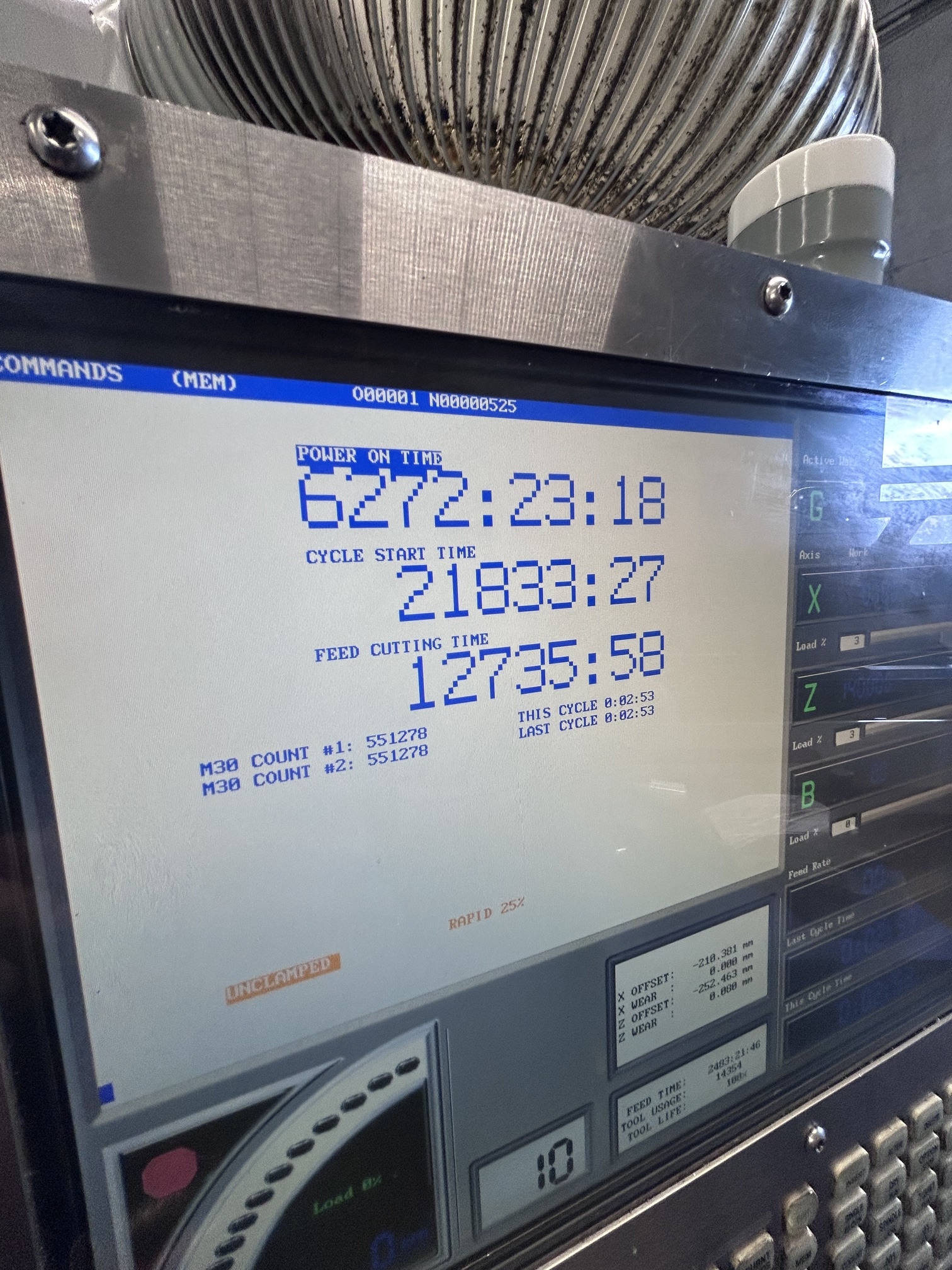

HAAS control
Maximum turning length (Z-axis): 610 mm
Maximum turning diameter over bed: 262 mm

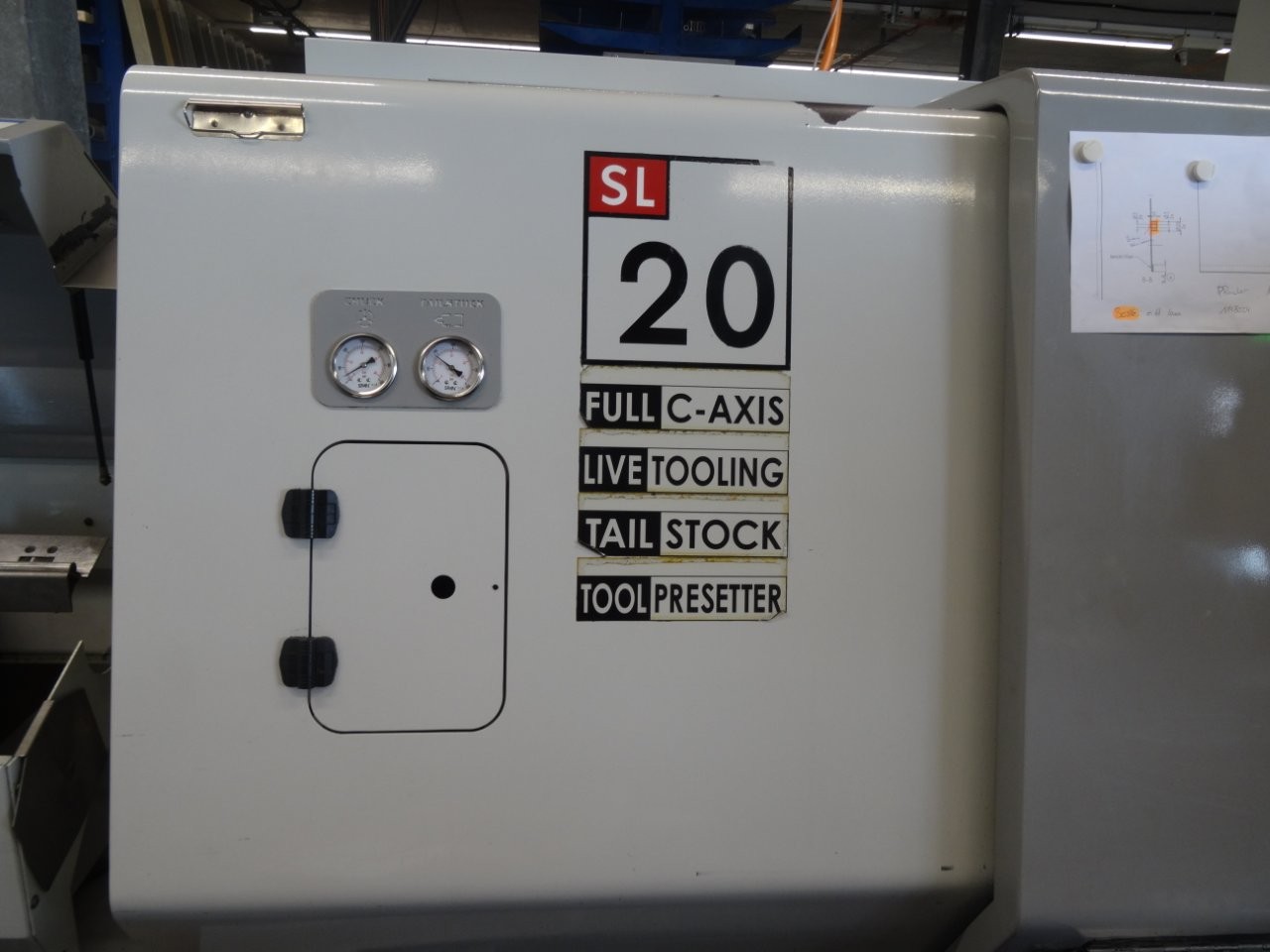

C-axis with driven tools
Spindle power: 14,7 kW Vector Drive
Spindle bore diameter: 51 mm
Max spindle speed: 4000 rpm

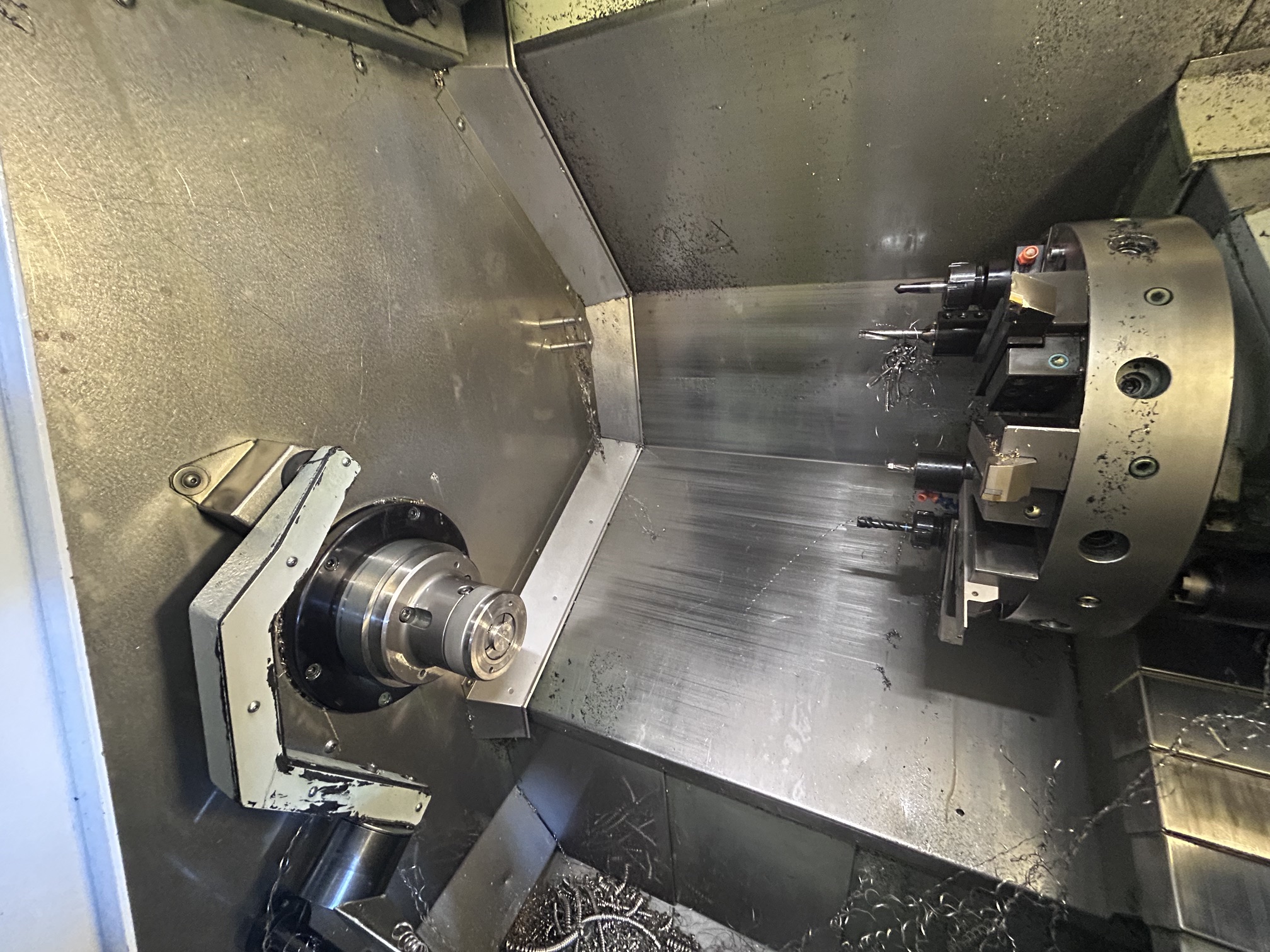

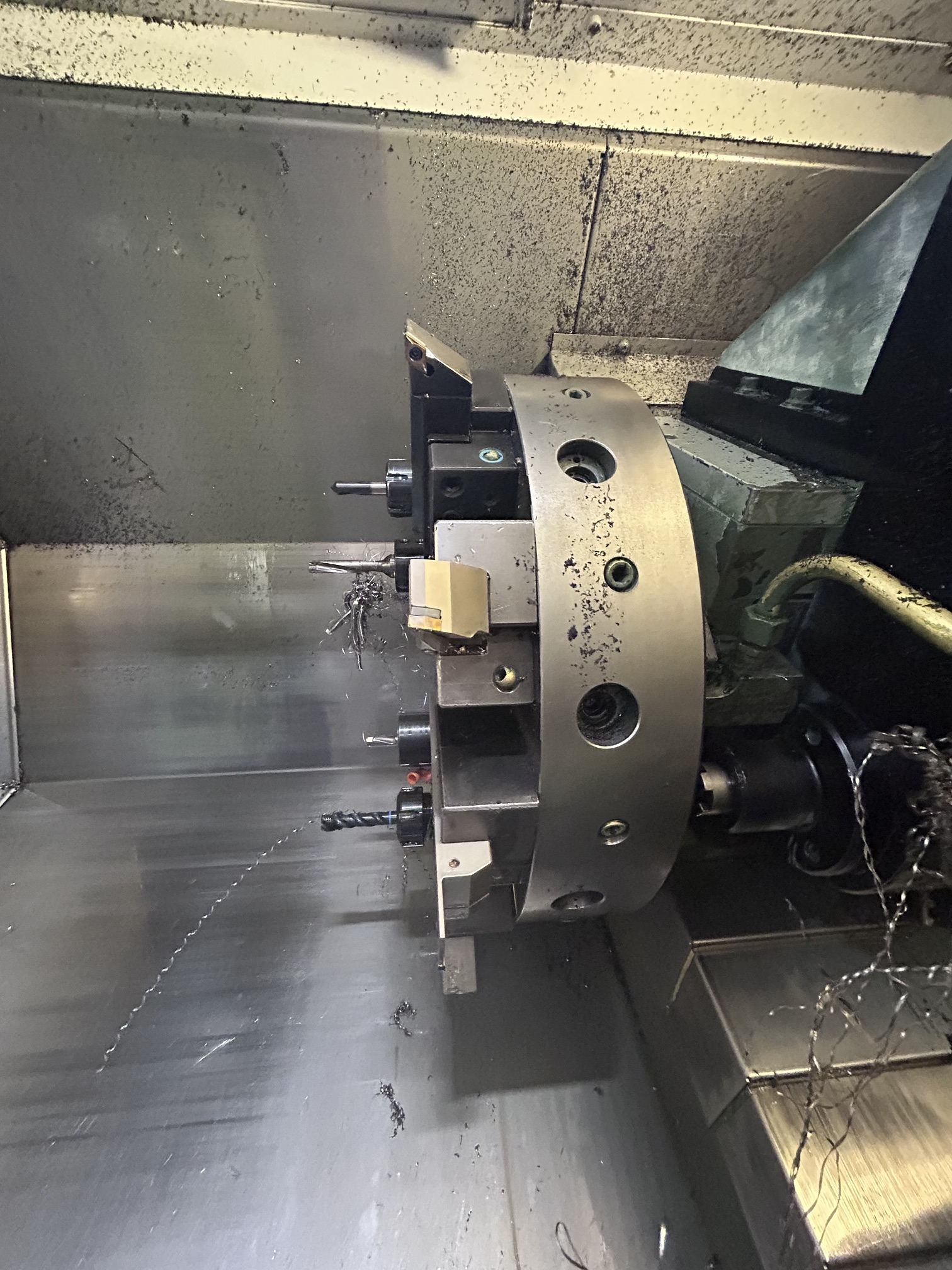

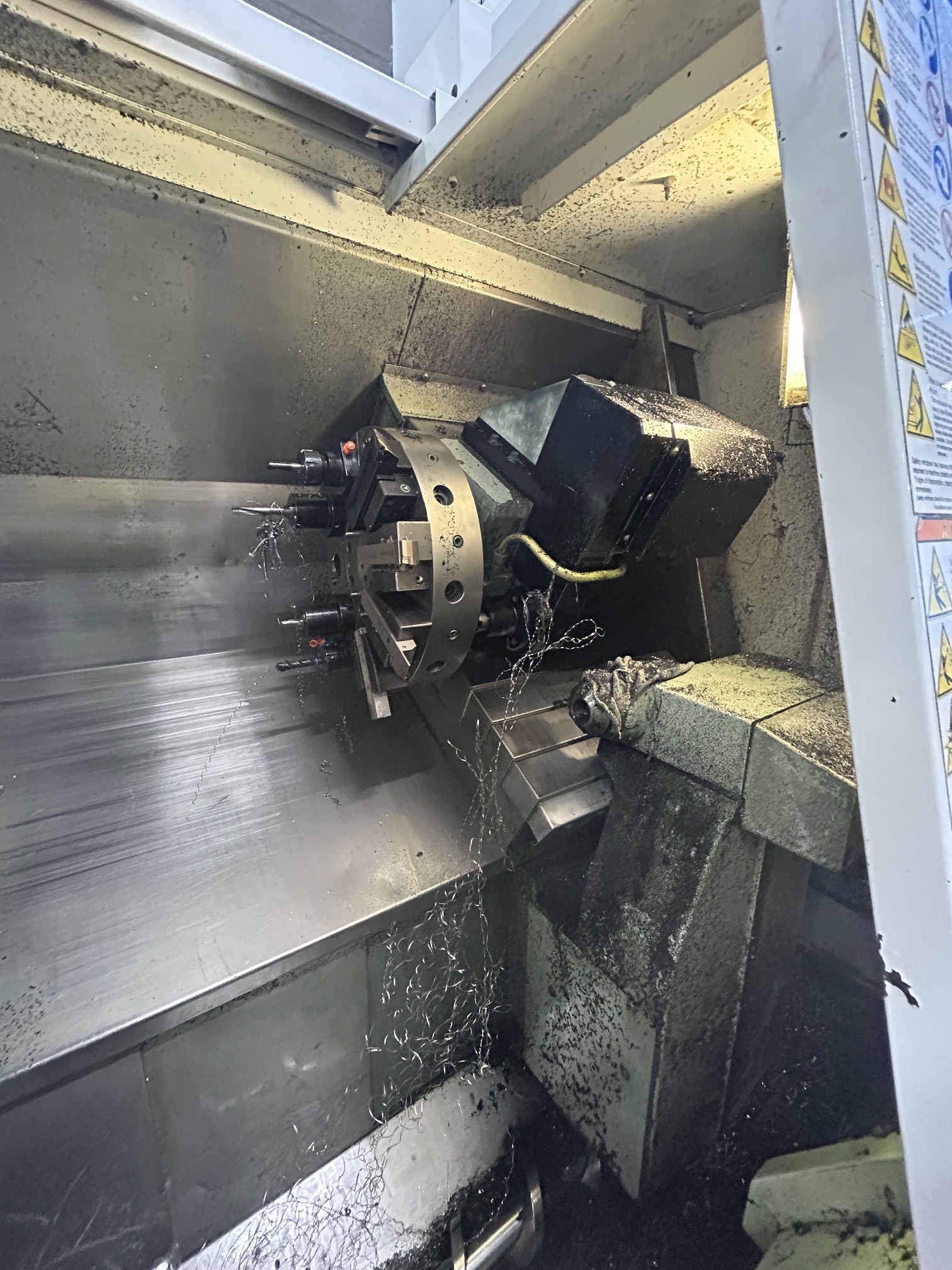

Number of turrets: 1
Number of tools in turret: 10
Spindle nose A2-6
Tailstock
Weight approx. 4800 kgs
Dimensions (L x W x H): 2600 x 1700 x 1800 mm

Accessories/options:
- C-axis and driven tools
- Static tool holders
- Driven tool holders

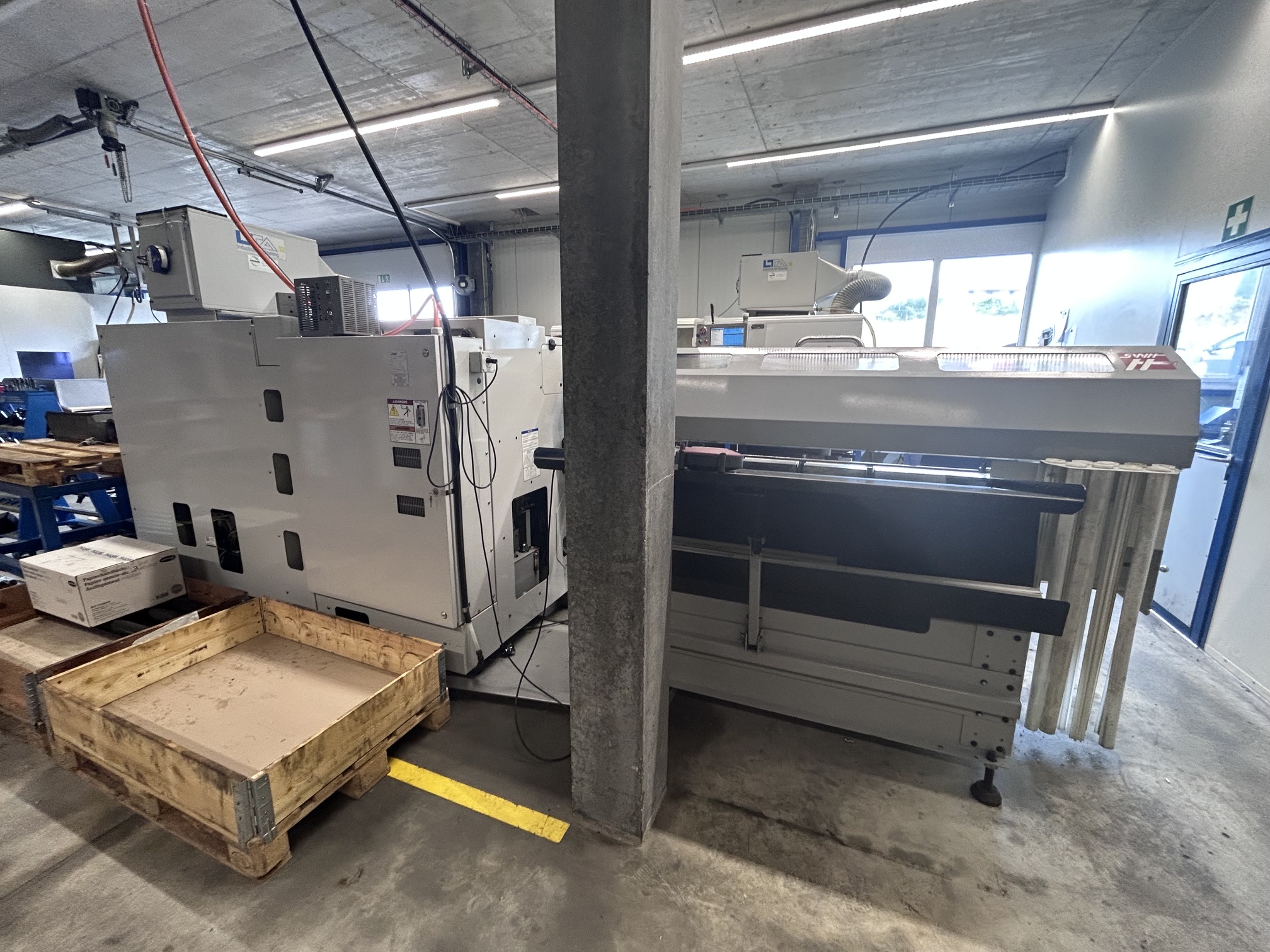

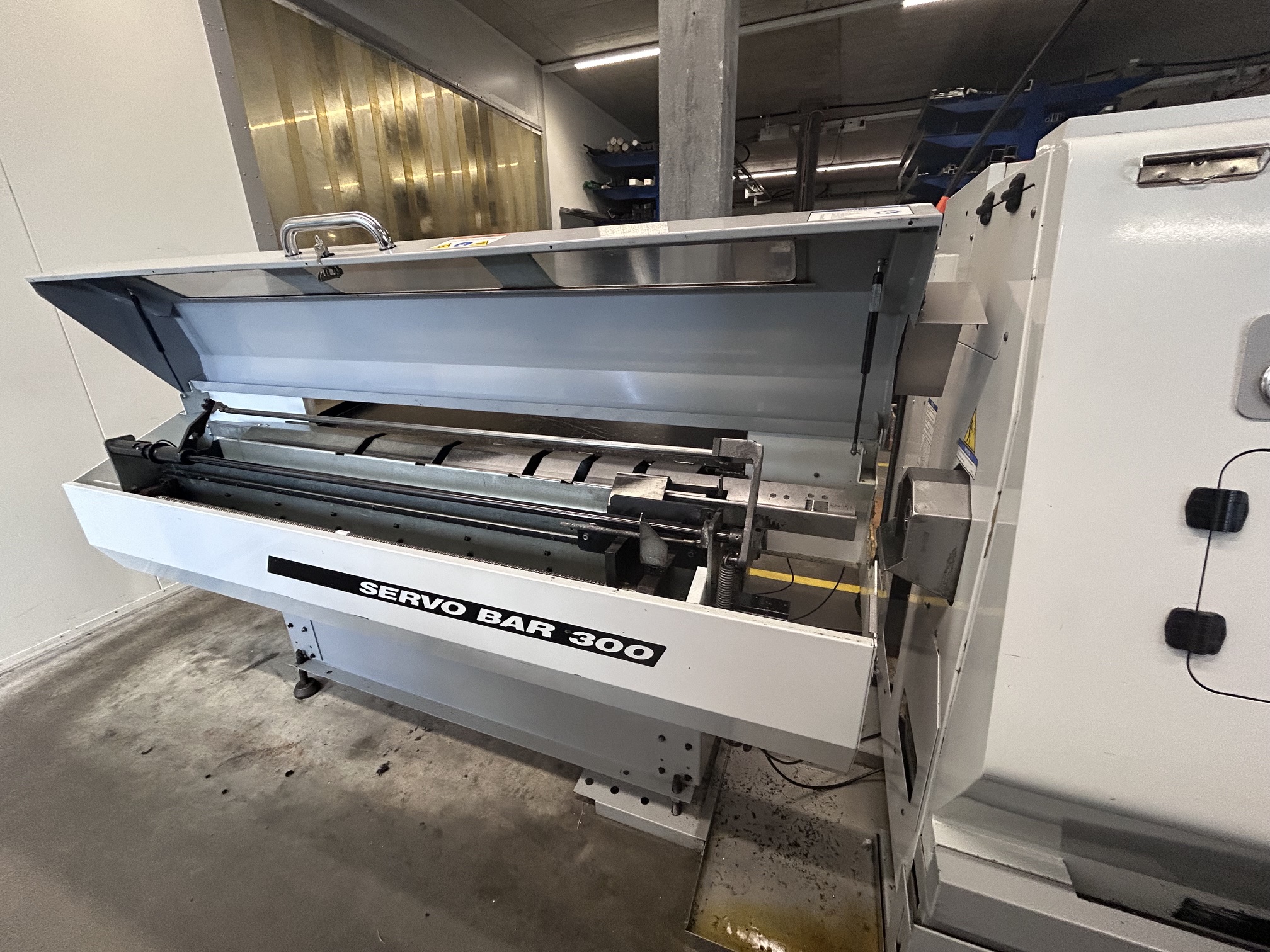

- Servo bar barfeeder

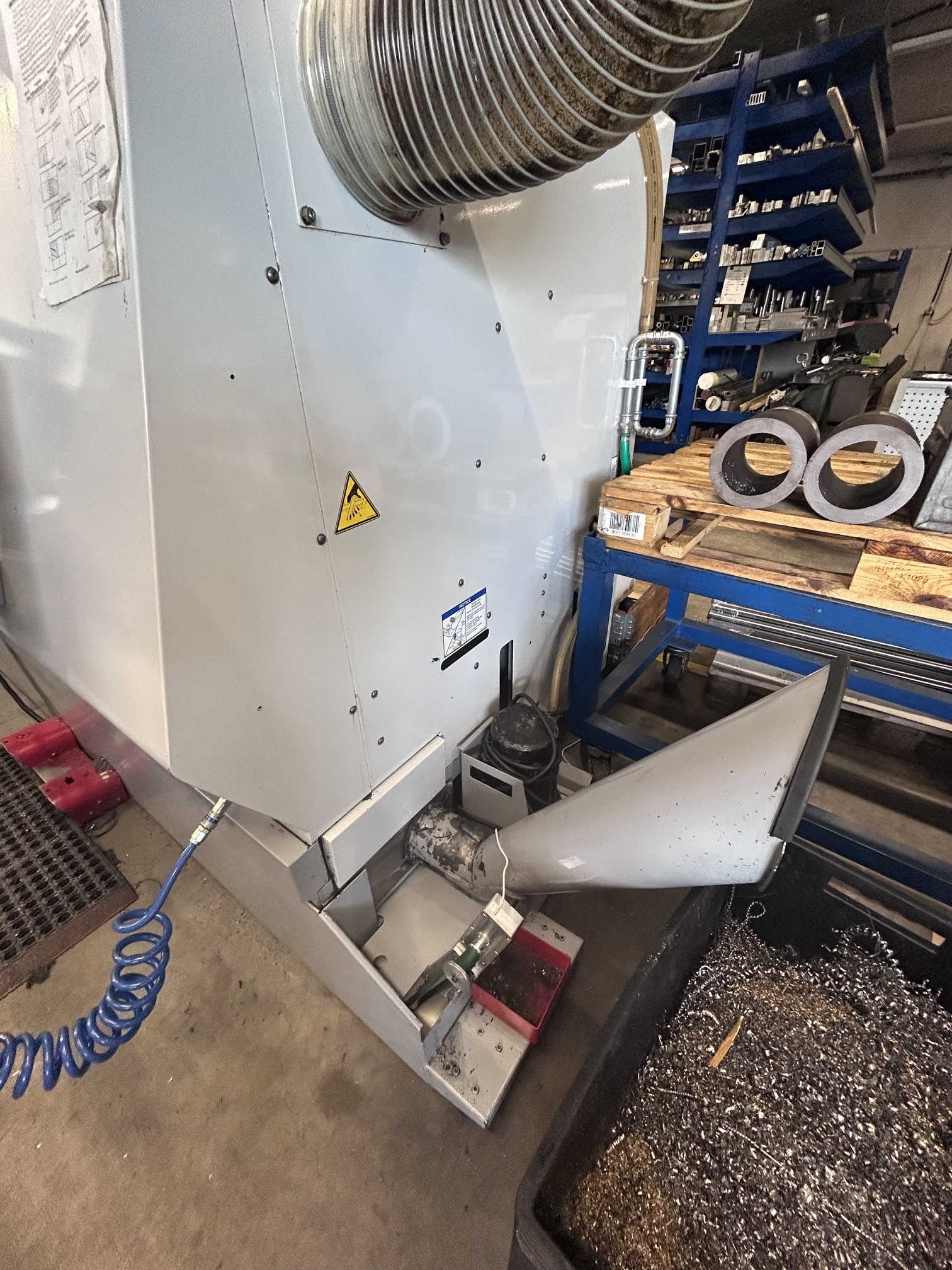

- Swarf auger
- Coolant system
- Tailstock
- Tool measuring arm
- Hydraulic 3-jaw chuck
- Collet type chuck
- Foot pedals

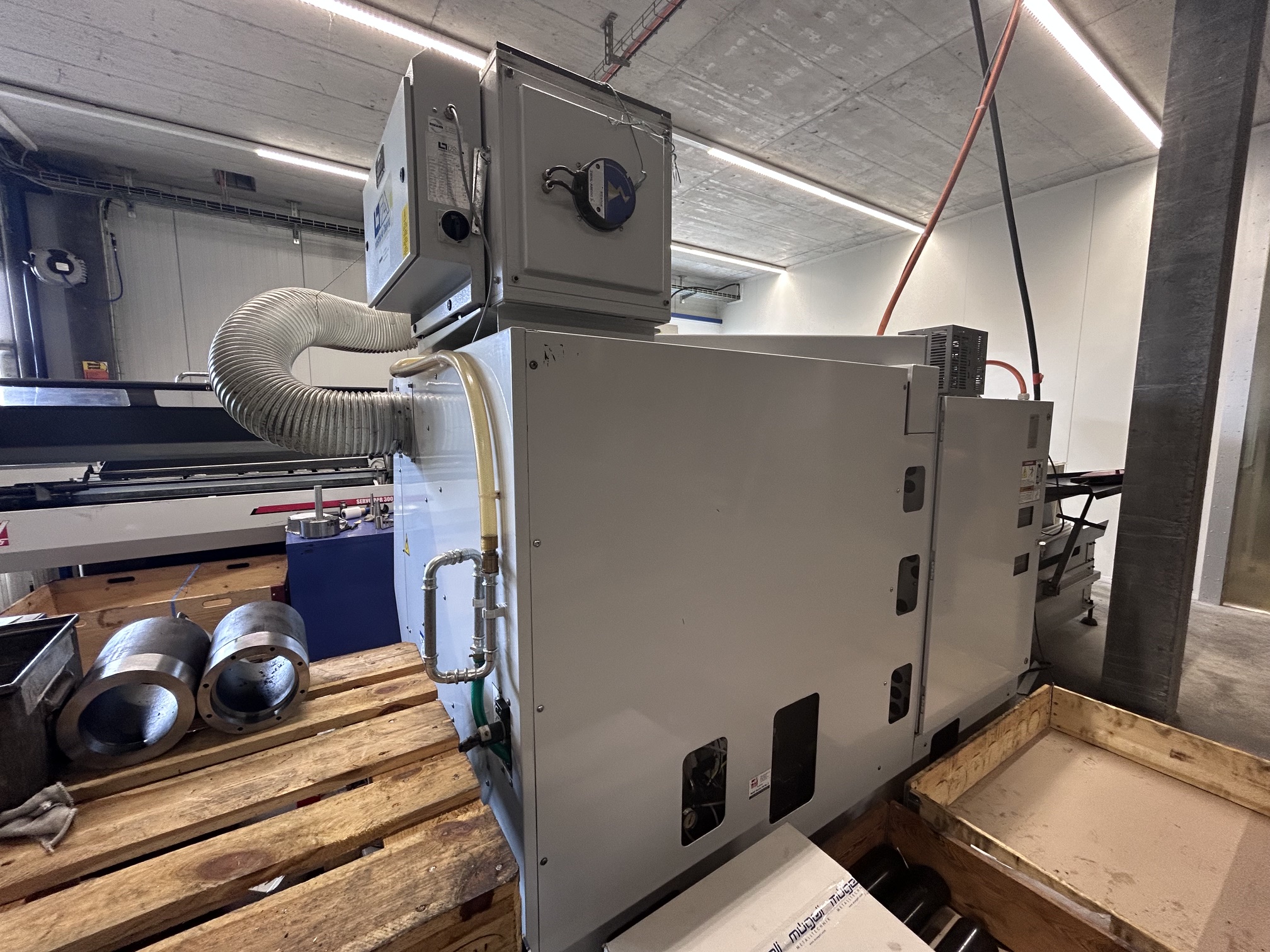

Dust extractor is not included.
