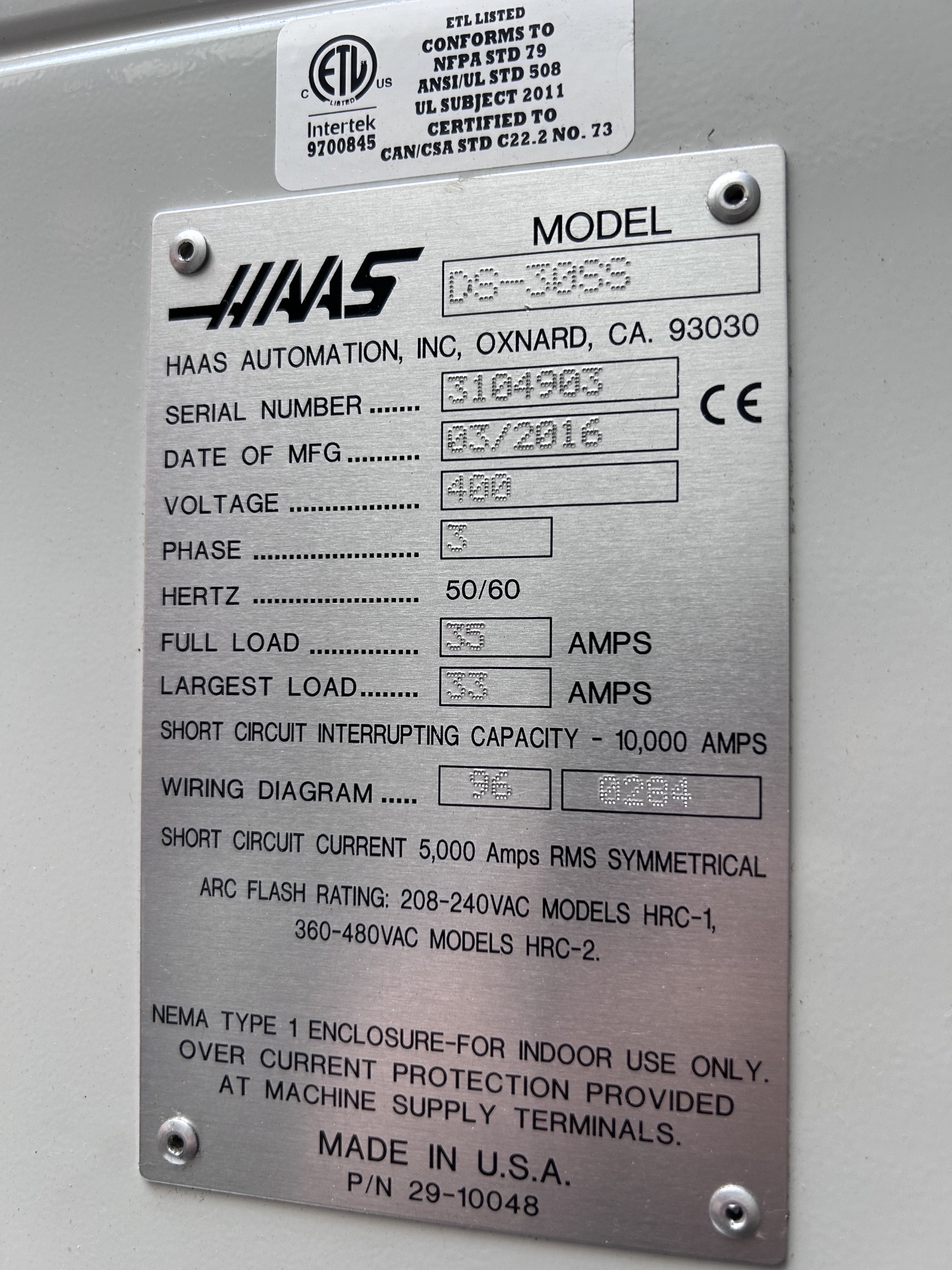

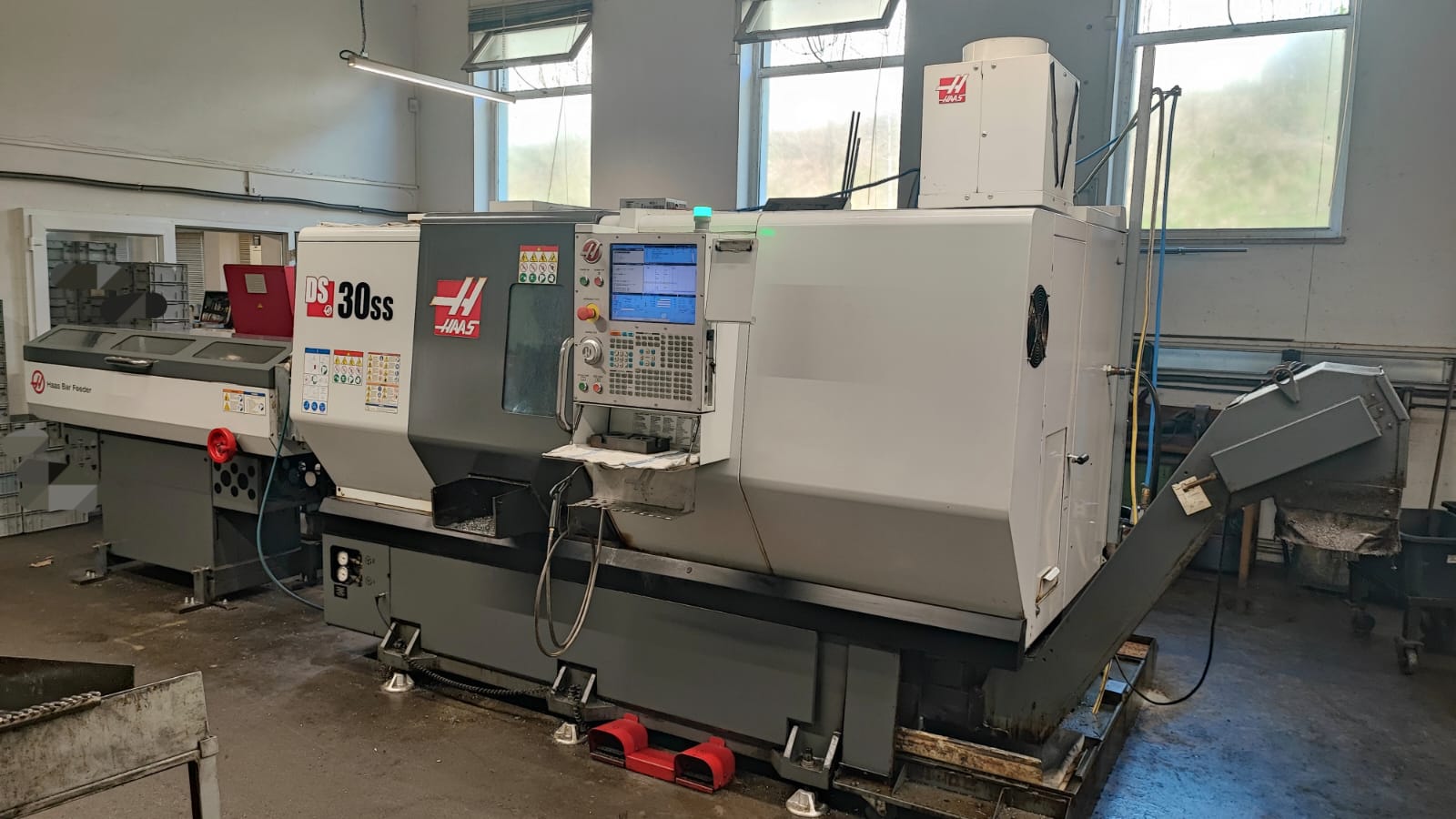

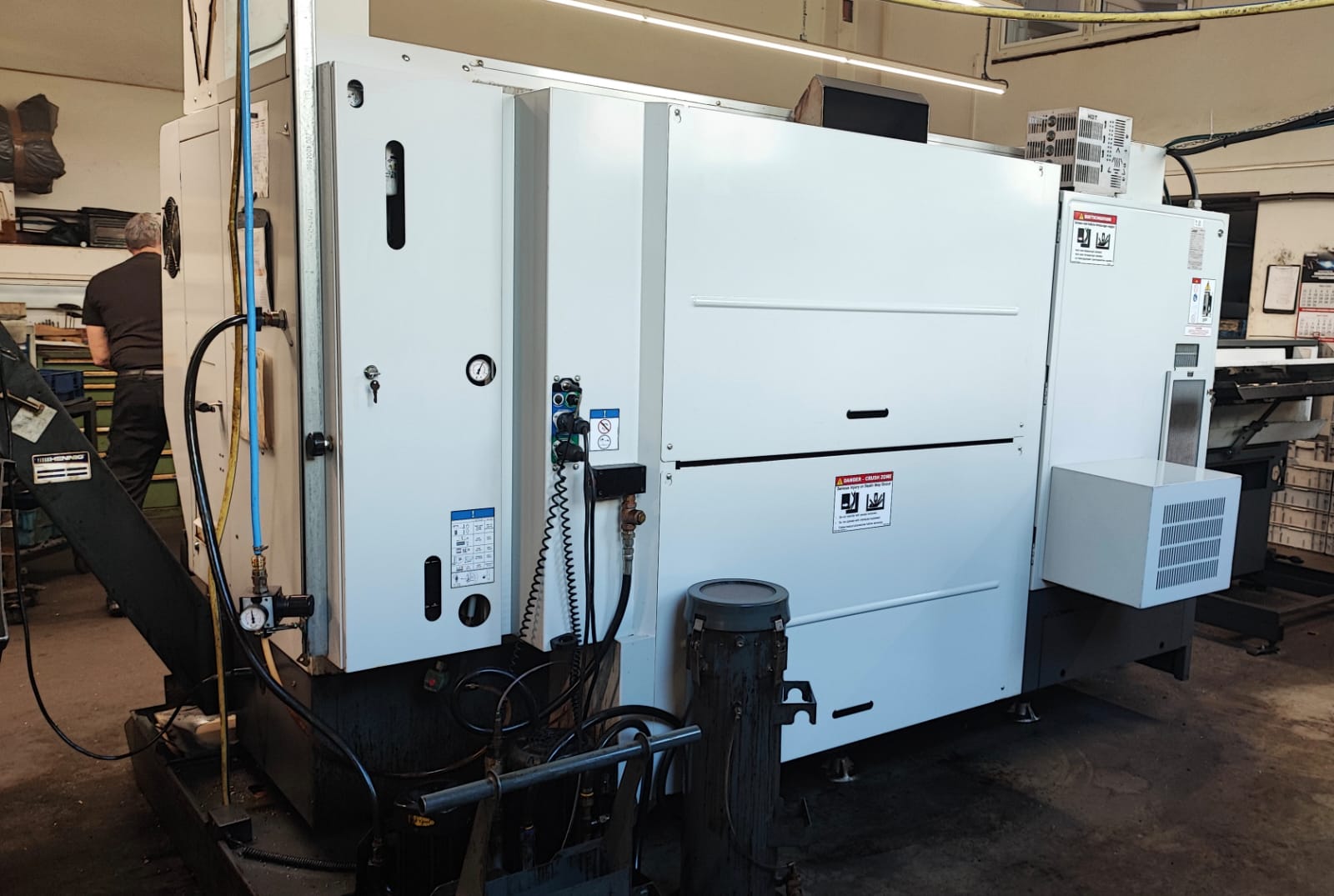

HAAS DS-30SS dual spindle cnc lathe
Year: 2016

Technical details:
Maximum Cutting Diameter: 406 mm
Maximum Cutting Length: 660 mm
Swing Diameter over Bed: 806 mm
Bar Capacity: 51 mm
Main spindle:
Max Rating: 30 hp \ 22.4 kW
Max Speed: 4800 rpm
Spindle Nose: A2-6
Chuck Size: 210 mm
Max Torque: 373 Nm on 600 rpm

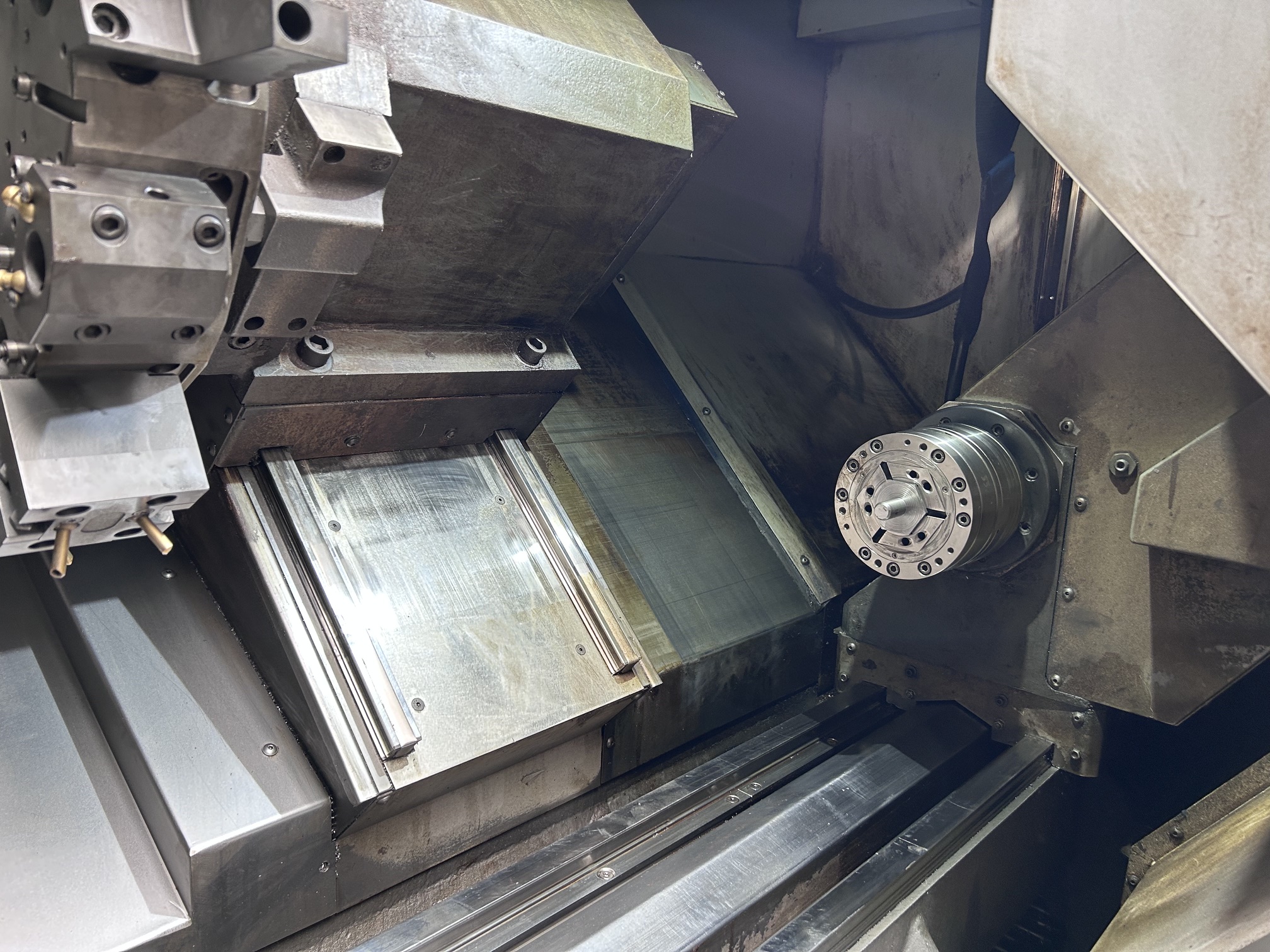

Sub-spindle:
Max Rating: 20 hp 14.9kW
Max Speed: 4800 rpm
Spindle Nose: A2-5
Chuck Size: 210 mm
Max Torque: 149 Nm on 700 rpm
X-Axis Travel: 318 mm
Z-Axis Travel: 660 mm
Rapids on X: 24 m/min
Rapids on Z: 30 m/min

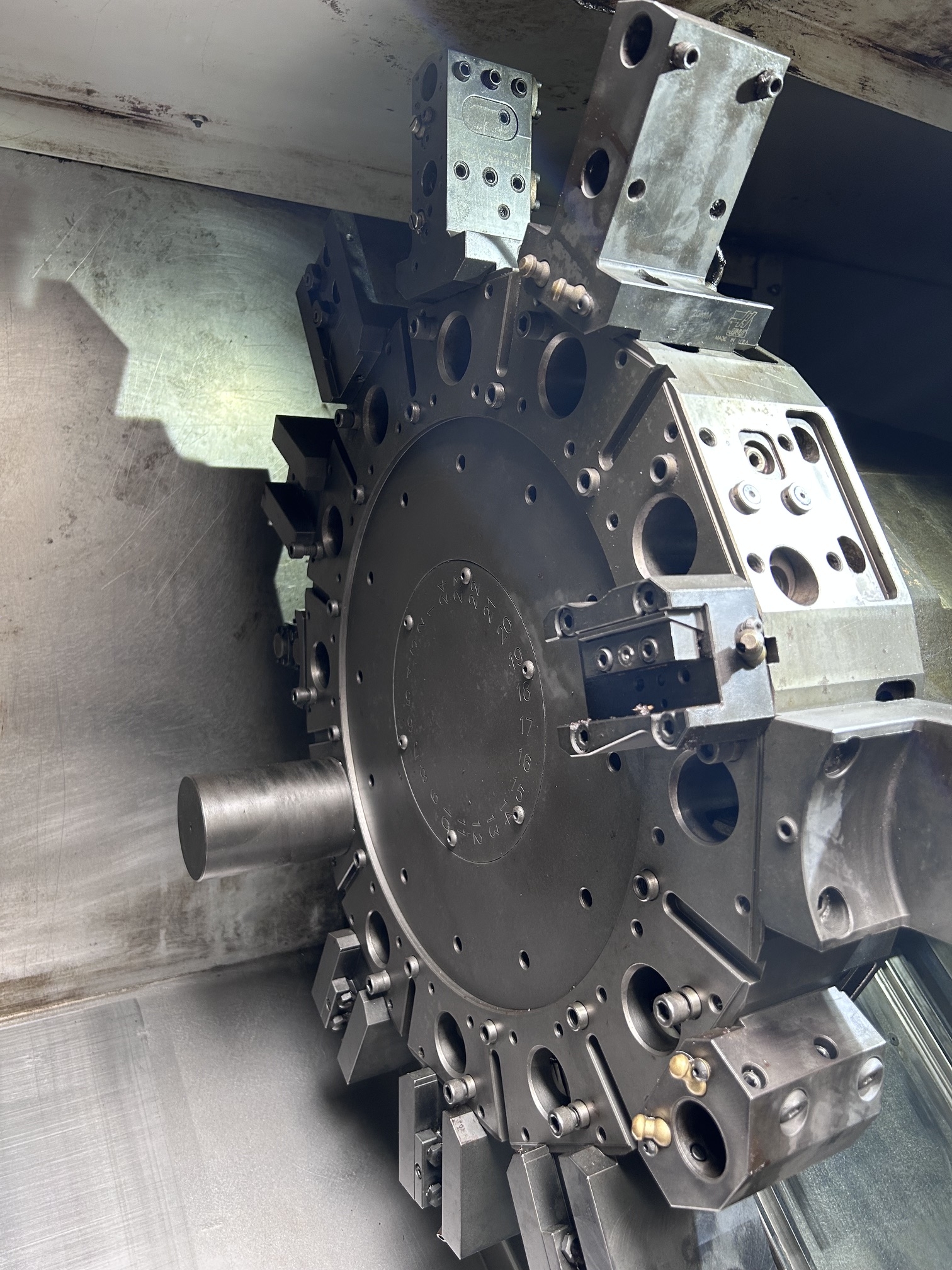

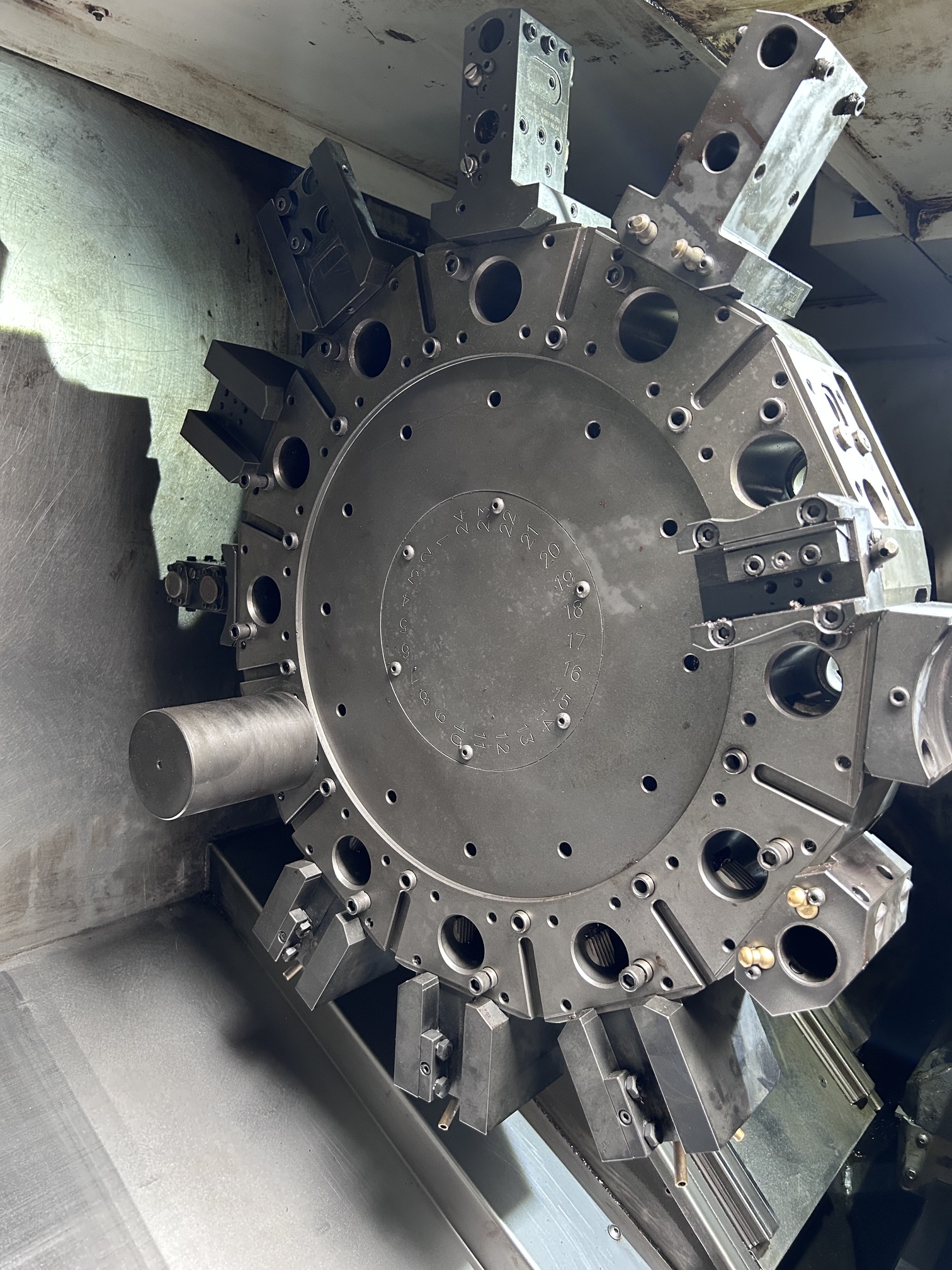

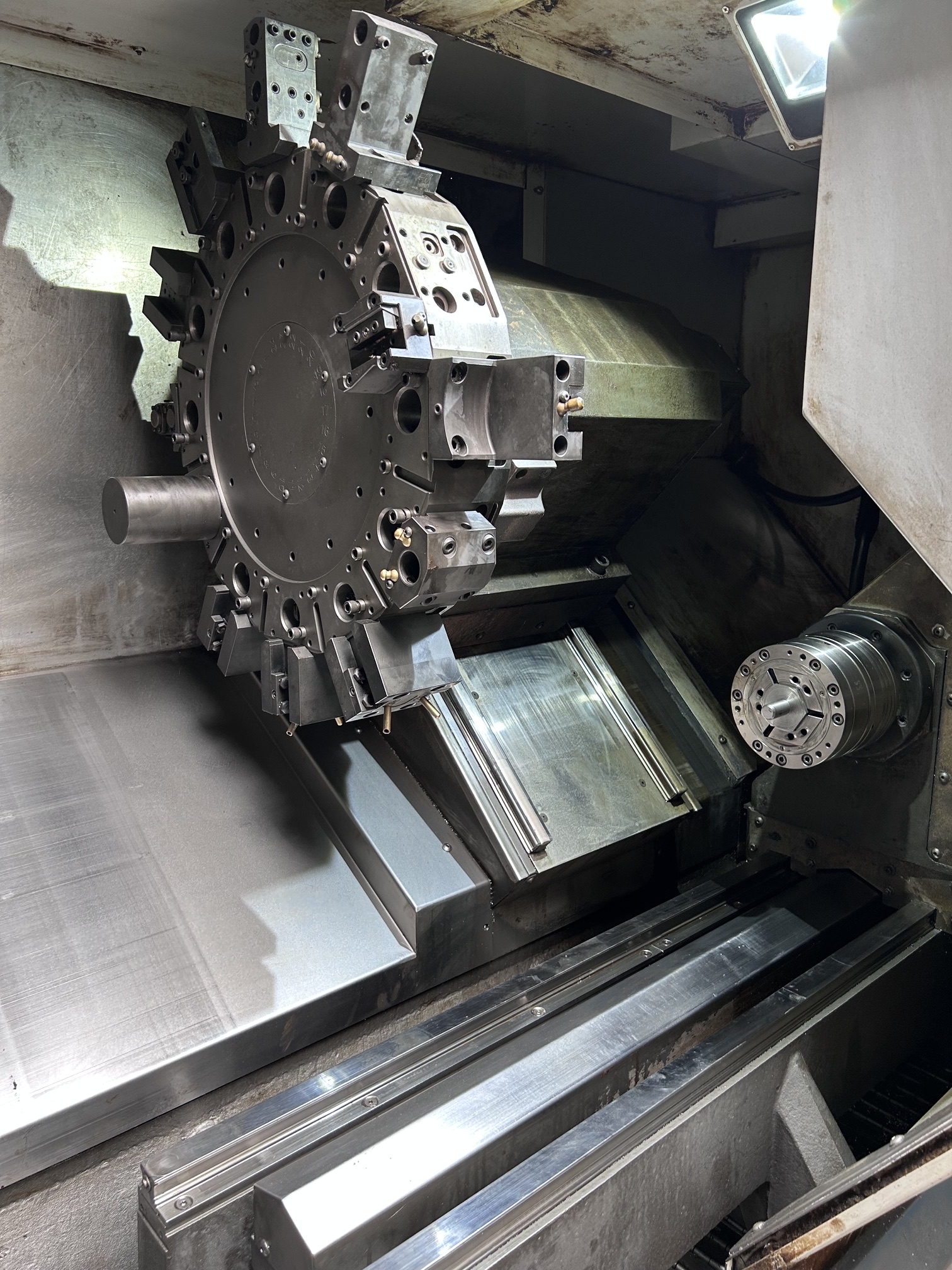

Turret Type: 24-station hybrid (12 VDI / 12 BOT)

Accessories/options:

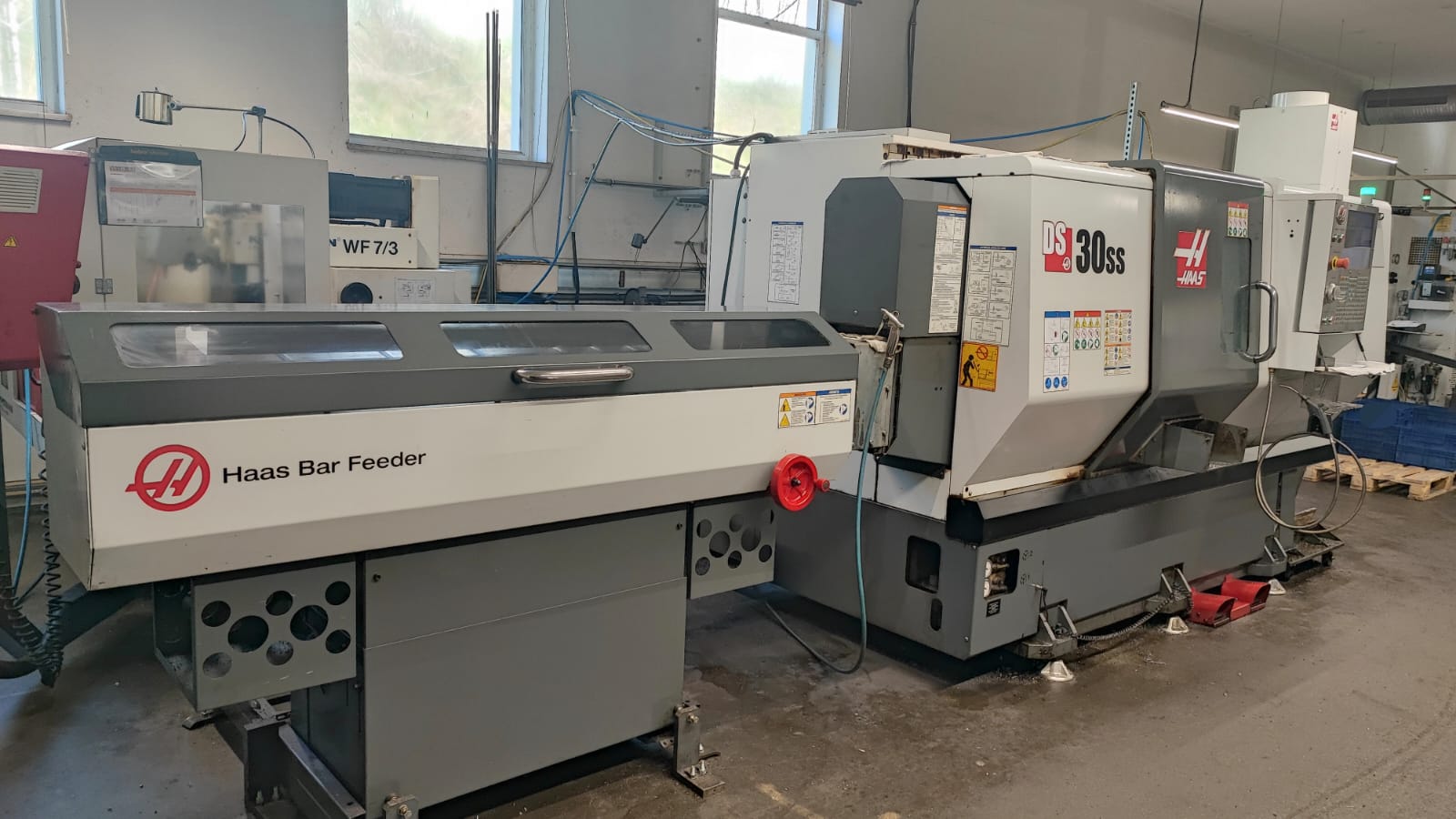

- Haas bar feeder
- Swarf conveyor

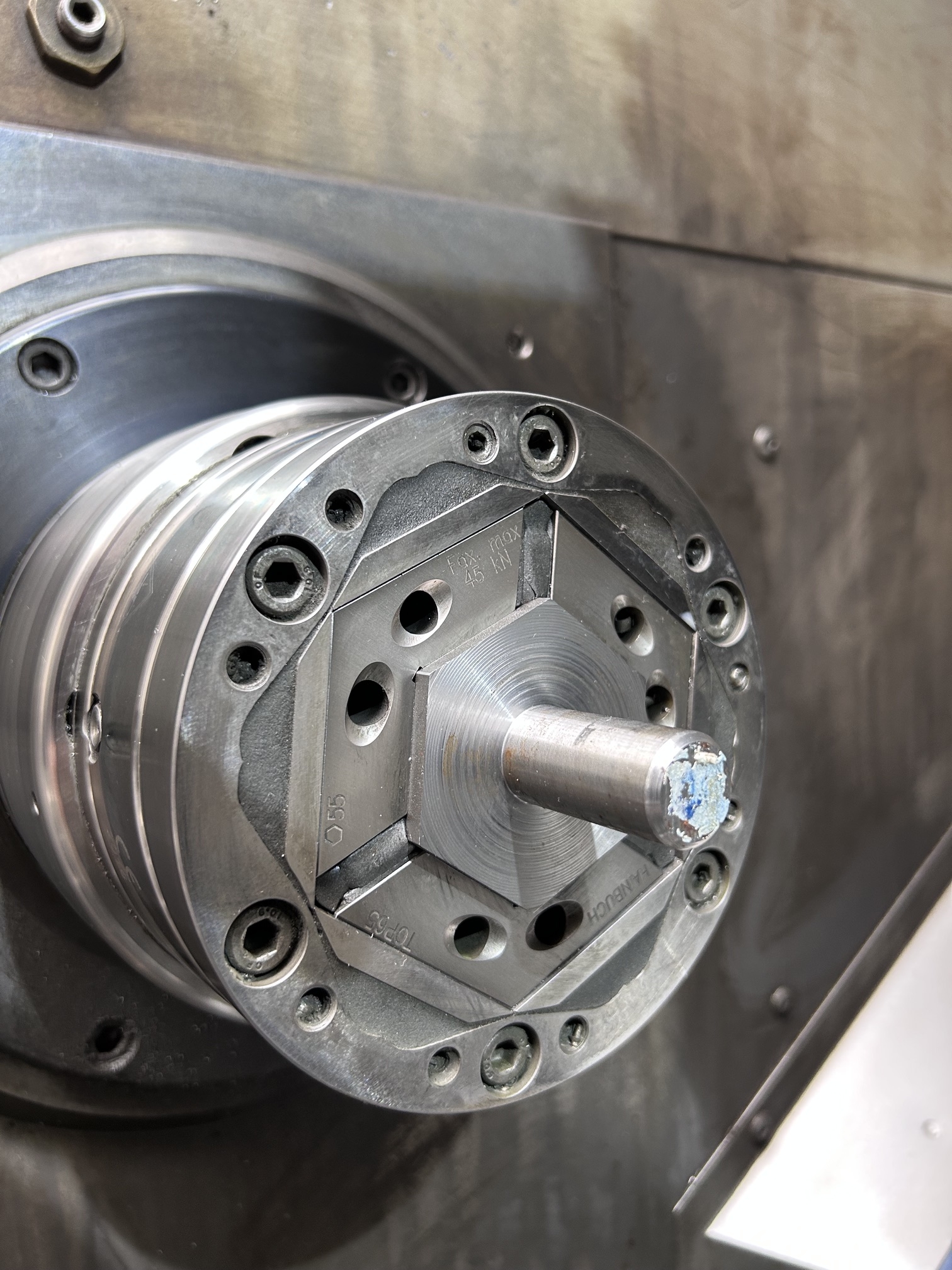

- Hainbuch collet system on both spindles
- Tool holders
- Renishaw tool measuring arm
- High pressure coolant system with filtration unit
- Parts cather
- Documentations

Under power in our warehouse.
